Datasheet
DC Brushless Motor Drivers for Fans
Standard Single-phase Full wave
Fan Motor Driver
BD69830FV
Description
The BD69830FV is a 24V single-coil brushless DC FAN motor driver. The device incorporates high efficiency DMOS
H-bridge driver, regulated voltage output for hall element, and rotation speed is controlled by input PWM signal.
Features
Power DMOS FET integrated
Direct PWM speed control
Low duty start up function
Quick start function
Constant voltage output for hall element
Lock protection and auto restart
(without external capacitor)
Rotating speed pulse signal (FG) output
and ALARM signal output selectable
Package
SSOP-B14
W(Typ) x D(Typ) x H(Max)
5.00mm x 6.40mm x 1.35mm
Applications
BD player, Projector, STB etc,.
Office equipment, Copier, FAX, Laser Printer, etc,.
SSOP-B14
Absolute Maximum Ratings
Parameter
Supply Voltage
Power Dissipation
Operating Temperature
Storage Temperature
Junction Temperature
Output Voltage
Output Current
Hall Input Voltage
PWM Input Voltage
SEL Input Voltage
Signal Output Voltage
Signal Output Current
HB Current Ability
Symbol
V
CC
Pd
Topr
Tstg
Tjmax
V
OMAX
I
OMAX
V
H
V
PWM
V
SEL
V
SIG
I
SIG
I
HB
Rating
30
0.87
(Note 1)
-40 to +105
-55 to +150
150
30
900
(Note 2)
7
7
7
30
10
10
Unit
V
W
°C
°C
°C
V
mA
V
V
V
V
mA
mA
(Note 1) Reduce by 7.0mW/℃ over 25℃. (On 70.0mm×70.0mm×1.6mm glass epoxy board)
(Note 2) This value is not to exceed Pd.
Caution:
Operating the IC over the absolute maximum ratings may damage the IC. The damage can either be a short circuit between pins or an open circuit
between pins and the internal circuitry. Therefore, it is important to consider circuit protection measures, such as adding a fuse, in case the IC is operated
over the absolute maximum ratings.
○Product
structure：Silicon monolithic integrated circuit
.
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111・14・001
○This
product has no designed protection against radioactive rays
1/17
TSZ02201-0H1H0B101050-1-2
5.Jun.2014 Rev.001
BD69830FV
Datasheet
Recommended Operating Conditions
Parameter
Supply Voltage
Hall Input Voltage
PWM Input Frequency
Symbol
V
CC
V
H
f
PWM
Min
6
0
2
Typ
24
-
-
Max
28
2
50
Unit
V
V
kHz
Electrical Characteristics
(Unless otherwise specified Ta=25°C, V
CC
=24V)
Parameter
Circuit Current
Hall Bias Voltage
Hall Input Hysteresis
Output Voltage
PWM Input H Level
PWM Input L Level
PWM Input Current
SEL Input L Level
SIG L Voltage
SIG Leak Current
Lock Detection ON Time
Lock Detection OFF Time
Symbol
I
CC
V
HB
V
HYS
V
O
V
PWMH
V
PWML
I
PWMH
I
PWML
V
SELL
V
SIGL
I
SIGL
t
ON
t
OFF
Min
0.4
1.1
±5
0.3
2.5
-0.3
-5
-36
-0.3
-
0
0.28
8.4
Typ
1.2
1.2
±10
0.6
-
-
0
-27
-
0.2
-
0.40
12
Max
3.0
1.3
±15
0.9
5.5
+0.8
+5
-18
+0.8
0.4
5
0.52
15.6
Unit
mA
V
mV
V
V
V
µA
µA
V
V
µA
s
s
V
PWM
=5V
V
PWM
=0V
FG:SEL pin open
AL:SEL pin GND short
I
SIG
=5mA
V
SIG
=30V
Io=200mA
Upper and Lower total
I
HB
=-3mA
Conditions
Characteristics
Figure 1
Figure 2, 3
Figure 4
Figure 5 to 8
-
-
-
-
-
Figure 9, 10
-
Figure 11
Figure 12
Truth Table
H+
H
L
H
L
H-
L
H
L
H
PWM
H
H
L
L
OUT1
H
L
OFF
L
OUT2
L
H
L
OFF
FG
L（Output Tr : ON）
H（Output Tr : OFF）
L（Output Tr : ON）
H（Output Tr : OFF）
AL signal normal operation : L(output Tr is ON)
Lock detection : H(output Tr is OFF)
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
2/17
TSZ02201-0H1H0B101050-1-2
5.Jun.2014 Rev.001
BD69830FV
Reference data
Datasheet
5
1.4
4
3
Hall Bias Voltage, V
HB
[V]
Circuit Current, Icc [mA]
1.3
1.2
105°C
25°C
-40°C
2
105°C
25°C
-40°C
1.1
1
Operating Range
0
0
5
10
15
20
Supply Voltage, Vcc [V]
25
30
Operating Range
1.0
0
5
10
15
20
Supply Voltage, Vcc [V]
25
30
Figure 1. Circuit Current
Figure 2. Hall Bias Voltage
1.4
30
105°C
25°C
-40°C
Hall Bais Voltage, V
HB
[V]
1.3
Hall Input Hysteresis, V
HYS
[mV]
20
105°C
25°C
-40°C
1.2
10
Operating Range
0
-10
-40°C
25°C
105°C
1.1
-20
1.0
0
2
4
6
8
Output Current, I
HB
[mA]
10
-30
0
5
10
15
20
Supply Voltage, Vcc [V]
25
30
Figure 3. Hall Bias Voltage Current Ability (Vcc=24V)
Figure 4. Hall Input Hysteresis
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
3/17
TSZ02201-0H1H0B101050-1-2
5.Jun.2014 Rev.001
BD69830FV
Reference data
Datasheet
2.4
2.4
2.0
2.0
105°C
6V
Output H Voltage [V]
1.6
Output H Voltage [V]
1.6
1.2
24V
29V
25°C
1.2
-40°C
0.8
0.8
0.4
0.4
0.0
0.0
0.2
0.4
0.6
Output Current, Io [A]
0.8
1.0
0.0
0.0
0.2
0.4
0.6
Output Current, Io [A]
0.8
1.0

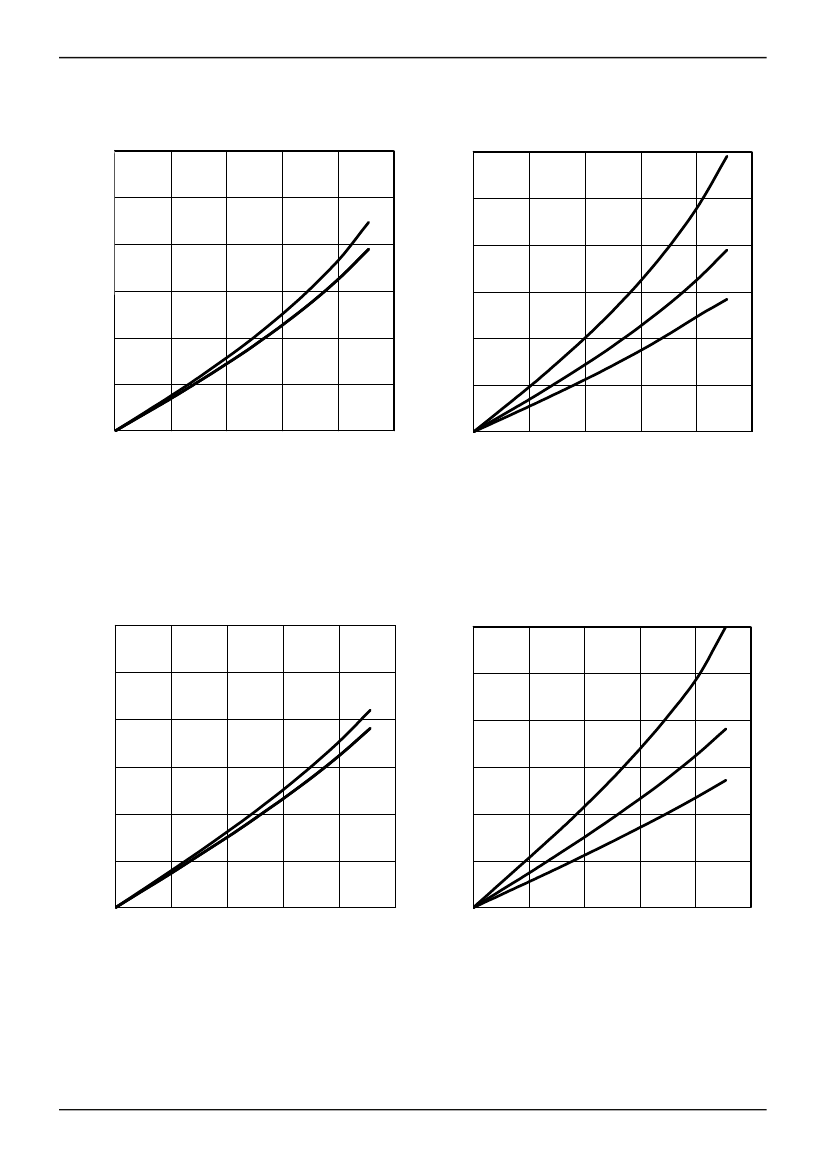

Figure 5. Output H Voltage
（
Ta=25°C
）
Figure 6. Output H Voltage
（
Vcc=24V
）
1.2
1.2
1.0
1.0
105°C
6V
0.8
Output L Voltage [V]
Output L Voltage [V]
0.8
0.6
24V
29V
25°C
0.6
-40°C
0.4
0.4
0.2
0.2
0.0
0.0
0.2
0.4
0.6
Output Current, Io [A]
0.8
1.0
0.0
0.0
0.2
0.4
0.6
Output Current, Io [A]
0.8
1.0
Figure 7. Output L Voltage
（
Ta=25°C
）
Figure 8. Output L Voltage (Vcc=24V
）
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
4/17
TSZ02201-0H1H0B101050-1-2
5.Jun.2014 Rev.001
BD69830FV
Reference data
Datasheet
0.4
0.4
SIG Output L Voltage, V
SIGL
[V]
SIG Output L Voltage, V
SIGL
[V]
0.3
0.3
105°C
25°C
0.2
6V
0.2
-40°C
24V
29V
0.1
0.1
0.0
0
2
4
6
Output Current, I
SIG
[mA]
8
10
0.0
0
2
4
6
Output Current, I
SIG
[mA]
8
10
Figure 9. SIG L Voltage
（
Vcc=24V
）
Figure 10. SIG L Voltage
（
Ta=25°C
）
0.6
Lock Detection ON/OFF Time, t
OFF
[V]
15
Lock Detection ON/OFF Time, t
ON
[V]
0.5
-40°C
25°C
105°C
14
0.4
13
-40°C
25°C
105°C
0.3
12
0.2
Operating Range
11
Operating Range
0.1
10
0.0
0
5
10
15
20
Supply Voltage, Vcc [V]
25
30
9
0
5
10
15
20
Supply Voltage, Vcc [V]
25
30
Figure 11. Lock Detection ON Time
Figure 12. Lock Detection OFF Time
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
5/17
TSZ02201-0H1H0B101050-1-2
5.Jun.2014 Rev.001
