Film Capacitors – Power Factor Correction
Power Factor Controller
B44066R7xxxE230
BR7000
Characteristics
Three phase measuring and controlling
Switching relays customizable for three phase
or single phase compensation
Mixed three and single phase compensation
Usage as power factor controller and/or as
measuring device
Intelligent control
Menu driven handling (several plain
languages)
Optimized navigation in the menus by ESCAPE
(ESC) button
HELP-button for interactive help text
(related to the particular menu)
Measurement and display
Three phase measurement of all relevant grid parameters (voltage, current, reactive power,
active power, apparent power, frequency, harmonics up to the 31
st
order, temperature)
Display and storage of maximum values, switching operations and operation time
Display of date, time, operation
Display of harmonics as THD value or for every harmonic as bar graph
Oscilloscope mode for graphical display of a complete oscillation incl. harmonics
Display of measured values freely programmable (display-editor)
Operation

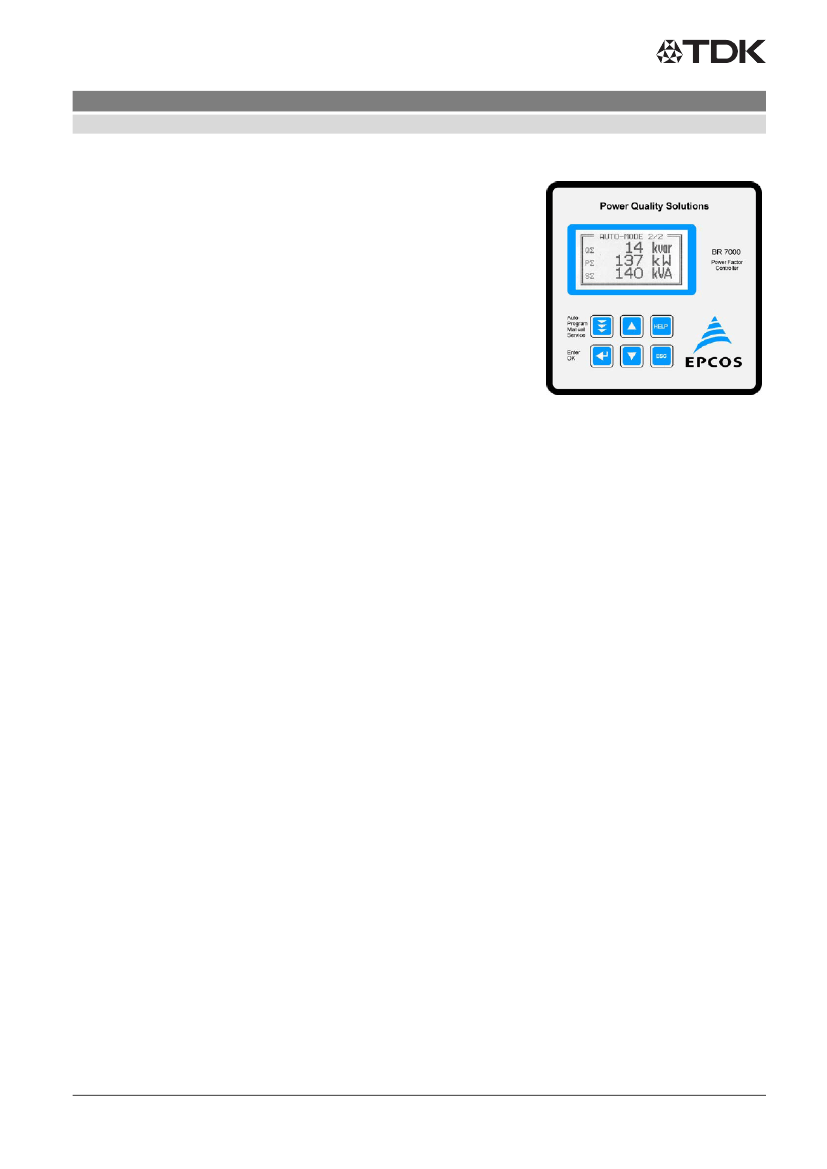

Graphic display 128 × 64 dots with max. 8 lines, BR7000-HD with OLED display
User interface plain language; several languages
Self explanatory and optimized menu navigation
Modes of operation
Automatic initialization
Display and automatic operation (normal control)
Manual operation
Test run
Service operation
Expert mode
FILM P PM LMP
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 8
March 2012
Film Capacitors – Power Factor Correction
Power Factor Controller
B44066R7xxxE230
BR7000
Controlling
Simple controlling 3-phase (3-phase capacitors), max. 15 switching outputs. For 3-phase-
measurement: controlling is done either according to the worst cos
φ
or average value.
For single-phase-measurement: 2 current inputs are additionally available for measured capacitor
bank currents
Single phase controlling: max. 5 switching outputs for each phase (3 · 5 switching outputs); each
phase is controlled separately. Single phase capacitors are switched to neutral.
Mixed controlling: e.g. 3
·
3 single phase capacitors per phase (L-N) for balancing and additional
6 outputs for normal 3-phase-capacitors.
Separate controlling of single phase capacitors L-L (without neutral)
Error messages
Over voltage/under voltage/no voltage
Over current
Over/under compensated
Harmonics (THD exceeded)
Over temperature
C-defect
Warning switching operations
Internal alert message with time stamp
1 alarm relay
1 relay freely programmable
1 relay for fan control
Inputs
Operating voltage input:
3 measuring voltage inputs:
3 current inputs:
1 external input
110 … 230 V AC ±15 %
30 … 440 V AC (L-N) / 50...760 V AC (L-L)
X:1A / X:5A
Outputs
3
·
5 relay outputs (contact NO) as switching outputs
3 relay outputs (contact NO) for message/alarm/fan
2 independent isolated interfaces RS485
FILM P PM LMP
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 8
March 2012
Film Capacitors – Power Factor Correction
Power Factor Controller
B44066R7xxxE230
BR7000
Interfaces
2 independent, isolated RS485 interfaces
Usage:
As interface for PC for usage with Windows-Software BR7000-soft
As system interface for coupling with other controllers or enlargement with system accessories
As interface for customer specific usage
Specialities
Time controlled functions possible by internal timer (e.g. time controlled target cos
φ)
Internal second parameter set available
Oscilloscope mode for graphical display of current and voltage – individual phases selectable
Display of harmonics as bar graph (fourier transformation)
Quick programming

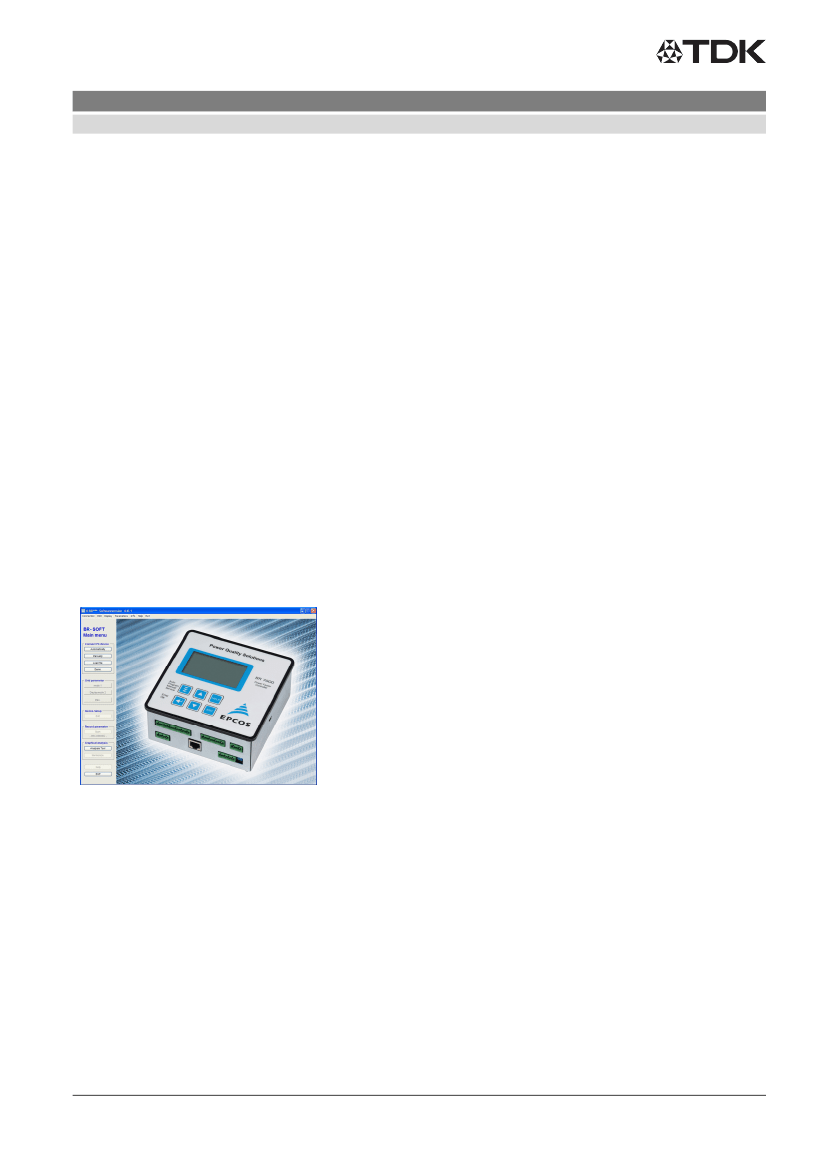

Accessory: BR software for PC (included in the delivery)
Connection to RS485-bus
Administration of several PF-controller possible
Convenient analysis of recorded values
Direct connection to USB-port of PC via USB-adapter
Windows XP upwards
Device settings and visualization
Display and recording of grid parameters
FILM P PM LMP
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 8
March 2012
Film Capacitors – Power Factor Correction
Power Factor Controller
B44066R7xxxE230
BR7000
Technical data
Operating voltage
Measuring voltage (3-phase)
Measuring current (3-phase)
Power consumption
Sensibility
Switching outputs
Relay outputs for capacitor branches
Alarm relay
Message relay programmable
Relay for panel fan
Switching power of relays
Number of active outputs
Operation and display
BR7000
BR7000-HD
Menu languages
Number of control series
Freely editable control series
Controlling
Modes of operation
15 relays, freely programmable for switching of 1- or
3-phase capacitors
1
1
1
250 V AC, 1000 W
programmable
illuminated full graphic display 128 × 64 dots
OLED character display, yellow
D / E / ES / F / RU / TR
20
1 via Editor
reach controlling of each phase (L-N ) and ( L-L)
1- phase: up to 3
·
5 single phase capacitors
3- phase: up to 15 three-phase capacitors
mixed Mode: for balancing and compensation
Control principle
series switching, circular switching,
self-optimized intelligent switching mode
4-quadrant operation
Automatic initialization
Measuring of current inside the capacitor
Target cos
φ
2nd target cos
φ
(result driven)
Switch on time
Switch off time
Discharge time
Internal clock/several timers
Manual operation
Fixed steps /skip steps
Zero voltage release
FILM P PM LMP
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 8
110 ... 230 V AC ±15%, 50/60 Hz
3
·
30 … 440 V AC (L-N), 50/60 Hz
3
·
X: 5A / X:1A selectable
< 3 VA (with 15 relays activated)
50 mA / 10 mA
possible
possible
0.3 ind ... 0.3 cap adjustable
0.3 ind ... 0.3 cap adjustable
selectable from 1 sec to 20 min
selectable from 1 sec to 20 min
selectable from 1 sec to 20 min
yes
yes
programmable
standard
March 2012
