RF AMPLIFIER
MODEL
BXMP1000
Features
!
Wideband Frequency: 100 - 1000 MHz
!
High Output Power: +30 dBm Typical
!
Operating Temp. 0 ºC to + 70 ºC
Medium Power Amplifier
Available as:
FPMP1000, 4 Pin .5” Sq. Flatpack
WPMP1000, 8 Pin .5” Sq. Gullwing
BXMP1000, Connectorized Housing (H106)
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point ...... +60 dBm (Typ.)
Second Order Two Tone Intercept Point ....... +55 dBm (Typ.)
Third Order Two Tone Intercept Point ........... +43 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
Noise Figure (dB)
Power
Vdc
mA
TYPICAL
Ta= 25 ºC
100 - 1000 MHz
12
30
-23
1.5:1
1.5:1
7
+15
350
MIN/MAX
Ta = 0 ºC to +70 ºC
100 - 1000 MHz
10.5 Min.
29 Min.
-18 Max.
2:0:1 Max.
2:0:1 Max.
11 Max.
+15
375 Max.
Maximum Ratings
Ambient Operating Temperature ................ -55ºC to +100 ºC
Storage Temperature .................................-62ºC to +125 ºC
Case Temperature .................................................. +125 ºC
DC Voltage .......................................................... +18 Volts
Continuous RF Input Power .................................. +13 dBm
Short Term RF Input Power .... 100 Milliwatts (1 Minute Max.)
Maximum Peak Power .................... 0.5 Watt (3
µsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.

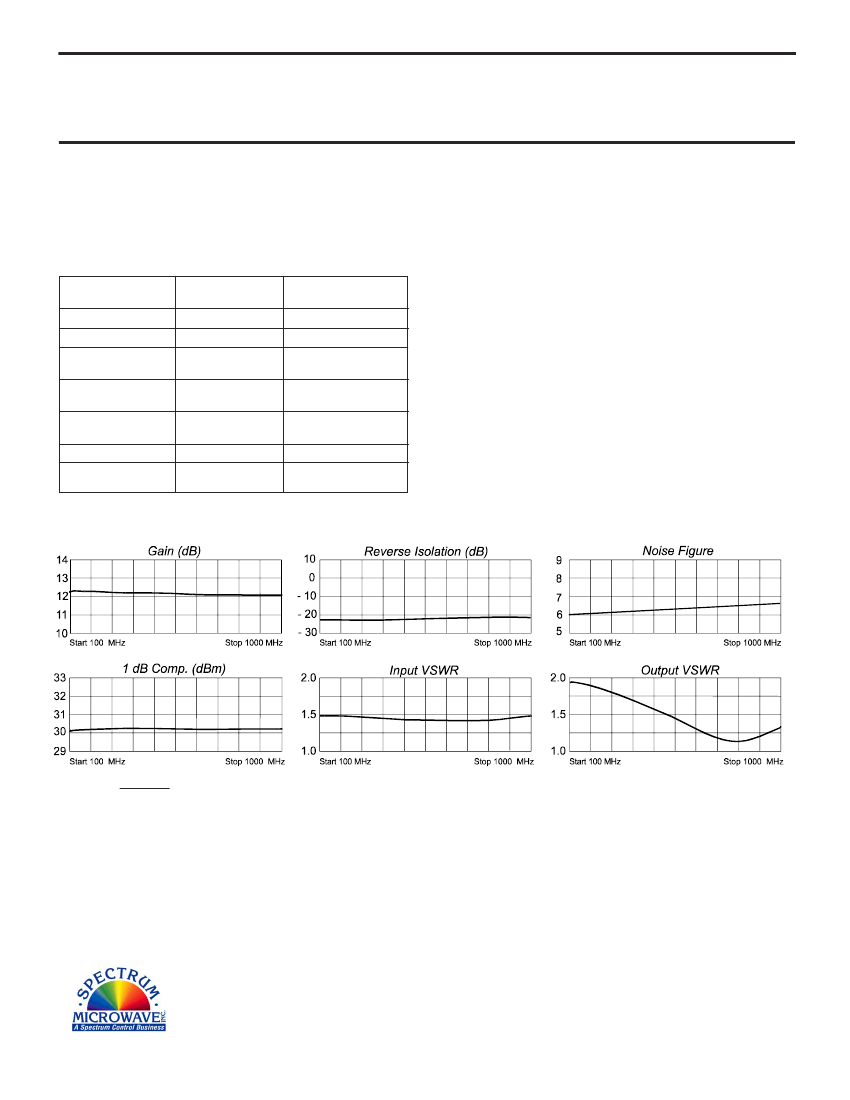

Typical Performance Data
Legend
+ 25 ºC
Linear S-Parameters
Freq.
----S11----
----S21----
----S12----
----S22----
Mag Deg
Mag Deg
MHz
Mag Deg
Mag Deg
=======================================================================
3.23 169.6
.35
100
175
.069
4.31
.367 168.6
3.24 157.7
200
.33
164
.075
5.40
.346 155.9
3.31 145.4
300
.31
152
.083
4.78
.322 141.6
3.45 131.5
400
.28
138
.093
2.98
.293 124.3
3.63 115.2
500
.25
119
.106 -0.40
.259 100.9
3.72 99.6
600
.21
90
.119
-8.57
.216 69.9
3.69 81.9
700
.18
46
.128 -19.04
.189 26.0
3.48 63.1
800
.20
-3
.131 -30.54
.208 -23.0
3.11 44.7
900
.25
-42
.126 -41.18
.261 -61.6
2.66 27.6
1000
.31
-70
.116 -49.30
.318 -89.1
