RF AMPLIFIER
MODEL
BXMP1003
!
Ultra High IP2: +93 dBm Typical
!
High 3rd Order Intercept: +49 dBm Typical
!
High Power 1 dB Comp.: +32 dBm Typical
Specifications
CHARACTERISTIC
Frequency (MHz)
Gain (dB)
Gain Flatness (dB)
Power @ 1 dB
Comp. (dBm)
IP2 (dBm)
IP3 (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
Vdc
mA
Medium Power Amplifier
Package:
SMA Connectorized Housing
Features
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point ...... +95 dBm (Typ.)
Second Order Two Tone Intercept Point...... +93 dBm (Typ.)
Third Order Two Tone Intercept Point........... +49 dBm (Typ.)
TYPICAL
Ta= 25 ºC
5 - 35 MHz
22
0.5
+32
93
49
-27
<1.5:1
<1.5:1
3.7
+24
425
MIN/MAX
Ta = 0 ºC to +50 ºC
5 - 35 MHz
21.5 Min./22.5 Max.
0.5 Min.
+31 Min.
90 Min.
47 Min.
-26 Min.
1.5:1 Max.
1.5:1 Max.
4.0 Max.
+24
450 Max.
Maximum (No Damage) Ratings
Ambient Operating Temperature .............. -55ºC to + 100 ºC
Storage Temperature ............................... -62ºC to + 125 ºC
DC Voltage ......................................................... + 26 Volts
Continuous RF Input Power ................................. + 13 dBm
Short Term RF Input Power .... 100 Milliwatts (1 Minute Max.)
Maximum Peak Power ................... 0.1 Watt (3
µ
sec Max.)
Noise figure (dB)
Power
Note: Care should always be taken to effectively ground the case of each unit.

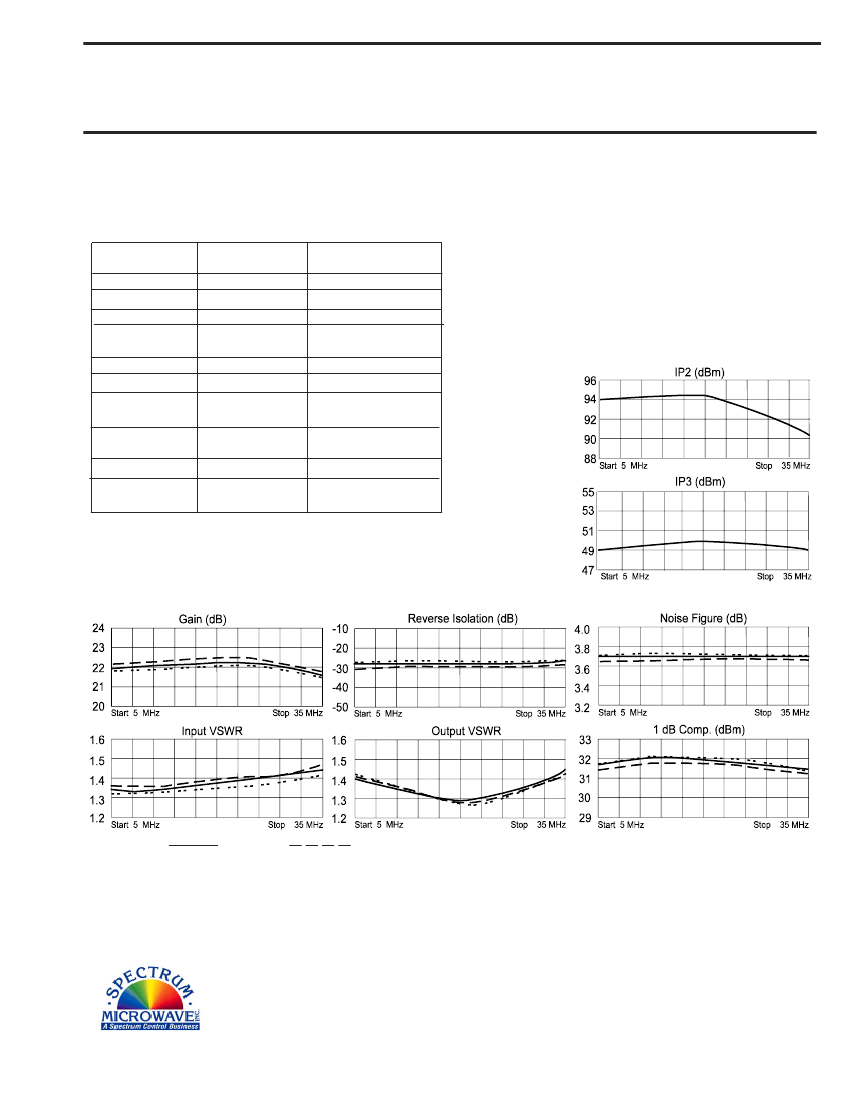

Typical Performance Data
Legend
+ 25 ºC
+50 ºC
- - - - - - 0 ºC
01/12/05
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
www.spectrummicrowave.com
Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
