RF AMPLIFIER
MODEL
BXMP1029
Features
!
Ultra High Second Order Intercept: +91 dBm Typical
!
High Output Power: +31.5 dBm Typical
!
Environmental Screening Available
Medium Power Amplifier
Available as:
BXMP1029, SMA Connectorized Housing
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point ...... +93 dBm (Typ.)
Second Order Two Tone Intercept Point ....... +91 dBm (Typ.)
Third Order Two Tone Intercept Point ........... +48 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
Noise figure (dB)
Power
Vdc
mA
TYPICAL
Ta= 25 ºC
1 - 35 MHz
12
31.5
-15
1.8:1
1.8:1
4
+15
400
MIN/MAX
Ta = 0 ºC to +70 ºC
1 - 35 MHz
11 Min.
30 Min.
-14 Max.
2:0:1 Max.
2:0:1 Max.
5.0 Max.
+15
425 Max.
Maximum Ratings
Ambient Operating Temperature .............. -55ºC to + 100 ºC
Storage Temperature ............................... -62ºC to + 125 ºC
Case Temperature ................................................. + 125 ºC
DC Voltage ......................................................... + 18 Volts
Continuous RF Input Power ................................. + 13 dBm
Short Term RF Input Power .... 100 Milliwatts (1 Minute Max.)
Maximum Peak Power .................... 0.5 Watt (3
µsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.

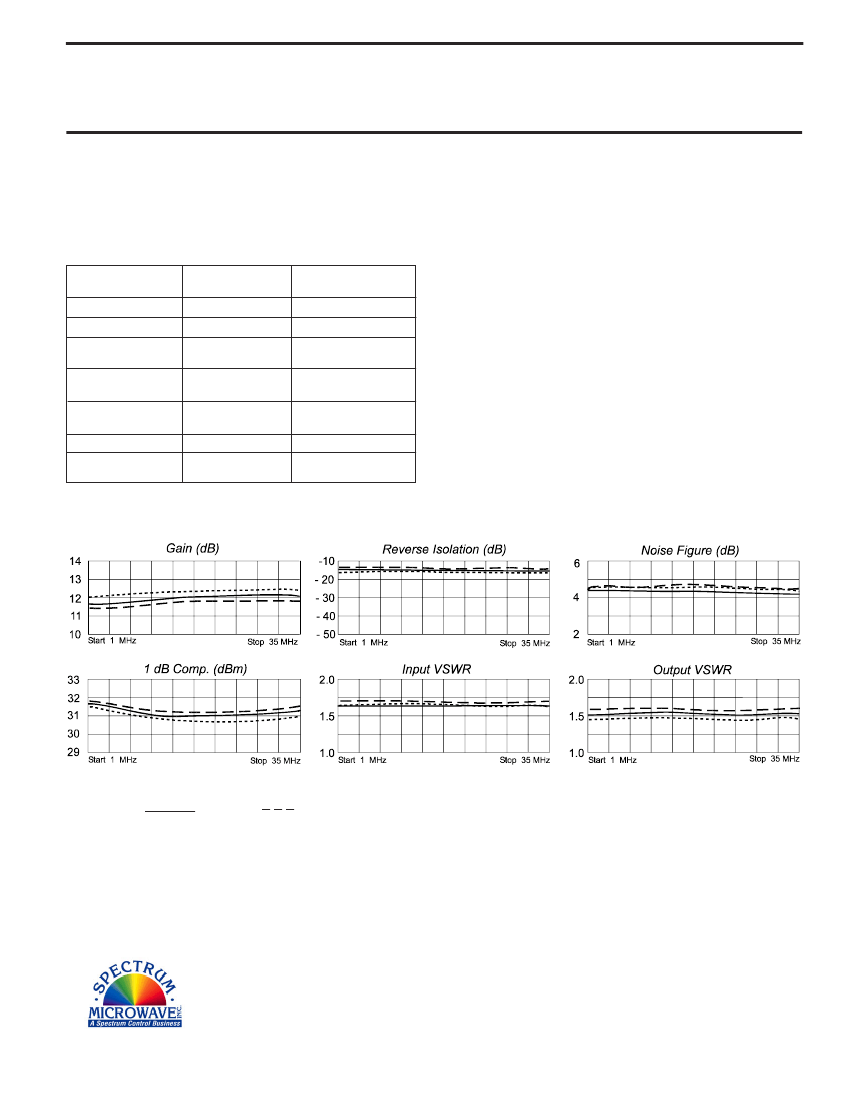

Typical Performance Data
Legend
+ 25 ºC
+ 70ºC - - - - - - 0 ºC
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
Rev.
11/14/07
www.SpectrumMicrowave.com
