RF AMPLIFIER
MODEL
BXMP1036
Features
!
!
!
!
High Gain: 30 dB Typical
Low Noise Figure: 2.0 dB Typical
Operating Temp. - 40 ºC
to +85
ºC
Environmental Screening Available
Available as:
BXMP1036, SMA Connectorized Housing
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point .......+60 dBm (Typ.)
Second Order Two Tone Intercept Point ........+55 dBm (Typ.)
Third Order Two Tone Intercept Point ............+40 dBm (Typ.)
Maximum Ratings
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
Noise Figure (dB)
Power
Vdc
mA
TYPICAL
Ta= 25
ºC
500 - 3000 MHz
30
25
-37
1.75:1
1.75:1
2.0
+15
280
MIN/MAX
Ta = -40
ºC
to +85
ºC
500 - 3000 MHz
28.5 Min.
24 Min.
-33 Max.
2.0:1 Max.
2.0:1 Max.
3.0 Max.
+15
300 Max.
Ambient Operating Temperature ................ -55ºC to +100 ºC
Storage Temperature ................................. -62ºC to +125 ºC
Case Temperature .................................................. +125 ºC
DC Voltage .......................................................... +18 Volts
Continuous RF Input Power .................................. +13 dBm
Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)
Maximum Peak Power .................... 0.5 Watt (3
µsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.

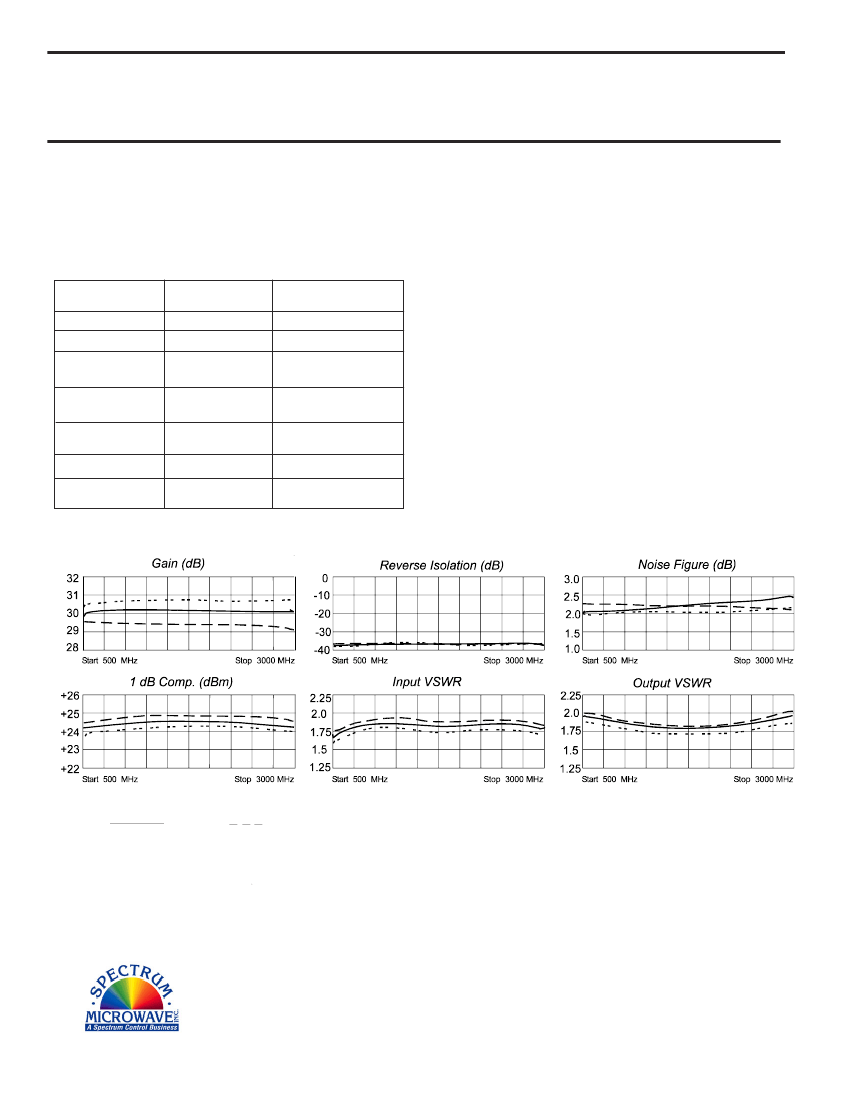

Typical Performance Data
Legend
+25 ºC
+85 ºC - - - - - - -40 ºC
