BXMP1037 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BXMP1037

BXMP1037: DescriptionRF AMPLIFIER; CategoryWireless rf/communication Radio frequency and microwave; File Size540KB，2 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

BXMP1037 Overview

RF AMPLIFIER

BXMP1037 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	GWDIP10,.9
Reach Compliance Code	compli
Other features	SMA, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Maximum input power (CW)	20 dBm
Number of functions	1
Number of terminals	10
Maximum operating frequency	2000 MHz
Minimum operating frequency	1000 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	GWDIP10,.9
power supply	15 V
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum slew rate	500 mA
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

BXMP1037

Features



High Third Intercept: +45 dBm Typical

High Output Power: +31 dBm Typical

Operating Temp. -20 ºC

to +70

ºC

Environmental Screening Available

Available as:

BXMP1037, SMA Connectorized Housing

WNMP1037, 10 Pin 0.625” Sq Surface Mount (SG4)

** Special Pinout for the WNMP1037 package **

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point .......+60 dBm (Typ.)

Second Order Two Tone Intercept Point ........+54 dBm (Typ.)

Third Order Two Tone Intercept Point ............+45 dBm (Typ.)

Maximum Ratings

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Vdc

TYPICAL

Ta= 25

ºC

1000 - 2000 MHz

19.0

+31

-24

1.5:1

5.0

+15

450

MIN/MAX

Ta = -20

ºC

to +70

ºC

1000 - 2000 MHz

17.0

+30 Min.

-23 Max.

2.0:1 Max.

6.0 Max.

+15

500 Max.

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +20 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

μsec

Max.)

Noise Figure (dB)

Power

Note: Care should always be taken to effectively ground the case of each unit.

Revision 12/12/2012

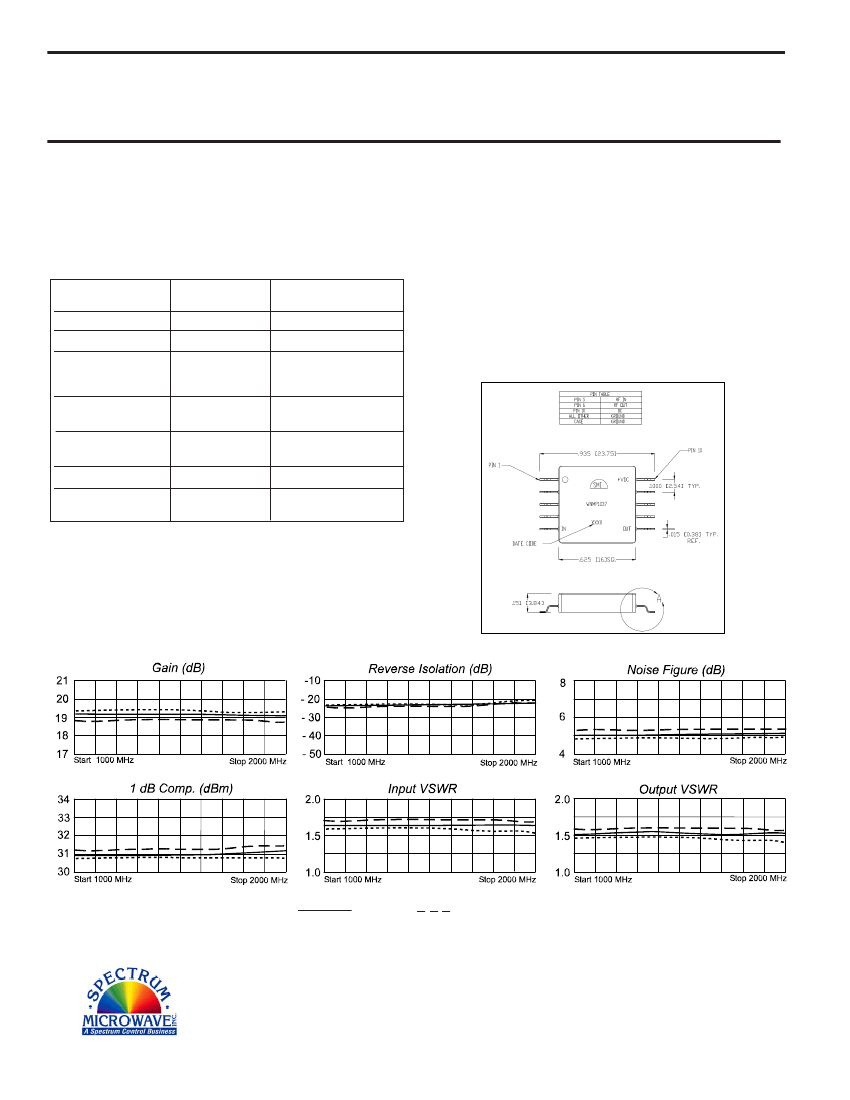

Typical Performance Data

Legend

+25 ºC

+70 ºC - - - - - - -20 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001
