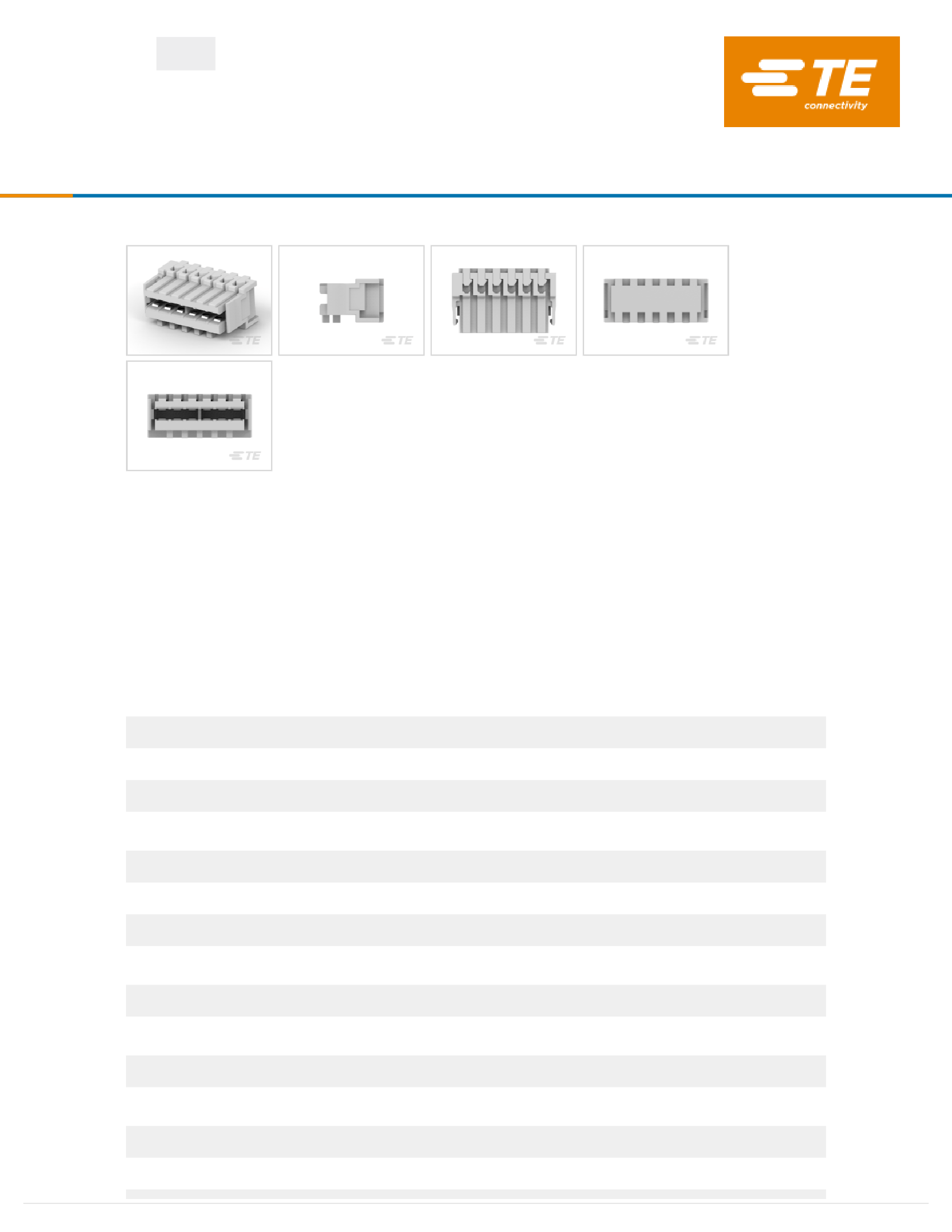

5-284865-6
Standard Edge Connectors, Wire-to-Board, 6 Position, .098 in [2.5 mm] Centerline,
Insulation Displacement (IDC), 1 Row, Natural, PBT GF, Fully Loaded
5-284865-6
ACTIVE
TE Internal #: 5-284865-6
Standard Edge Connectors, Wire-to-Board, 6 Position, .098 in [2.5
mm] Centerline, Insulation Displacement (IDC), 1 Row, Natural, PBT
GF, Fully Loaded
View on TE.com >
Connectors
>
PCB Connectors
>
Card Edge Connectors
>
Standard Edge Connectors
Connector System:
Wire-to-Board
Number of Positions:
6
Centerline (Pitch):
2.5 mm [ .098 in ]
Termination Method to Wire & Cable:
Insulation Displacement (IDC)
Number of Rows:
1
Features
Product Type Features
Connector System
Connector & Housing Type
Connector & Contact Terminates To
Configuration Features
Number of Positions
Number of Rows
Connector Contact Load Condition
Contact Features
Contact Current Rating (Max)
Termination Features
Termination Method to Wire & Cable
Housing Features
Centerline (Pitch)
Housing Color
For support call+1 800 522 6752
Wire-to-Board
Plug
Wire & Cable
6
1
Fully Loaded
2A
Insulation Displacement (IDC)
2.5 mm[.098 in]
Natural
PBT GF
05/20/2022 03:19AM | Page 1
Housing Material
5-284865-6
Standard Edge Connectors, Wire-to-Board, 6 Position, .098 in [2.5 mm] Centerline,
Insulation Displacement (IDC), 1 Row, Natural, PBT GF, Fully Loaded
Housing Material
Usage Conditions
Operating Temperature Range
Operation/Application
Circuit Application
PBT GF
-40 – 110 °C[-40 – 230 °F]
Signal
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant
Compliant
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JAN 2022
(223)
Does not contain REACH SVHC
Not Low Halogen - contains Br or Cl > 900
ppm.
Not reviewed for solder process capability
Halogen Content
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach
Compatible Parts
For support call+1 800 522 6752
05/20/2022 03:19AM | Page 2
5-284865-6
Standard Edge Connectors, Wire-to-Board, 6 Position, .098 in [2.5 mm] Centerline,
Insulation Displacement (IDC), 1 Row, Natural, PBT GF, Fully Loaded

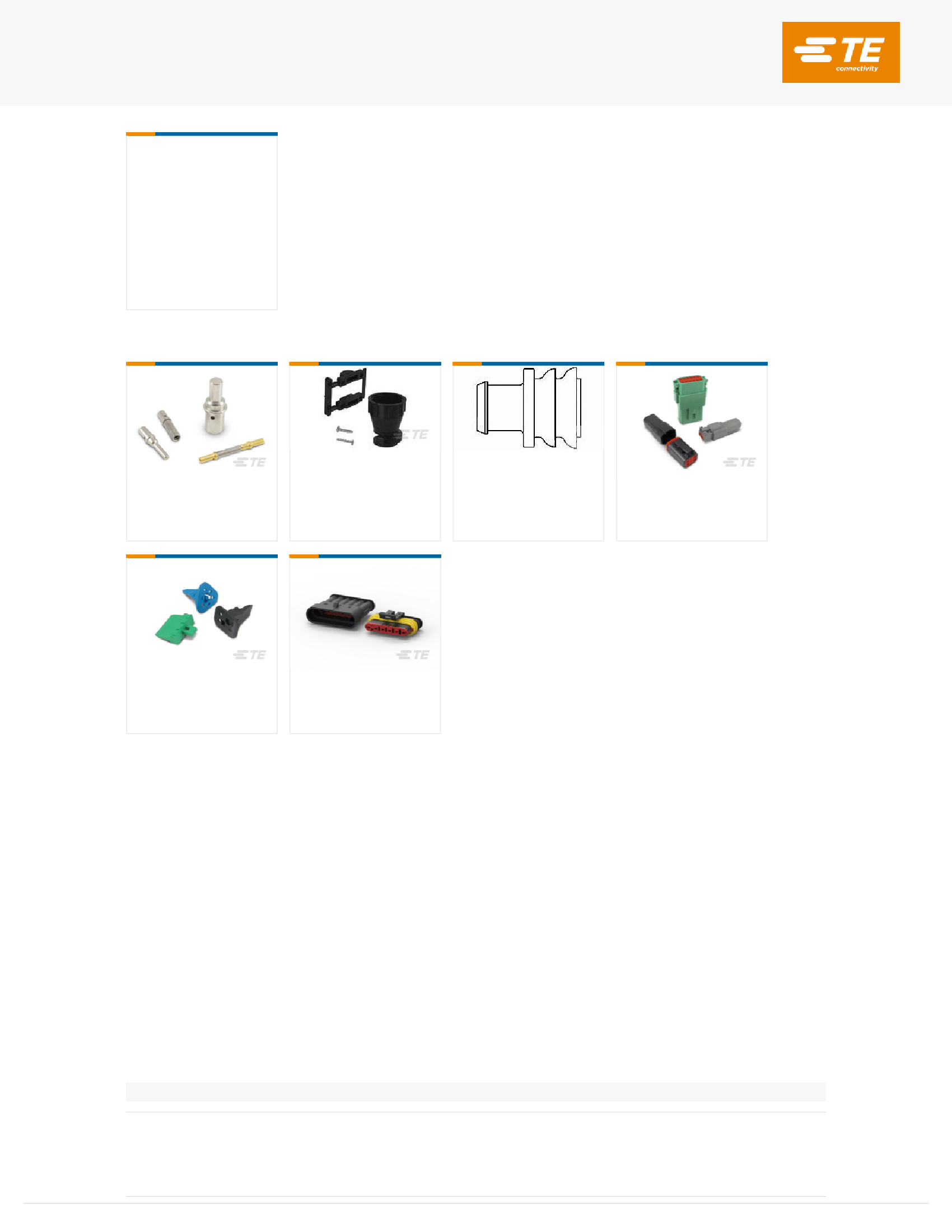

TE Part # 4-2311502-6
