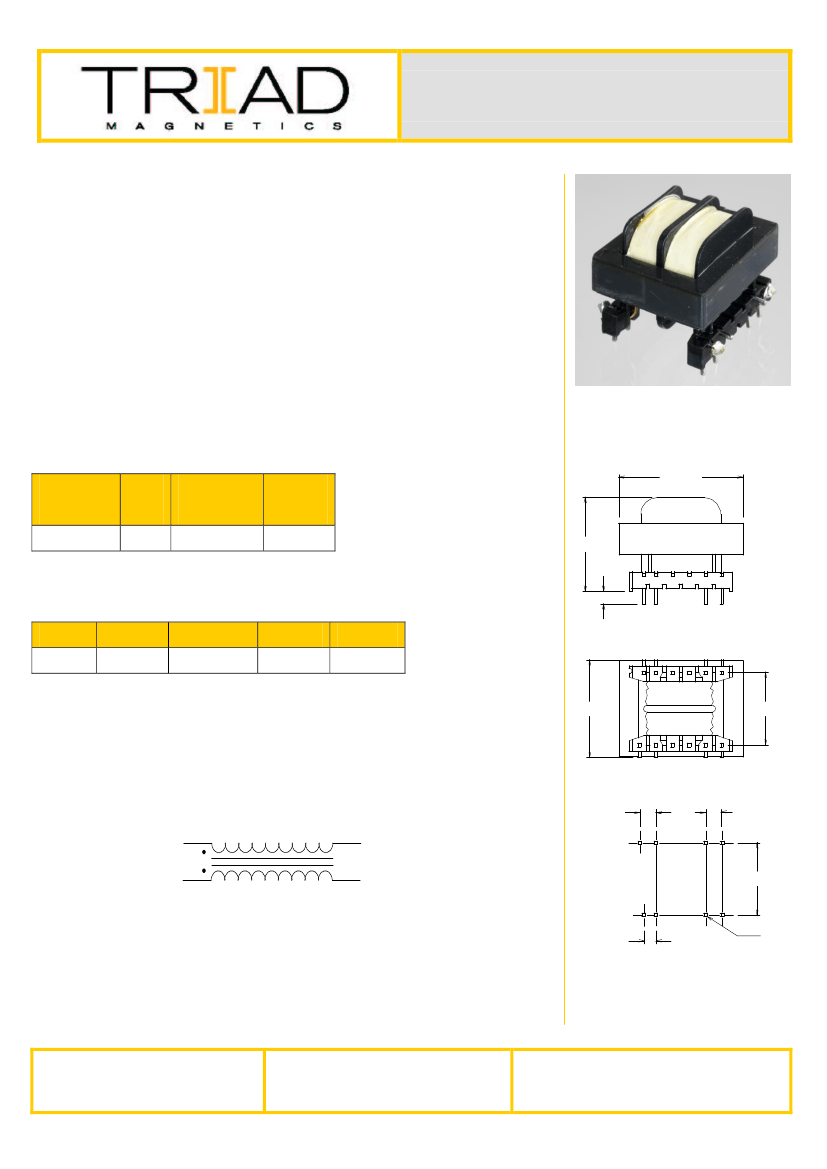

Switchmode/High Frequency
Common Mode Inductors
CME375-4
Description:
Highly dependable Triad common mode EMI suppression inductors are used in
various types of power supplies to eliminate noise common to all lines. These units
also provide effective differential mode filtering. Meeting VDE, IEC, UL and CSA
requirements, they minimize AC line transmitted interference often created by high
frequency switching power supplies.
Construction:
Constructed with UL rated 130°C materials.
Electrical Specifications (@20°C):
A
Min.
Inductance*
17.80 mH
Amps
RMS
2.70
Max. DC (Ω)
Resistance
.196
Min.
Leakage
180.0 µH
B
*inductance per winding.
Dimensions:
A
1.5 Max
B
1.18 Max
C
0.092-0.187
D
1.26 Max
E
0.90 Nom
C
1
6
Note: 1. Pin diameter: 0.036 SQ.
2. Units in inches.
3. Rated current yields approximately 40°C temperature rise.
4. Weight: .16 lbs.
D
E
12
7
Schematic:
0.200
0.600
0.200
1
6
12
7
PC
BO AR D
7
12
RoHS Compliance:
As of manufacturing date February 2005, all standard products meet the
requirements of 2011/65/EU, known as the RoHS initiative.
* Upon printing, this document is considered “uncontrolled”. Please contact Triad
Magnetics’ website for the most current version.
1
H OLE
PAT TER N
0.900
6
0.150
.0 62" Ø H O LES
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: December 4, 2013
