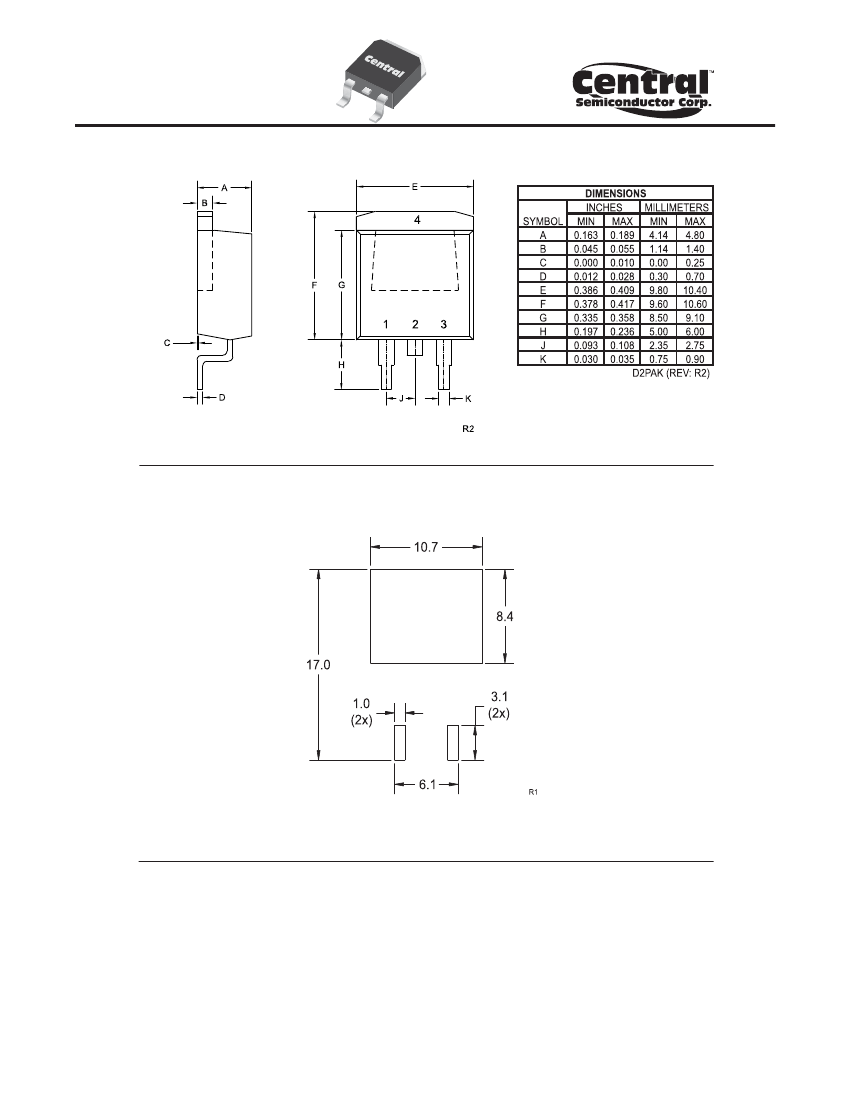

Package Details
D
2
PAK Case
Tape Dimensions and Orientation
(Dimensions in mm)
Tape Width: 24mm
Devices are taped in
accordance with
Electronic Industries
Association Standard
EIA-481-2-A
Direction of Unreeling
Packaging Base
13” Reel
=
800 pcs.
Reel Labeling Information
Each reel is labeled with the following information:
Central Part Number, Customer Part Number, Purchase Order Number,
Quantity, Lot Number, Date Code and Ship Date.
Reel Packing Information
Reel
Size
Reels per
Box
(Maximum)
3
13”
7
14
Parts per
Box
(Maximum)
2,400
5,600
11,200
Box Dimensions
INCH
15x4x15
15x15x9
15x15x18
CM
38x10x38
38x38x23
38x38x46
Shipping Weight (Max.)
LB
12
28
55
KG
6
13
25
Ordering Information
•
For devices taped and reeled on 13” reels, add TR13 suffix to part number.
•
All SMDs are available in small quantities for prototype and manual placement applications.
R2 (4-March 2010)
w w w. c e n t r a l s e m i . c o m
Material Composition Specification
D
2
PAK Case
Device average mass
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
1460 mg
Fluctuation margin
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
+/-10%
Component
active device
leadframe
Material
doped Si
Cu alloy
Material
(%wt)
0.44%
64.56%
(mg)
6.42
943
Substance CAS No.
Si
Cu
Fe
Pb
7440-21-3
7440-50-8
7439-89-6
7439-92-1
7440-31-5
7440-22-4
7631-86-9
29690-82-2
9003-35-4
1309-64-4
7726-95-6
Substance
(%wt)
0.44%
64.52%
0.03%
1.04%
0.06%
0.03%
21.75%
6.4%
3.2%
0.32%
0.32%
24.62%
3.2%
3.1%
0.1%
0.96%
1.7%
0.19%
1.89%
(mg)
6.42
942
0.5
15.25
0.825
0.412
317.5
93.4
46.67
4.67
4.67
359.5
46.73
45.28
1.4
14.0
24.88
2.76
27.64
(ppm)
4,397
645,224
342
10,446
565
282
217,472
63,974
31,967
3,199
3,199
246,240
32,008
31,015
959
9,589
17,042
1,890
18,932
die attach
high temperature
solder paste
1.13%
16.5
Sn
Ag
silica
epoxy resin
EMC
31.98%
467
phenol resin
Sb2O3
Br
encapsulation*
silica (fused) 60676-86-0
epoxy resin
EMC GREEN
31.98%
467
phenol resin
carbon black
metal
hydroxide
Sn
tin/lead process
plating**
matte tin
1.89%
27.6
1.89%
27.6
Pb
Sn
7439-92-1
7440-31-5
29690-82-2
9003-35-4
1333-86-4
1309-42-8
7440-31-5
*EMC GREEN molding compound is Halogen-Free.
**For Lead Free plating, add suffix “LEAD FREE” to part number.
For Tin/Lead plating, add suffix “TIN/LEAD” to part number.
No suffix designation allows for the supply of either lead-free or tin/lead plated product depending on availability.
