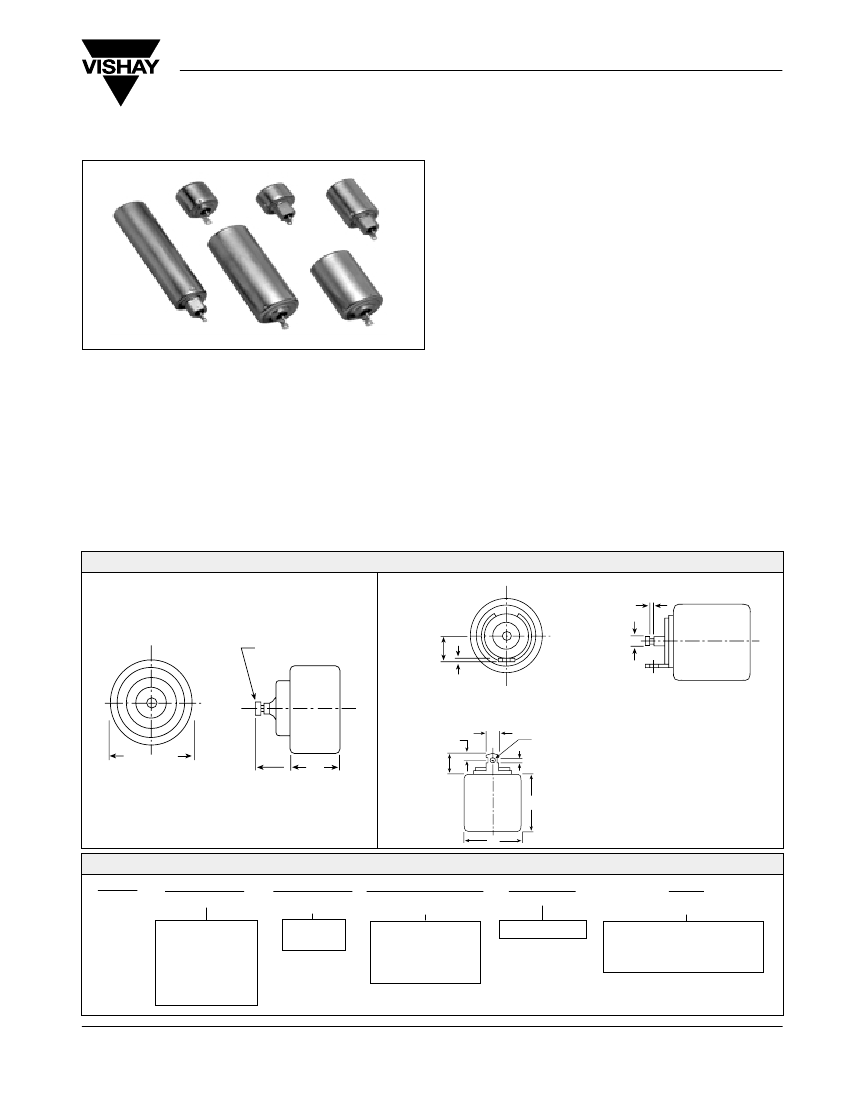

Model 140D, 141D
Vishay Sprague
Sintered Anode TANTALEX Capacitors for Operation to + 175
°
C +
FEATURES
A variety of case styles are available; seven combinations of
terminal arrangements and mounting arrangements are
provided to meet the needs of equipment designers. Units
which do not have integral mounting means are usually
mounted by means of clamps. In cases where the cathode
connection is not to be of chassis potential, suitable
insulation should be supplied between the case and the
mounting bracket or clamp. It is recommended that case
styles with a cathode terminal lug be used in such
applications; in no case should the equipment assembler
attempt to solder to any part of the capacitor shell. Consult
factory for high temperature applications.
Following the life test:
At + 85
°
C:
1. DCL shall not exceed the initial requirement.
2. ESR shall not exceed 100% of the initial requirement.
3. Capacitance shall not change more than 15%.
At + 125
°
C:
1. DCL shall not exceed the initial requirement.
2. ESR shall not exceed 130% of the initial requirement.
3. Capacitance shall not change more than 15%.
At + 175
°
C:
1. DCL shall not exceed the initial requirement.
2. ESR shall not exceed 150% of the initial requirement.
3. Capacitance shall not change more than - 35%, + 15%
from the initial value for capacitors rated 20 WVDC and
below or + 15% for capacitors rated above 20 WVDC.
Wet Tantalum Capacitors
®
PERFORMANCE CHARACTERISTICS
Operating Temperature:
- 55°C to + 85°C and with
voltage derating to + 175°C. Consult factory for high
temperature applications.
Capacitance Tolerance:
At 120 Hz, + 25°C. - 15%,
+ 75%.
DC Leakage Current (DCL Max.):
At + 25
°
C and above:
Leakage current shall not
exceed the values listed in the Standard Ratings
Tables.
Life Test:
Capacitors shall be capable of
withstanding 2000 hours at rated DC working voltage.

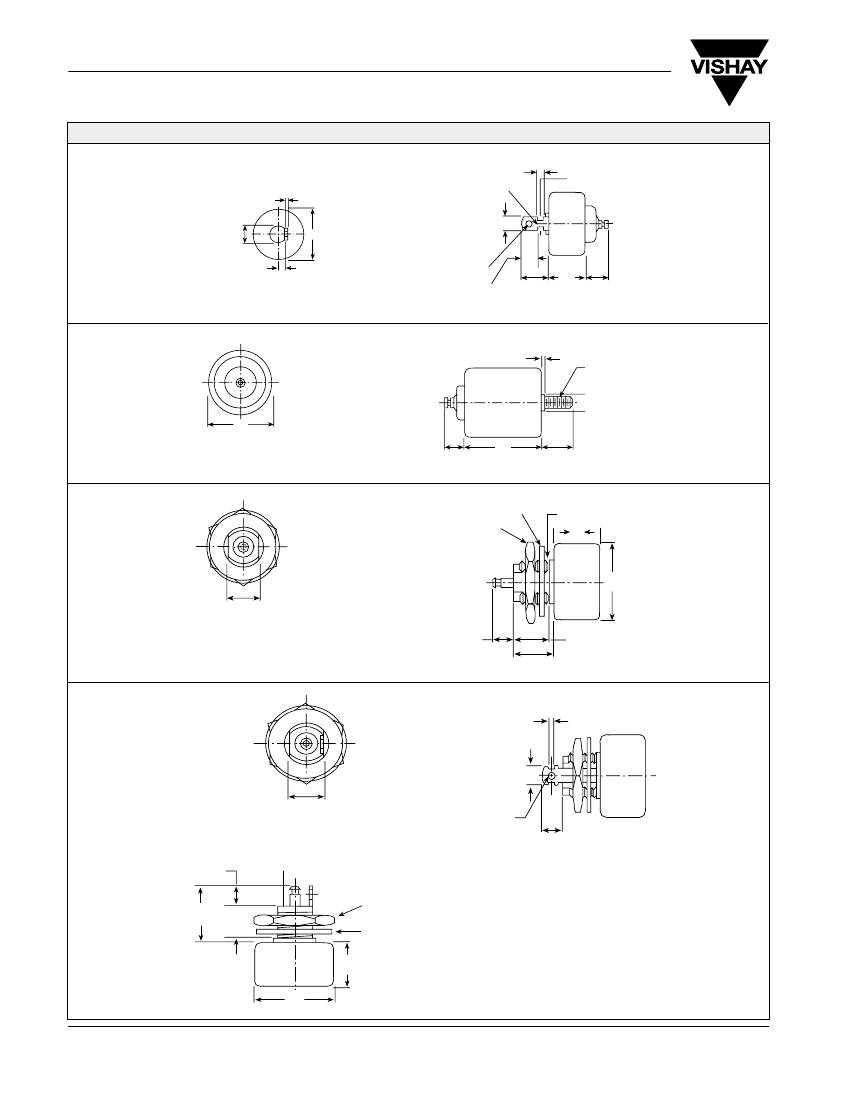

DIMENSIONS
in inches [millimeters]
"T0" Style
"T1" Style
1/16 [1.59]
Positive Terminal
19/64
[7.54]
0.093
[2.36]
Dia.
0.0299 [.759]
(B & S GA. No. 22)
3/16 [4.76]
3/32 [2.38]
B
Dia.
5/16
[7.94]
5/64
[1.98]
Dia. Hole
3/32
[2.38]
5/16
±
1/16
[7.94
±
1.59]
A
A
B
ORDERING INFORMATION
140D
MODEL
127
CAPACITANCE
This is expressed
in microfarads.
The first two digits
are the significant
figures. The third
is the number of
zeros to follow.
C7
CAPACITANCE
TOLERANCE
C7 = - 15%
+ 75%
018
DC VOLTAGE RATING
AT + 85°C
This is expressed in
volts. To complete
the three-digit block,
zeros precede the
voltage rating.
0
INSULATION
0 = Uninsulated
T0
STYLE
NUMBER
Designates certain mechanical
variations in the capacitor
case. See styles in
Dimensional Configurations.
Document Number: 40026
Revision 08-Nov-00
www.vishay.com
99
Model 140D, 141D
Vishay Sprague
STANDARD RATINGS AND DIMENSIONAL CONFIGURATIONS - TYPE 140D - 7/8 DIAMETER
CAPACITANCE
(
µ
F)
120
240
100
200
75
150
60
120
40
80
25
50
12
25
8
16
6
12
5
10
4
8
3.5
7
WVDC
@ + 85
°
C
18
18
20
20
30
30
35
35
60
60
90
90
180
180
270
270
360
360
450
450
540
540
630
630
SIZE
PART NUMBER*
140D127C70180T0
140D247C70180T0
140D107C70200T0
140D207C70200T0
140D756C70300T0
140D157C70300T0
140D606C70350T0
140D127C70350T0
140D406C70600T0
140D806C70600T0
140D256C70900T0
140D506C70900T0
140D126C71800T0
140D256C71800T0
140D805C72700T0
140D166C72700T0
140D605C73600T0
140D126C73600T0
140D505C74500T0
140D106C74500T0
140D405C75400T0
140D805C75400T0
140D355C76300T0
140D705C76300T0
A
1/2
±
1/16
11/16
±
1/16
1/2
±
1/16
11/16
±
1/16
1/2
±
1/16
11/16
±
1/16
1/2
±
1/16
11/16
±
1/16
1/2
±
1/16
11/16
±
1/16
1/2
±
1/16
11/16
±
1/16
27/32
±
1/16
1 1/4
±
1/16
13/16 + 1/8 - 1/16
1 13/16
±
1/16
1 17/32 + 1/8 - 1/16
2 3/8
±
1/16
1 29/32 + 1/8 - 1/16
2 15/16
±
1/16
2 1/4 + 1/8 - 1/16
3 1/2
±
1/16
2 19/32 + 1/8 - 1/16
4 1/16
±
1/16
B
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
7/8 + 1/32 - 1/64
Max. ESR
@ + 25
°
C
(Ohms)
2.8
2.5
2.8
2.5
2.7
2.7
2.5
1.5
2.7
2.7
2.7
2.7
5.6
5.3
8.3
8.3
11.0
11.0
13.0
13.0
16.6
16.6
18.9
18.9
Max. IMP
@ - 55
°
C
(Ohms)
45
35
45
35
50
40
63
48
75
50
100
70
200
140
300
210
400
280
500
350
600
420
700
490
TYPICAL**
WEIGHT
(Gram
s)
33
37
33
37
33
37
33
37
33
37
33
37
50
60
69
93
88
119
105
130
122
153
139
186
*Part Numbers listed are for "T0" style uninsulated capacitors. For other styles, change the last digit of the Part Number
from "0" to "1", "2", "3", "5" or "6". For units with outer insulating sleeve or wrap, change the 13th digit of the Part Number
from "0" to "1" as required.
**For "T0" style only.
STANDARD RATINGS AND DIMENSIONAL CONFIGURATIONS - TYPE 141D - 1 1/8 DIAMETER
SIZE
CAPACITANCE
(
µ
F)
240
150
80
50
25
16
12
10
8
7
WVDC
@ + 85
°
C
18
30
60
90
180
270
360
450
540
630
PART NUMBER*
141D247C70180T0
141D157C70300T0
141D806C70600T0
141D506C70900T0
141D256C71800T0
141D166C72700T0
141D126C73600T0
141D106C74500T0
141D805C75400T0
141D705C76300T0
A
9/16
±
1/16
9/16
±
1/16
9/16
±
1/16
9/16
±
1/16
15/16
±
1/16
1 15/16
±
1/16
1 21/32
±
1/16
2 1/32
±
1/16
2 3/8
±
1/16
2 3/4
±
1/16
B
1 1/8 + 1/32 - 1/64
1 1/8 + 1/32 - 1/64
1 1/8 + 1/32 - 1/64
1 1/8 + 1/32 - 1/64
1 1/8 + 1/32 - 1/64
1 1/8 + 1/32 - 1/64
1 1/8 + 1/32 - 1/64
1 1/8 + 1/32 - 1/64
1 1/8 + 1/32 - 1/64
1 1/8 + 1/32 - 1/64
Max. ESR
@ + 25
°
C
(Ohms)
2.5
2.7
2.7
2.7
5.3
8.3
11.0
13.0
16.6
18.9
Max. IMP
@ - 55
°
C
(Ohms)
35
40
50
70
140
210
280
350
420
490
TYPICAL**
WEIGHT
(Grams)
49
49
49
49
80
113
144
173
204
235
*Part Numbers listed are for "T0" style uninsulated capacitors. For other styles, change the last digit of the Part Number
from "0" to "1", "2", "3", "5" or "6". For units with outer insulating sleeve or wrap, change the 13th digit of the Part Number
from "0" to "1" as required.
**For "T0" style only.
Document Number: 40026
Revision 08-Nov-00
www.vishay.com
101
