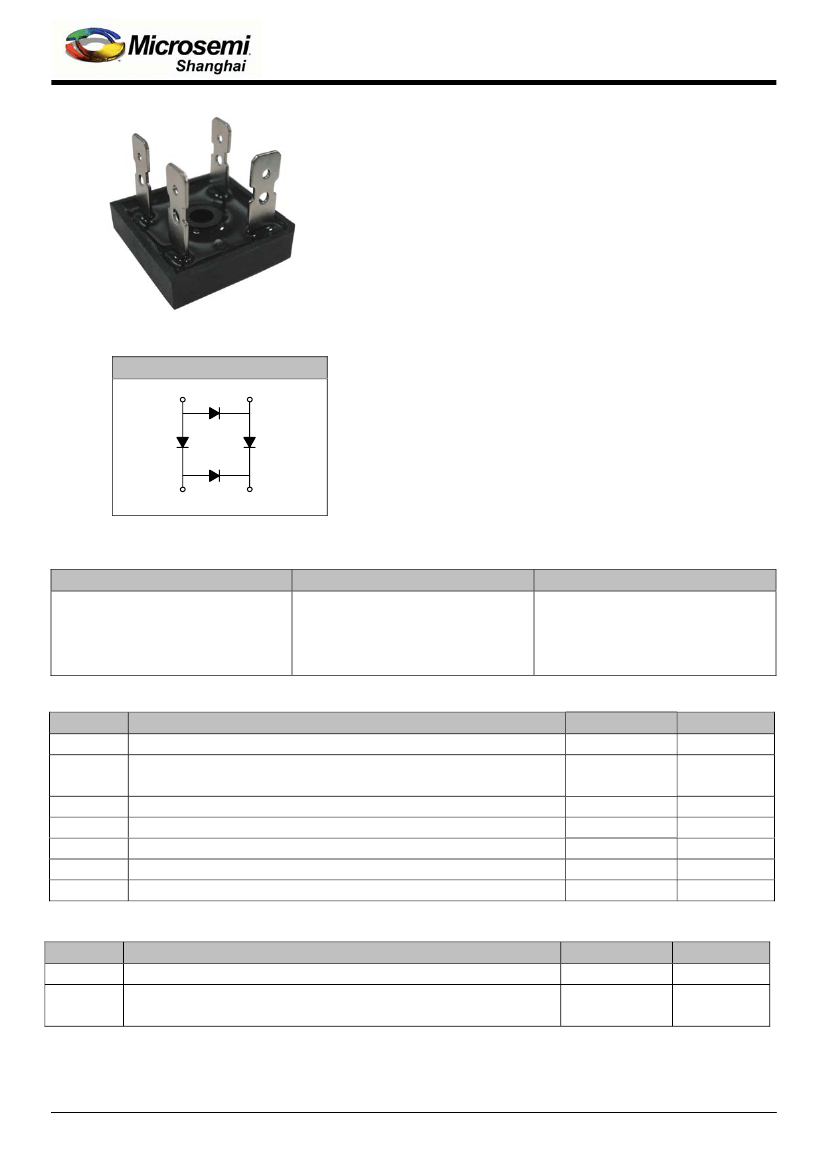

GBPC5002H thru GBPC5010H
Glass Passivated Single
Phase Bridge Rectifiers
Reverse Voltage
200 to 1000V
Forward Current
50 Amp
Features
Glass passivated die construction
Integrally molded heatsink provides
Very low thermal resistance for
Maximum heat dissipation
The plastic material used carries UL
flammability recognition 94V-0
High surge current capability
High temperature soldering guaranteed:
260
℃
/10 seconds, 0.375” (9.5mm) lead
length, 5lbs. (2.3kg) tension
Circuit
-
Module Type
TYPE
GBPC5002H
GBPC5004H
GBPC5006H
GBPC5008H
GBPC5010H
Maximum Ratings and Thermal Characteristics
(TA = 25℃ unless otherwise noted)
Symbol
I
F(AV)
I
FSM
i
2
t
Visol
Maximum average forward output rectified current
Peak forward surge current single half sine-wave superimposed
on rated load (JEDEC Method)
Rating for fusing (t<8.3ms)
a.c.50HZ;r.m.s.;1min
Maximum thermal resistance
(1)
Operating Junction and storage temperature range
Approximate Weight
R
θJC
T
j
, T
STG
Weight
Electrical Characteristics
(TA = 25℃ unless otherwise noted)
Symbol
V
F
I
R
Notes:
Maximum Instantaneous Forward Voltage per leg
Maximum DC reverse current at rated
DC blocking voltage per leg
(1) Unit case mounted on Al plate heatsink
(2) Recommended mounting position is to bolt down on heatsink with silicone thermal compound for
maximum heat transfer with M5 screw
www.smsemi.com
1
Document Number: GBPC5002H thru GBPC5010H
Aug.22, 2014
~
+
V
RRM
200V
400V
600V
800V
1000V

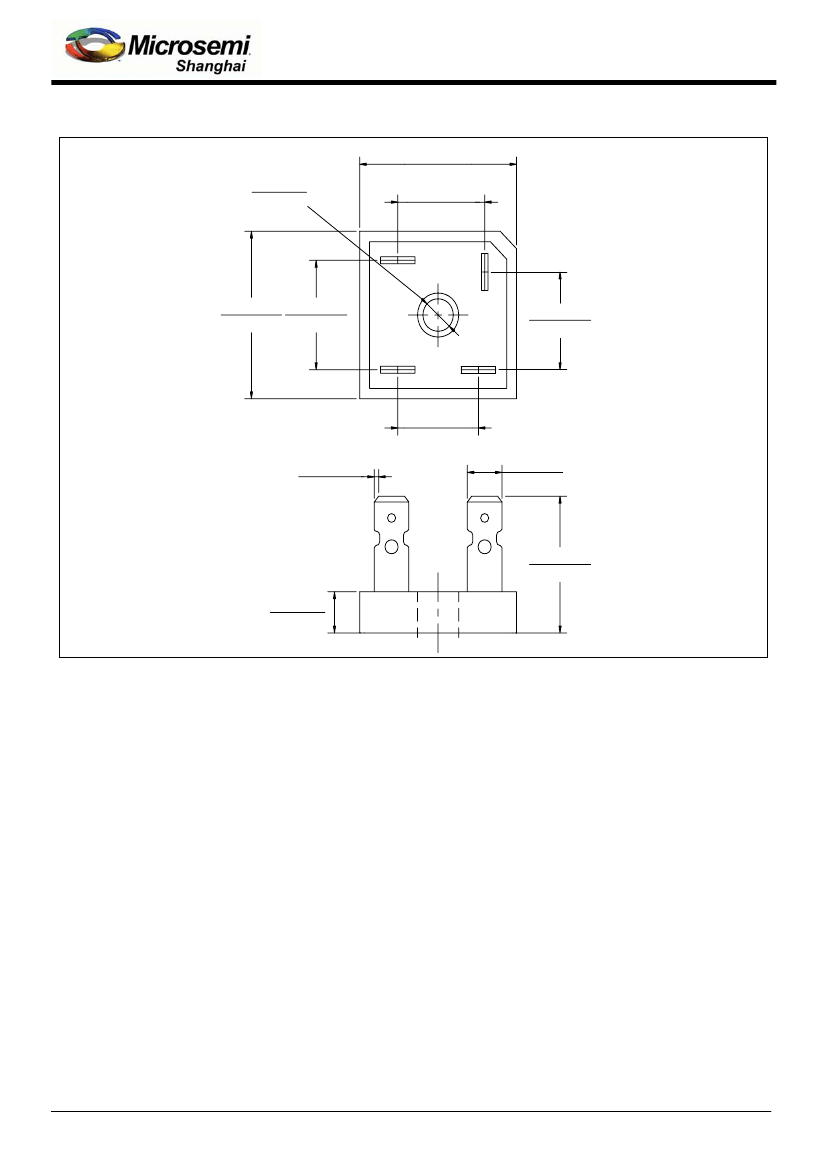

Mechanical Data
Case:
Molded plastic case
Terminals:
Plated leads solderable per
MIL-STD-750, Method 2026
Polarity:
Marked on Body
Mounting Position:
Any
~
V
RSM
300V
500V
700V
900V
1100V
Conditions
Tc =55℃
Values
50
450
840
2500
Units
A
A
A
2
s
V
0.7
-55 to +150
15
℃/W
℃
g
Conditions
I
FM
=25A
T
A
= 25℃
T
A
= 125℃
Values
1.1
5.0
500
Units
V
µA
GBPC5002H thru GBPC5010H

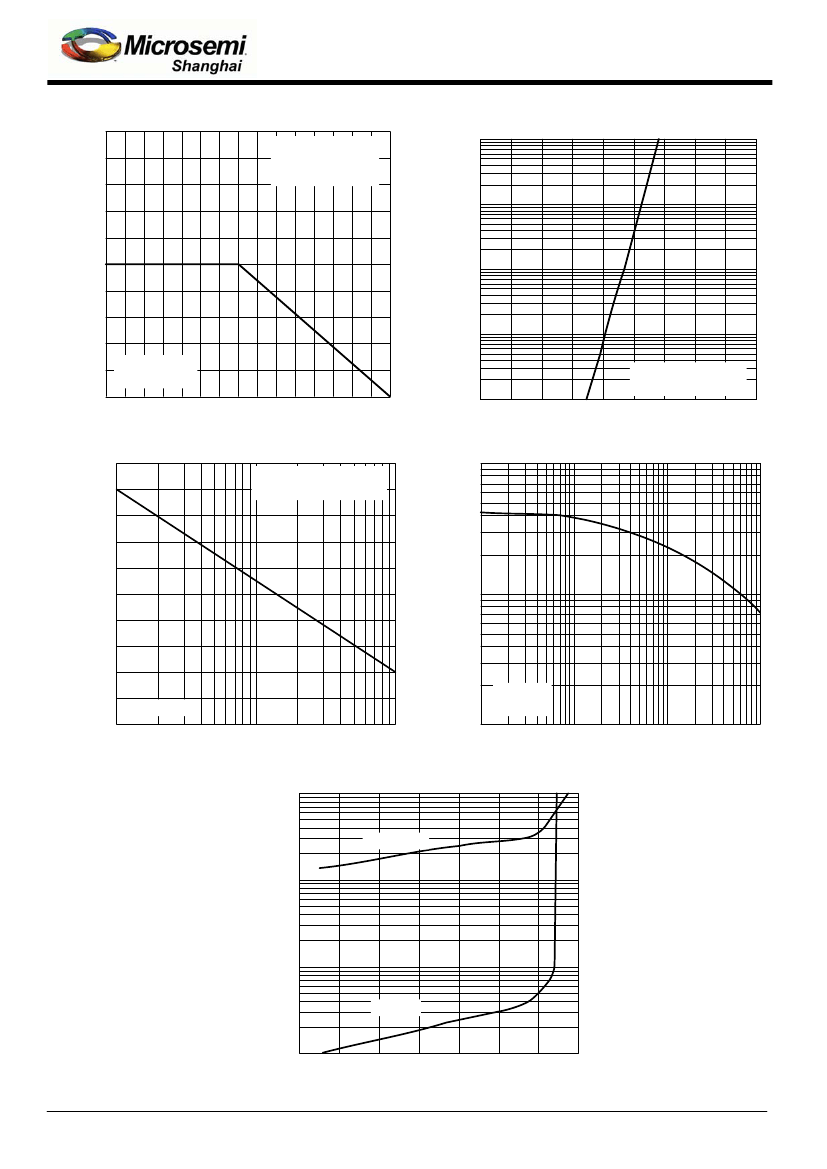

Performance Curves
I
F,
INSTANTANEOUS FORWARD CURRENT (A)
100
I
F
, AVERAGE FORWARD CURRENT (A)
Mounted on a
220x220x50 mm
AL plate heatsink
100
80
10
60
1.0
40
20
Resistive or
Inductive load
0
0
50
100
T
C,
CASE TEMPERATURE (ºC)
Fig.1 Forward Current Derating Curve
150
0.1
Tj=25ºC
Pulse Width=300μs
0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig.2 Typical Forward Characteristics (per element)
1000
0.01
500
I
FSM
, PEAK FWD SURGE CURRENT (A)
Single Half-Sine Wave
(JEDEC Method)
400
C
j,
CAPACITANCE (pF)
300
100
200
100
T
j
=150ºC
0
1
10
NUMBER OF CYCLES AT 60Hz
Fig.3 Max Non-Repetitive Surge Current
100
T
j
=25ºC
f =1MH
Z
10
0.1
1
10
100
V
R
, REVERSE VOLTAGE (V)
Fig.4 Typical Junction Capacitance (per element)
I
R
, INSTANTANEOUS REVERSE CURRENT (μA)
10
T
j
=125ºC
1.0
0.1
T
j
=25ºC
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig.5 Typical Reverse Characteristics (per element)
Document Number: GBPC5002H thru GBPC5010H
Aug.22,2014
www.smsemi.com
2
