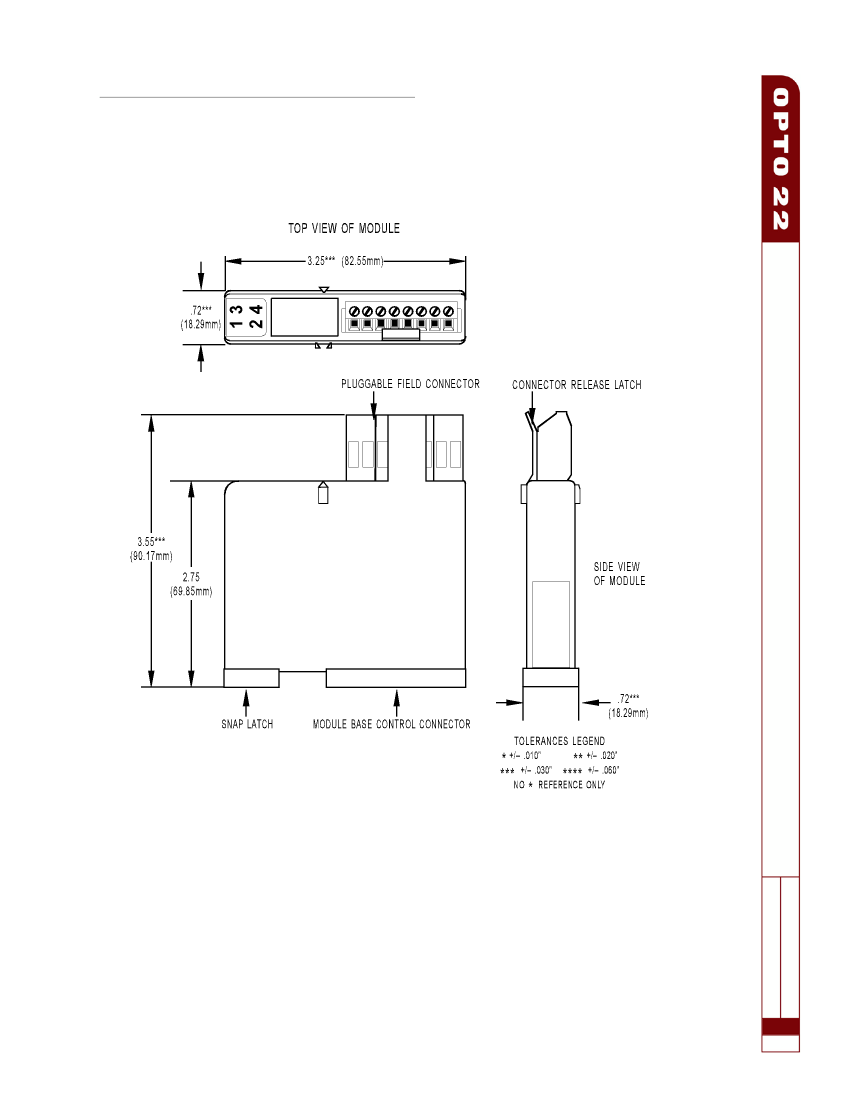

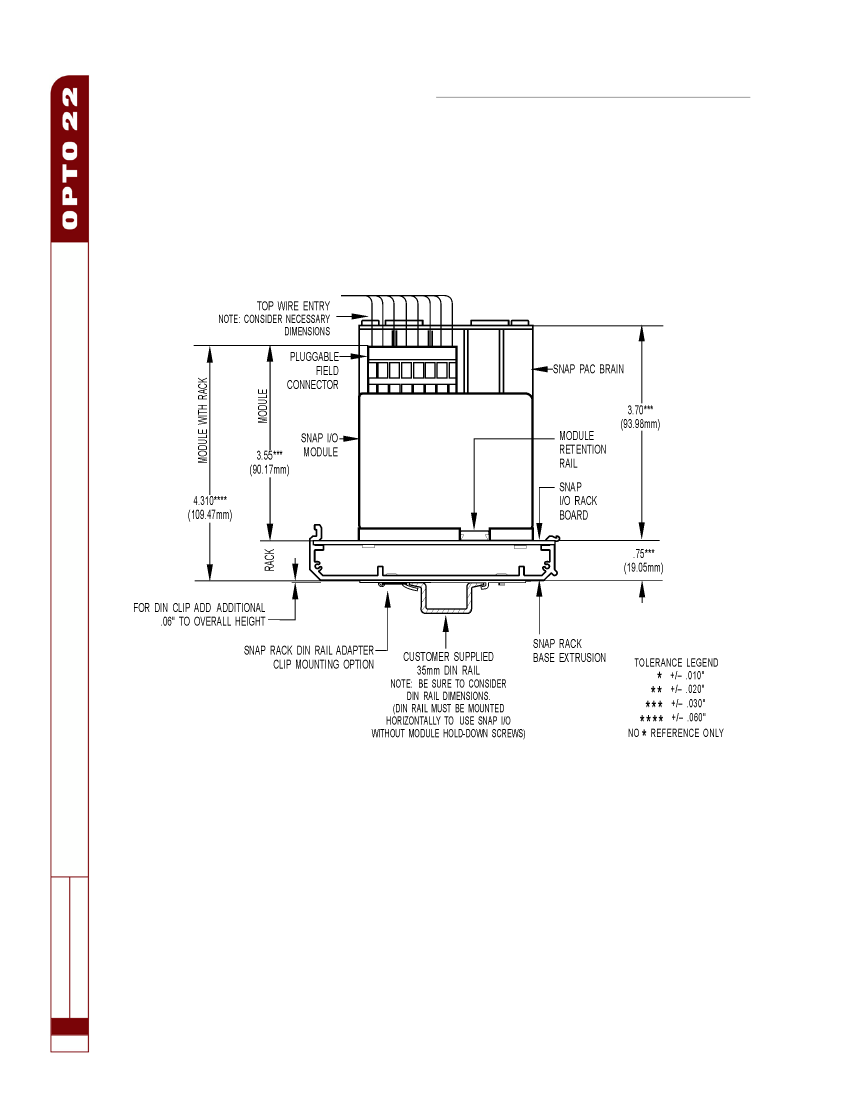

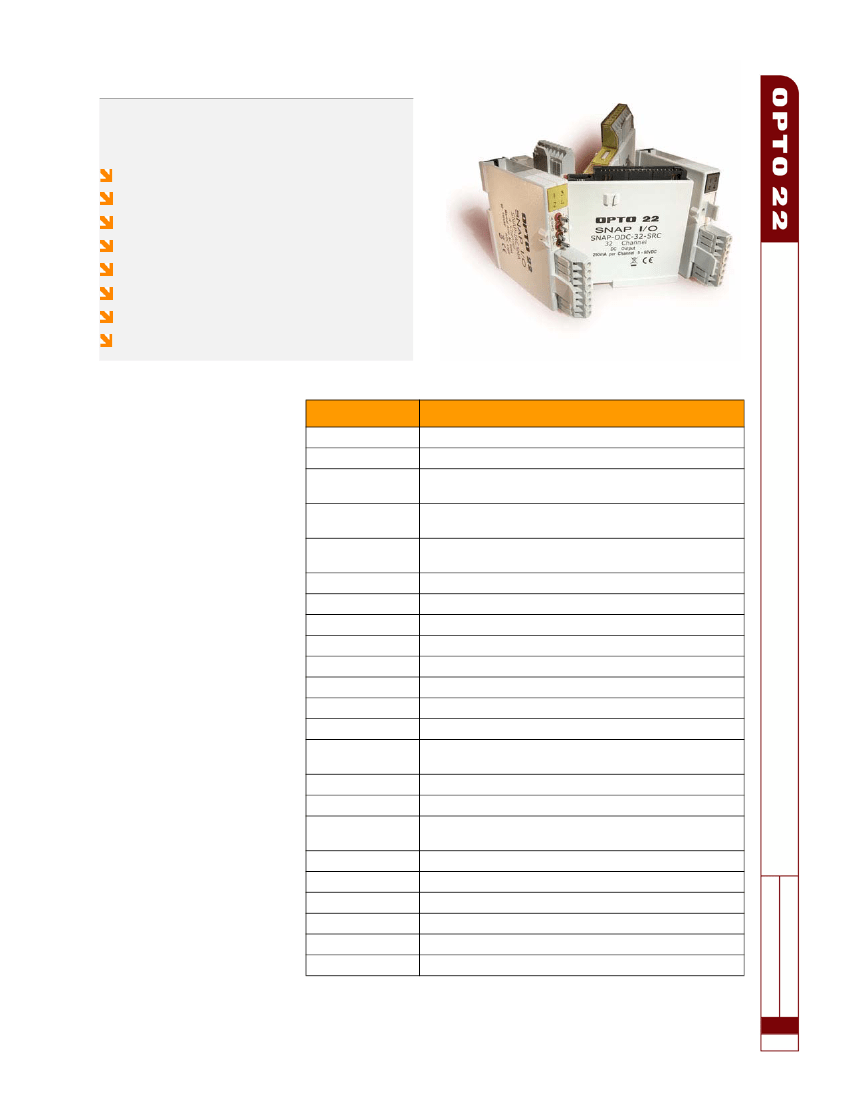

SNAP Digital Input Modules
Features
Four channels per module
4,000-volt transient isolation
Convenient pluggable wiring terminals
Channel-specific LEDs
Operating temperature: 0 to 70 °C
UL and CE approved
Accepts up to 14 AWG wire
Factory Mutual approved (part numbers ending in FM)
SNAP Digital Input Modules
SNAP Digital Input Modules
Description
Opto 22 SNAP I/O digital input modules
are part of the SNAP PAC System. Optical
isolation on these modules provides
4,000 volts of transient (4000 V for 1 ms)
protection for sensitive control
electronics from industrial field signals.
Digital input modules can sense either
AC or DC signals.
All SNAP digital modules have
removable top-mounted connectors to
provide easy access for field wiring, and
all operate on 5 VDC control logic. Each
digital module features integral channel-
specific LEDs for convenient
troubleshooting and maintenance. Each
module is factory tested twice and is UL
and CE approved. In addition, part
numbers ending in FM are Factory
Mutual approved.
SNAP input modules are used to sense
the on or off status for AC or DC voltages
from such sources as proximity switches,
push buttons, or auxiliary contacts. The
SNAP-IDC5G is ideal for detecting 48
VDC in telecom applications. The SNAP-
IDC5-HT is designed for sensors that
have a high leakage current.
The SNAP-IDC5-SW and SNAP-IDC5-
SW-NC modules supply power to an
external dry contact switch and sense
Part Numbers
Part
SNAP-IAC5
SNAP-IAC5A
SNAP-IAC5MA*
SNAP-IAC5FM
SNAP-IAC5AFM
SNAP-IDC5
SNAP-IDC5D
SNAP-IDC5FAST
Description
SNAP 4-channel 90–140 VAC input, 5 VDC logic
SNAP 4-channel 180–280 VAC input, 5 VDC logic
SNAP 4-channel isolated 90–140 VAC/VDC input, 5 VDC logic,
with manual/auto switches
SNAP 4-channel 90–140 VAC/VDC input, 5 VDC logic, Factory
Mutual approved
SNAP 4-channel 180–280 VAC input, 5 VDC logic, Factory
Mutual approved
SNAP 4-channel 10–32 VDC input, 5 VDC logic
SNAP 4-channel 2.5–28 VDC input, 5 VDC logic
SNAP 4-channel high-speed 2.5–16 VDC input, VDC logic
SNAP-IDC5-FAST-A* SNAP 4-channel high-speed 18–32 VDC input, 5 VDC logic
SNAP-IDC5G*
SNAP-IDC5AF
SNAP-IDC5GF
SNAP-IDC5HT
SNAP-IDC5MA
SNAP-IDC5-SW*
SNAP 4-channel 35–75 VAC/DC input, 5 VDC logic
SNAP 4-channel high-speed 75–140 VDC input, 5 VDC logic
SNAP 4-channel high-speed 35–75 VDC input, 5 VDC logic
SNAP 4-channel 15–32 VDC leakage-tolerant input, 5 VDC logic
SNAP 4-channel isolated high-speed 10–32 VAC/VDC input,
5 VDC logic, with manual/auto switches
SNAP 4-channel switch status input, normally open
SNAP-IDC5-SW-NC* SNAP 4-channel switch status input, normally closed
SNAP-IDC5FM
SNAP-IDC5DFM
SNAP-RETN4
SNAP-RETN4B
SNAP-RETN6
SNAP-RETN6B
SNAP-FUSE4AB
* UL approval pending
SNAP 4-channel 10–32 VDC input, 5 VDC logic, Factory Mutual
approved
SNAP 4-channel 2.5–28 VDC input, 5 VDC logic
SNAP 4-module retention rail (OEM)
SNAP 4-module retention rail, 25-pack (OEM)
SNAP 6-module retention rail (OEM)
SNAP 6-module retention rail, 25-pack (OEM)
SNAP 4-amp fuse, 25-pac
DATA SHEET
1
Form 773-080826
PAGE
SNAP Digital Input Modules
Specifications: DC Input Modules
See
page 7
for SNAP-IDC5-SW and SNAP-IDC5-SW-NC specifications and wiring.
SNAP-IDC5
Key Feature
Field Side Ratings (each channel)
--
SNAP-IDC5D
--
SNAP-IDC5G
--
SNAP-IDC5-HT
Leakage-tolerant
SNAP Digital Input Modules
Nominal Input Voltage
24 VAC/VDC
5 VDC
300 VAC
(1,500 V transient)
2.5–28 VDC
2.5 VDC
1 VDC
3 K ohms (nominal)
48 VAC/VDC
300 VAC
(1,500 V transient)
35–75 VAC/VDC
35 VAC/VDC
7 VAC/VDC
64 K ohms (nominal)
24 VAC/VDC
300 VAC
(1,500 V transient)
15–32 VAC/VDC
15 VAC/VDC
8 VAC/VDC
3 K ohms (nominal)
Channel-to-channel isola- 300 VAC
tion
(1,500 V transient)
Input Voltage Range
Turn-on Voltage
Turn-off Voltage
Input Resistance
Logic Side Ratings
<.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 0.4 mA sourcing
5 VDC ± 0.25 VDC
50 mA maximum
10–32 VAC/VDC
10 VAC/VDC
3 VAC/VDC
15 K ohms (nominal)
Logic Output Voltage
<.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 0.4 mA sourcing
5 VDC ± 0.25 VDC
50 mA maximum
<.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 0.4 mA sourcing
5 VDC ± 0.25 VDC
50 mA maximum
<.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 0.4 mA sourcing
5 VDC ± 0.25 VDC
50 mA maximum
Logic Supply Voltage***
Logic Supply Current
Negative True Logic Out-
put Drive
Module Ratings
Number of Channels Per
Module
Turn-on Time
Turn-off Time
Optical Isolation
(Field Side to Logic Side)
Temperature
TTL 74 Series = 1 UL
TTL 74 Series = 1 UL
TTL 74 Series = 1 UL
TTL 74 Series = 1 UL
TTL 74LS Series = 5 UL TTL 74LS Series = 5 UL TTL 74LS Series = 5 UL TTL 74LS Series = 5 UL
4
5 msec
15 msec
4,000 volts (transient)
0 °C to 70 °C, operating
-30 °C to 85 °C, storage
4
1 msec
1 msec
4,000 volts (transient)
4
5 msec
15 msec
4,000 volts (transient)
4
20 msec
25 msec
4,000 volts (transient)
0 °C to 70 °C, operating 0 °C to 70 °C, operating 0 °C to 70 °C, operating
-30 °C to 85 °C, storage -30 °C to 85 °C, storage -30 °C to 85 °C, storage
* At 20kHz, 5Vp-p square wave input, 50% duty cycle.
** At 20kHz, 28Vp-p square wave input, 50% duty cycle.
*** When used with an I/O processor (brain or on-the-rack controller), the processor requires 5.0 to 5.2 VDC.
