INT-1462
Frame Grabber with 4 CVBS Inputs, 1 Audio Line & 24 GPIO
Features
General Features:
Architecture:
PC/104-Plus compliant
Video Decoder:
Conexant Fusion™ 878A (CX25878A), PC99 Compliant
Inputs:
4 Composite Video Inputs (1 configurable as S-Video)
Video Decoding Formats:
•
NTSC
•
PAL
•
SECAM
Output Resolutions:
•
NTSC: 640x480, 320x240, or 720x480
•
PAL/ SECAM: 768x576 or 384x288
Acquisition Rate:
•
30 fps (NTSC)
•
25 fps (PAL / SECAM)
Input Formats:
•
NTSC-M
•
PAL-B
•
PAL-G
•
PAL-H
•
SECAM
Output:
Multiple YCbCr and RGB pixel formats and YUV planar
pixel formats
VBI Data Capture:
For Closed Caption, Teletext and Intercast Data
Decoding
Scaling:
Horizontal & Vertical up to 16:1 in X and Y Directions
Filters / Scalars:
Advanced Chrominance and Luminance Comb Filters /
Scalars (6-tap Luminance / 2-tap Chrominance)
Other Features:
•
One Mono Audio Input
•
Programmable Image Brightness, Contrast,
Saturation and Hue
•
Complex Clipping of Video Source and VGA
Video Overlay

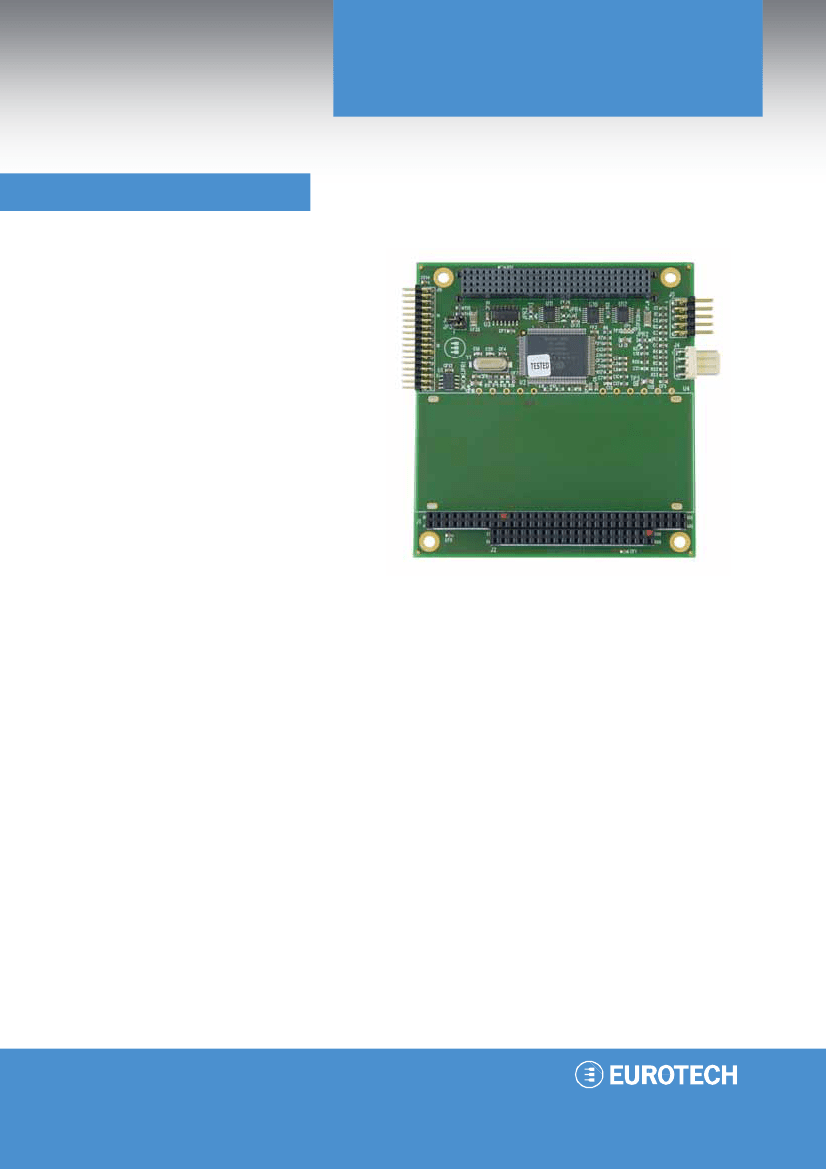

The INT-1462 video frame grabber is a cost-effective, high-performance
solution for capturing analog broadcast signals across the PCI bus. Based
around the Conexant Fusion™ 878A video decoder, this compact PC/104-Plus
form factor board supports NTSC, PAL, and SECAM video formats at capture
resolutions of up to 768x576 pixels and 30 frames per second. It also has the
ability to sub-sample, scale, crop, and clip images at various resolutions and
frame rates.
Capturing and then digitizing video in YCbCr, RGB, and YUV Planar pixel
formats from up to four devices (one input channel at a time), the INT-1462
module can support four CVBS composite inputs, or three composite video
and one S-Video (Y/C) input source. The board also accepts one audio input
and includes 24 flexible digital I/O channels, which can be configured for digital
video input, high-speed MPEG stream transport, or to input / output general
board-level signals to or from the PC/104-Plus bus (for remote camera
control).
Potential applications are: placing video data directly into the host memory for
video capturing or into the frame buffer of a video display for video overlaying.
It can also be used as a multimedia hub of an Embedded PC system
connecting multiple analog and digital video sources to the CPU module via a
single PCI connection. Sample applications include remote video surveillance,
medical and industrial imaging, motion detection, traffic monitoring, PC / digital
television, digital VCR, desktop videophone, still frame capture and VBI data
service.
RoHS:
•
Fully RoHS (2002/95/CE) Compliant.
INT-1462
Applications
•
•
•
•
•
Video capture
Still frame capture
Multimedia hub of Embedded PC system
Mobile DVR
Vertical blanking interval (VBI) data service
Physical Characteristics
DIMENSIONS
POWER SUPPLY
POWER CONSUMPTION
OPERATING
TEMPERATURE
90 x 96 mm (3.6” x 3.8”)
Single +5V DC +/- 5%
1.25 W (typical)
0 ~ +60°C standard
-40 ~ +85°C optional
HUMIDITY
Up 95% non-condensing
