Data Sheet No.PD 60158-H
IPS521/IPS521S
FULLY PROTECTED HIGH SIDE POWER MOSFET SWITCH
Features
•
•
•
•
•
•
•
Over temperature protection (with auto-restart)
Short-circuit protection (current limit)
Active clamp
E.S.D protection
Status feedback
Open load detection
Logic ground isolated from power ground
Product Summary
R
ds(on)
V
clamp
I
Limit
V
open load
80m
Ω
(max)
50V
10A
3V
Description
The IPS521/IPS521S are fully protected five terminal
high side switches with built in short-circuit , over-
temperature, ESD protection, inductive load capability
and diagnostic feedback. The output current is con-
trolled when it reaches I lim value. The current
limitation is activated until the thermal protection
acts. The over-temperature protection turns off the
high side switch if the junction temperature exceeds
Tshutdown. It will automatically restart after the junc-
tion has cooled 7
o
C below Tshutdown. A diagnostic
pin is provided for status feedback of short-circuit,
over-temperature and open load detection. The double
level shifter circuitry allows large offsets between the
logic ground and the load ground.
Truth Table
Op. Conditions
Normal
Normal
Open load
Open load
Over current
Over current
Over-temperature
Over-temperature
In
Out
H
H
L
L
H
H
L
H
H
L (limiting)
L
L
H L (cycling)
L
L
Dg
H
L
H
H
L
L
L
L
Typical Connection
+ VCC
+ 5v
15K
Status
feedback
Rdg
Rin
Output pull-up resistor
Packages
Vcc
Dg
Logic
control
Out
In
Gnd
5 Lead
D2Pak (SMD220)
IPS521S
Logic
signal
Load
Logic Gnd
Load Gnd
5 Lead
TO220 - IPS521
www.irf.com
1
IPS521/IPS521S
Absolute Maximum Ratings
Absolute maximum ratings indicate sustained limits beyond which damage to the device may occur. All voltage parameters
are referenced to GROUND lead. (Tj = 25
o
C unless otherwise specified).
Symbol Parameter
Vout
Voffset
Vin
Iin, max
Vdg
Idg, max
Isd
cont.
Maximum output voltage
Maximum Input voltage
Maximum positive IN current
Maximum diagnostic output voltage
Maximum diagnostic output current
Diode max. permanent current
(1)
(rth=62
o
C/W)
Isd
pulsed
Diode max. pulsed current
(1)
ESD1
ESD2
Pd
Electrostatic discharge voltage
(Human Body)
Electrostatic discharge voltage
(Machine Model)
Maximum power dissipation
(1)
(TC=25
o
C) IPS521
(TC=25
o
C)
Tj max.
Tlead
IPS521S
Max. storage & operating junction temp.
Lead temperature (soldering 10 seconds)
Min.
Vcc-50
-0.3
-5
-0.3
-1
—
—
—
—
—
—
-40
—
—
Max.
Vcc+0.3
Vcc+0.3
7
10
7
10
2.2
10
4
0.5
40
1.56
+150
300
50
Units
V
mA
V
mA
Test Conditions
Maximum logic ground to load ground offset Vcc-50
A
C=100pF, R=1500Ω,
kV
C=200pF, R=0Ω, L=10µH
W
o
C
V
Vcc max. Maximum Vcc voltage
Thermal Characteristics
Symbol Parameter
Rth
Rth
Rth
Rth
Rth
1
2
1
2
3
Thermal
Thermal
Thermal
Thermal
Thermal
resistance junction to case
resistance junction ambient
resistance with standard footprint
resistance with 1" square footprint
resistance junction to case
Min.
—
—
—
—
—
Typ.
!
$
60
35
!
Max. Units Test Conditions
—
—
—
—
—
TO-220
o
C/W
D
2
PAK (SMD220)
(1) Limited by junction temperature (pulsed current limited also by internal wiring)
2
www.irf.com
IPS521/IPS521S
Recommended Operating Conditions
These values are given for a quick design. For operation outside these conditions, please consult the application notes.
Symbol Parameter
Vcc
VIH
VIL
Iout
Iout
Rin
Rdg
Continuous Vcc voltage
High level input voltage
Low level input voltage
Continuous output current
(Tamb = 85
o
C, Tj = 125
o
C, Rth = 60
o
C/W, ) IPS521
Continuous output current
(Tamb = 85
o
C, Tj = 125
o
C, Rth = 80
o
C/W, ) IPS521S
Recommended resistor in series with IN pin
Recommended resistor in series with DG pin
Min.
5.5
4
-0.3
—
—
4
10
Max.
35
5.5
0.9
2.2
1.9
6
20
Units
V
A
k
Ω
Static Electrical Characteristics
(T j = 25
o
C, Vcc = 14V unless otherwise specified.)
Symbol Parameter
Rds(on)
@Tj=25
o
C
Min.
o
Typ.
55
55
110
—
55
56
0.9
16
0.6
20
0.15
50
—
—
2.2
1.9
70
0.25
Max. Units Test Conditions
80
80
140
35
—
65
1.2
50
2
—
0.4
120
25
10
3
—
200
0.5
Vin = 5V, Iout = 5A
mΩ
Vin = 5V, Iout = 2.5A
Vin = 5V, Iout = 5A
ON state resistance Tj = 25 C
ON state resistance @ Vcc = 6V
ON state resistance Tj = 150
o
C
Operating voltage range
Vcc to OUT clamp voltage 1
Vcc to OUT clamp voltage 2
Body diode forward voltage
Supply current when OFF
Supply current when ON
Ripple current when ON (AC RMS)
Low level diagnostic output voltage
Output leakage current
Output leakage current
Diagnostic output leakage current
IN high threshold voltage
IN low threshold voltage
On state IN positive current
Input hysteresis
—
—
—
5.5
50
—
—
—
—
—
—
—
0
—
—
1
—
0.1
Rds(on)
(V cc=6V)
Rds(on)
@Tj=150
o
C
Vcc oper.
V
clamp 1
V
clamp 2
Vf
Icc off
Icc on
Icc ac
Vdgl
Ioh
Iol
Idg
leakage
V
µA
mA
µA
V
µA
Id = 10mA
(see Fig.1 & 2)
Id = Isd
(see Fig.1 & 2)
Id = 2.5A, Vin = 0V
Vin = 0V, Vout = 0V
Vin = 5V
Vin = 5V
Idg = 1.6 mA
Vout = 6V
Vout = 0V
Vdg = 5.5V
Vih
Vil
Iin , on
In hyst
V
µA
V
Vin = 5V
www.irf.com
3
IPS521/IPS521S
Switching Electrical Characteristics
Vcc = 14V, Resistive Load = 2.8Ω, T
j
= 25
o
C, (unless otherwise specified).
Symbol
Parameter
Tdon
Tr1
Tr2
dV/dt (on)
Eon
T doff
Tf
dV/dt (off)
Eoff
Tdiag
Turn-on delay time
Rise time to Vout = Vcc - 5V
Rise time Vcc - 5V to Vout = 90% of Vcc
Turn ON d V/dt
Turn ON energy
Turn-off delay time
Fall time to V out = 10% of Vcc
Turn OFF d V/dt
Turn OFF energy
Vout to Vdiag propagation delay
Min.
—
—
—
—
—
—
—
—
—
—
Typ. Max. Units Test Conditions
10
25
130
0.7
1500
35
25
0.9
250
5
40
60
200
2
—
70
50
3
—
15
µs
See figure 3
V/µs
µJ
µs
V/µs
µJ
µs
See figure 4
See figure 6
Protection Characteristics
Symbol Parameter
I lim
Internal current limit
T sd+
Over-temp. positive going threshold
T sd-
Over-temp. negative going threshold
V
sc
Short-circuit detection voltage (3)
V
open load
Open load detection threshold
(3) Referenced to Vcc
Min.
7
—
—
2
2
Typ.
10
165
158
3
3
Max. Units Test Conditions
14
—
—
4
4
A
o
C
V
Vout = 0V
See fig. 2
See fig. 2
See fig. 2
Lead Assignments
3 (Vcc)
3 (Vcc)
1 - Ground
2 - In
3 - Vcc
4 - DG
5 - Out
12345
12345
5 Lead - TO220
IPS521
Part Number
4
5 Lead - D
2
PAK (SMD220)
IPS521S
www.irf.com
IPS521/IPS521S

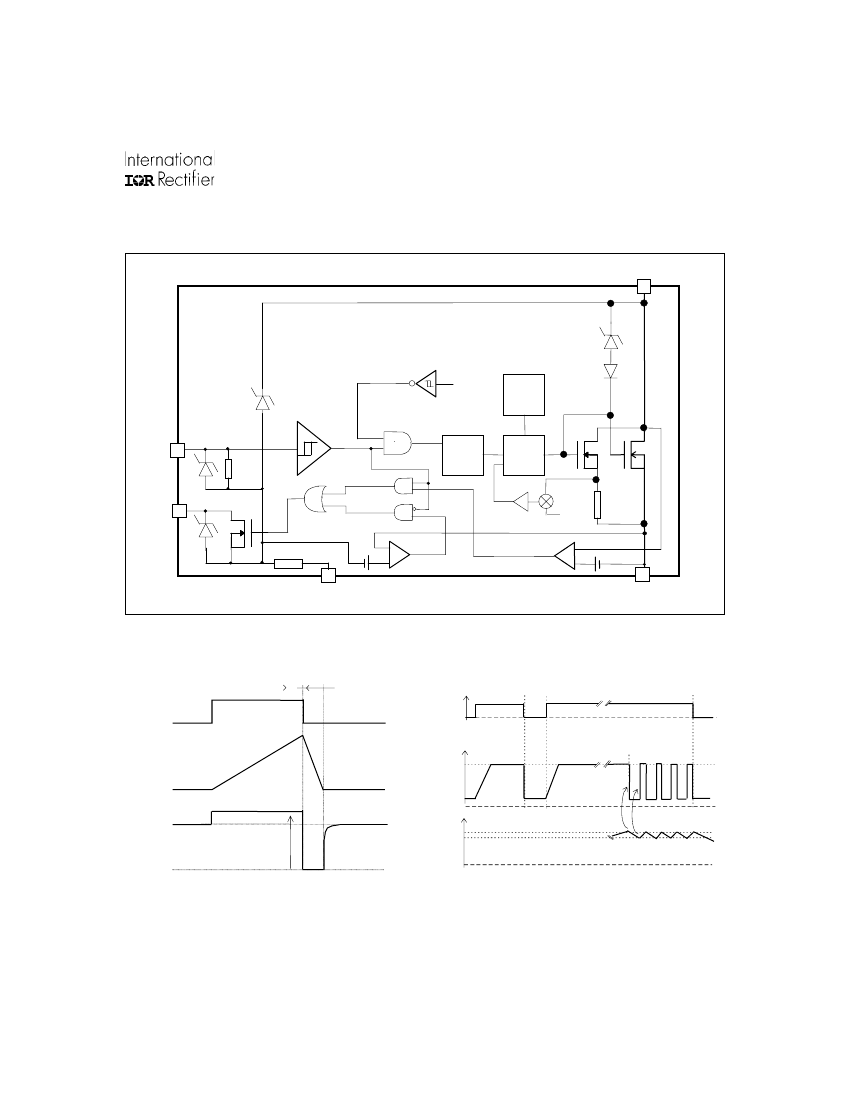

Functional Block Diagram
All values are typical
VCC
50V
Over
temperature
165°C
158°C
Tj
62 V
Charge
pump
2.7 V
IN
7 V
200 KΩ
2.2 V
Level
shift
driver
-
DG
7 V
40
Ω
-
+
Open load
3V
Current
limit
+
10 A
+
Short-circuit
-
3V
GND
VOUT
T clamp
Vin
Vin
5V
0V
Iout
limiting
Ilim.
T shutdown
cycling
Iout
( + Vcc )
Out
0V
T
Tsd+
Tsd-
° )
(160
V clamp
( see Appl . Notes to evaluate power dissipation )
Figure 1 - Active clamp waveforms
Figure 2 - Protection timing diagram
www.irf.com
5
