PD-60022D
IR2130D
Features
n
Hermetic
n
Floating channel designed for bootstrap operation
3-PHASE DRIVER
Product Summary
V
OFFSET
I
O
+/-
V
OUT
t
on/off
(typ.)
Deadtime (typ.)
400V max.
100mA / 100mA
10 - 20V
675ns & 425ns
0.9µs
n
n
n
n
n
n
Fully operational to +400V
Tolerant to negative transient voltage
dV/dt immune
Gate drive supply range from 10 to 20V
Undervoltage lockout for all channels
Over-current shutdown turns off all six drivers
Independent half-bridge drivers
Matched propagation delay for both channels
Outputs in phase with inputs
Description
The IR2130D is a high voltage, high speed power MOSFET
and IGBT driver with three independent high and low side
referenced output channels. Proprietary HVIC technology
enables ruggedized monolithic construction. Logic inputs
are compatible with 5V CMOS or LSTTL outputs. A ground-
referenced operational amplifier provides analog feedback
of bridge current via an external current sense resistor. A
current trip function which terminates all six outputs is also
derived from this resistor.
An open drain
FAULT
signal indicates if an over-
current or undervoltage shutdown has occurred.
The output driverhgre a high pulse current
buffer stage designed for minimum driver cross-con
duction. Propagation delays are matched to simplify
use at high frequencies. The floating channels can
be used to drive N-channel power MOSFETs or
IGBTs in the high side configuration which operate
up to 400 volts.
Absolute Maximum Ratings
Absolute Maximum Ratings indicate sustained limits beyond which damage to the device may occur. All voltage
parameters are absolute voltages referenced to Vso. The Thermal Resistance and Power Dissipation ratings are
measured under board mounted and still air conditions.
Symbol
V
B1,2,3
V
S1,2,3
V
HO1,2,3
V
CC
V
SO
V
LO1,2,3
V
IN
V
FLT
V
CAO
V
CA-
dV S/dt
P
D
R
thJA
T
j
T
S
T
L
Parameter
High Side Floating Supply Absolute Voltage
High Side Floating Supply Offset Voltage
High Side Output Voltage
Low Side Fixed Supply Voltage
Low Side Driver Return
Low Side Output Voltage
Logic Input Voltage (HIN, LIN & SD)
Fault Output Voltage
Operational Amplifier Output Voltage
Operational amplifier Inverting Input Voltage
Allowable Offset Supply Voltage Transient (Fig. 16)
Package Power Dissipation @ TA< = 25°C (Fig. 19)
Thermal Resistance, Junction to Ambient
Junction Temperature
Storage Temperatue
Lead Temperature (Soldering, 10 seconds)
Weight
Min.
Max.
Units
-0.3
V
S1,2,3
+ 20
V
SO
- 5
V
SO
+ 400
V
S1,2,3
- 0.3 V
S1,2,3
+ 0.3
-0.3
20
-5
V
CC
+ 0.3
V
SO
- 0.3
V
CC
+ 0.3
-0.3
V
CC
+ 0.3
-0.3
V
CC
+ 0.3
-0.3
V
CC
+ 0.3
-0.3
V
CC
+ 0.3
—
50
—
1.5
—
70
-55
125
-55
150
—
300
6.1 (typical)
V
V/nS
W
°C/W
°C
g
www.irf.com
1
05/02/11
IR2130D
Recommended Operating Conditions
The Input/Output logic timing diagram is shown in Figure 1. For proper operation the device should be used
within the recommended conditions. All voltage parameters are absolute voltages referenced to VS0. The
VS offset rating is tested with all supplies biased at 15V differential.
Symbol
V
B1,2,3
V
S1,2,3
V
HO1,2,3
V
CC
V
SS
V
LO1,2,3
V
IN
V
FLT
V
CAO
V
CA-
Parameter
High Side Floating Supply Voltage
High Side Floating Supply Offset Voltage
High Side Output Voltage
Low Side Fixed Supply Voltage
Logic Ground
Low Side Output Voltage
Logic Input Voltage (HIN, LIN & SD)
Fault Output Voltage
Operational Amplifier Output Voltage
Operational Amplifier Inverting Input Voltage
Min.
V
S1,2,3
+ 10
V
SO
- 5
V
S1,2,3
10
-5
0
V
SS
V
SS
V
SS
V
SS
Max.
V
S1,2,3
+ 20
V
SO
+ 400
V
B1,2,3
20
5
V
CC
V
SS
+ 5
V
CC
5
5
Units
V
Dynamic Electrical Characteristics
VBIAS (VCC, VBS1,2,3) = 15V, VS0,1,2,3 = VSS, CL = 1000 pF unless otherwise specified.
Tj = -55°C
Tj = 25°C
to125°C
Symbol
t
on
t
r
t
off
t
f
DT
t
itrip
t
flt
t
fltclr
t
flt,in
t
bl
SR+
SR-
Parameter
Turn-On Propagation Delay
(all six channels)
Turn-On Rise Time (all six channels)
Turn-Off Propagation Delay
(all six channels)
Turn-Off Fall Time (all six channels)
Deadtime (LS Turn-off to HS Turn-on
& HS Turn-off to LS Turn-on)
ITRIP to Output Shutdown Prop. Delay
ITRIP to FAULT Indication Delay
LIN1, 2, 3 To FAULT Clear Time
Input Filter Time (all six inputs)
ITRIP Blanking Time
Amplifier Slew Rate
(+)
Amplifier Slew Rate
(-)
Min. Typ. Max. Min. Max. Units Test Conditions
500
—
300
—
0.4
400
335
5.5
—
—
3.75
2.4
675
80
425
35
0.9
850
125
550
55
1.3
—
—
—
—
0.25
—
—
—
—
—
2.7
1.5
850
175
600
85
1.5
1100
1000
—
—
—
—
—
ns
CL= 1000pF
V
S1,2,3
= 0 to 400 V
VIN = 0 & 5 V
µs
ns
ns
µs
ns
ns
V/µs
V/µs
660 920
590 845
10
12.5
310
—
400 —
5.0
—
3.2
—
CL = 1000pF,
VIN = 0 & 5V
CL = 1000pF,
VIN, VITRIP = 0 & 5V
VIN = 0 & 5V
VITRIP = 1V
Typical Connection
4
2
www.irf.com
IR2130D
Static Electrical Characteristics
VBIAS (VCC, VBS1, 2, 3) = 15V, VSO1, 2, 3 = VSS unless otherwise specified. The VIN, VTH and IIN parameters are
referenced to VSS and are applicable to all six logic input leads: HIN1, 2, 3 & LIN1, 2, 3. The VO and IO parameters are
referenced to VSO1, 2, 3.
Tj = 25°C
Tj=-55-125°C
Units
µA
mA
µA
nA
V
mV
mV
Ω
nA
CA- = 2.5V
VSO = CA- = 0.2V
Symbol
I
LK
I
QBS
I
QCC
I
IN+
I
IN-
I
ITRIP+
I
ITRIP-
V
IN
,
IH
V
IN
,
IL
V
IT,TH+
V
OS
R
on,FLT
V
CCUV+
V
CCUV
-
Parameter
Offset Supply Leakage Currents
Quiescent V
BS
Supply Current
Quiescent V
CC
Supply Current
Min.
—
—
—
Typ.
—
15
3.0
450
225
75
—
—
—
490
—
55
0.5
9.0
8.7
8.4
8.0
250
500
5.2
2.5
4.0
2.1
80
75
—
—
Max. Min. Max.
50
30
4.0
650
400
150
100
—
—
580
30
75
4.0
10.6
10.5
9.2
8.8
—
—
5.4
20
—
—
—
—
100
100
—
—
—
—
—
—
—
2.2
—
350
—
—
—
8.0
7.7
—
—
—
—
4.9
—
1.5
0.5
—
—
—
—
500
200
6.0
1050
—
—
170
—
0.8
580
—
150
4.0
10.7
10.5
—
—
—
—
5.6
20
—
—
—
—
100
100
Test Conditions
VB = VS=400V
VIN = 0V or 5V
VIN = 0V or 5V
VIN = 0V
VIN = 5V
ITRIP = 5V
ITRIP =0V
Logic “1” Input Bias Current(OUT= HI) —
Logic “0” Input Bias Current(OUT=LO) —
“High” ITRIP Bias Current
“Low” ITRIP Bias Current
Logic “0” Input Voltage( OUT = LO )
Logic “1” Input Voltage ( OUT = HI )
ITRIP Input Positive Going Threshold
Amplifier Input Offset Voltage
FAULT- Low On Resistance
CA- Input Bias Current
V
CC
Supply Undervoltage Positive
Going Threshold
V
CC
Supply Undervoltage Negative
Going Threshold
V
BS
Supply Undervoltage Positive
Going Threshold
V
BS
Supply Undervoltage Negative
Going Threshold
Output High Short Circuit Pulsed
Current
Output Low Short Circuit Pulsed
Current
Amplifier High Level Output Voltage
Amplifier Low Level Output Voltage
Amplifier Output Source Current
Amplifier Output Sink Current
Amplifier Common Mode Rejection
Ratio
Amplifier Power Supply Rejection
Ratio
High Level Output Voltage
Low Level Output Voltage
—
—
—
—
400
—
—
—
8.3
8.0
7.5
7.1
100
100
5.0
—
2.3
1.0
60
55
—
—
I
CA
-
V
V
BSUV+
V
BSUV-
I
O+
I
O-
V
OH,Amp
V
OL,Amp
I
SRC,Amp
I
SNK,Amp
CMRR
PSRR
V
OH
V
OL
V
VOUT = VIN- = 0V
PW <= 10µS
mA
V
mV
mA
VOUT =15, VIN-=5V
PW <= 10µS
CA- = 0V, VSO =1V
CA- = 1V, VSO =0V
CA- = 0V, VSO =1V, CAO=4V
CA- = 1V, VSO =0V,CAO=2V
CA- =VSO =0.1V & 5V
dB
CA- = VSO =0.2V
VCC = 10V & 20V
VIN- = 0V, IO = 0A
VIN- = 5V, IO = 0A
mV
www.irf.com
3
IR2130D
Static Electrical Characteristics Continued
VBIAS (VCC, VBS1, 2, 3) = 15V, VSO1, 2, 3 = VSS unless otherwise specified. The VIN, VTH and IIN
parameters are referenced to VSS and are applicable to all six logic input leads: HIN1, 2, 3 & LIN1, 2, 3.
The VO and IO parameters are referenced to VSO1, 2, 3.
Tj = 25°C
Tj = -55 to 125°C
Symbol
I
O+,Amp
I
O-,Amp
Circuit
Parameter
Amplifier Output High Short Circuit
Amplifier Output High Short Circuit
Circuit
Min. Typ. Max.
—
—
4.5
3.2
6.5
5.2
Min. Max.
—
—
8.0
7.0
Units
Test Conditions
CA- = 0V, VSO = 5V
VCAO = 0V
CA- = 5V, VSO = 0V
VCAO = 5V
4
www.irf.com
IR2130D
HIN1,2,3
4
LIN1,2,3
ITRIP
FAULT
HO1,2,3
LO1,2,3

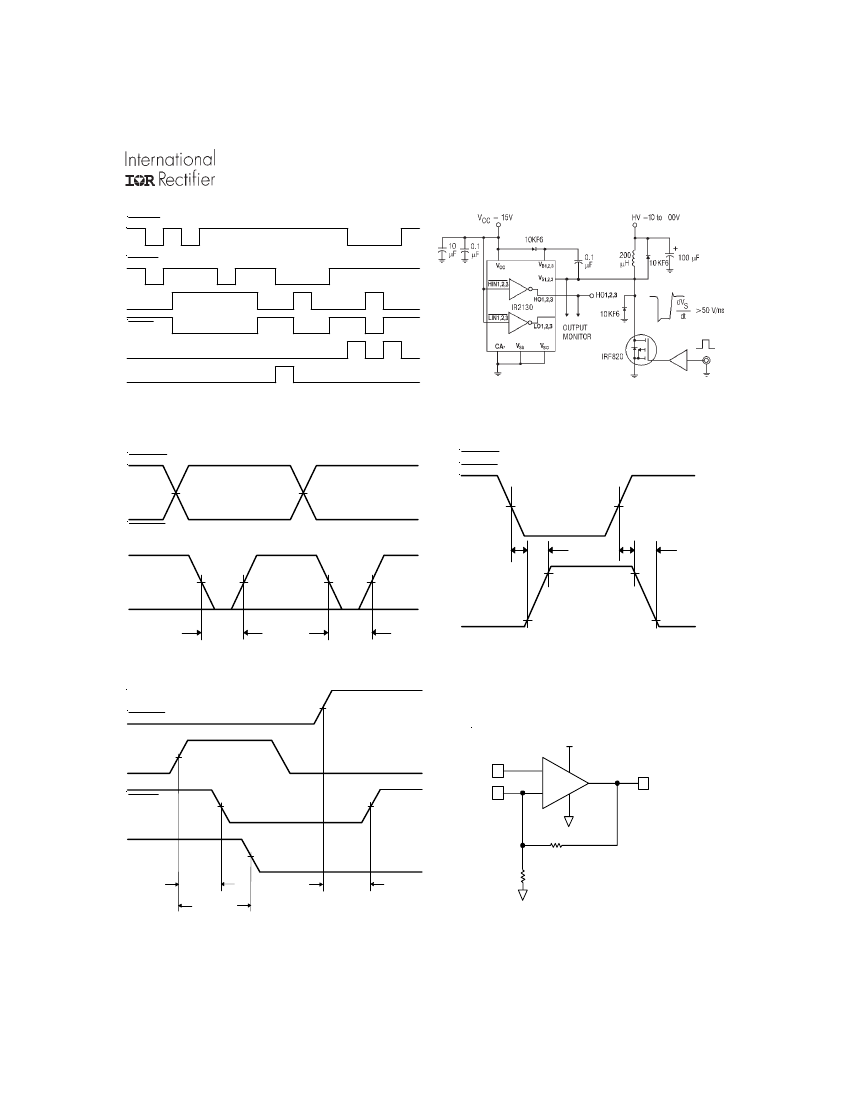

Figure 1. Input/Output Timing Diagram
Figure 2. Floating Supply Voltage Transient Test Circuit
HIN1,2,3
50%
50%
HIN1,2,3
LIN1,2,3
50%
50%
LIN1,2,3
t
on
t
r
90%
50%
50%
t
off
90%
t
f
LO1,2,3
HO1,2,3
DT
DT
HO1,2,3
LO1,2,3
10%
10%
Figure 3. Deadtime Waveform Definitions
50%
Figure 4. Input/Output Switching Time Waveform
Definitions
LIN1,2,3
V
CC
ITRIP
50%
V
S0
CA-
50%
50%
+
-
V
SS
CAO
FAULT
LO1,2,3
50%
t
flt
t
itrip
t
fltclr
V
SS
Figure 5. Overcurrent Shutdown Switching Time Waveform
Definitions
Figure 6. Diagnostic Feedback Operational Amplifier
Circuit
www.irf.com
5
