LSQ0806A Series – SMD AIR WOUND COIL
A. Electrical Specifications:
P/N
LSQ0806A-5N5_
LSQ0806A-6N0_
LSQ0806A-8N9_
LSQ0806A-12N_
LSQ0806A-16N_
LSQ0806A-19N_
Rev. A
Turns
3
3
4
5
6
7
L
(nH)
5.5
6.0
8.9
12.3
15.7
19.4
Tol.
J, K
J, K
J, K
J, K
J, K
J, K
Q
Min.
60
64
90
90
90
90
Test Freq. DCR Max. SRF Typ.
(MHz)
(GHz)
(mΩ)
400
400
400
400
400
400
3.4
6.0
7.0
8.0
9.0
10.0
4.9
5.2
4.3
4.8
4.4
4.0
I DC Max.
(A)
2.9
2.9
2.9
2.9
2.9
2.9

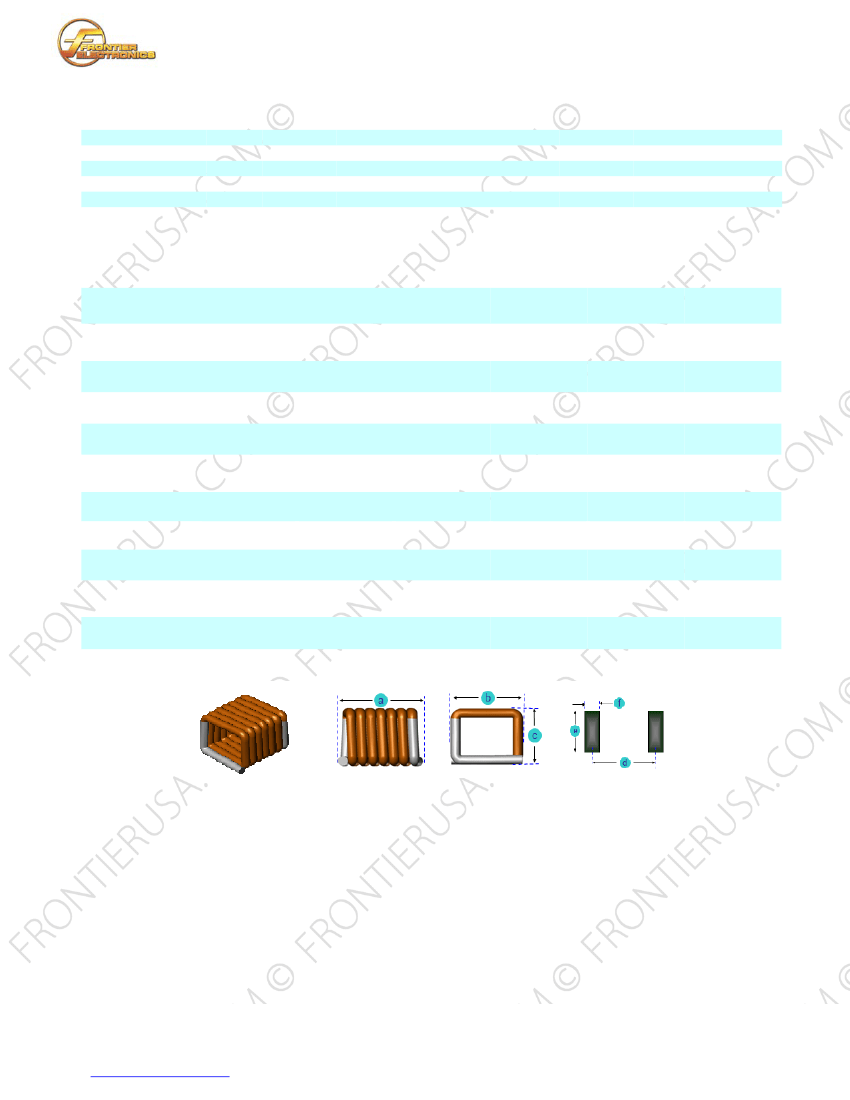

B. Dimensions: mm (Inch)
Series
LSQ0806A-5N5
Tol.
LSQ0806A-6N0
Tol.
LSQ0806A-8N9
Tol.
LSQ0806A-12N
Tol.
LSQ0806A-16N
Tol.
LSQ0806A-19N
Tol.
a
1.346
(0.053)
±0.102
(0.004)
1.295
(0.051)
±0.102
(0.004)
1.626
(0.064)
±0.152
(0.006)
1.93
(0.076)
±0.152
(0.006)
2.286
(0.09)
±0.152
(0.006)
2.591
(0.102)
±0.152
(0.006)
b
1.829
(0.072)
±0.254
(0.01)
1.829
(0.072)
±0.254
(0.01)
1.829
(0.072)
±0.254
(0.01)
1.829
(0.072)
±0.254
(0.01)
1.829
(0.072)
±0.254
(0.01)
1.829
(0.072)
±0.254
(0.01)
c
1.397
(0.055)
±0.102
(0.004)
1.397
(0.055)
±0.102
(0.004)
1.397
(0.055)
±0.102
(0.004)
1.397
(0.055)
±0.102
(0.004)
1.397
(0.055)
±0.102
(0.004)
1.397
(0.055)
±0.102
(0.004)
d
0.962
(0.038)
Typ.
1.020
(0.040)
Typ.
1.320
(0.052)
Typ.
1.630
(0.064)
Typ.
1.960
(0.077)
Typ.
2.290
(0.090)
Typ.
e
2.6
(0.102)
Typ.
2.6
(0.102)
Typ.
2.6
(0.102)
Typ.
2.6
(0.102)
Typ.
2.6
(0.102)
Typ.
2.6
(0.102)
Typ.
f
0.51
(0.02)
Typ.
0.51
(0.02)
Typ.
0.51
(0.02)
Typ.
0.51
(0.02)
Typ.
0.51
(0.02)
Typ.
0.51
(0.02)
Typ.
C. General Information:
LSQ0806A-xxx, “LSQ0806A” = P/N, “xxx” = Inductance, “_” = Tolerance.
Tolerance “_”: K: ± 10%, J: ± 5%
Test Frequency: 400MHz, 0.1Vrms.
Small and lightweight surface mounting type
High Q at high frequency
High self-resonance frequency
Maximum Temperature Rise: 15°C (when measured at 25°C ambient).
Inductance & Q measured with HP4291B Impedance Analyzer with HP16193 test fixture
SRF measured using the HP8753E Network Analyzer or equivalent.
10.
DCR measured using the Chroma 16502 or equivalent.
11. Operating temperature: -40°C to +125ºC
12. Storage temp. : -40ºC to +85ºC.
13. Inductance and Current Range: From 5.5 nH (2900 mA) to 19.4 nH (2900 mA)
14. SRF: From 4000 MHz to 4900 MHz
15. MSL: Level 1.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
LSQ0806A Series – SMD AIR WOUND COIL
D. Applications:
1.
2.
3.
4.
5.
6.
Game Consoles
Set Top Boxes
Cables Modems
Computers
Mobile Communication Devices (Cell Phones, Radios)
RF Filters
Rev. A

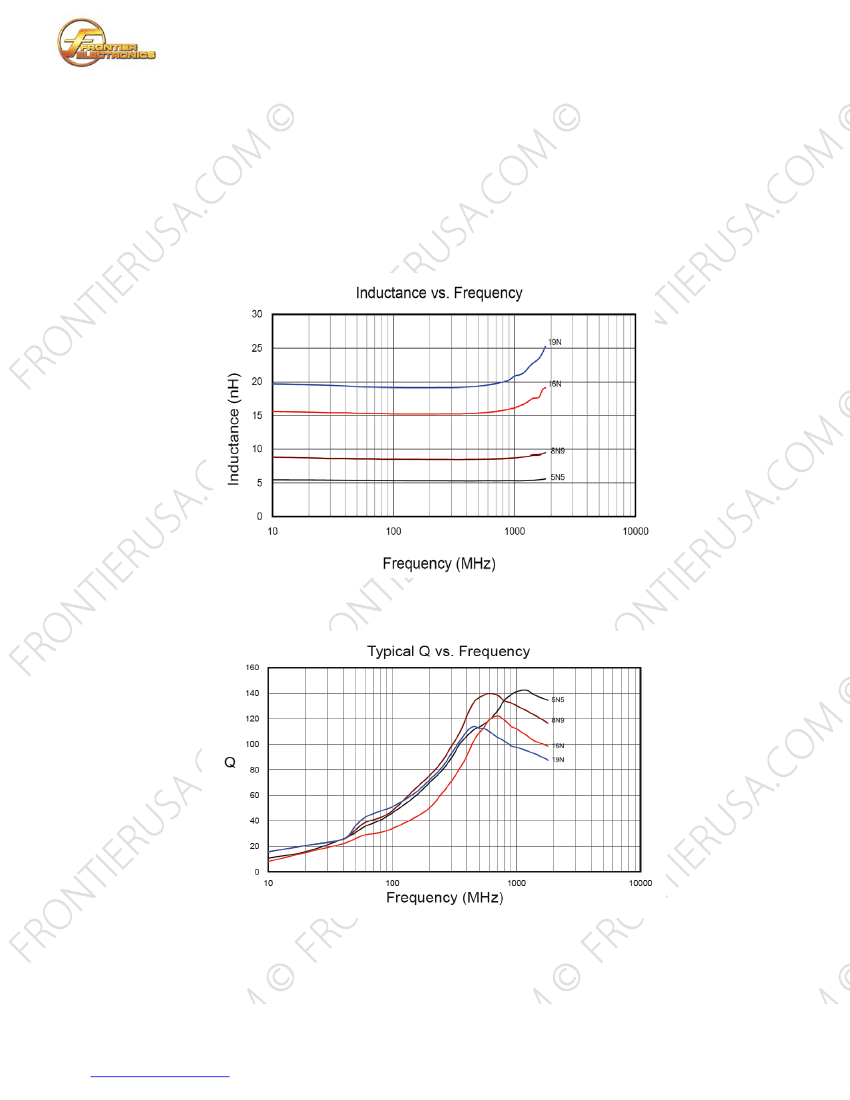

E. Characteristics curve:
