SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0782, Rev. -
MBR1560
MBRB1560
Green Products
MBR1560/MBRB1560 SCHOTTKY RECTIFIER
Applications:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Switching power supply
Converters
Free-Wheeling diodes
Reverse battery protection
Center tap configuration
150
°C
T
J
operation
Center tap configuration
Low forward voltage drop
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and
moisture resistance
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
This is a Pb
−
Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
Features:
MBR1560
MBRB1560
TO-220AC
D
2
PAK

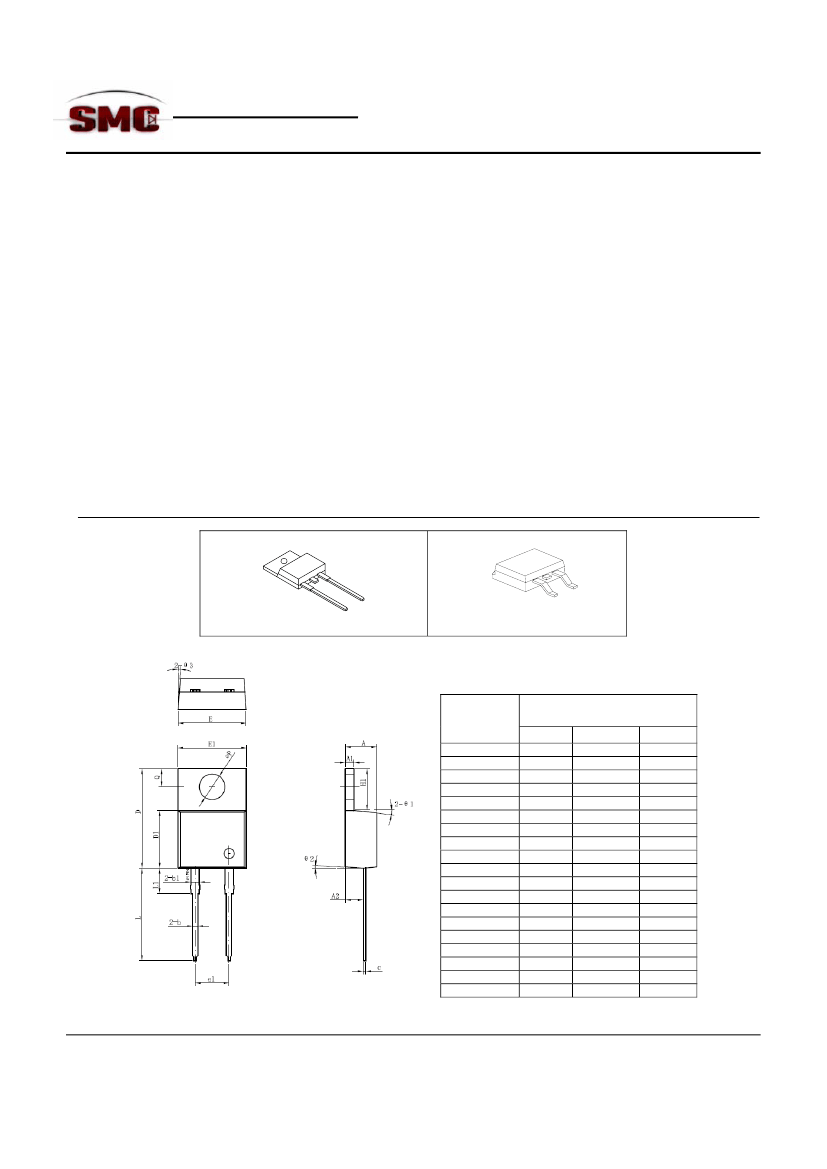

Mechanical Dimensions: In Inches / mm

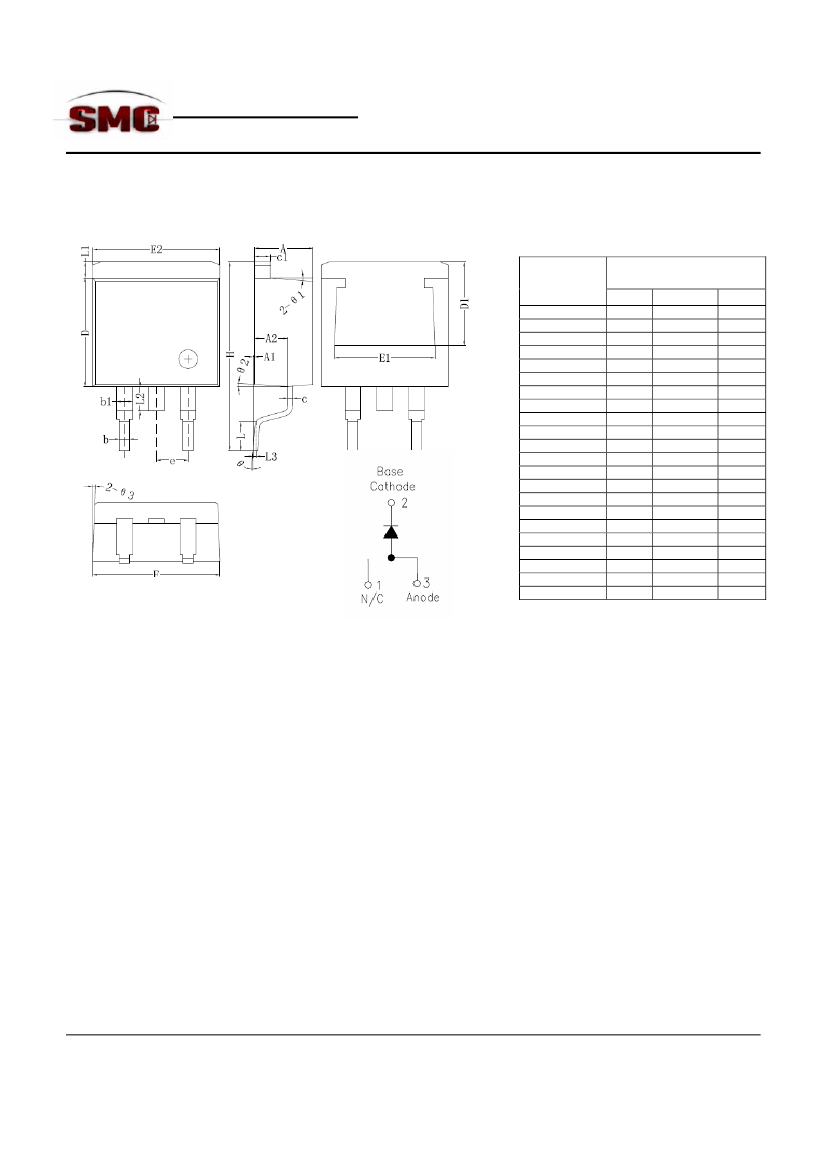

Symbol
A
A1
A2
b
b1
c
D
D1
E
E1
e1
H1
L
L1
ΦP
Q
Θ1
Θ2
Θ3
Dimensions in
millimeters
Min.
Typical
Max.
4.55
1.17
2.59
0.71
0.36
14.64
8.55
10.01
9.98
6.04
13.00
3.74
2.54
4.70
1.27
2.69
0.81
1.27
0.38
14.94
8.07
10.16
10.18
5.08
6.24
13.86
3.80
3.84
2.74
5°
4°
4°
4.85
1.37
2.89
0.96
0.61
15.24
8.85
10.31
10.38
6.44
14.08
4.04
2.94
TO-220AC
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0782, Rev. -
MBR1560
MBRB1560
Green Products
Symbol
A
A1
A2
b
b1
c
c1
D
D1
E
E1
E2
e
H
L
L1
L2
L3
e
e1
e2
e3
Dimensions in
millimeters
Min. Typical Max.
4.55
0
2.59
0.71
0.36
1.17
8.55
6.40
10.01
7.6
9.98
14.6
2.00
1.17
4.70
0.10
2.69
0.81
1.27
0.38
1.27
8.70
10.16
10.08
2.54
15.1
2.30
1.27
0.25BSC
-
5°
4°
4°
4.85
0.25
2.89
0.96
0.61
1.37
8.85
10.31
10.18
15.6
2.70
1.40
2.20
8°
0
D
2
PAK
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0782, Rev. -
MBR1560
MBRB1560
Green Products
Marking Diagram:
Where XXXXX is YYWWL
MBR
B
15
60
SSG
YY
WW
L
= Device Type
= Package type
= Forward Current (15A)
= Reverse Voltage (60V)
= SSG
= Year
= Week
= Lot Number
MBR1560
Cautions：
Molding resin
Epoxy resin UL:94V-0
MBRB1560
Ordering Information:
Device
MBR1560
MBRB1560
Package
TO-220AC(Pb-Free)
D²PAK (Pb-Free)
Shipping
50pcs/ tube
800pcs / reel
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specification.
Maximum Ratings:
Characteristics
Peak Inverse Voltage
Max. Average Forward
Max. Peak One Cycle Non-
Repetitive Surge Current
Symbol
V
RWM
I
F(AV)
I
FSM
Condition
-
50% duty cycle @T
C
=95°C,
rectangular wave form
8.3 ms, half Sine pulse
Max.
60
15
200
Units
V
A
A
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0782, Rev. -
MBR1560
MBRB1560
Green Products
Electrical Characteristics:
Characteristics
Max. Forward Voltage Drop
Max. Reverse Current
Symbol
V
F1
V
F2
I
R1
I
R2
Max. Junction Capacitance
Typical Series Inductance
Max. Voltage Rate of Change
*
Pulse Width < 300µs, Duty Cycle <2%
C
T
L
S
dv/dt
Condition
@ 15A, Pulse, T
J
= 25
°C
@ 15A, Pulse, T
J
= 125
°C
@V
R
= rated V
R
T
J
= 25
°C
@V
R
= rated V
R
T
J
= 125
°C
@V
R
= 5V, T
C
= 25
°C
f
SIG
= 1MHz
Measured lead to lead 5 mm from
package body
-
Max.
0.77
0.67
5.0
100
700
8.0
10,000
Units
V
V
mA
mA
pF
nH
V/μs
Thermal-Mechanical Specifications:
Characteristics
Max. Junction Temperature
Max. Storage Temperature
Maximum Thermal
Resistance Junction to Case
Maximum Thermal
Resistance, Case to Heat
Sink
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
θJC
R
θJA
wt
Condition
-
-
DC operation
DC operation
Specification
-55 to +150
-55 to +150
3.0
60
Units
°C
°C
°C/W
°C/W
-
TO-220AC/D
2
PAK
1.68/0.39
g
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0782, Rev. -
MBR1560
MBRB1560
Green Products
Instantaneous Reverse Current-IR(MA)
10000
Junction Capacitance (PF)
10
1
0.1
0.01
0.001
0.0001
10
20
30
40
50
60
70
80
90
100
P ercent o f R ated P eak R everse V oltage (% )
1000
TJ=25℃
100
TJ=125℃
TJ=25℃
10
0
5
10
15
20
25
30
35
40
Reverse Voltage (V)
Fig.1-Typical Junction Capacitance
Fig.2-Typical Reverse Characteristics
Instantaneous Forward Current (A)
100
TJ=125℃
10
TJ=25℃
1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
Forward Voltage Drop (V)
Fig.3-Typical Instantaneous Forward Voltage Characteristics
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
