Green
1310nm/CWDM Micro-Optic WDM
MWDMG13CS Series
Product Description

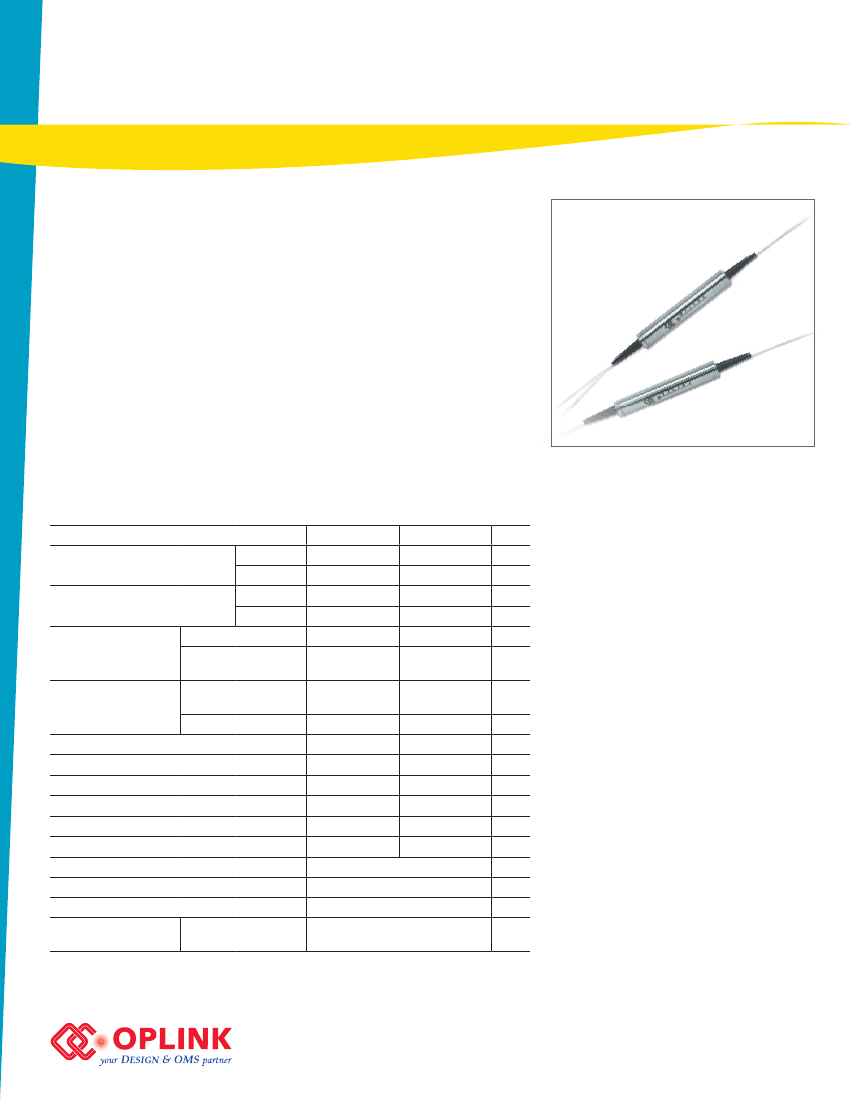

Oplink’s Micro-Optic Wavelength Division Multiplexer (MWDM) is based on
thin-film filter technology and patented athermal platform for optical device. The
MWDM13CS is used to combine or separate1310nm band and CWDM signals.
This device offers very flat and wide passband, low insertion loss, and high isola-
tion, which make it ideal for CWDM Network applications and Optical Amplifica-
tion Systems. Oplink MWDM devices are Bellcore GR-1221 qualification tested
and complied with industry green initiatives such as Rohs and WEEE. All Oplink
products are epoxy-free in the optical path.
Performance Specificationns
MWDMG13CS Series
Min
Max
Unit
Features
Pass Channel Wavelength Range λ1
Reflection Channel Wavelength
Range λ2
Insertion Loss *
Type 13CS
Type CS13
Type 13CS
Type CS13
1260
1460
1460
1260
1360
1620
1620
1360
0.7
0.7 :
High Isolation
0.5 :
Standard
nm
nm
nm
nm
dB
dB
dB
dB
Environmental Green Plan
Compliance
Wide Operating Wavelength Range
Compact Size
Low Insertion Loss
High Channel Isolation
Ultra Low PDL and PMD
Highly Stable & Reliable
Epoxy-free Optical Path
Applications
Pass Channel @ λ1
Reflect Channel @ λ2
Reflect Channel @ λ1
Pass Channel @ λ2
Passband Ripple
Directivity
Return Loss
Polarization Dependent Loss
Polarization Mode Dispersion
Maximum Power Handling
Fiber Type
Operating Temperature
Storage Temperature
Package Dimensions
**
250 μm Bare Fiber
900 μm Loose Tube
0 to +70
-40 to +85
50
50
30 :
High Isolation
15:
Standard
40
Isolation
0.3
dB
dB
dB
0.1
0.05
500
Corning SMF-28
dB
ps
mW
°C
°C
mm
Bi-directional WDM Systems
Uni-directional WDM Systems
System Monitoring
Transmitters & Fiber
Laboratory R&D
P1: (ø) 5.5 x (L) 34.0
P2: (ø) 5.5 x (L) 40.0
Note:
* Values are referenced without connector loss.
** The mechanical tolerance should be +/-0.2 mm on all package dimensions unless otherwise custom speci-
fied.
S0028 - R03. 20100602
Green
1310nm/CWDM Micro-Optic WDM
MWDMG13CS Series
Mechanical Drawing / Package Dimensions (dimension in mm)
P1: 250µm bare fiber
P2: 900µm loose tube
46335 Landing Pkwy Fremont, CA 94538 Tel: (510) 933-7200 Fax: (510) 933-7300 Email: Sales@Oplink.com • www.oplink.com
Ordering Information
Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink’s OEM
design team or account manager for your requirements and ordering information (510) 933-7200.
MWDMG
0
Wavelength
1300nm pass = 13CS
CWDM pass = CS13
Grade
High Isolation = H
Standard = S
Fiber Length*
0.5 Meter = H
1.0 Meter = 1
1.5 Meters = 5
2.0 Meters = 2
Connector Type
None = 1
FC/PC = 2
FC/SPC = 3
FC/APC = 4
SC/PC = 5
SC/SPC = 6
SC/APC = 7
ST = 8
LC = 9
MU = A
Package & Fiber Jacket
P1 + 250μm bare fiber = 11
P2 + 900μm loose tube = 22
* The tolerance of fiber length is +/-0.1m. 1 meter is standard. The lead-time for special fiber
length will be longer.
S0028 - R03. 20100602
Product Lines:
Mux/Demux
Switching/Routing
Coupling/Splitting
Monitoring/Conditioning
Amplification
Transmission
Interconnect
