BD076-06-C-2-C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BD076-06-C-2-C

BD076-06-C-2-C: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size153KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD076-06-C-2-C Overview

Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

BD076-06-C-2-C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1948717167
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TAPE AND REEL WITH FILM
Board mount options	PEG
body width	0.079 inch
subject depth	0.083 inch
body length	0.425 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	100 Cycles
maximum insertion force	2.0016 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	BD076
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.5908 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	6
Evacuation force-minimum value	.15012 N

Preview

Download Datasheet

View All

DIMENSIONS

2.54

3.81

5.08

6.35

7.62

8.89

10.16

11.43

12.70

13.97

15.24

16.51

17.78

19.05

20.32

21.59

22.86

24.13

25.40

26.67

27.94

29.21

30.48

31.75

33.02

34.29

35.56

36.83

38.10

39.37

40.64

41.91

43.18

44.45

45.72

46.99

48.26

49.53

6.99

8.26

9.53

10.80

12.07

13.34

14.61

15.88

17.15

18.42

19.69

20.96

22.23

23.50

24.77

26.04

27.31

28.58

29.85

31.12

32.39

33.66

34.93

36.2

37.47

38.74

40.01

41.28

42.55

43.82

45.09

46.36

47.63

48.9

50.17

51.44

52.71

53.98

5.44

6.71

7.98

9.25

10.52

11.79

13.06

14.33

15.60

16.87

18.14

19.41

20.68

21.95

23.22

24.49

25.76

27.03

28.30

29.57

30.84

32.11

33.38

34.65

35.92

37.19

38.46

39.73

41.00

42.27

43.54

44.81

46.08

47.35

48.62

49.89

51.16

52.43

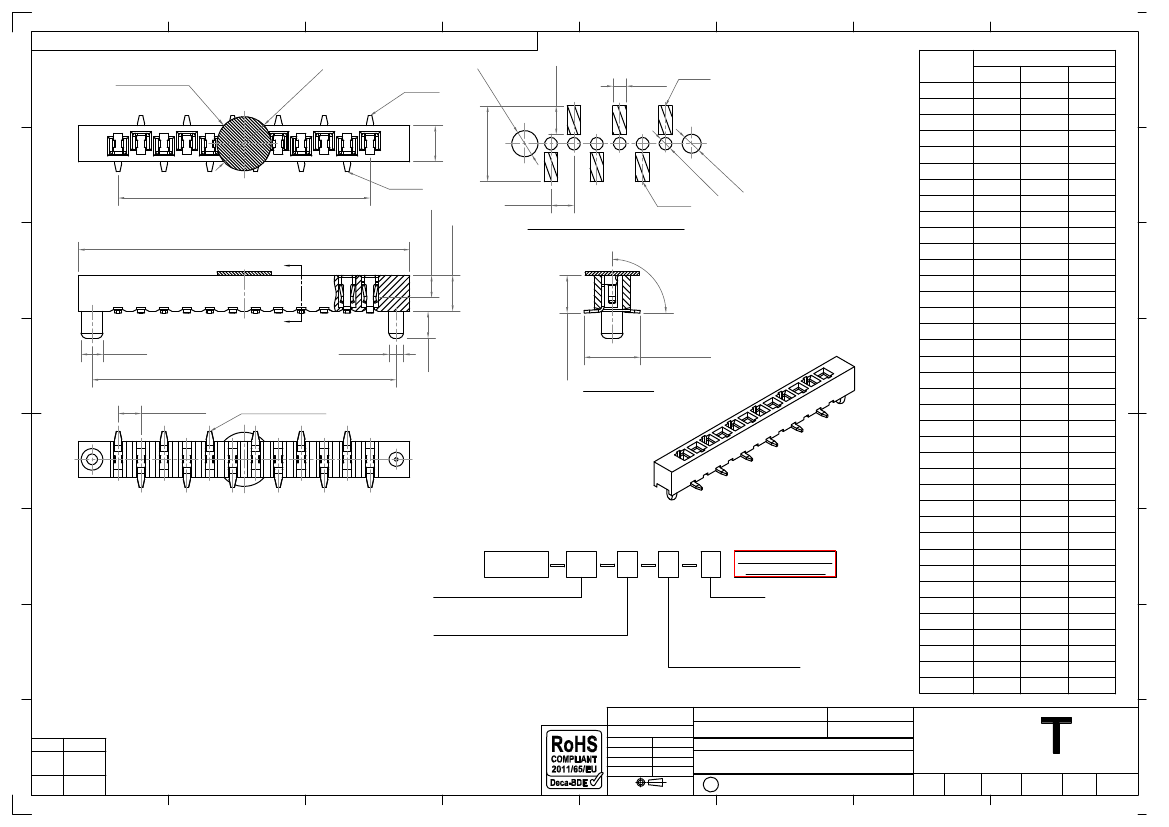

Global Connector Technology Ltd. - BD076: 1.27mm Pitch Socket, Single Row, Surface Mount, Vertical, Bottom Entry

Acetate Tape

1.60

Pin 1

0.74

Pin 1

CONTACTS

2.00

4.20

.45

Ø1

A ±0.20

Pin 2

1.0

1.27

1.25 REF.

2.00

Pin 2

B ±0.30

Recommended PCB Layout

(Tolerance:±0.05mm)

-0

.0°

+3 .0°

2.10±0.25

1.50

Ø1.20

C ±0.25

1.27±0.10

Pin 0.40X0.15

Ø0.80

3.10±0.30

Section: A-A

Specifications

规格

Current Rating

电流额定值

: 1 Amp

Insulation Resistance

绝缘电阻值

: 1000 MΩ min.

Dielectric Withstanding

耐电压

: 300 V AC

Contact Resistance

接触电阻值

: 20 mΩ max.

Operating Temperature

工½温度

: -40°C to +105°C

Contact Material

端子物料

: Phosphor Bronze

Insulation Material

绝缘½物料

: Nylon 6T, UL 94V-0

Soldering Process

可焊性

: Nylon 6T

IR Reflow

回流焊

: 260°C for 10 sec.

Manual Solder

人工焊接

: 350°C for 3-5 sec.

Mates with

配套之母座

(Subject to pin length

在端子长度适合的条件下

BD020 (0.46mm sq. pin)

Ordering Grid

BD076

No. of Contacts

03 to 40

REQUEST SAMPLES

AND QUOTATION

Plating Options

A = Gold Flash All Over

(Standard)

C = Tin All Over

Packing

F = Tube with Film

(Standard)

C = Tape and Reel with Film

D = Tube

Footprint Type

2 = R2 Type

Tolerances

Part Number:-

Date:-

(Except as noted)

Dimensions in mm

BD076

Description:-

23 APR 14

DETAIL

REV

DATE

AJO

Drawing

Release

23/04/14

X. ± 0.30

X.X ± 0.20

X.XX ± 0.15

X.XXX ± 0.10

X.°±5°

.X°±3°

.XX°±2°

.XXX°±1°

1.27mm Pitch Socket, Single Row,

Surface Mount, Vertical, Bottom Entry

Scale

NTS

www.gct.co

Drawn by

AJO

E & OE

Third Angle Projection

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Material

See Note

Sheet No.

1/1
