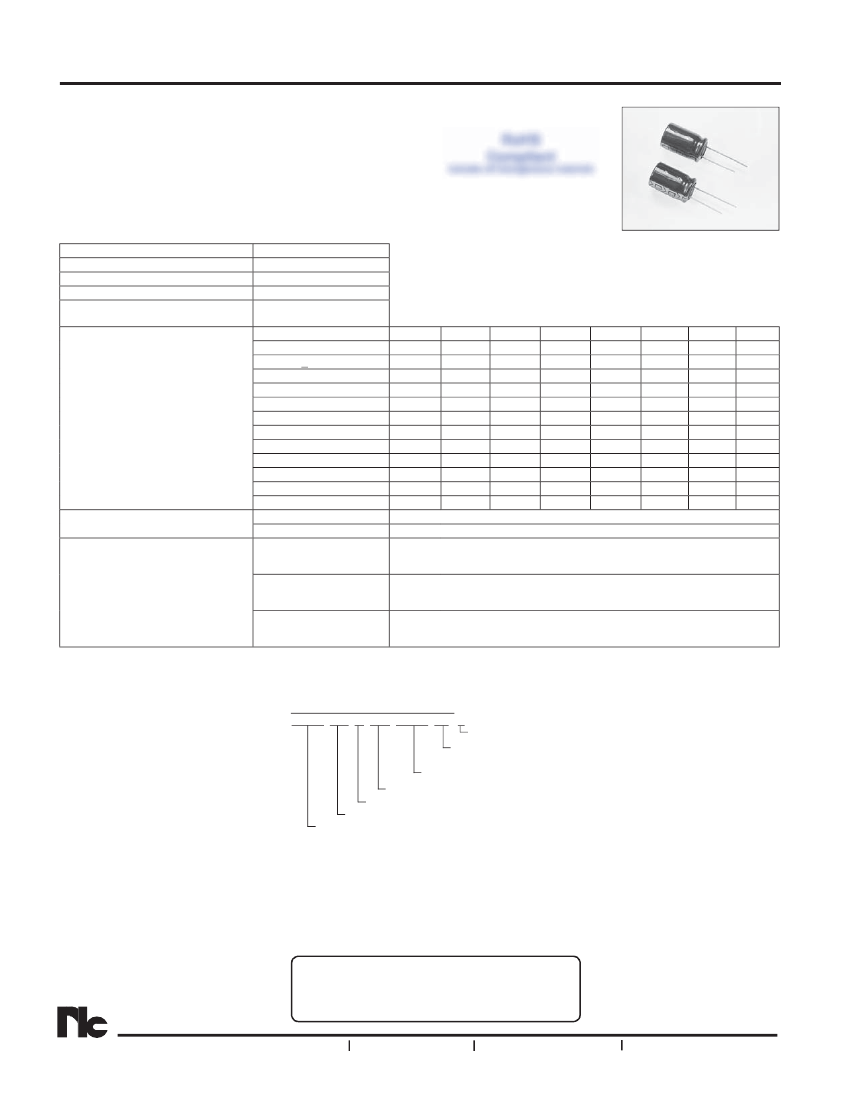

Miniature Aluminum Electrolytic Capacitors
ULTRA LOW IMPEDANCE, RADIAL LEADS, POLARIZED, ALUMINUM ELECTROLYTIC
RoHS
FEATURES
Compliant
• VERY LOW IMPEDANCE
includes all homogeneous materials
• LONG LIFE AT 105°C (1000 ~ 5000 hrs.)
*See Part Number System for Details
P N b S
f D il
• HIGH STABILITY AT LOW TEMPERATURE
• IDEALLY FOR SWITCHING POWER SUPPLIES & CONVERTERS
CHARACTERISTICS
Rated Voltage Range
Capacitance Range
Operating Temperature Range
Capacitance Tolerance
Maximum Leakage Current
After 2 Minutes at 20°C
6.3 ~ 100Vdc
5.6 ~ 6,800μF
-40°C ~ +105°C
±20% (M)
0.01CV or 3μA
whichever is greater
W.V. (Vdc)
S.V. (Vdc)
C < 1,000μF
C = 1,200μF
C = 1,500μF
C = 1,800μF
C = 2,200μF
C = 2,700μF
C = 3,300μF
C = 3,900μF
C = 4,700μF
C = 5,600μF
C = 6,800μF
Z-25°C/Z+20°C
Z-40°C/Z+20°C
Capacitance Change
Tan
δ
Leakage Current
NRSG Series
Max. Tan
δ
at 120Hz/20°C
6.3
8
0.22
0.22
0.22
-
0.24
-
0.26
0.26
0.28
0.30
0.32
10
13
0.19
0.19
0.19
-
0.21
-
0.23
0.23
0.25
0.27
-
16
20
0.16
0.16
0.16
-
0.18
0.18
0.20
0.20
-
-
-
25
32
0.14
-
0.14
0.14
0.16
0.16
-
-
-
-
-
2
3
35
44
0.12
0.12
0.12
0.12
-
-
-
-
-
-
-
50
63
0.10
-
-
-
-
-
-
-
-
-
-
63
79
0.09
-
-
-
-
-
-
-
-
-
-
100
125
0.08
-
-
-
-
-
-
-
-
-
-
Low Temperature Stability
Impedance Ratio @ 120Hz
Load Life Test at Rated W.V. & 105°C
1,000 Hrs. L = 7mm
2,000 Hrs. 5 ~ 6.3mm Dia.
3,000 Hrs. 8mm Dia.
4,000 Hrs. 10mm Dia.
5,000 Hrs 12.5 ~ 18mm Dia.
Within ±25% of initial measured value
Less than 200% of specified value
Less than specified value
PART NUMBER SYSTEM
NRSG 102 M 25V 10X20 TB F
RoHS Compliant
TB = Tape & Box*
Case Size (mm)
Working Voltage
Tolerance Code M=20%, K=10%
Capacitance Code in
μF
Series
*see tape specification for details
Please review the notes on correct use, safety and precautions found on
pages T10
&
T11
of NIC’s
Electrolytic Capacitor catalog.
Also found at
www.niccomp.com/precautions
If in doubt or uncertainty, please review your specific application - process
details with NIC’s technical support personnel:
tpmg@niccomp.com
PRECAUTIONS
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
1
Miniature Aluminum Electrolytic Capacitors
STANDARD PRODUCT AND CASE SIZE TABLE DΦ x L (mm)
Cap (μF)
5.6
6.8
10
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
Code
5R6
6R8
100
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
102
122
152
182
222
272
332
392
472
562
6.3
-
-
-
-
-
-
-
-
4x7
-
-
5x7
-
-
-
5x11
6.3x7
-
8x7
-
6.3x11
-
10
-
-
-
-
-
-
4x7
-
-
-
5x7
-
-
5x11
6.3x7
-
8x7
6.3x11
-
-
-
Working Voltage (Vdc)
16
25
35
50
4x7
-
-
-
-
-
-
-
4x7
5x7
-
-
-
4x7
-
-
4x7
-
5x7
-
5x11
-
-
-
6.3x7
-
5x7
-
-
5x7
-
5x11
8x7
-
-
6.3x7
-
-
5x11
-
6.3x11
6.3x11
5x11
6.3x7
6.3x11
8x7
6.3x7
-
-
-
-
-
6.3x11
8x7
-
-
-
-
8x11.5
-
-
6.3x11
8x7
-
-
-
8x11.5
-
8x16
10x12.5
-
-
-
-
8x12.5
-
8x16
10x12.5
8x20
10x16
-
-
8x12.5
8x16
10x12.5
8x20
10x16
10x20
10x23
-
63
-
-
-
5x11
-
-
-
6.3x11
-
-
8x11.5
100
-
5x11
-
6.3x11
-
-
8x11.5
-
8x16
10x12.5
8x20
NRSG Series
-
10x16
8x16
10x20
10x12.5 12.5x16
-
8x20
10x16
-
10x23
12.5x20
-
10x20
12.5x25
12.5x16
12.5x30
10x23
16x20
12.5x35
12.5x20 16x25
18x20
12.5x25 12.5x40
-
6800
682
Denotes New Value
16x31.5
18x25
8x16
8x20
12.5x30 16x35.5
-
8x11.5
10x20 12.5x20
10x12.5 10x16
16x20 18x31.5
12.5x35 16x40
8x11.5
-
-
-
10x23 12.5x25
16x25 18x35.5
8x16
8x20
12.5x40
-
10x20 12.5x20 12.5x30
18x40
10x12.5 10x16
18x20
10x20
12.5x35 16x31.5
8x16
-
-
-
-
10x23
16x21
18x25
8x20
16x35.5
10x12.5
10x20 12.5x20 12.5x25 16x25
-
10x16
18x31.5
8x20
10x20
12.5x30
16x40
10x20
-
-
-
10x16
10x23
16x21
18x35.5
10x20
10x20
12.5x20 12.5x25 12.5x35
-
18x40
-
10x23
12.5x30
-
-
-
16x25
-
-
-
16x21
10x20
12.5x20 12.5x25 12.5x35
-
-
-
-
10x23
12.5x30
-
-
16x25
-
-
-
-
16x21
12.5x20 12.5x25 12.5x35
-
-
-
-
-
12.5x30
12.5x25
16x25
-
-
-
-
-
16x21
12.5x30 12.5x35
-
-
-
-
-
-
12.5x35
16x25
-
-
-
-
-
-
16x21
16x25
-
-
-
-
-
-
-
2
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
