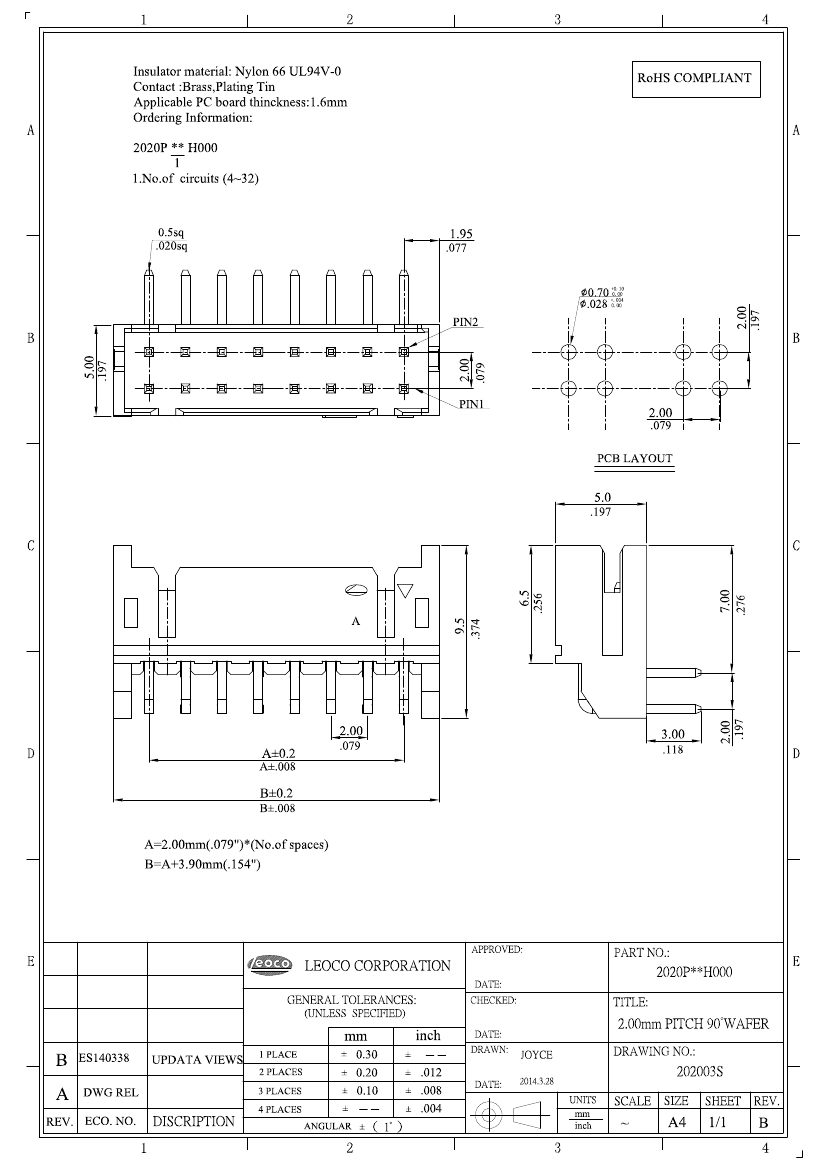

Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Objectid | 8070237297 |
| Reach Compliance Code | compliant |
| body width | 0.197 inch |
| subject depth | 0.374 inch |
| body length | 0.865 inch |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | SN |
| Contact completed and terminated | Bright Tin (Sn) |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 500VAC V |
| Durability | 100 Cycles |
| Insulation resistance | 1000000000 Ω |
| insulator material | NYLON |
| JESD-609 code | e3 |
| Manufacturer's serial number | 2020P |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Installation option 1 | LOCKING |
| Installation option 2 | GUIDE SLOT |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 2 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.118 inch |
| Terminal pitch | 2.0066 mm |
| Termination type | SOLDER |
| Total number of contacts | 20 |
| 2020P20H000 | 2020P08H000 | |
|---|---|---|
| Description | Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking | Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle |
| Is it Rohs certified? | conform to | conform to |
| Reach Compliance Code | compliant | compliant |
| body width | 0.197 inch | 0.197 inch |
| subject depth | 0.374 inch | 0.374 inch |
| body length | 0.865 inch | 0.39 inch |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | SN | SN |
| Contact completed and terminated | Bright Tin (Sn) | Bright Tin (Sn) |
| Contact point gender | MALE | MALE |
| Contact material | BRASS | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | 20 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT |
| Dielectric withstand voltage | 500VAC V | 800VAC V |
| Insulation resistance | 1000000000 Ω | 100000000 Ω |
| insulator material | NYLON | NYLON |
| JESD-609 code | e3 | e3 |
| Manufacturer's serial number | 2020P | 2020P |
| Plug contact pitch | 0.079 inch | 0.079 inch |
| Match contact row spacing | 0.079 inch | 0.079 inch |
| Installation option 1 | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD |
| Number of connectors | ONE | ONE |
| PCB row number | 2 | 2 |
| Number of rows loaded | 2 | 2 |
| Maximum operating temperature | 85 °C | 85 °C |
| Minimum operating temperature | -25 °C | -25 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 2 A | 3 A |
| Guideline | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.118 inch | 0.118 inch |
| Terminal pitch | 2.0066 mm | 2.0066 mm |
| Termination type | SOLDER | SOLDER |
| Total number of contacts | 20 | 8 |
