ECS-2025-080-C datasheet, PDF - EEWORLD Datasheet

ECS-2025-080-C: DescriptionHCMOS Output Clock Oscillator, 0.75MHz Min, 75MHz Max, 8MHz Nom, ROHS COMPLIANT, MINIATURE, SMD, 4 PIN; CategoryPassive components oscillator; File Size4MB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

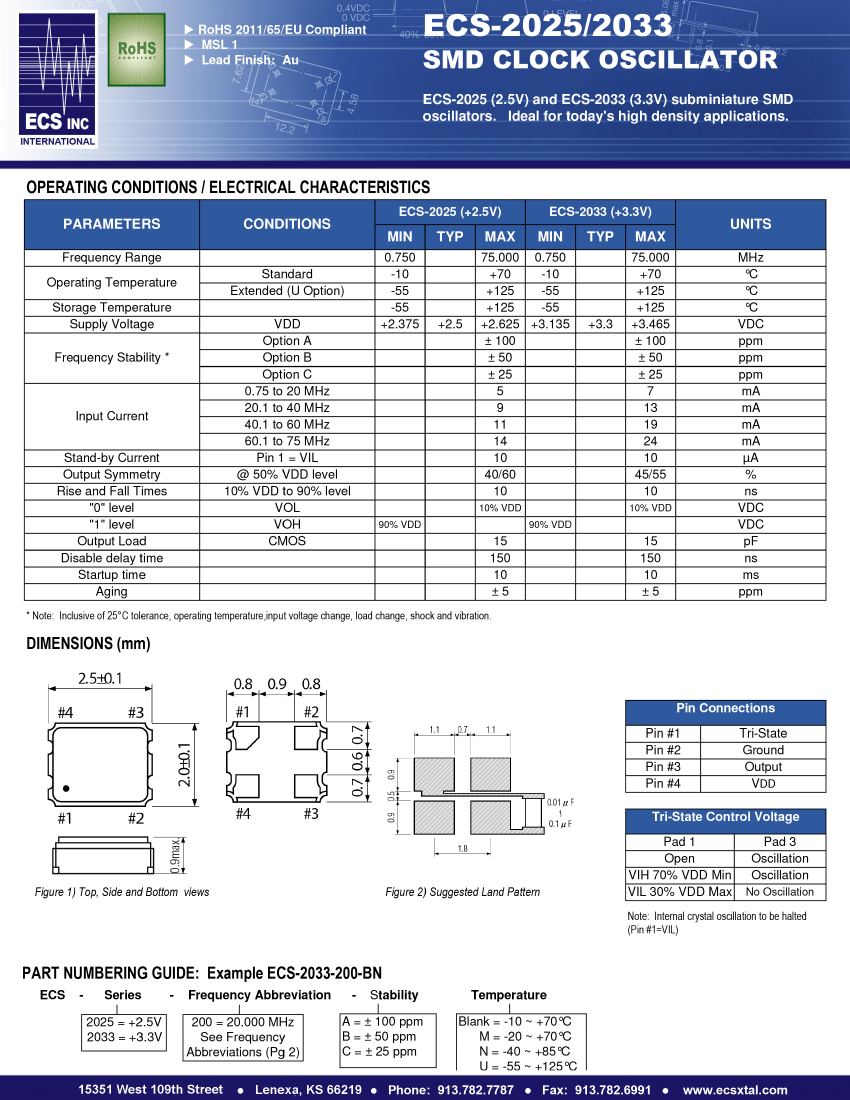

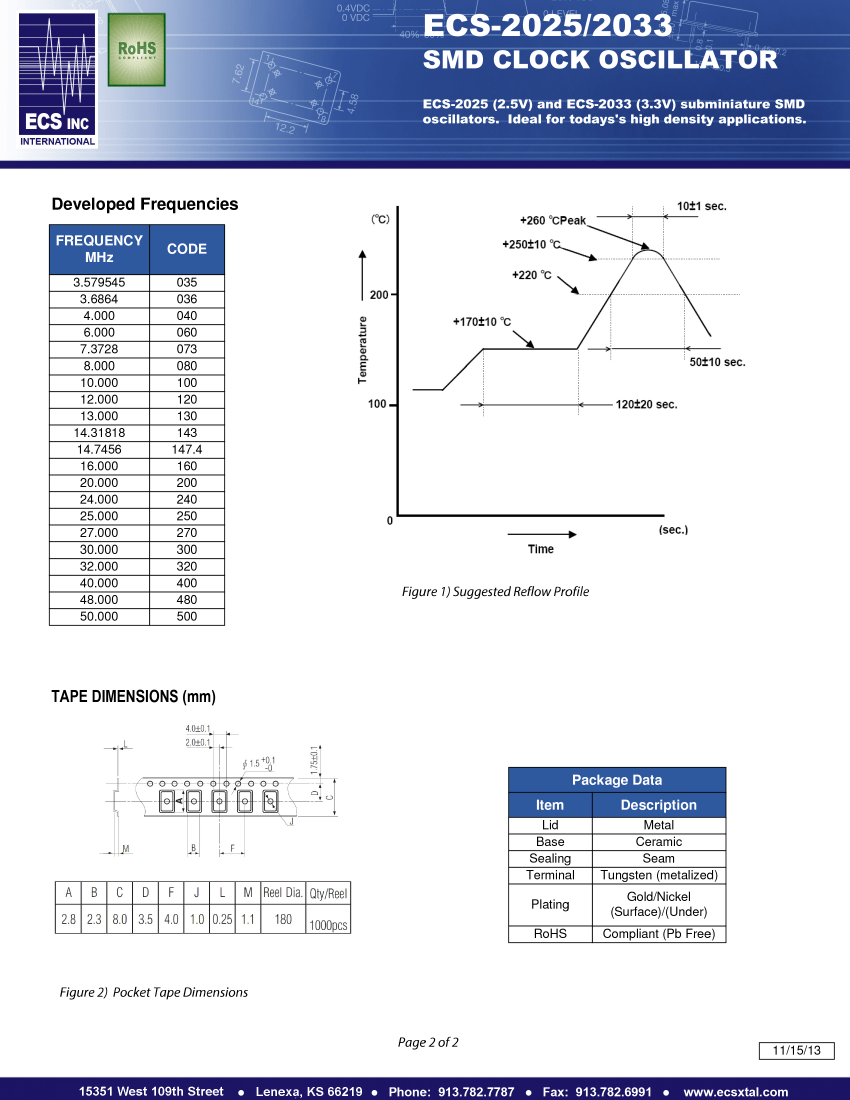

ECS-2025-080-C Overview

HCMOS Output Clock Oscillator, 0.75MHz Min, 75MHz Max, 8MHz Nom, ROHS COMPLIANT, MINIATURE, SMD, 4 PIN

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1880499232
package instruction	LCC4,.08X.1,63/47
Reach Compliance Code	compliant
Other features	TRI-STATE; DISABLE FUNCTION; TAPE AND REEL
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	75 MHz
Minimum operating frequency	0.75 MHz
Nominal operating frequency	8 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS
Output load	15 pF
Package body material	CERAMIC
Encapsulate equivalent code	LCC4,.08X.1,63/47
physical size	2.5mm x 2.0mm x 0.9mm
power supply	2.5 V
Certification status	Not Qualified
longest rise time	10 ns
Maximum slew rate	7 mA
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	40/60 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
