MKLP1839Z datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MKLP1839Z

Preview

MKLP1839Z: DescriptionBoard Connector, 39 Contact(s), 1 Row(s), Female, Straight, Solder Terminal; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerFischer Elektronik; Environmental Compliance

Download Datasheet Parametric View All

MKLP1839Z Overview

Board Connector, 39 Contact(s), 1 Row(s), Female, Straight, Solder Terminal

MKLP1839Z Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1305280677
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	39

Preview

Download Datasheet

View All

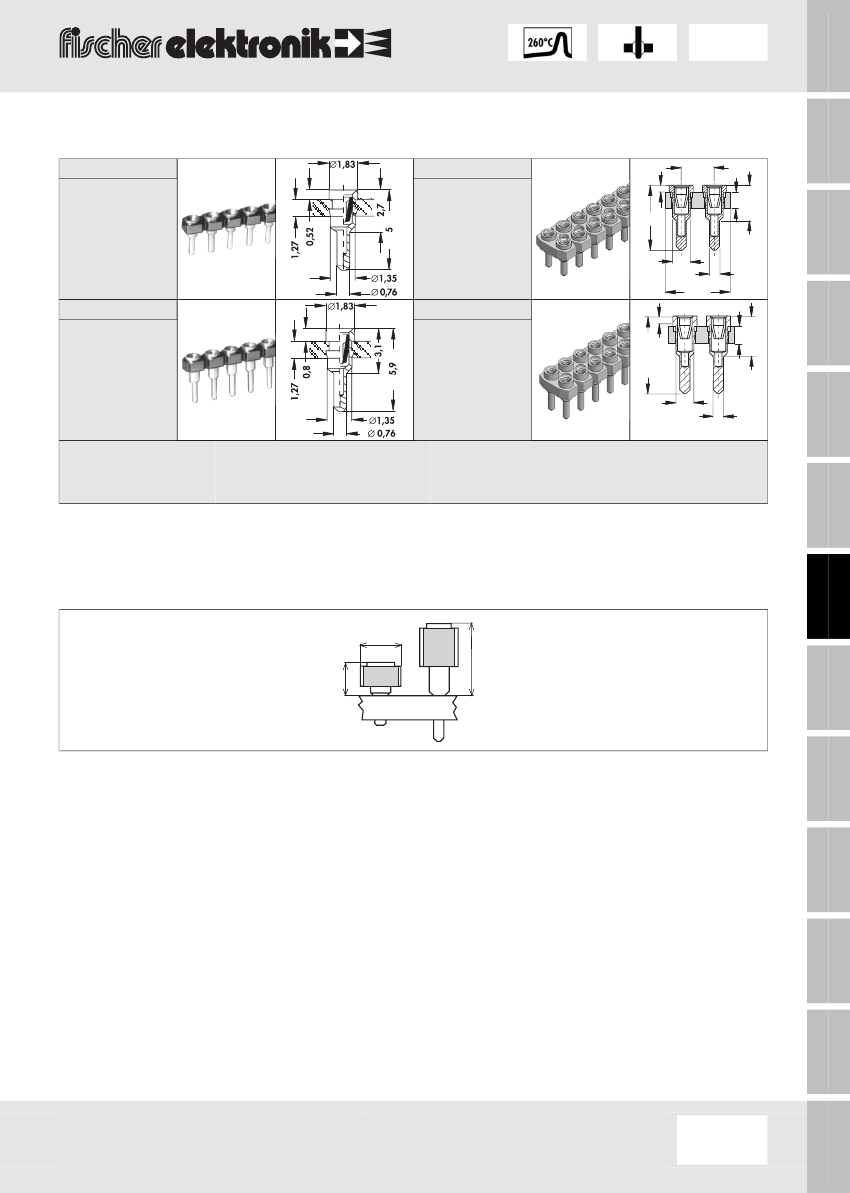

2.54

High-precision female headers soldering technique

Low profile, less than 2.7/3.1 mm above P

.C.B. - with contact spring for Ø 0.5 mm pins

solder and plug pin Ø 0.76 mm

A

B

art. no.

5

0,52

art. no.

2,54

2,7

Ø 1,35

MK LP 18 ...

art. no.

MK LP 218 ...

art. no.

5,9

0,8

Ø 0,76

5

1,27

C

1,27

3,1

D

Ø 1,35

MK LP 19 ...

please indicate:

... no. of contacts

one row 1-50

two rows 4-100

MK LP 219 ...

... surface

G=gold-plated

Z =tin-plated

Ø 0,76

E

F

contact spring:

gold-plated

Low profile: 2.7/3.1 mm above P

.C.B.; standard profile: 4 mm

2,50

2,7/3,1

4,00

G

H

I

K

L

M

High-prec. fem. headers 2.54 sold.

Single precision contacts

Technical data

High-precision female headers

➔

G 31 - 34

F2-3

G 75 - 80

G3-5

Jump. links 2.00 & 2.54 solder

Single contacts metal strip

Special male & female headers

➔

G 20

G 26

G 19

G 24

N
