Directional 30 dB SMA Coupler From 500 MHz
to 18 GHz Rated To 30 Watts
TECHNICAL DATA SHEET
Configuration
Connector 1
Connector 2
Coupled Connectors
Design
SMA Female
SMA Female
SMA Female
Directional Coupler
PE2243-30
Electrical Specifications
(Values at 25°C, sea level)
Description
Frequency Range
Directivity
Impedance
Insertion Loss
Input Power
Input VSWR
Peak Power
Coupling Value
Coupling Tolerance
Frequency Sensitivity
.
1
30
± 1.25
Minimum
0.5
20
Typical
Maximum
18
Units
GHz
dB
Ohms
50
1.6
30
1.37:1
3
dB
Watts
KWatts
dB
dB
dB
Specifications by Frequency
Description
Range
Insertion Loss
VSWR
.
F1
0.5 to 4
0.5
1.22
F2
4 to 8
0.7
1.22:1
F3
8 to 12.4
1.13
1.28:1
F4
12.4 to 18
1.6
1.37:1
F5
Units
GHz
dB
Mechanical Specifications
Size
Length
Width/Dia.
Height
.
5.15 in [130.81 mm]
0.38 in [9.65 mm]
1.11 in [28.19 mm]
Connectors
Description
Type
.
Connector 1
SMA Female
Connector 2
SMA Female
Coupled Connectors
SMA Female
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Directional 30 dB SMA Coupler From 500 MHz to 18 GHz Rated To 30 Watts PE2243-30
PE2243-30 REV 1.0
1
Directional 30 dB SMA Coupler From 500 MHz
to 18 GHz Rated To 30 Watts
TECHNICAL DATA SHEET
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
PE2243-30
Plotted and Other Data
Notes:
• Values at 25 °C, sea level

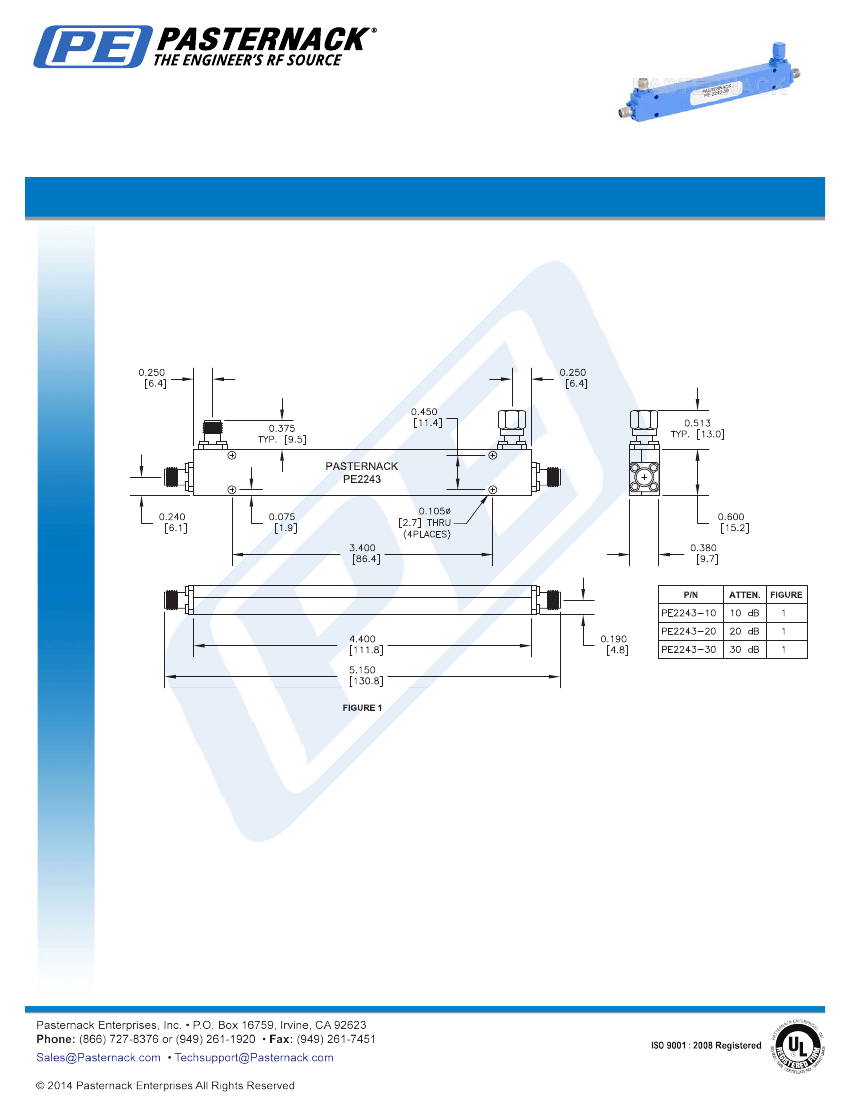

Outline Drawing
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Directional 30 dB SMA Coupler From 500 MHz to 18 GHz Rated To 30 Watts PE2243-30
PE2243-30 REV 1.0
2
Directional 30 dB SMA Coupler From 500 MHz
to 18 GHz Rated To 30 Watts
TECHNICAL DATA SHEET
PE2243-30
Directional 30 dB SMA Coupler From 500 MHz to 18 GHz Rated To 30 Watts from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Directional 30 dB SMA Coupler From 500 MHz to 18 GHz Rated To 30 Watts PE2243-30
URL:
http://www.pasternack.com/directional-30-db-sma-coupler-500-mhz-18-ghz-30-watts-pe2243-30-p.aspx
PE2243-30 REV 1.0
