M50-078050S2845 datasheet, PDF

Datasheet> All Categories > The connector> The connector> M50-078050S2845

M50-078050S2845: DescriptionBoard Connector, 56 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, LEAD FREE; CategoryThe connector The connector; File Size3MB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M50-078050S2845 Overview

Board Connector, 56 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, LEAD FREE

M50-078050S2845 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1740526690
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	M50
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	56
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

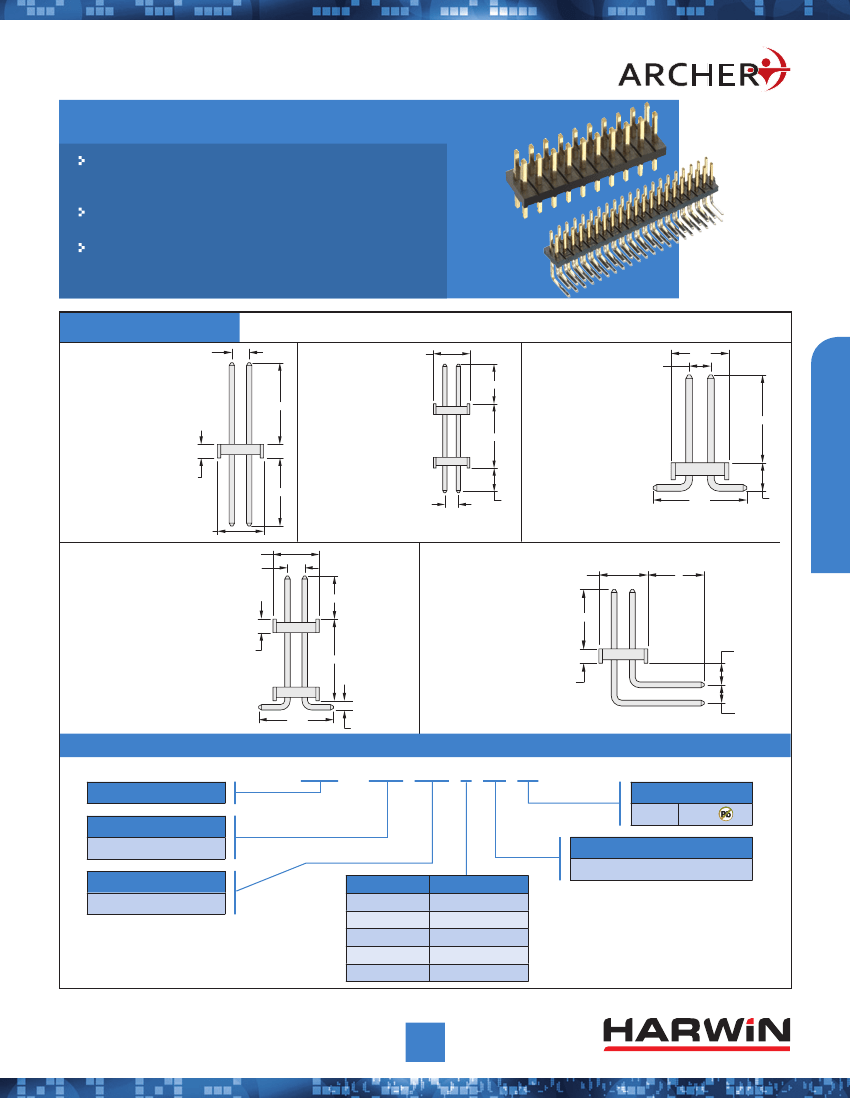

Archer Connectors – M50

Pin Header Variants

If you are unable to specify the connector you require from our

standard range of Archer M50 connectors (page 108), use the

order code below to create an application-specific connector.

Contact

technical@harwin.com

for further information,

or search online for M50-XXX.

Suitable for use with female connectors and jumper

sockets on pages 104 to 107.

TERMINATION STyLES

Vertical PC Tail

1.27

Extended PC Tail

3.40

Vertical SMT

3.40

1.27

W Series

F Series

S Series

1.00

2.30

Pin section is 0.40mm square.

PCB mounting hole is Ø0.65mm.

3.40

1.27

Pin section is 0.40mm square.

PCB mounting hole is Ø0.65mm.

1.27

Pin section is 0.40mm square.

For PCB pad layout see page 108.

B dimension is 000.

5.50

1.68

Extended SMT

Horizontal PC Tail

3.40

T Series

1.00

J Series

1.00

1.50

Pin section is 0.40mm square.

For PCB pad layout see page 108.

A+B+0.68 not to exceed 24.3mm.

5.50

Pin section is 0.40mm square.

PCB mounting hole is Ø0.65mm.

0.68

1.27

HOW TO ORDER

M50 - XXX XXX X XX 45

series CoDe

DiMension a

Example: 7.8mm = 078

Finish

Gold

no. oF ContaCts Per roW

01 to 50

DouBle roW

DiMension B

Example: 5.0mm = 050

Vertical PC Tail

Extended PC Tail

Vertical SMT

Extended SMT

Horizontal PC Tail

All dimensions in mm.

www.harwin.com

109

1.27mm (.050") PITCH
