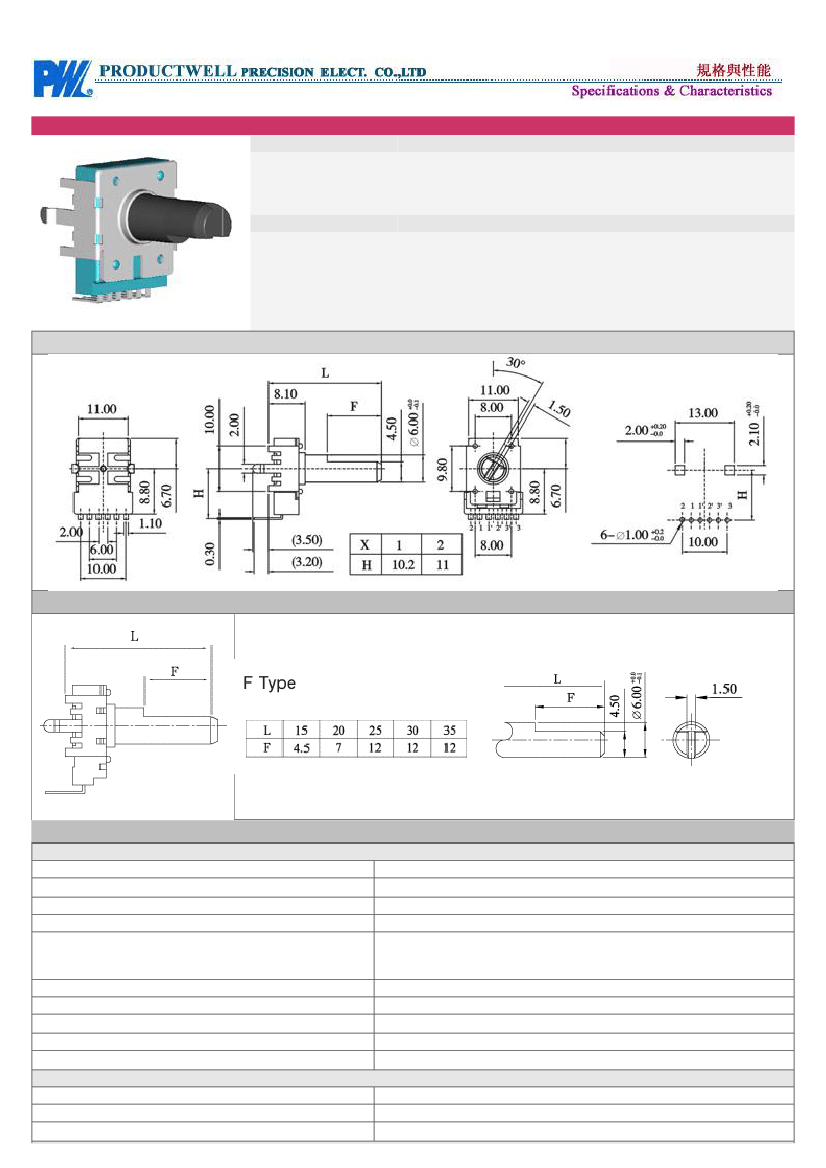

Model(型號):
ROTARY POTENTIOMETER---------R12L12H0[x]
Features:(特點):
►
Download PDF file
Thanks to its structure eliminating openings,the dust-proofing capacity and flux
resisitance have been improved.9.8mm outing size is ideal for high-density set design.
Applications(½用):
Suitable for various control applications with audio products,visual products,electronic
musical instrument, etc.
Dimensions(規格圖 ):
SHAFT DIMENSION
Specifications(
規格
)
Electrical Characteristics [
電氣性½
]
Total resistance [
全阻抗值
]
Total resistance tolerance [
全阻抗值容許差
]
Ratings power(w) [
額定功率
]
Resistance taper [
阻抗變化特性
]
Residual resistance [殘留阻值]
Sliding noise [滑動雜音]
Withstanding voltage [耐電壓]
Gang error [連動誤差]
Insulation resistance [絕緣阻抗]
Max. operating voltage [最高½用電壓]
Mechanical Characteristics [
机械性½
]
Operation torque [
回½力矩
]
Rotation stopper strength [
止動強度
]
Total rotational angle [回½角度]
5KΩ-500KΩ
±20%
0.05W
A,B, C,D,W
R < 10KΩ
20Ω Max.
10KΩ< R
≦50KΩ
30Ω Max.
50KΩ< R
≦500KΩ
0.1%[ Max.
100mV Max.
1 minute at AC 500V
-40dB ~ 0dB
±3dB
Max.
100MΩ Min. at DC 500V.
AC 50V
，DC
12V
30~200gf . cm
6.0Kgf . cm Min.
300
±5°
