Luckylight
5mm Round Standard T-1 3/4
Infrared Emitting Diode
Technical Data Sheet
Part No.: LL-503HIRT2E-1CC
Spec No.: B508 X335
Approved:
ZHOU
Rev No.: V.2
Checked: Wu
Date: Dec/05/2005
Drawn: Qin
Page: 1 OF 8
Lucky Light Electronics Co., Ltd.
Http://www.luckylight.cn
Luckylight
Features:
◇
Standard T-1 3/4 diameter package.
◇
Low forward voltage.
◇
Infrared Emitting Diode.
◇
Viewing angle =20°.
◇
Reliable and rugged.
◇
The product itself will remain within RoHS compliant Version.
Descriptions:
◇
The device is spectrally matched with silicon photodiode and phototransistor.
◇
The device is available with different viewing angles.
Applications:
◊
Free air transmission system.
◊
Optoelectronic switch.
◊
Floppy disk drive.
◊
Infrared applied system.
◇
Smoke detector.
Spec No.: B508 X335
Approved:
ZHOU
Rev No.: V.2
Checked: Wu
Date: Dec/05/2005
Drawn: Qin
Page: 2 OF 8
Lucky Light Electronics Co., Ltd.
Http://www.luckylight.cn
Luckylight

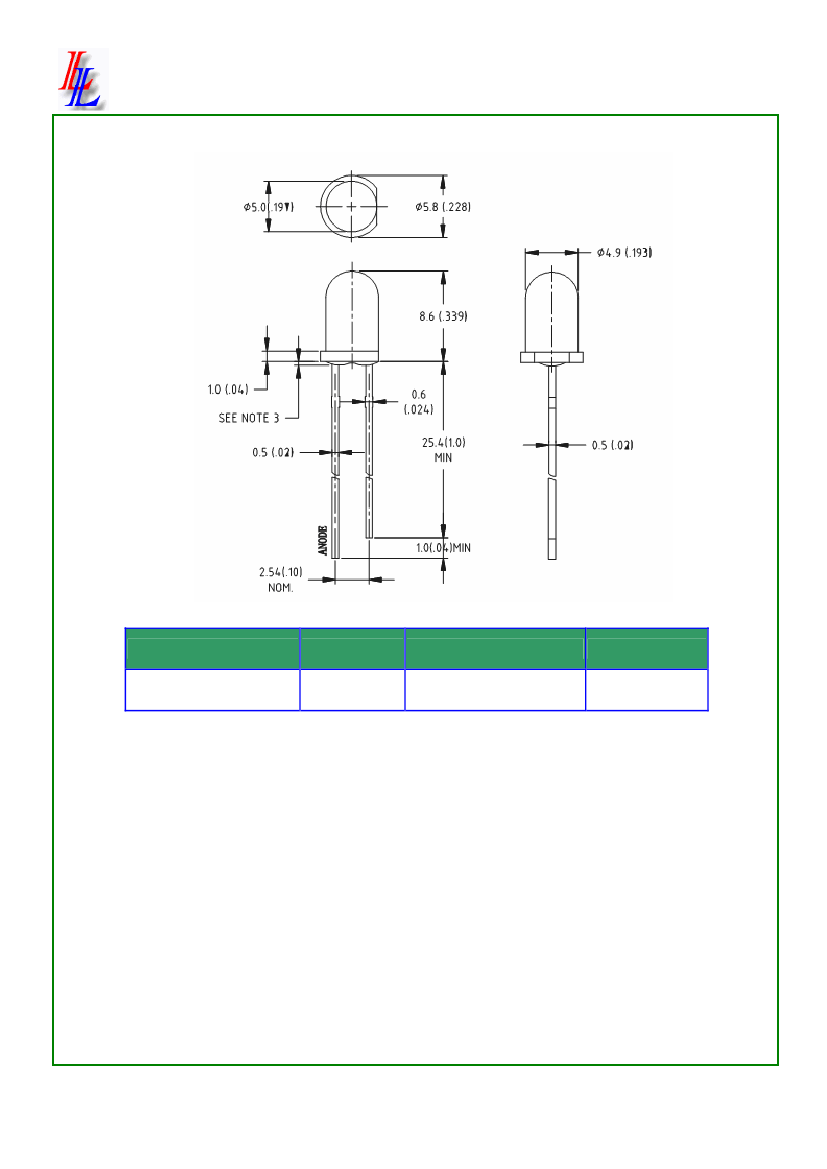

Package Dimension:
Part No.
LL-503HIRT2E-1CC
Notes:
Material
GaAlAs
Lens Color
Blue Transparent
Source Color
Infrared
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(.01〞) unless otherwise specified.
3. Protruded resin under flange is 1.0mm(.04〞) max.
4. Specifications are subject to change without notice
Spec No.: B508 X335
Approved:
ZHOU
Rev No.: V.2
Checked: Wu
Date: Dec/05/2005
Drawn: Qin
Page: 3 OF 8
Lucky Light Electronics Co., Ltd.
Http://www.luckylight.cn
Luckylight
Absolute Maximum Ratings at Ta=25℃
Parameters
Power Dissipation
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
Forward Current
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Soldering Temperature
Symbol
PD
IFP
IF
VR
Topr
Tstg
Tsld
Max.
160
1
100
5
Unit
mW
A
mA
V
-40℃ to +85℃
-40℃ to +100℃
260℃ for 5 Seconds
Electrical Optical Characteristics at Ta=25℃
Parameters
Radiant Intensity
Viewing Angle*
Peak Emission
Wavelength
Spectral
Bandwidth
Forward Voltage
Reverse Current
Symbol
Ee
2θ1/2
λp
△λ
VF
IR
Min.
7.8
---
---
---
1.00
---
Typ.
---
20
875
45
1.30
---
Max.
---
---
---
---
1.60
10
Unit
mW/sr
Deg
nm
nm
V
µA
Test Condition
IF =20mA
(Note 1)
IF=20mA
IF=20mA
IF =70mA
VR=5V
Notes:
1.
θ
1/2
is the off-axis angle at which the luminous intensity is half the axial luminous
intensity.
Spec No.: B508 X335
Approved:
ZHOU
Rev No.: V.2
Checked: Wu
Date: Dec/05/2005
Drawn: Qin
Page: 4 OF 8
Lucky Light Electronics Co., Ltd.
Http://www.luckylight.cn
Luckylight

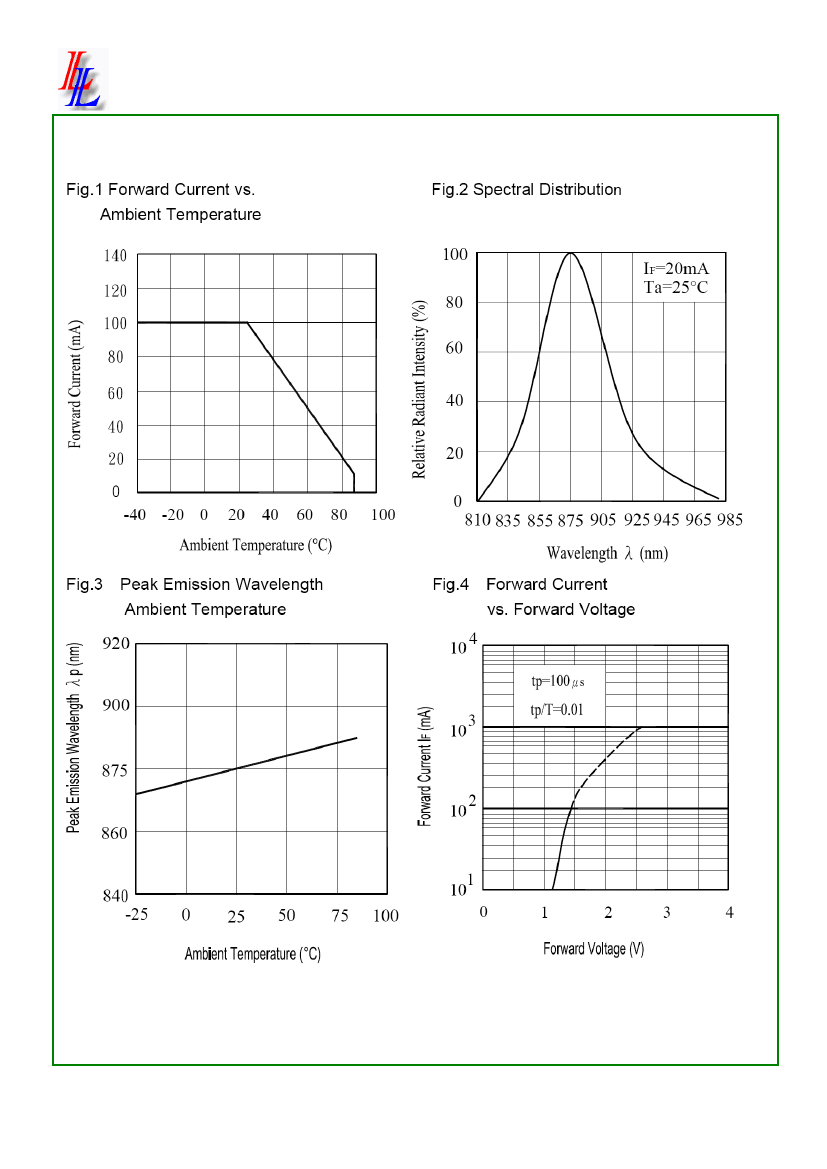

Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
Spec No.: B508 X335
Approved:
ZHOU
Rev No.: V.2
Checked: Wu
Date: Dec/05/2005
Drawn: Qin
Page: 5 OF 8
Lucky Light Electronics Co., Ltd.
Http://www.luckylight.cn
