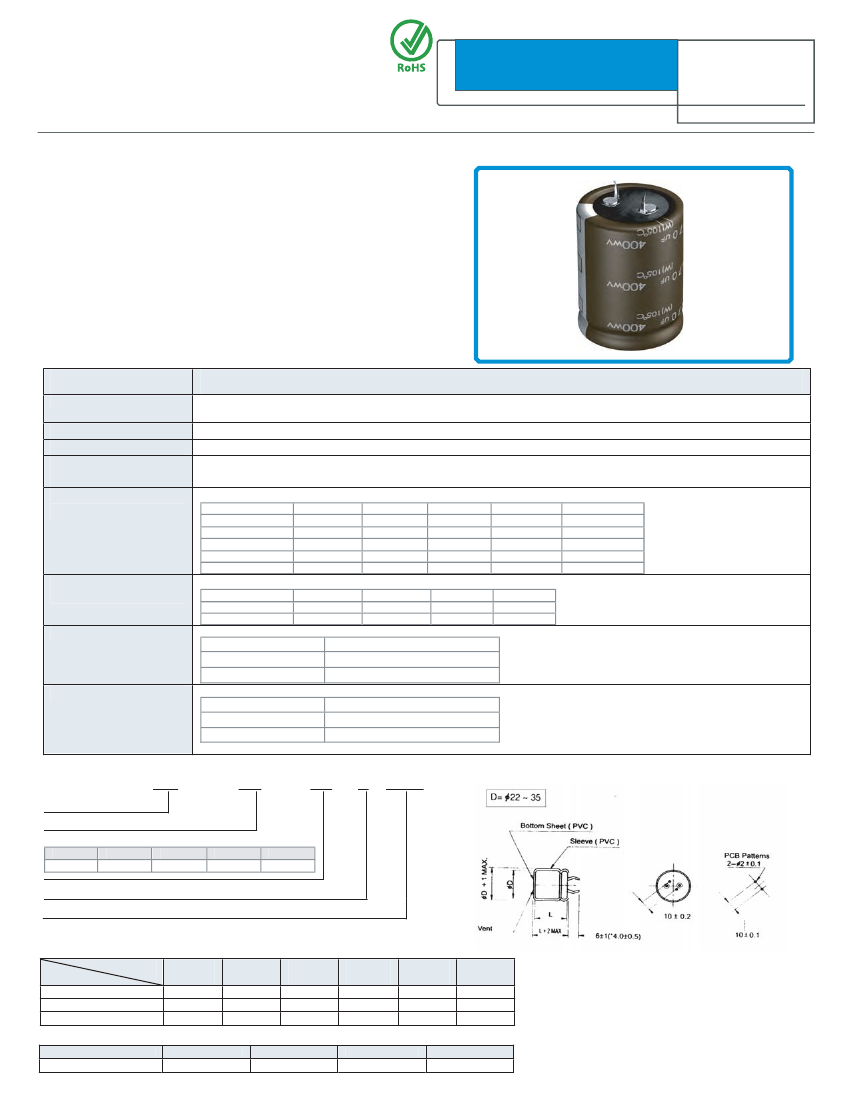

Snap-In Aluminum
Electrolytic Capacitors
F
EATURES
•
•
•
105
o
C standard
High CV density
Load life of 2,000 hours at 105
o
C
FUH
Series
MERITEK
S
PECIFICATIONS
Item
Operating Temp Range
Rated Working Voltage
Capacitance Tolerance
Leakage Current
(20
o
C)
Dissipation Factor
Tand (120Hz, 20
o
C)
Characteristic
10V
to
250V: -40 C to +105 C
o
o
315V
to
450V: -25 C to +105 C
10 to 450VDC
±20% (M)
I=0.02CV or 2mA, whichever is greater (at 20 C after 2 minutes)
I= Leakage current (μA) C= Nominal capacitance (μF) V= Rated voltage (VDC)
Add 0.02 per 100μF for capacitance greater than 100μF
WV
10 to 25
35 to 50
63 to 100
47-2200 μF
-
0.2
0.15
2700-
μF
0.30
0.25
0.2
8200μF
0.35
0.3
0.25
10000-33000μF
0.6
0.4
0.3
39000-47000μF
0.8
-
-
160 to 250
0.1
-
-
-
-
315 to 450
0.2
-
-
-
-
O
o
o
Low Temperature
Characteristics
Load Life
Impedance ratio at 120 Hz
WV
10 to 16
25 to 100
160 to 250
315 to 450
O
O
Z -25 C/Z 20 C
4
3
3
8
O
O
Z -40 C/Z 20 C
12
6
6
-
o
O
After applying rated working voltage for 2000 hours at 105 C and then being stabilized +20 C, capacitors shall meet following limits.
Capacitance change
Dissipation Factor
Leakage current
Within ±20% of the initial value
≤
200% of the initial specified value
Shelf Life
≤
The initial specified value
o
O
After storage for 1000 hours at 105 C with no voltage applied and then being stabilized +20 C, capacitors shall meet following limits.
Capacitance change
Dissipation Factor
Leakage current
Within ±20% of the initial value
≤
150% of the initial specified value
≤
The initial specified value
P
ART
N
UMBERING
S
YSTEM
FUH
Meritek Series
Voltage
Capacitance
CODE
μF
222
2200
562
5600
6800
16V
222
M
22X25
D
IMENSIONS
153
15000
473
47000
Tolerance -
M= ±20%
Case size
(diameter X length, in mm)
R
IPPLE
C
URRENT
C
OEFFICIENT
Frequency
Freq (Hz)
WV (V)
16 to 100
160 to 250
315 to 450
50
0.9
0.8
0.8
45
o
C
2.40
120
1.0
1.0
1.0
500
1.10
1.25
1.20
60
o
C
2.20
1K
1.15
1.40
1010
70
o
C
1.65
10K
1.25
1.45
1.20
100K
1.25
1.50
1.32
85
o
C
1.0
rev.6a
Temperature
Temperature
Factor
Specifications are
subject to change without notice.
