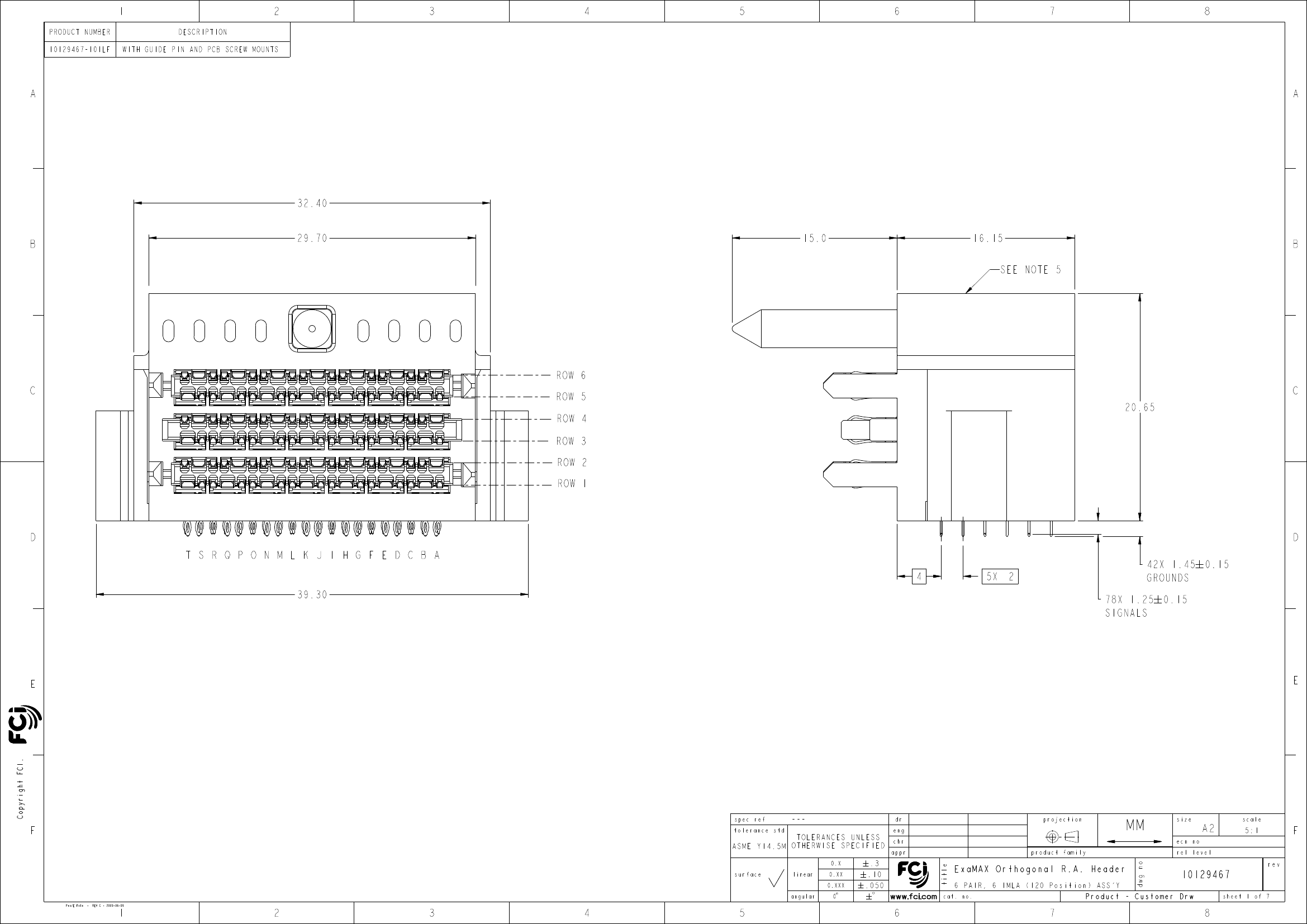

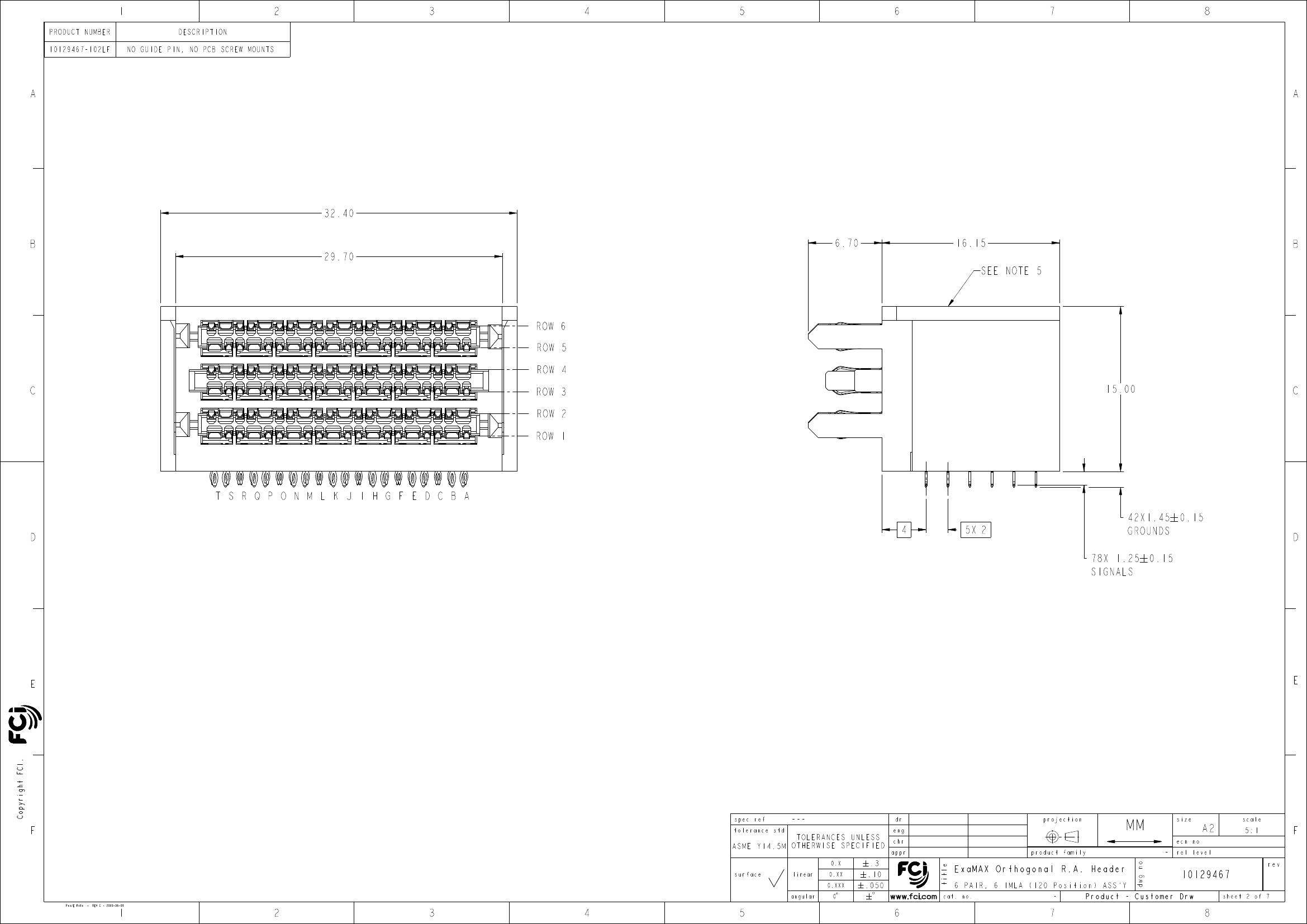

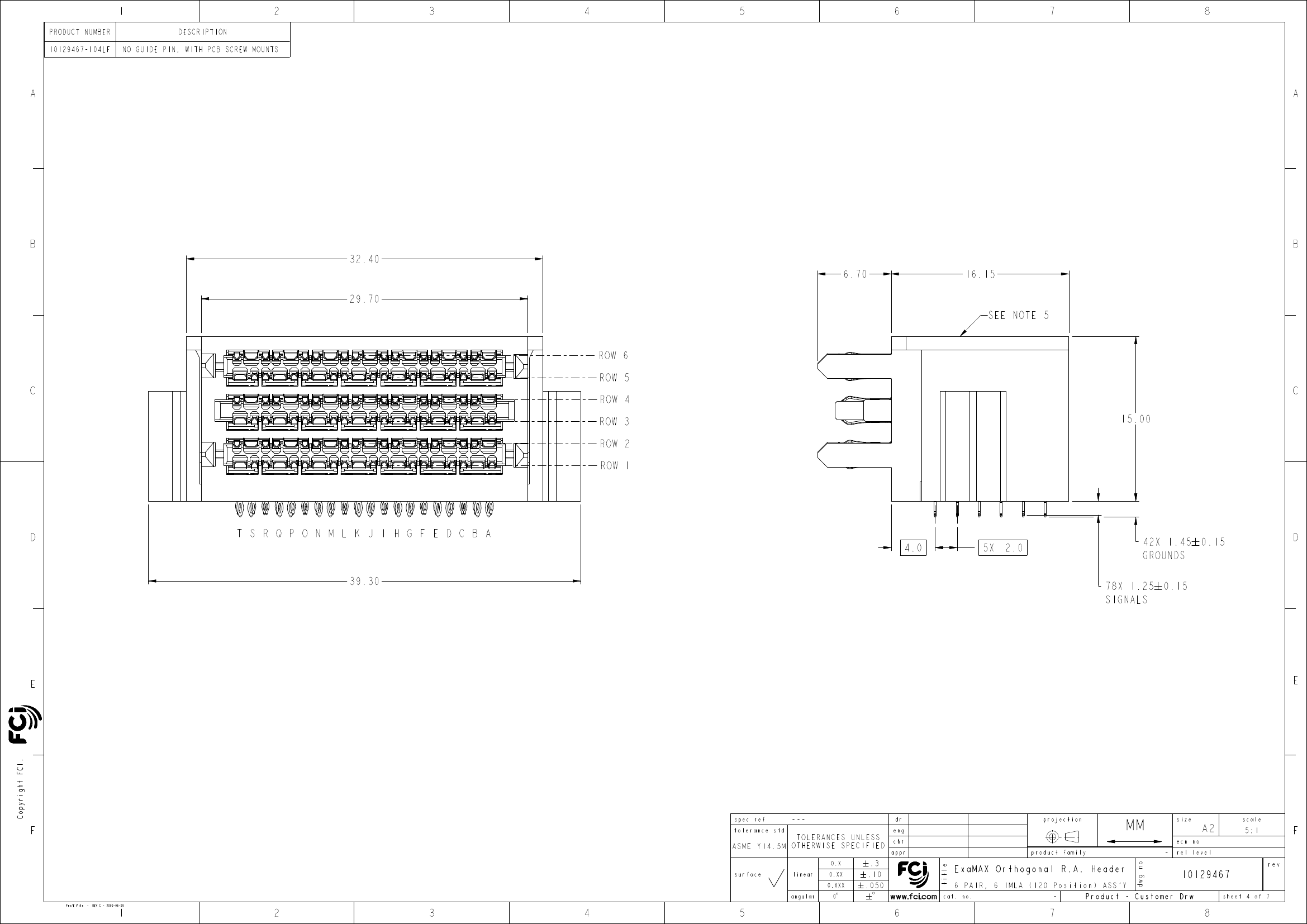

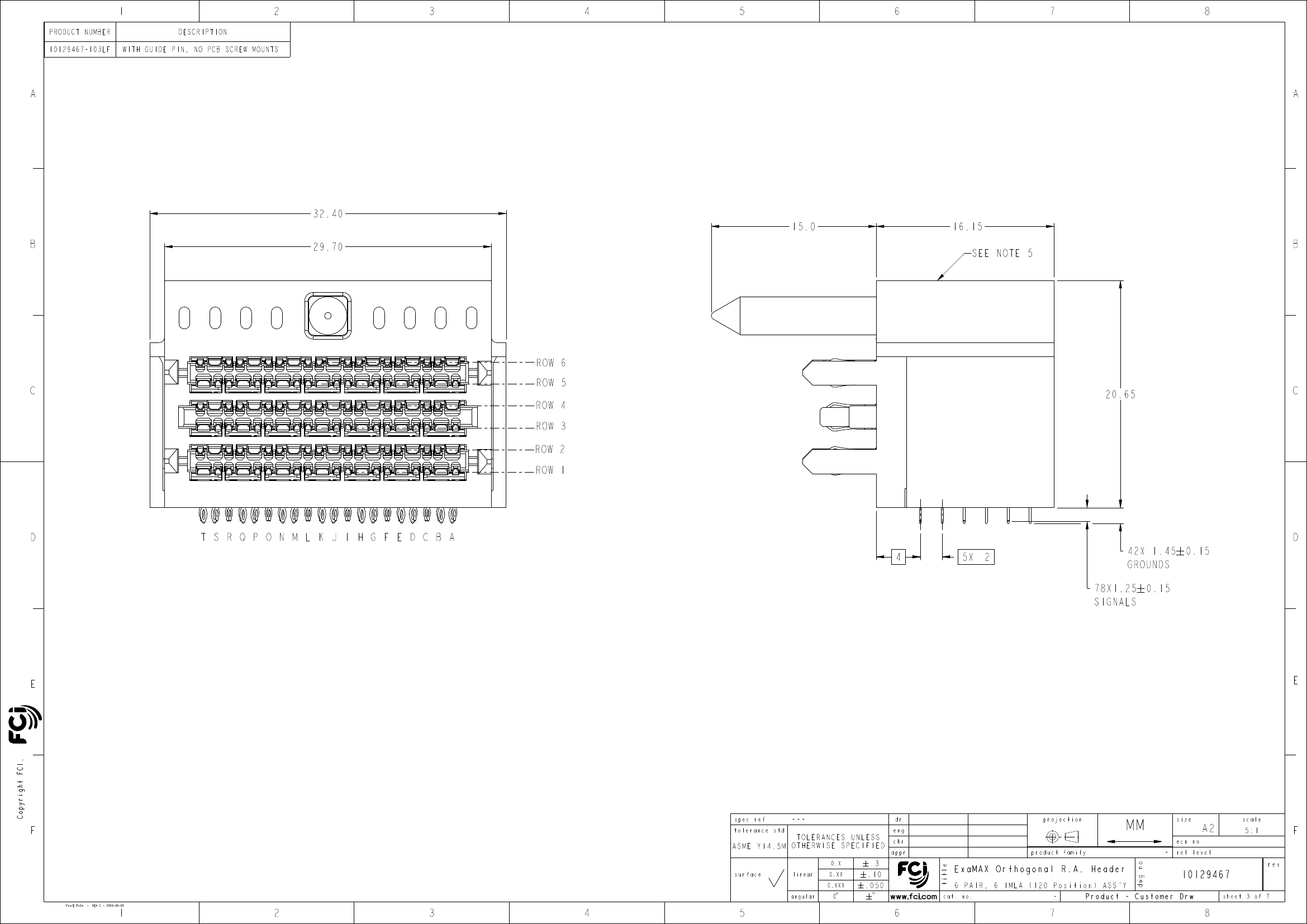

Board Connector, 120 Contact(s), 6 Row(s), Male, Right Angle, Press Fit Terminal, Locking, Black Insulator,

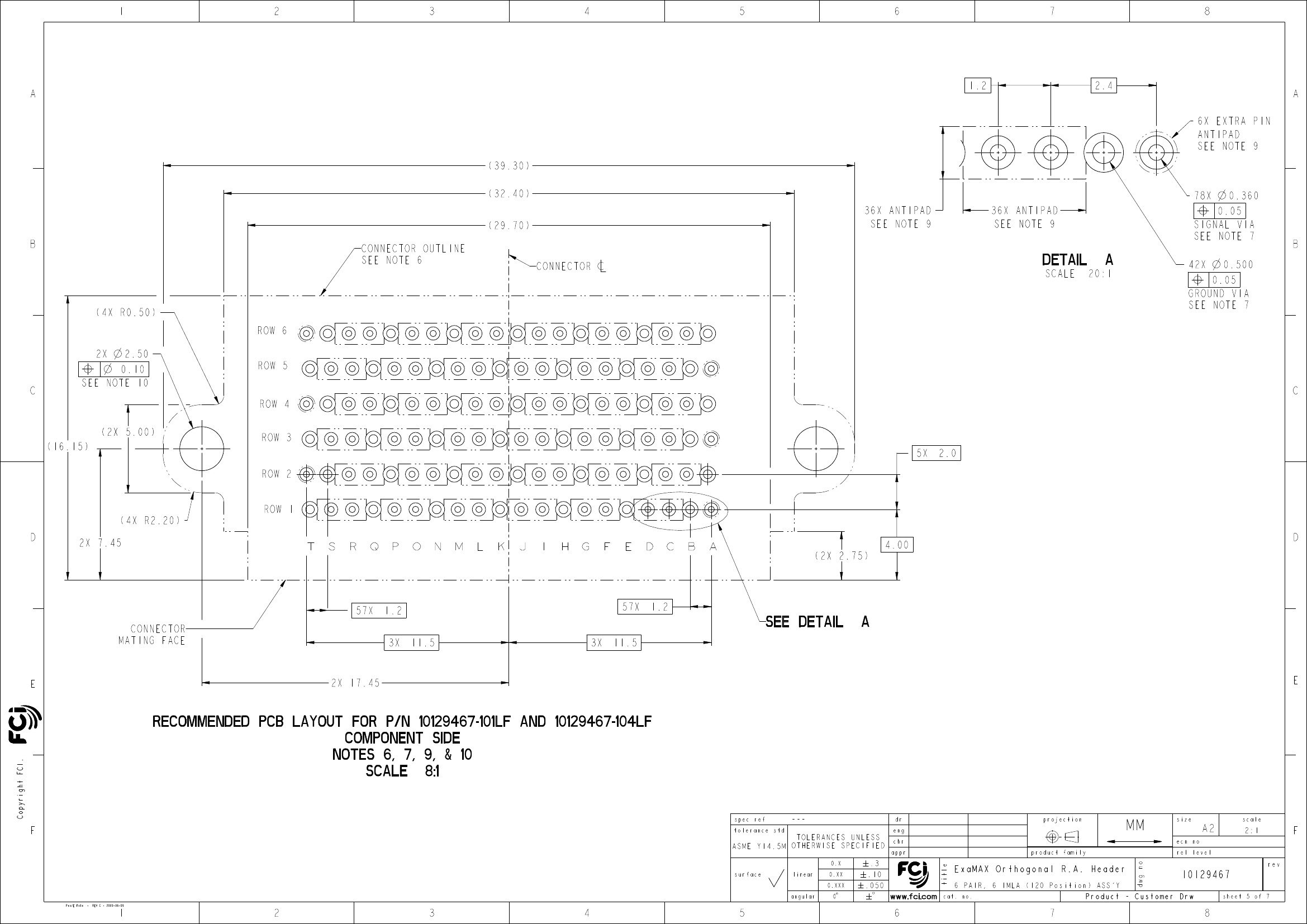

| Parameter Name | Attribute value |
| Objectid | 315200447 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| body width | 0.591 inch |
| subject depth | 0.636 inch |
| body length | 1.276 inch |
| Connector type | BOARD CONNECTOR |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| Dielectric withstand voltage | 500VAC V |
| maximum insertion force | .3614 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | POLYETHYLENE |
| Manufacturer's serial number | 10129467 |
| Match contact row spacing | 0.079 inch |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 6 |
| Number of rows loaded | 6 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.0066 mm |
| Rated current (signal) | 4 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.049 inch |
| Terminal pitch | 1.1938 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 120 |
| Evacuation force-minimum value | .10008 N |
| 10129467-102LF | 10129467-104LF | 1335BBN-602J | 1335CCN-222J | 10129467-103LF | |
|---|---|---|---|---|---|
| Description | Board Connector, 120 Contact(s), 6 Row(s), Male, Right Angle, Press Fit Terminal, Locking, Black Insulator, | Board Connector, 120 Contact(s), 6 Row(s), Male, Right Angle, Press Fit Terminal, Locking, Black Insulator, | Transponder Coils for Surface Mounting | Transponder Coils for Surface Mounting | Board Connector, 120 Contact(s), 6 Row(s), Male, Right Angle, Press Fit Terminal, Guide Pin, Black Insulator |
| Reach Compliance Code | compliant | compliant | - | - | compliant |
| ECCN code | EAR99 | EAR99 | - | - | EAR99 |
| body width | 0.591 inch | 0.591 inch | - | - | 0.813 inch |
| subject depth | 0.636 inch | 0.636 inch | - | - | 0.636 inch |
| body length | 1.276 inch | 1.547 inch | - | - | 1.276 inch |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | - | - | BOARD CONNECTOR |
| Contact point gender | MALE | MALE | - | - | MALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | - | - | COPPER ALLOY |
| Dielectric withstand voltage | 500VAC V | 500VAC V | - | - | 500VAC V |
| maximum insertion force | .3614 N | .3614 N | - | - | .3614 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | - | - | 1000000000 Ω |
| Insulator color | BLACK | BLACK | - | - | BLACK |
| insulator material | POLYETHYLENE | THERMOPLASTIC | - | - | THERMOPLASTIC |
| Manufacturer's serial number | 10129467 | 10129467 | - | - | 10129467 |
| Match contact row spacing | 0.079 inch | 0.079 inch | - | - | 0.079 inch |
| Installation option 1 | LOCKING | LOCKING | - | - | GUIDE PIN |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | - | - | RIGHT ANGLE |
| Installation type | BOARD | BOARD | - | - | BOARD |
| Number of connectors | ONE | ONE | - | - | ONE |
| PCB row number | 6 | 6 | - | - | 6 |
| Number of rows loaded | 6 | 6 | - | - | 6 |
| Maximum operating temperature | 85 °C | 85 °C | - | - | 85 °C |
| Minimum operating temperature | -55 °C | -55 °C | - | - | -55 °C |
| PCB contact pattern | STAGGERED | STAGGERED | - | - | STAGGERED |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm | - | - | 2.0066 mm |
| Rated current (signal) | 4 A | 4 A | - | - | 4 A |
| Guideline | UL | UL | - | - | UL |
| reliability | COMMERCIAL | COMMERCIAL | - | - | COMMERCIAL |
| Terminal length | 0.049 inch | 0.049 inch | - | - | 0.049 inch |
| Terminal pitch | 1.1938 mm | 1.1938 mm | - | - | 1.1938 mm |
| Termination type | PRESS FIT | PRESS FIT | - | - | PRESS FIT |
| Total number of contacts | 120 | 120 | - | - | 120 |
| Evacuation force-minimum value | .10008 N | .10008 N | - | - | .10008 N |
