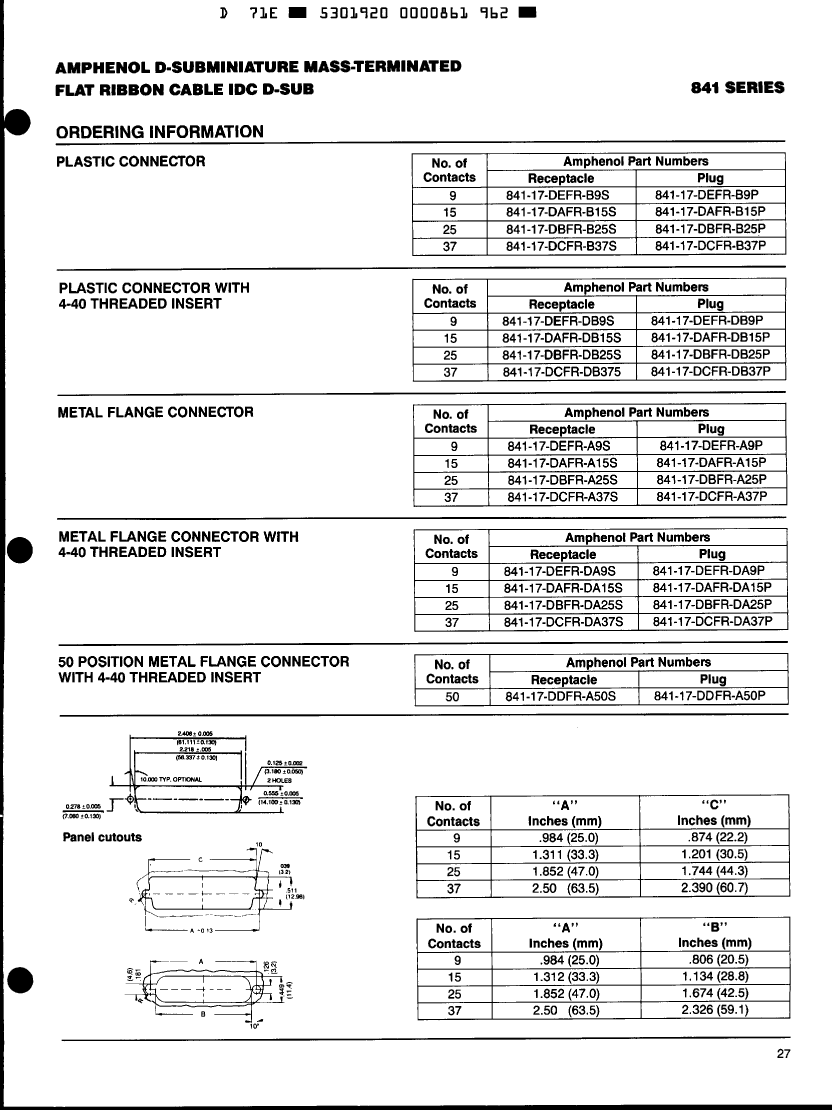

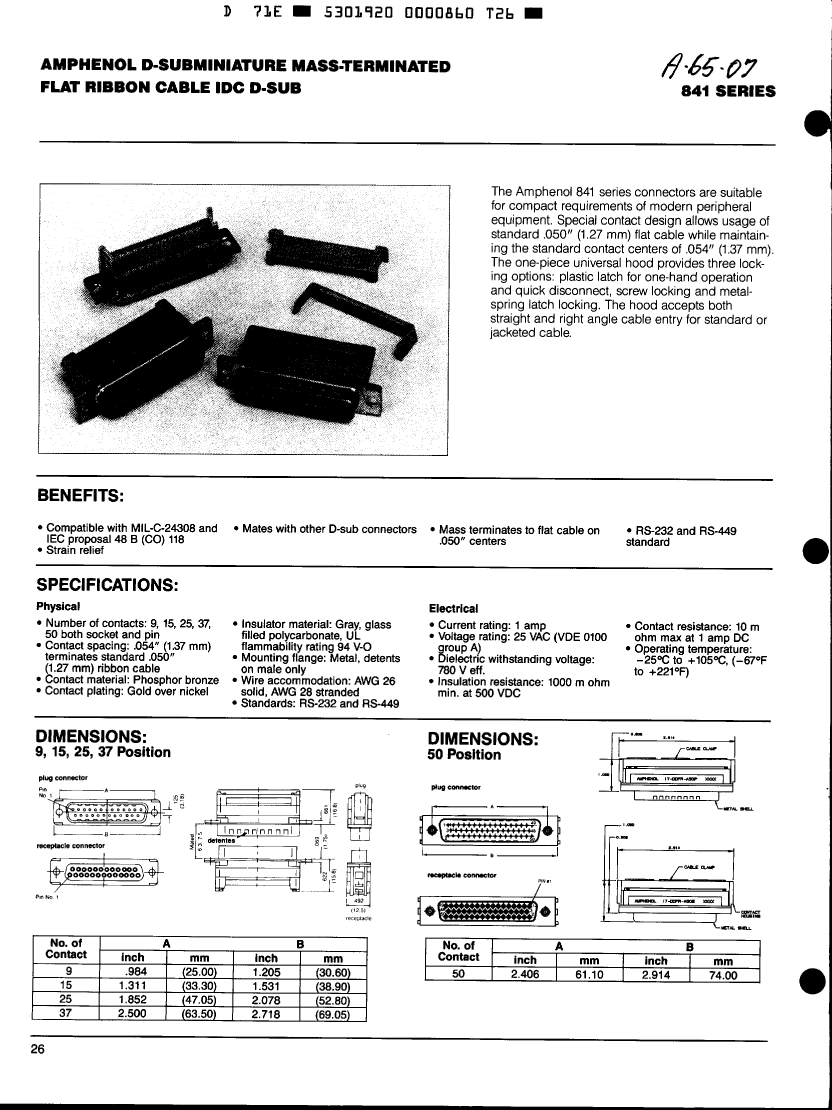

841-17-DAFR-A15S datasheet, PDF

Datasheet> All Categories > The connector> The connector> 841-17-DAFR-A15S

841-17-DAFR-A15S: DescriptionD Subminiature Connector, 15 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .125-.137, Receptacle,; CategoryThe connector The connector; File Size212KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

841-17-DAFR-A15S Overview

D Subminiature Connector, 15 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .125-.137, Receptacle,

841-17-DAFR-A15S Parametric

Parameter Name	Attribute value
Objectid	1440870288
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LATCHED, LOW PROFILE
body width	0.492 inch
subject depth	0.622 inch
body length	1.531 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	780VDC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYCARBONATE
MIL compliance	NO
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .125-.137
Installation option 2	DETENTS
Installation type	CABLE AND PANEL
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	MIL-C-24308
Shell surface	TIN OVER ZINC
Shell material	PLASTIC
Housing size	2/A
Termination type	IDC
Total number of contacts	15
UL Flammability Code	94V-0
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All
