94115-124415 datasheet, PDF - EEWORLD Datasheet

94115-124415: DescriptionD Subminiature Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40,; CategoryThe connector The connector; File Size322KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

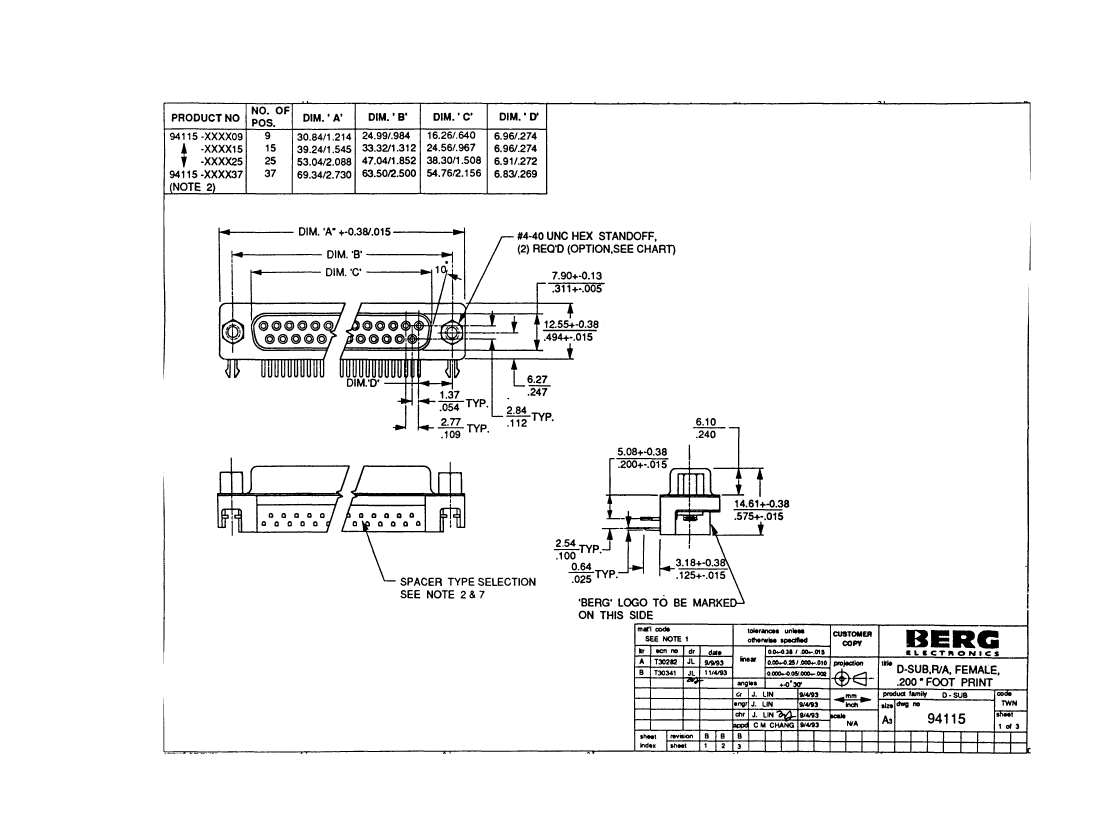

94115-124415 Overview

D Subminiature Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40,

Parameter Name	Attribute value
Objectid	1862299006
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.18
body width	0.494 inch
subject depth	0.335 inch
body length	1.545 inch
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	STANDOFF
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.27 mm
Plating thickness	10u inch
Guideline	UL
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0

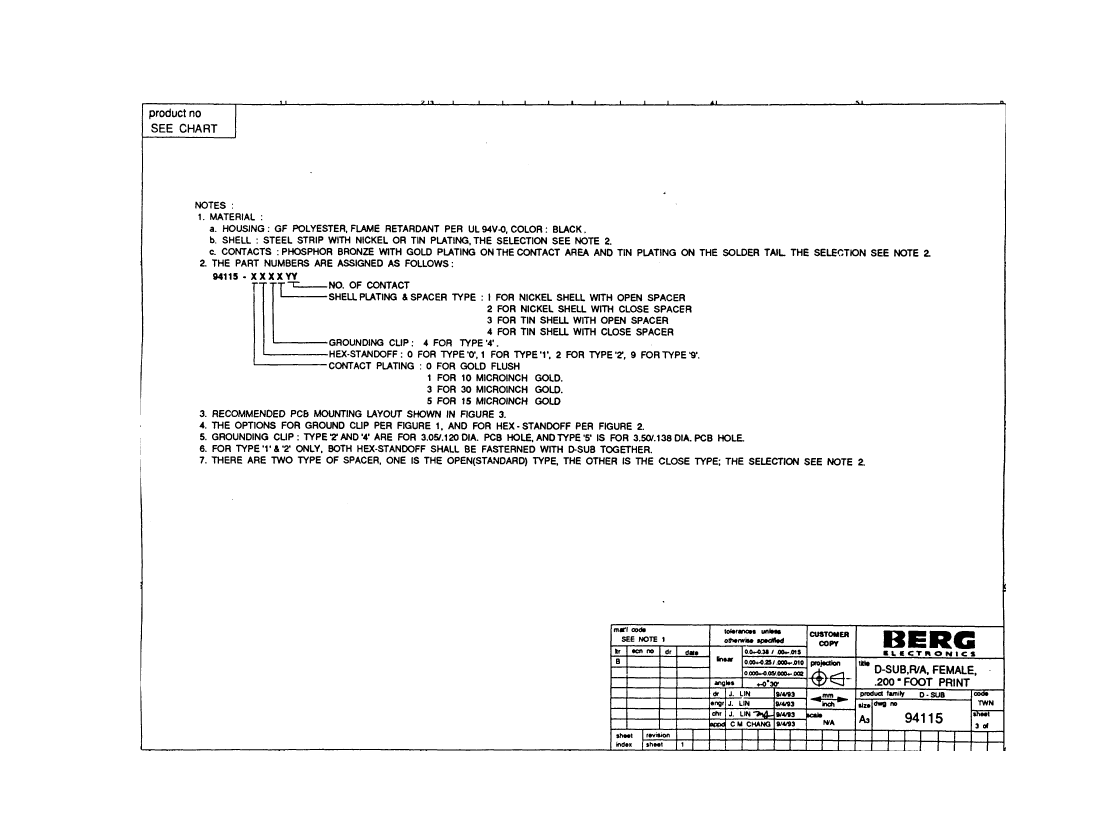

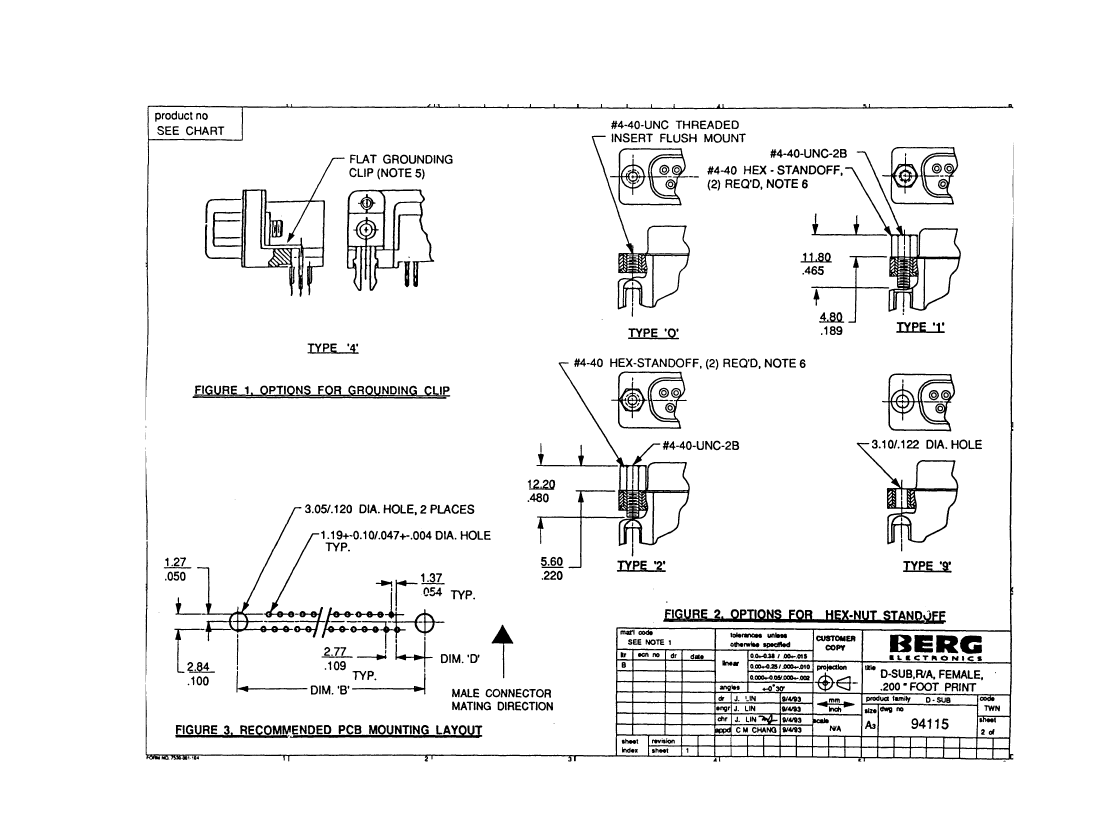

PDM: Rev:B

STATUS:

Released

Printed: Feb 06, 2008

.
