HLW31S-2A7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HLW31S-2A7

HLW31S-2A7: DescriptionCard Edge Connector, 31 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Black Insulator; CategoryThe connector The connector; File Size82KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

HLW31S-2A7 Overview

Card Edge Connector, 31 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Black Insulator

HLW31S-2A7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1942571859
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STAGGERED CONFIGURATION
body width	0.154 inch
subject depth	0.232 inch
body length	1.323 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	LIF N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.0066 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	31
UL Flammability Code	94V-0
Evacuation force-minimum value	LIF N

Preview

Download Datasheet

View All

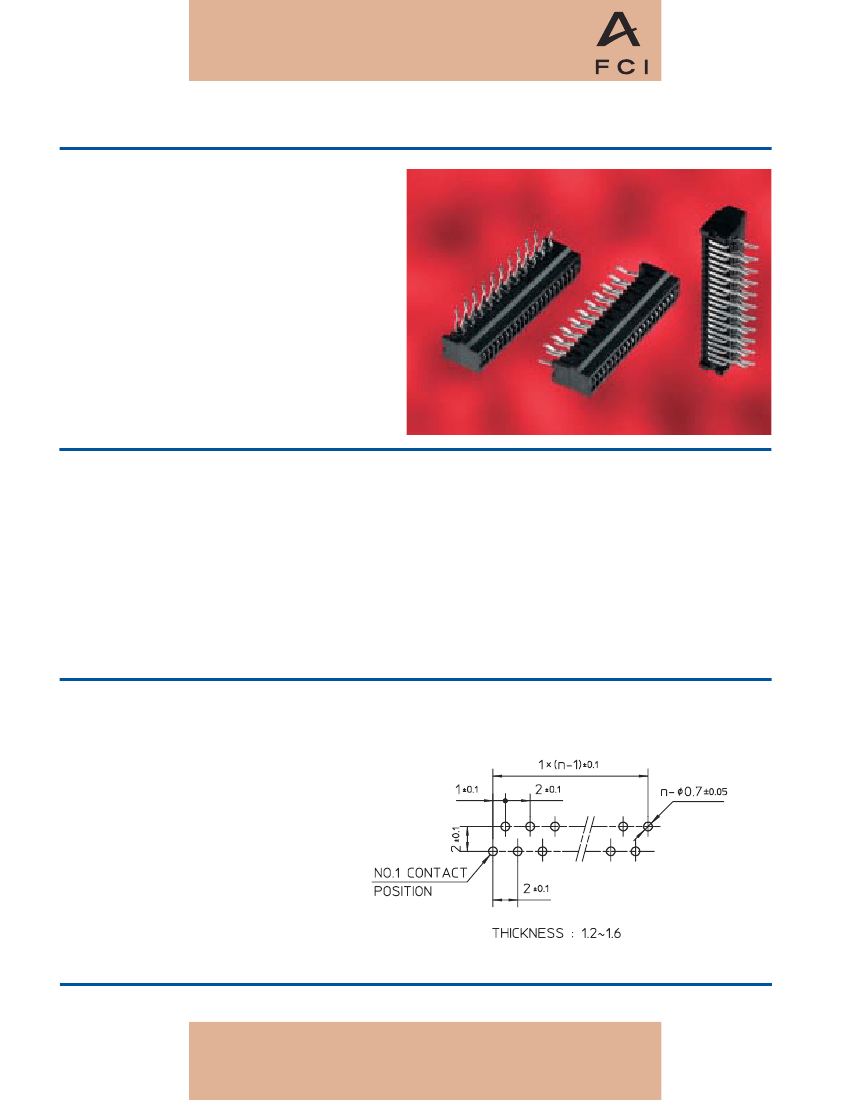

HLW series - LIF / Through hole

1.00 mm Spacing for FFC / FPC / CIC

Features

■

Available in 4 to 32 positions

■

Right angle and vertical type

■

Kinked solder tails available

Benefits

■

The Gas-Tight, High pressure (GTH) contact system ensures a low cost connection

with reliability equal to gold plating.

■

The Low Insertion Force (LIF) contacts positioning provides a reliable and

easy mating operation.

■

Fork shaped contacts mean stable and low contact resistance.

■

Kinked solder tails provide added PCB retention.

Technical Data

Material

Housing

Contact

PBT, glass reinforced, UL94V-0, Black

Phosphor Bronze, Tin alloy plated

PC Board pattern

(component side)

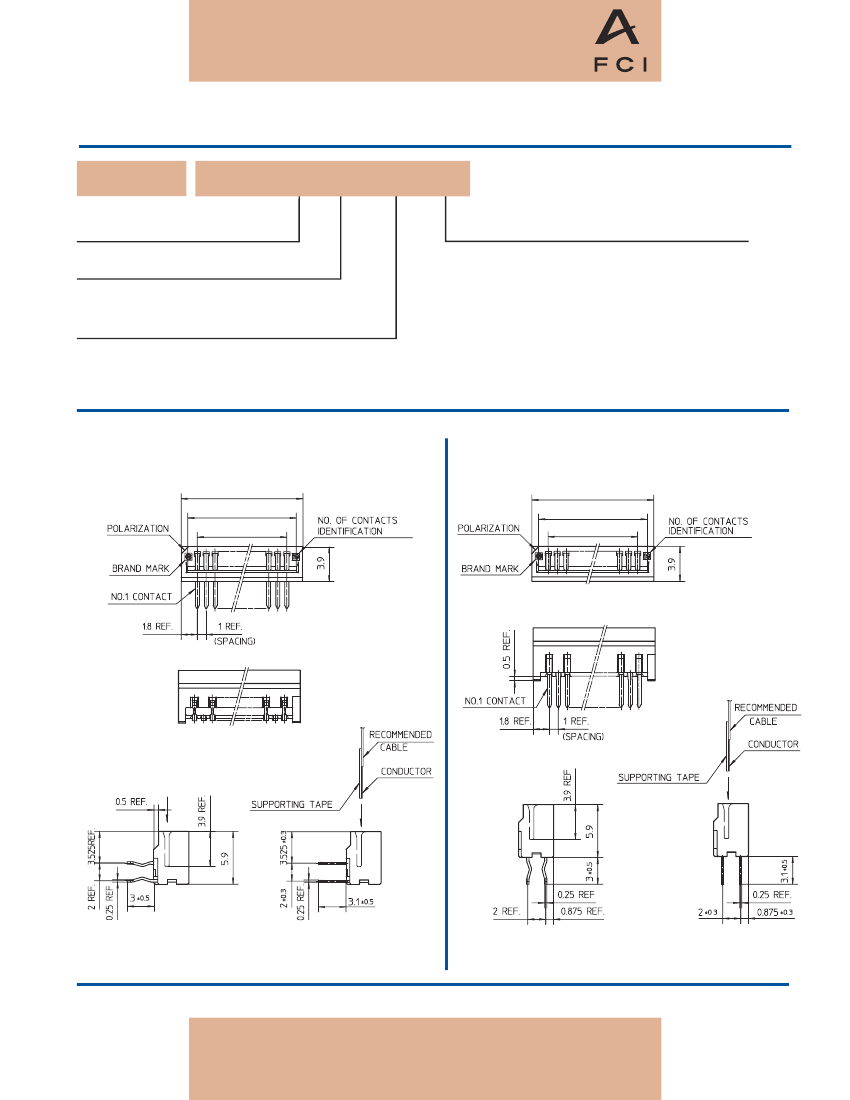

Technical Support / Drawings / Specifications :

www.fciconnect.com
