Part Number

Search

L77HDB44PD1CH4F

Description
D Subminiature Connector, 44 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle, ROHS COMPLIANT
CategoryThe connector    The connector

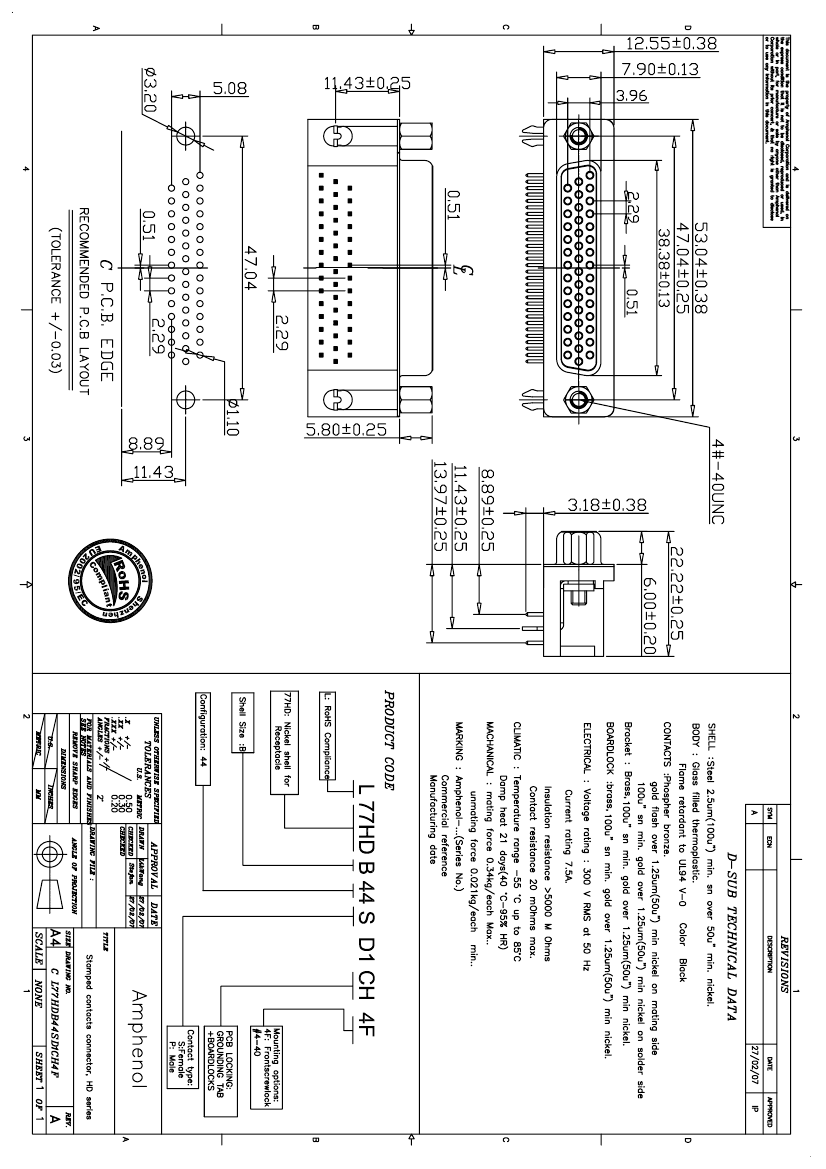

File Size151KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

L77HDB44PD1CH4F Overview

D Subminiature Connector, 44 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle, ROHS COMPLIANT

L77HDB44PD1CH4F Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid2143307215
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
Body/casing typeRECEPTACLE
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin (100)/Gold Over Nickel
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeSTAGGERED
Contact resistance10 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Dielectric withstand voltage1400VAC V
empty shellNO
Filter functionNO
IEC complianceNO
Insulation resistance5000000000 Ω
insulator materialGLASS FILLED POLYETHYLENE
MIL complianceNO
Plug contact pitch0.09 inch
Match contact row spacing0.078 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1#4-40
Installation option 2SCREWLOCKS
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number3
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing5.08 mm
Plating thicknessFLASH inch
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Housing size3/B
Terminal length0.125 inch
Terminal pitch2.286 mm
Termination typeSOLDER
Total number of contacts44
UL Flammability Code94V-0
