MS3108E28-19SZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MS3108E28-19SZ

MS3108E28-19SZ: DescriptionMIL Series Connector, 10 Contact(s), Aluminum Alloy, Female, Solder Terminal, Plug,; CategoryThe connector The connector; File Size31KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

MS3108E28-19SZ Overview

MIL Series Connector, 10 Contact(s), Aluminum Alloy, Female, Solder Terminal, Plug,

MS3108E28-19SZ Parametric

Parameter Name	Attribute value
Objectid	1931525192
Reach Compliance Code	unknown
Other features	STANDARD:MIL-C-5015, COMPATIBLE CONTACTS:10-597107-131; 10-597107-161
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	OLIVE DRAB CHROMATE OVER CADMIUM PLATE
Shell material	ALUMINUM
Housing size	28
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

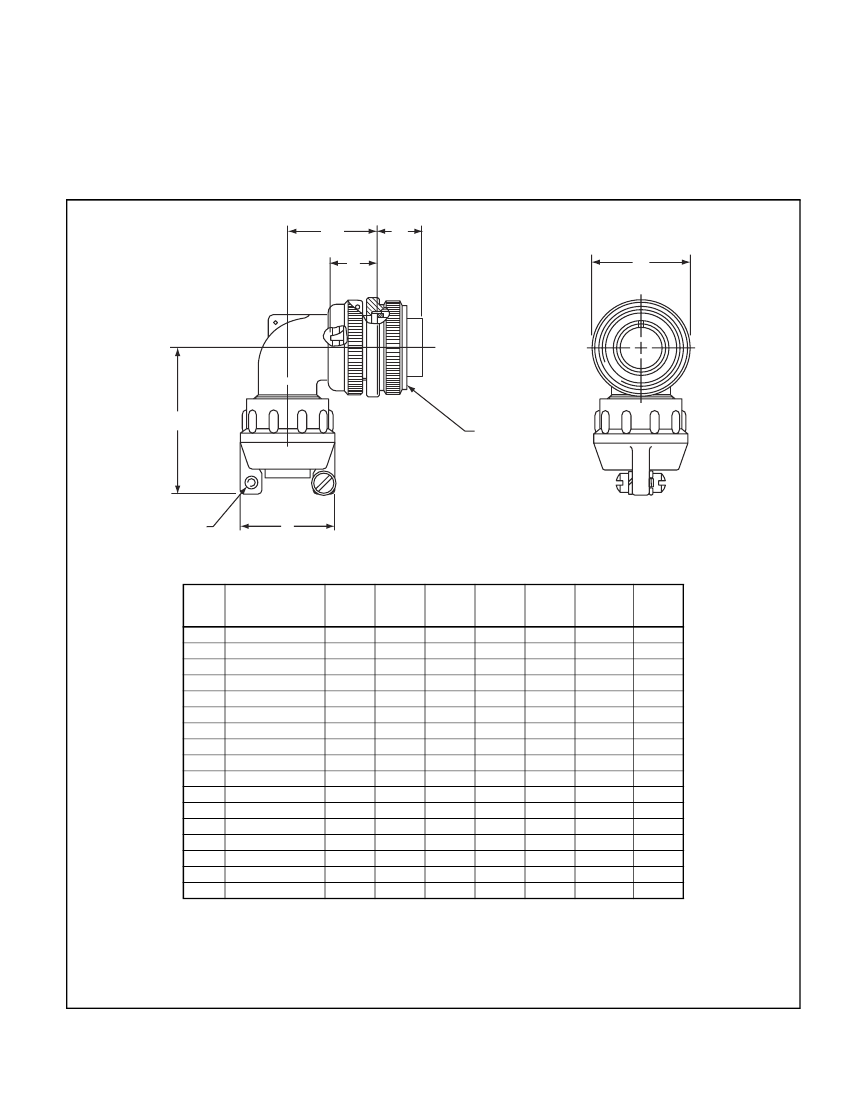

MS/Standard

MS3108E

90 degree plug

Thread

To complete order number, see “how to order” pg. 70.

For solder well data, see page 67.

All lockwire holes are .045 dia. min.

Thread

Class 2B

Dia.

Max.

Thread

Class 2B

Shell

Size

±.005

Max.

±.045

10S

10SL

12S

14S

16S

.5000-28UNEF

.6250-24NEF

.7500-20UNEF

.8750-20UNEF

1.0000-20UNEF

1.1000-20UNEF

1.1250-18NEF

1.2500-18NEF

1.3750-18NEF

1.5000-18NEF

1.7500-18NS

2.0000-18NS

2.2500-16UN

2.5000-16UN

.531

.719

.531

.719

.531

.719

.927

.951

.956

1.143

1.020

1.207

1.146

1.333

1.395

1.598

1.786

2.020

2.145

2.270

.807

.901

1.026

1.119

1.229

1.479

1.666

2.135

2.260

2.510

.741

.869

.946

.995

1.123

1.250

1.333

1.461

1.588

1.729

1.968

2.209

2.463

2.719

1.445

1.508

1.570

1.633

1.759

1.931

1.993

2.119

2.181

2.570

2.695

2.851

6-32NC

8-32NC

10-32NF

.562

.812

.562

.812

.562

.812

.812*

* Increase Z dimension by .312 for size “0” contact only.
