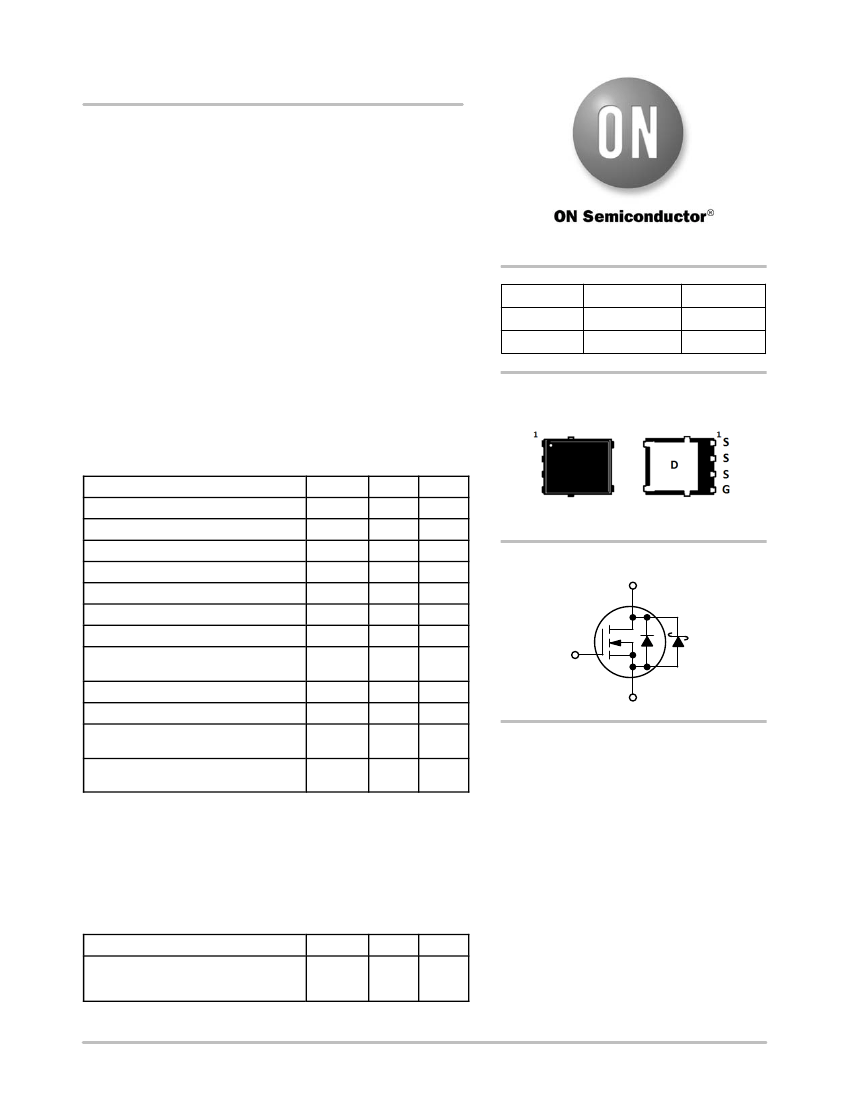

NTMFS4H11NF
Power MOSFET
25 V, 334 A, Single N−Channel, SO−8FL
Features
•
•
•
•
•
Integrated Schottky Diode
Optimized Design to Minimize Conduction and Switching Losses
Optimized Package to Minimize Parasitic Inductances
Optimized material for improved thermal performance
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
High Performance DC-DC Converters
System Voltage Rails
Netcom, Telecom
Servers
Point of Load
http://onsemi.com
V
GS
4.5 V
10 V
MAX R
DS(on)
1.0 mW
0.7 mW
TYP Q
GTOT
37.8 nC
82 nC
Applications
•
•
•
•
•
PIN CONNECTIONS
SO8−FL (5 x 6 mm)
MAXIMUM RATINGS
(T
J
= 25°C unless otherwise stated)
Parameter
Drain-to-Source Voltage
Gate-to-Source Voltage
Continuous Drain Current R
qJA
(Note 1)
Power Dissipation R
qJA
(Note 1)
Continuous Drain Current R
qJC
(Note 1)
Power Dissipation R
qJC
(Note 1)
Pulsed Drain Current (t
p
= 10
ms)
Single Pulse Drain-to-Source Avalanche
Energy (Note 1) (I
L
= 57 A
pk
, L = 0.3 mH)
Drain to Source dV/dt
Maximum Junction Temperature
Storage Temperature Range
Lead Temperature Soldering Reflow (SMD
Styles Only), Pb-Free Versions (Note 2)
Symbol
V
DSS
V
GS
I
D
P
D
I
D
P
D
I
DM
E
AS
dV/dt
T
J(max)
T
STG
T
SLD
Value
25
±20
54
3.2
334
125
568
487
7
150
−55 to
150
260
Units
V
V
A
W
A
W
A
mJ
(4)
V/ns
°C
°C
°C
S
(1, 2, 3)
G
N−CHANNEL MOSFET
D
(5, 6)
(Top View)
(Bottom View)
ORDERING INFORMATION
See detailed ordering and shipping information on page 6 of
this data sheet.
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
1. Values based on copper area of 645 mm
2
(or 1 in
2
) of 2 oz copper thickness
and FR4 PCB substrate.
2. For more information, please refer to our Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
3. This is the absolute maximum rating. Parts are 100% UIS tested at T
J
= 25°C,
V
GS
= 10 V, I
L
= 37 A, E
AS
= 205 mJ.
THERMALCHARACTERISTICS
Parameter
Thermal Resistance,
Junction-to-Ambient (Note 1 and 4)
Junction-to-Case (Note 1 and 4)
Symbol
R
qJA
R
qJC
Max
38.9
1.0
Units
°C/W
4. Thermal Resistance R
qJA
and R
qJC
as defined in JESD51−3.
©
Semiconductor Components Industries, LLC, 2014
1
March, 2014 − Rev. 0
Publication Order Number:
NTMFS4H11NF/D
NTMFS4H11NF
ELECTRICAL CHARACTERISTICS
(T
J
= 25°C unless otherwise specified)
Parameter
OFF CHARACTERISTICS
Drain−to−Source Breakdown Voltage
Drain−to−Source Breakdown Voltage
Temperature Coefficient
Zero Gate Voltage Drain Current
Gate−to−Source Leakage Current
ON CHARACTERISTICS
(Note 5)
Gate Threshold Voltage
Negative Threshold Temperature Coefficient
Drain−to−Source On Resistance
V
GS(TH)
V
GS(TH)
/T
J
R
DS(on)
V
GS
= V
DS
, I
D
= 250
mA
I
D
= 10 mA reference to 25°C
V
GS
= 10 V
V
GS
= 4.5 V
Forward Transconductance
g
FS
I
D
= 30 A
I
D
= 30 A
1.2
3.7
0.56
0.79
101
0.7
1
mW
S
2.1
V
mV/°C
V
(BR)DSS
V
(BR)DSS
/
T
J
I
DSS
I
GSS
V
GS
= 0 V, I
D
= 250
mA
I
D
= 10 mA reference to 25°C
V
GS
= 0 V,
V
DS
= 20 V
T
J
= 25°C
25
16
500
+100
V
mV/°C
mA
nA
Symbol
Test Condition
Min
Typ
Max
Unit
V
DS
= 0 V, V
GS
= +20 V
V
DS
= 12 V, I
D
= 20 A
CHARGES, CAPACITANCES & GATE RESISTANCE
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Total Gate Charge
Threshold Gate Charge
Gate−to−Source Charge
Gate−to−Drain Charge
Total Gate Charge
Gate Resistance
C
ISS
C
OSS
C
RSS
Q
G(TOT)
Q
G(TH)
Q
GS
Q
GD
Q
G(TOT)
R
G
V
GS
= 10 V, V
DS
= 12 V; I
D
= 30 A
T
A
= 25°C
V
GS
= 4.5 V, V
DS
= 12 V; I
D
= 30 A
V
GS
= 0 V, f = 1 MHz, V
DS
= 12 V
5538
3416
175.3
37.8
2.3
11.8
8
82
1.3
2
nC
W
nC
pF
SWITCHING CHARACTERISTICS, V
GS
= 4.5 V
(Note 5)
Turn−On Delay Time
Rise Time
Turn−Off Delay Time
Fall Time
t
d(ON)
t
r
t
d(OFF)
t
f
V
GS
= 4.5 V, V
DD
= 12 V, I
D
= 15 A,
R
G
= 3.0
W
16.9
42.3
46.3
30.9
ns
SWITCHING CHARACTERISTICS, V
GS
= 10 V
(Note 5)
Turn−On Delay Time
Rise Time
Turn−Off Delay Time
Fall Time
DRAIN−SOURCE DIODE CHARACTERISTICS
Forward Diode Voltage
V
SD
V
GS
= 0 V,
I
S
= 2.0 A
T
J
= 25°C
T
J
= 125°C
0.35
0.27
66.7
V
GS
= 0 V, dIS/dt = 100 A/ms,
I
S
= 30 A
33.1
33.6
90
nC
ns
0.6
V
t
d(ON)
t
r
t
d(OFF)
t
f
V
GS
= 11.5 V, V
DD
= 12 V,
I
D
= 15 A, R
G
= 3.0
W
10.9
33.2
58.3
23.3
ns
Reverse Recovery Time
Charge Time
Discharge Time
Reverse Recovery Charge
t
RR
t
a
t
b
Q
RR
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
5. Pulse Test: pulse width
v
300
ms,
duty cycle
v
2%.
6. Switching characteristics are independent of operating junction temperatures.
http://onsemi.com
2
NTMFS4H11NF

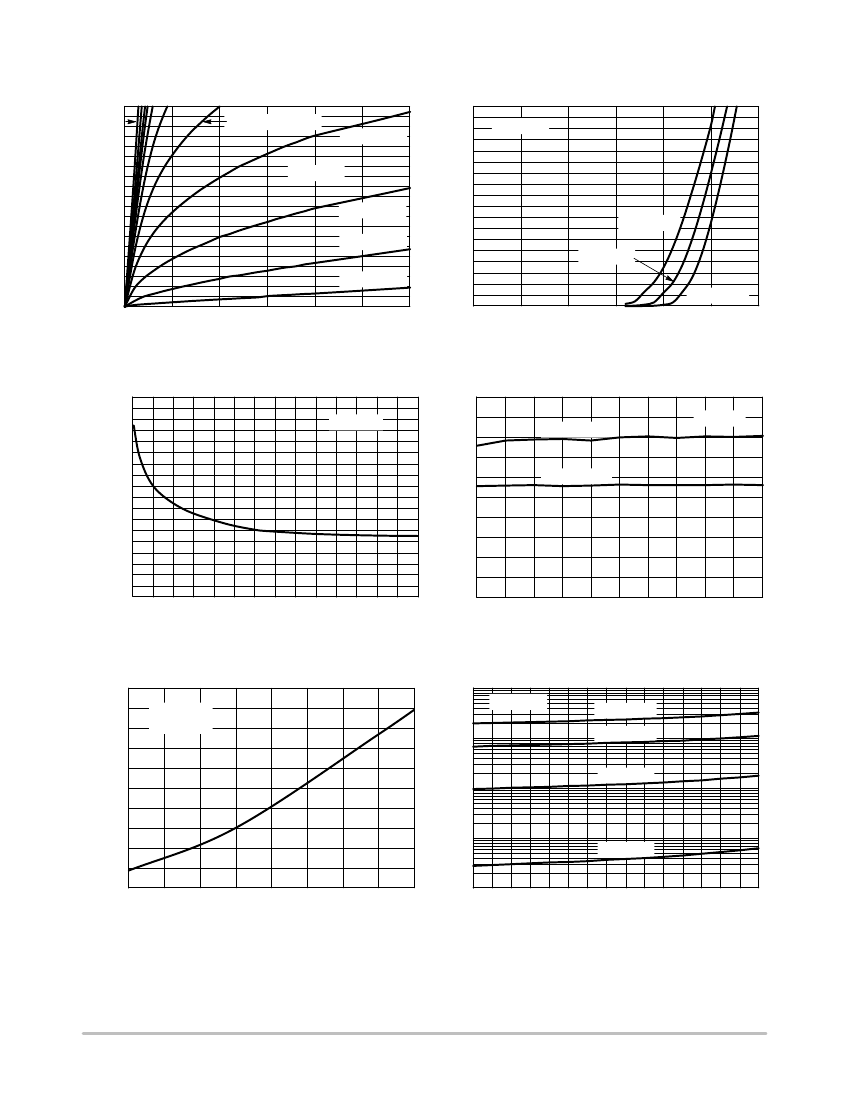

TYPICAL CHARACTERISTICS
200
180
I
D
, DRAIN CURRENT (A)
160
140
120
100
80
60
40
20
0
0
0.5
1.0
1.5
2.0
V
GS
= 2.2 V
2.5
3.0
V
GS
= 2.4 V
V
GS
= 2.6 V
T
J
= 25°C
V
GS
= 10 V to 3 V
I
D
, DRAIN CURRENT (A)
V
GS
= 2.8 V
180
160
140
120
100
80
60
40
20
0
0
0.5
1.0
1.5
2.0
V
DS
, DRAIN−TO−SOURCE VOLTAGE (V)
T
J
= −55°C
2.5
3.0
T
J
= 25°C
T
J
= 125°C
V
DS
= 5 V
V
GS
, GATE−TO−SOURCE VOLTAGE (V)
Figure 1. On−Region Characteristics
R
DS(on)
, DRAIN−TO−SOURCE RESISTANCE (W)
0.0018
I
D
= 30 A
R
DS(on)
, DRAIN−TO−SOURCE RESISTANCE (W)
1.0E−03
Figure 2. Transfer Characteristics
0.0016
0.0014
0.0012
0.0010
T = 25°C
V
GS
= 4.5 V
8.0E−04
6.0E−04
V
GS
= 10 V
0.0008
0.0006
0.0004
4.0E−04
2.0E−04
0E+00
20
30
40
50
60
70
80
90
100 110 120
I
D
, DRAIN CURRENT (A)
0.0002
0
3
4
5
6
V
GS
(V)
7
8
9
10
Figure 3. On−Resistance vs. V
GS
1.7
R
DS(on)
, DRAIN−TO−SOURCE
RESISTANCE (NORMALIZED)
1.6
1.5
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
−50
I
D
= 30 A
V
GS
= 10 V
I
DSS
, LEAKAGE (A)
1E−02
1E−01
Figure 4. On−Resistance vs. Drain Current and
Gate Voltage
V
GS
= 0 V
T
J
= 150°C
T
J
= 125°C
T
J
= 85°C
1E−03
1E−04
T
J
= 25°C
1E−05
−25
0
25
50
75
100
125
150
10
15
20
25
T
J
, JUNCTION TEMPERATURE (°C)
V
DS
, DRAIN−TO−SOURCE VOLTAGE (V)
Figure 5. On−Resistance Variation with
Temperature
Figure 6. Drain−to−Source Leakage Current
vs. Voltage
http://onsemi.com
3
NTMFS4H11NF

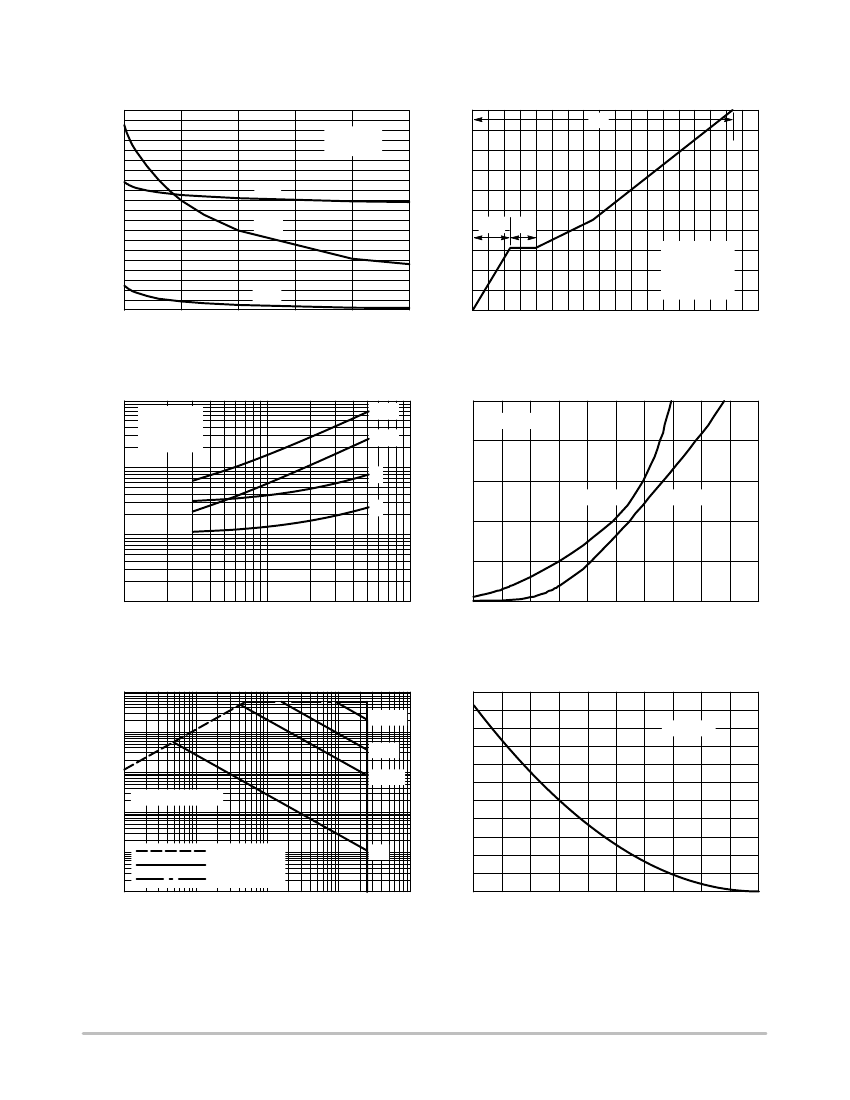

TYPICAL CHARACTERISTICS
V
GS
, GATE−TO−SOURCE VOLTAGE (V)
10,000
9000
C, CAPACITANCE (pF)
8000
7000
6000
5000
4000
3000
2000
1000
0
0
5
10
C
rss
15
20
25
C
oss
C
iss
T
J
= 25°C
V
GS
= 0 V
10
Q
T
8
6
Q
gs
Q
gd
T
J
= 25°C
V
GS
= 10 V
V
DD
= 12.0 V
I
D
= 30 A
0
10
20
30
40
50
60
70
80
90
4
2
0
V
DS
, DRAIN−TO−SOURCE VOLTAGE (V)
Q
g
, TOTAL GATE CHARGE (nC)
Figure 7. Capacitance Variation
1000
V
DD
= 12 V
I
D
= 15 A
V
GS
= 10 V
t, TIME (ns)
100
25
Figure 8. Gate−to−Source and
Drain−to−Source Voltage vs. Total Charge
t
d(off)
t
d(on)
t
r
t
f
I
S
, SOURCE CURRENT (A)
V
GS
= 0 V
20
15
T
J
= 125°C
10
T
J
= 25°C
10
5
0
1
1
10
R
G
, GATE RESISTANCE (W)
100
0.2
0.3
0.4
0.5
0.6
0.7
V
SD
, SOURCE−TO−DRAIN VOLTAGE (V)
Figure 9. Resistive Switching Time Variation
vs. Gate Resistance
E
AS
, SINGLE PULSE DRAIN−TO−
SOURCE AVALANCHE ENERGY (mJ)
1000
100
ms
I
D
, DRAIN CURRENT (A)
100
1 ms
10
0 V < V
GS
< 10 V
1
10 ms
220
200
180
160
140
120
100
80
60
40
20
0
Figure 10. Diode Forward Voltage vs. Current
I
D
= 37 A
0.1
0.01
0.01
0.1
R
DS(on)
Limit
Thermal Limit
Package Limit
1
10
dc
100
25
50
75
100
125
150
V
DS
, DRAIN−TO−SOURCE VOLTAGE (V)
T
J
, STARTING JUNCTION TEMPERATURE (°C)
Figure 11. Maximum Rated Forward Biased
Safe Operating Area
Figure 12. Maximum Avalanche Energy vs.
Starting Junction Temperature
http://onsemi.com
4
NTMFS4H11NF
TYPICAL CHARACTERISTICS
100
50% Duty Cycle
10
R(t) (°C/W)
20%
10%
5%
2%
1%
1
0.1
Single Pulse
0.01
0.000001
0.00001
0.0001
0.001
0.01
0.1
1
PCB Cu Area 650 mm
2
PCB Cu thk 1 oz
10
100
1000
PULSE TIME (sec)
Figure 13. Thermal Characteristics
400
350
300
GFS (S)
250
200
150
100
50
0
0
20
40
60
80
I
D
(A)
100
120
140
160
1E+00
1E−07 1E−06
1E−05
1E−04
1E−03
1E−02
PULSE WIDTH (sec)
I
D
, DRAIN CURRENT (A)
1E+03
1E+02
1E+01
Figure 14. GFS vs. I
D
Figure 15. Avalanche Characteristics
http://onsemi.com
5
