SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Reverse Voltage - 20 to 100 Volts
Forward Current - 0.5 Ampere
SS0520 THRU SS05100
FEATURES
● Plastic package has Underwriters Laboratory
● Flammability classification 94V-0 Utilizing Fame
● Retardant Epoxy Molding Compound
● For surface mount applications
● Low leakage current.
A
C
D
B
E
Dim
A
B
C
D
E
SOD-123
Min
3.6
2.5
1.4
0.5
—
0.4
0.95
—
Max
3.9
2.8
1.8
0.7
0.2
—
1.35
0.12
MECHANICAL DATA
●
Case: SOD-123, Molded Plastic
●
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
●
Polarity: Cathode Band
●
Weight: 0.017 grams
H
G
G
H
J
J
All Dimensions in mm
Maximum Ratings
@T
A
=25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Forward Continuous Current (Note 1)
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on
rated load (JEDEC Method)
Operating Temperature
Storage Temperature
Symbol
V
RRM
V
RWM
V
R
I
F
I
FSM
Tj
T
STG
SS0520
20
SS0530
30
SS0540
40
0.5
5.5
125
-50 to +150
SS0560
60
SS05100
100
Unit
V
A
A
°C
°C
Electrical Characteristics
Characteristic
Forward Voltage Drop
@T
A
=25°C unless otherwise specified
Symbol
@I
F
= 0.5A
V
FM
I
RM
C
j
SS0520
0.45
SS0530
0.55
SS0540
0.55
500
SS0560
0.70
SS05100
0.80
Unit
V
µA
Peak Reverse Leakage Current @ V
RRM
Typical Junction Capacitance
60
50
40
pF
Note: 1. Valid provided that terminals are kept at ambient temperature.
SS0520 THRU SS05100

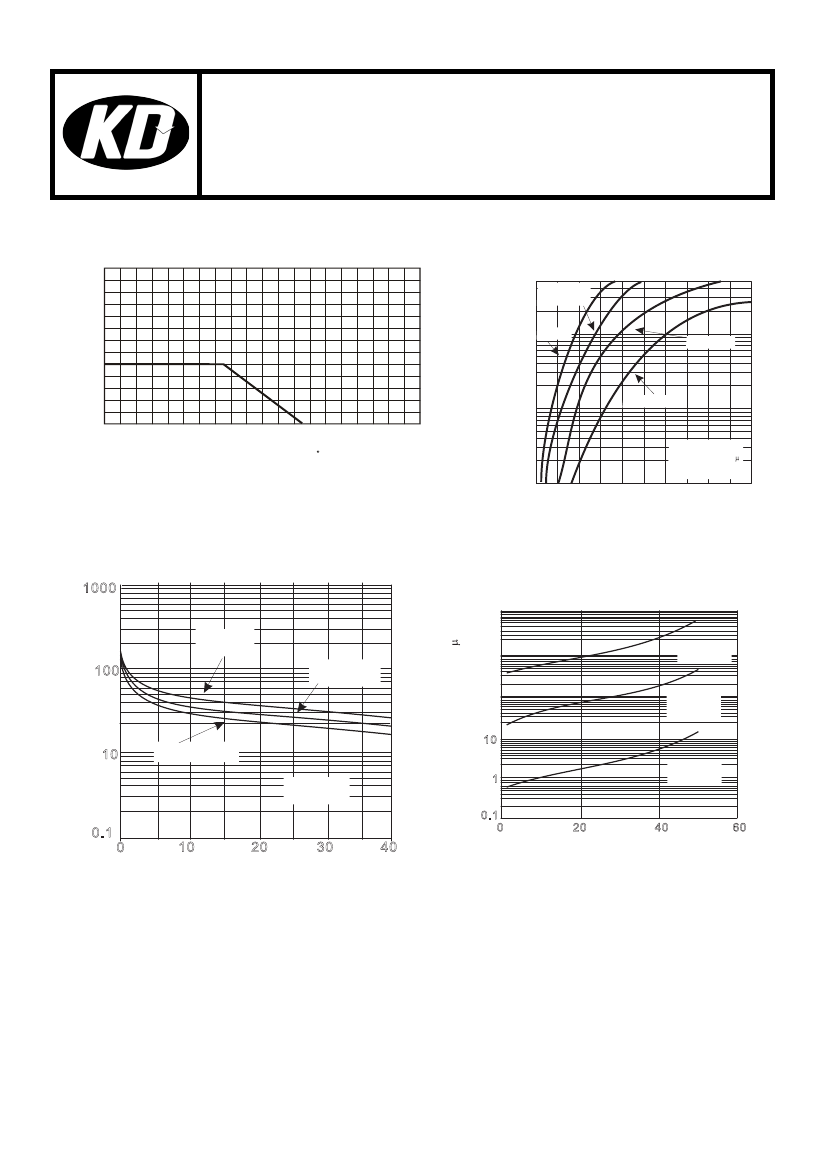

RATINGS AND CHARACTERISTIC CURVES
FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT,(A)
FIG.2-TYPICAL FORWARD
CHARACTERISTICS
I N S TA N TA N E O U S F O R WA R D C U R R E N T ( A )
20
10
SS0530
SS0540
SS0520
1.2
1.0
0.8
0.6
0.4
0.2
0
0
20
40
60
80
100
120
140
160
180
200
SS0560
1.0
SS05100
AMBIENT TEMPERATURE,( C)
T
J
=25 C
Pulse Width=300 s
1%Duty Cycle
O
0.1
.5
.7
.9
1.1 1.3 1.5 1.7 1.9 2.1
(V)
INSTANTANEOUS FORWARD VOLTAGE
FIG.3-TYPICAL JUNCTION CAPACITANCE
1000
10
4
FIG.4 - TYPICAL REVERSE
CHARACTERISTICS
REVERSE CURRENT ( A)
C A PA C I TA N C E ( p F )
SS0520
SS0540
100
10
3
125 C
O
SS0560
10
2
10
1
0.1
0
75 C
O
10
SS05100
25
O
C
T
J
=25
O
C
0.1
0
10
20
30
40
20
40
60
REVERSE VOLTAGE (V)
REVERSE VOLTAGE (V)
