1.5SMC22A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> 1.5SMC22A

Preview

1.5SMC22A: Description1500 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB; Categorysemiconductor Discrete semiconductor; File Size1MB，4 Pages; ManufacturerDIOTECH; Websitehttp://www.kdiode.com/

Download Datasheet View All

1.5SMC22A Overview

1500 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB

Preview

Download Datasheet

View All

1.5SMC Series

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Stand - Off

Voltage - 6.8 to 550 Volts

Peak Pulse Power - 1500 Watt

FEATURES

●

SMC ( DO-214AB )

Glass Passivated Die Construction

Uni- and Bi-Directional Versions Available

Excellent Clamping Capability

Fast Response Time

Plastic Case Material has UL Flammability

Classification Rating 94V-O

.128(3.25)

.108(2.75)

.245(6.22)

.220(5.59)

.280(7.11)

.260(6.60)

.012(.305)

.006(.152)

.103(2.62)

.079(2.00)

.060(1.52)

.030(0.76)

.008(.203)

.002(.051)

MECHANICAL DATA

●

Case: SMC/DO-214AB, Molded Plastic

Terminals: Solder Plated, Solderable

per MIL-STD-750, Method 2026

Polarity: Cathode Band Except Bi-Directional

Marking: Device Code

Weight: 0.21 grams (approx.)

.320(8.13)

.305(7.75)

Dimensions in inches and (millimeters)

Maximum Ratings and Electrical Characteristics

Characteristic

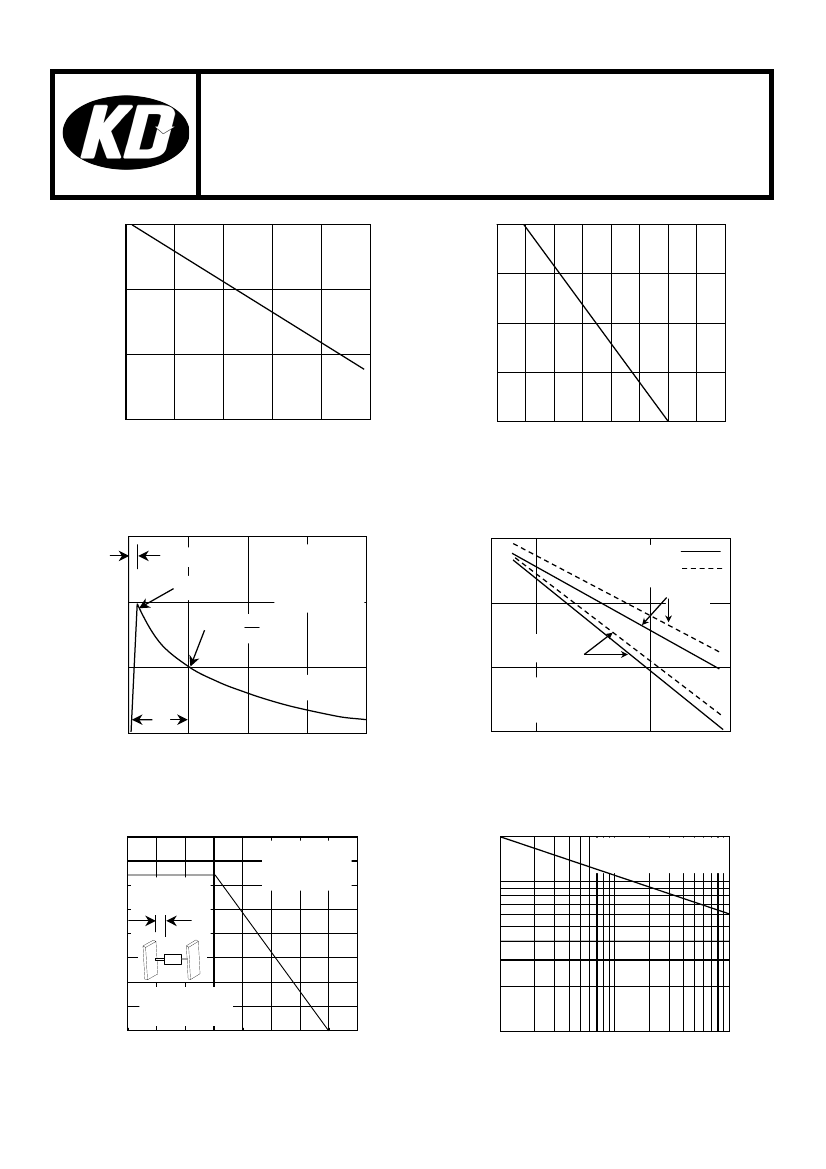

Peak Pulse Power Dissipation 10/1000µS Waveform (Note 1, 2) Figure 3

Peak Pulse Current on 10/1000µS Waveform (Note 1) Figure 4

Peak Forward Surge Current 8.3ms Single Half Sine-Wave

Superimposed on Rated Load (JEDEC Method) (Note 2, 3)

Operating and Storage Temperature Range

=25°C unless otherwise specified

Symbol

PPM

FSM

, T

STG

Value

1500 Minimum

See Table 1

200

-55 to +150

Unit

°C

Note: 1. Non-repetitive current pulse per Figure 4 and derated above T

= 25°C per Figure 1.

2. Mounted on 5.0mm

(0.013mm thick) land area.

3. Measured on 8.3ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minutes maximum.
