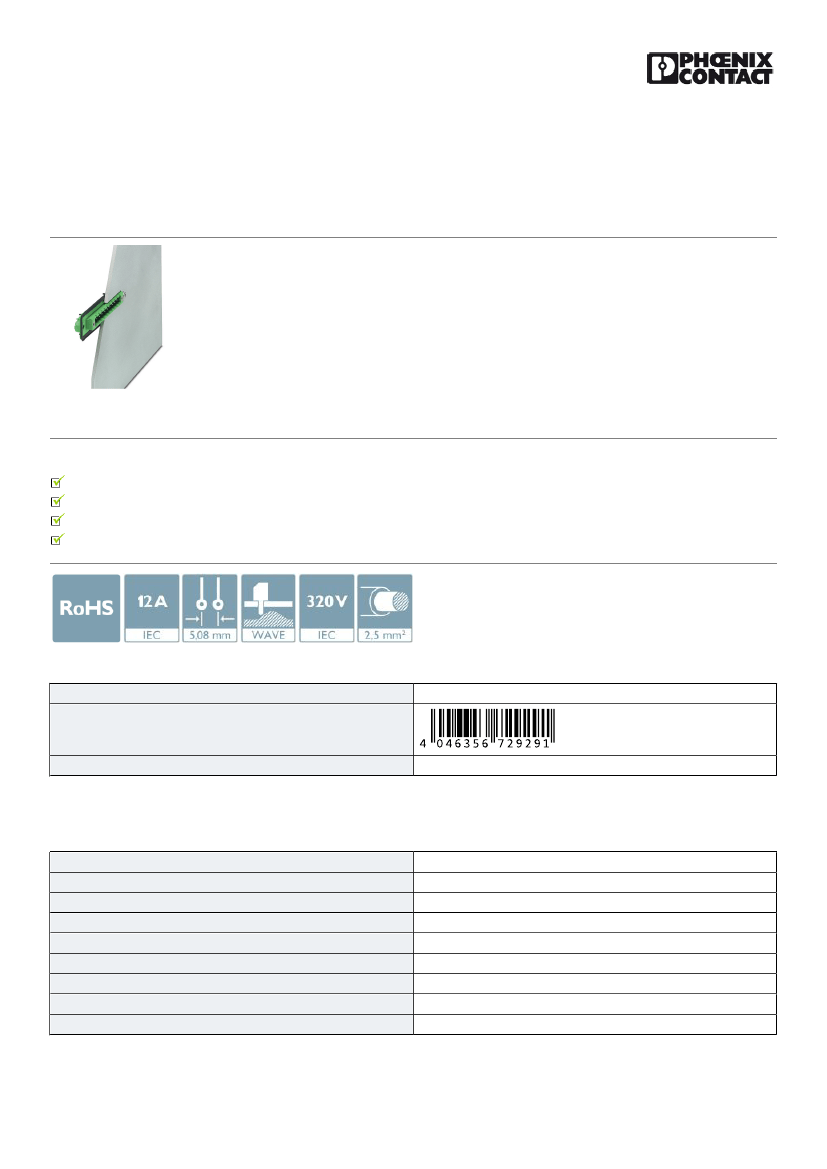

https://www.phoenixcontact.com/pi/products/1704590
Printed-circuit board connector - DFK-MSTBA 2,5/16-GF-5,08
BU - 1704590
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Feed-through header, nominal cross section: 2.5 mm², color: blue, nominal current: 12 A, rated voltage (III/2):
320 V, contact surface: Tin, type of contact: Male connector, Number of potentials: 16, Number of rows: 1,
Number of positions per row: 16, number of connections: 16, product range: DFK-MSTBA 2,5/..-GF, pitch:
5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.2 mm, plug-in system:
CLASSIC COMBICON, Locking: Screw locking, type of packaging: packed in cardboard
The figure shows a 10-position
version of the product
Your advantages
Cable connection on the inside of the device enables flexible positioning of the panel feed-through
Free choice – permanent solder connection or standardized slip-on connection
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Screwable flange for superior mechanical stability
Key Commercial Data
Packing unit
GTIN
GTIN
4046356729291
50 pc
Technical data
Item properties
Brief article description
Plug-in system
Type of contact
Range of articles
Pitch
Number of positions
Mounting type
Pin layout
Locking
Feed-through header
CLASSIC COMBICON
Male connector
DFK-MSTBA 2,5/..-GF
5.08 mm
16
Wave soldering
Linear pinning
Threaded flange
03/25/2021 Page 1 / 5
https://www.phoenixcontact.com/pi/products/1704590
Printed-circuit board connector - DFK-MSTBA 2,5/16-GF-5,08
BU - 1704590
Technical data
Item properties
Number of levels
Number of connections
Number of potentials
Pin connector pattern alignment
1
16
16
Standard
Electrical parameters
Nominal current
Nom. voltage
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
12 A
320 V
250 V
320 V
400 V
4 kV
4 kV
4 kV
Material data - contact
Note
Contact material
Surface characteristics
Metal surface contact area (top layer)
Metal surface contact area (middle layer)
Metal surface soldering area (top layer)
Metal surface soldering area (middle layer)
WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/
JEDEC JESD 201
Cu alloy
Tin-plated
Tin (5 - 7 µm Sn)
Nickel (2 - 3 µm Ni)
Tin (5 - 7 µm Sn)
Nickel (2 - 3 µm Ni)
Material data - housing
Housing color
Insulating material
Insulating material group
CTI according to IEC 60112
Flammability rating according to UL 94
blue (5015)
PBT
IIIa
225
V0
Dimensions for the product
Caption
Pitch
Height (without solder pin)
Solder pin [P]
Pin dimensions
Schematische Abbildung - weitere Details siehe
Produktfamilienzeichnung im Download Center
5.08 mm
19 mm
3.2 mm
1 x 1 mm
Packaging information
Type of packaging
Pieces per package
packed in cardboard
50
03/25/2021 Page 2 / 5
https://www.phoenixcontact.com/pi/products/1704590
Printed-circuit board connector - DFK-MSTBA 2,5/16-GF-5,08
BU - 1704590
Technical data
Packaging information
Denomination packing units
Pcs.
General product information
Type of note
Note
Notes on operation
In accordance with IEC 61984, COMBICON connectors have no
switching power (COC). During designated use, they must not be
plugged in or disconnected when carrying voltage or under load.
Ambient conditions
Ambient temperature (storage/transport)
Ambient temperature (assembly)
Ambient temperature (operation)
-40 °C ... 70 °C
-5 °C ... 100 °C
-40 °C ... 100 °C (dependent on the derating curve)
Air clearances and creepage distances
Standards and Regulations
Connection in acc. with standard
EN-VDE
CUL
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50 years
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Classifications
eCl@ss
eCl@ss 10.0.1
eCl@ss 11.0
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 9.0
27440402
27460201
272607xx
27260701
27141100
27141100
27141100
27141134
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 6.0
ETIM 7.0
EC001283
EC002637
EC002637
EC002637
03/25/2021 Page 3 / 5
https://www.phoenixcontact.com/pi/products/1704590
Printed-circuit board connector - DFK-MSTBA 2,5/16-GF-5,08
BU - 1704590
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
UNSPSC 18.0
UNSPSC 19.0
UNSPSC 20.0
UNSPSC 21.0
30211810
39121409
39121409
39121409
39121410
39121409
39121409
39121409
39121409
Approvals
Approvals
Approvals
VDE Zeichengenehmigung / IECEE CB Scheme / EAC / cULus Recognized
Ex Approvals
Approval details
VDE Zeichengenehmigung
Nominal voltage UN
Nominal current IN
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
250 V
12 A
40050648
IECEE CB Scheme
Nominal voltage UN
Nominal current IN
http://www.iecee.org/
DE1-60988-B1B2
250 V
12 A
EAC
B.01687
03/25/2021 Page 4 / 5
https://www.phoenixcontact.com/pi/products/1704590
Printed-circuit board connector - DFK-MSTBA 2,5/16-GF-5,08
BU - 1704590
Approvals
cULus Recognized
Nominal voltage UN
Nominal current IN
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19931011
D
300 V
10 A
300 V
15 A
