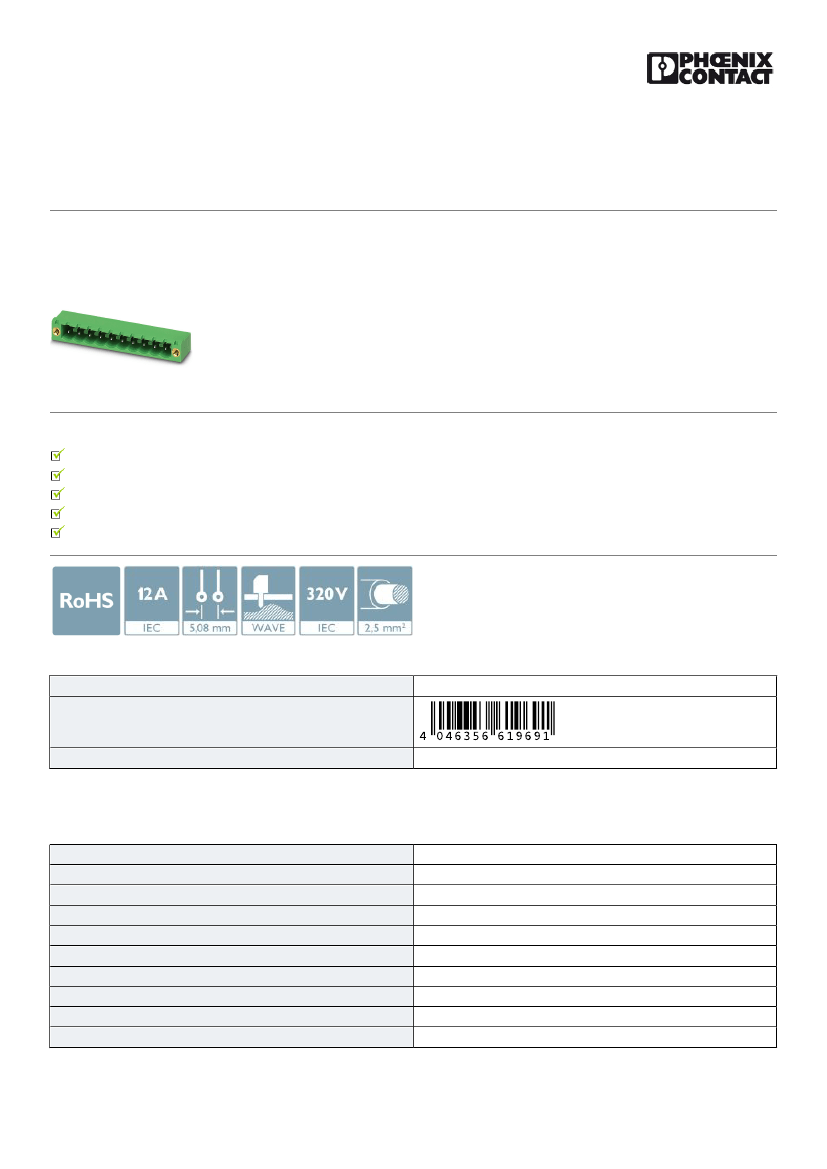

Printed-circuit board connector - MSTB 2,5/16-GF-5,08 GY - 1702805
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB header, nominal cross section: 2.5 mm², color: gray, nominal current: 12 A, rated voltage (III/2): 320 V,
contact surface: Tin, type of contact: Male connector, Number of potentials: 16, Number of rows: 1, Number of
positions per row: 16, number of connections: 16, product range: MSTB 2,5/..-GF, pitch: 5.08 mm, mounting:
Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, plug-in system: CLASSIC COMBICON,
Locking: Screw locking, type of packaging: packed in cardboard
The figure shows a 10-position
version of the product
Your advantages
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Easy PCB replacement thanks to plug-in modules
Well-known mounting principle allows worldwide use
Plug-in direction parallel to the PCB
Screwable flange for superior mechanical stability
Key Commercial Data
Packing unit
GTIN
GTIN
4046356619691
50 pc
Technical data
Item properties
Brief article description
Plug-in system
Type of contact
Range of articles
Pitch
Number of positions
Mounting type
Pin layout
Locking
Number of levels
Feed-through header
CLASSIC COMBICON
Male connector
MSTB 2,5/..-GF
5.08 mm
16
Wave soldering
Linear pinning
Threaded flange
1
03/25/2021 Page 1 / 7
https://www.phoenixcontact.com/pi/products/1702805
Printed-circuit board connector - MSTB 2,5/16-GF-5,08 GY - 1702805
Technical data
Item properties
Number of connections
Number of potentials
Pin connector pattern alignment
16
16
Standard
Electrical parameters
Nominal current
Nom. voltage
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
12 A
320 V
250 V
320 V
400 V
4 kV
4 kV
4 kV
Material data - contact
Note
Contact material
Surface characteristics
Metal surface contact area (top layer)
Metal surface contact area (middle layer)
Metal surface soldering area (top layer)
Metal surface soldering area (middle layer)
WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/
JEDEC JESD 201
Cu alloy
Tin-plated
Tin (3 - 5 µm Sn)
Nickel (1.3 - 3 µm Ni)
Tin (3 - 5 µm Sn)
Nickel (1.3 - 3 µm Ni)
Material data - housing
Housing color
Insulating material
Insulating material group
CTI according to IEC 60112
Flammability rating according to UL 94
gray (7042)
PBT
IIIa
225
V0
Dimensions for the product
Caption
Length [ l ]
Width [ w ]
Height [ h ]
Pitch
Height (without solder pin)
Solder pin [P]
Pin dimensions
Schematische Abbildung - weitere Details siehe
Produktfamilienzeichnung im Download Center
12 mm
91.44 mm
12.1 mm
5.08 mm
8.6 mm
3.5 mm
1 x 1 mm
Dimensions for PCB design
Hole diameter
1.4 mm
03/25/2021 Page 2 / 7
https://www.phoenixcontact.com/pi/products/1702805
Printed-circuit board connector - MSTB 2,5/16-GF-5,08 GY - 1702805
Technical data
Packaging information
Type of packaging
Pieces per package
Denomination packing units
packed in cardboard
50
Pcs.
General product information
Type of note
Note
Notes on operation
In accordance with IEC 61984, COMBICON connectors have no
switching power (COC). During designated use, they must not be
plugged in or disconnected when carrying voltage or under load.
Ambient conditions
Ambient temperature (storage/transport)
Ambient temperature (assembly)
Ambient temperature (operation)
-40 °C ... 70 °C
-5 °C ... 100 °C
-40 °C ... 100 °C (dependent on the derating curve)
Air clearances and creepage distances
Clearances and creepage distances
Specification
Minimum clearance - inhomogeneous field (III/3)
Minimum clearance - inhomogeneous field (III/2)
Minimum clearance - inhomogeneous field (II/2)
Minimum creepage distance value (III/3)
Minimum creepage distance value (III/2)
Minimum creepage distance value (II/2)
IEC 60664-1:2007-04
IEC 60664-1:2007-04
3 mm
3 mm
3 mm
4 mm
3.2 mm
4 mm
Mechanical tests (A)
Test specification
Insertion strength per pos. approx.
Withdraw strength per pos. approx.
Polarization when inserted requirement >20 N
Contact holder in insert requirements >20 N
IEC 61984
8N
6N
Test passed
Test passed
Durability tests (B)
Specification
Contact resistance R
1
Insertion/withdrawal cycles
Contact resistance R
2
Impulse withstand voltage at sea level
IEC 60512-9-1:2010-03
1.2 mΩ
25
1.2 mΩ
4.8 kV
Thermal tests (C)
Specification
Number of positions
Upper limiting temperature requirements <100 °C
IEC 60512-5-1:2002-02
18
Test passed
Climatic tests (D)
03/25/2021 Page 3 / 7
https://www.phoenixcontact.com/pi/products/1702805
Printed-circuit board connector - MSTB 2,5/16-GF-5,08 GY - 1702805
Technical data
Climatic tests (D)
Specification
Cold stress
Thermal stress
Corrosive stress
Impulse withstand voltage at sea level
Power-frequency withstand voltage
ISO 6988:1985-02
-40 °C/2 h
100 °C/168 h
0.2 dm SO
2
on 300 dm /40 °C/1 cycle
4.8 kV
2.21 kV
3
3
Environmental and durability tests (E)
Specification
Result, degree of protection, IP code
IEC 61984:2008-10
Finger safety with IP20 test finger
Vibration test
Specification
Frequency
Sweep speed
Amplitude
Acceleration
Test duration per axis
IEC 60068-2-6:2007-12
10 - 150 - 10 Hz
1 octave/min
0.35 mm (10 - 60.1 Hz)
5 g (60.1 - 150 Hz)
2.5 h
Standards and Regulations
Connection in acc. with standard
EN-VDE
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50 years
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

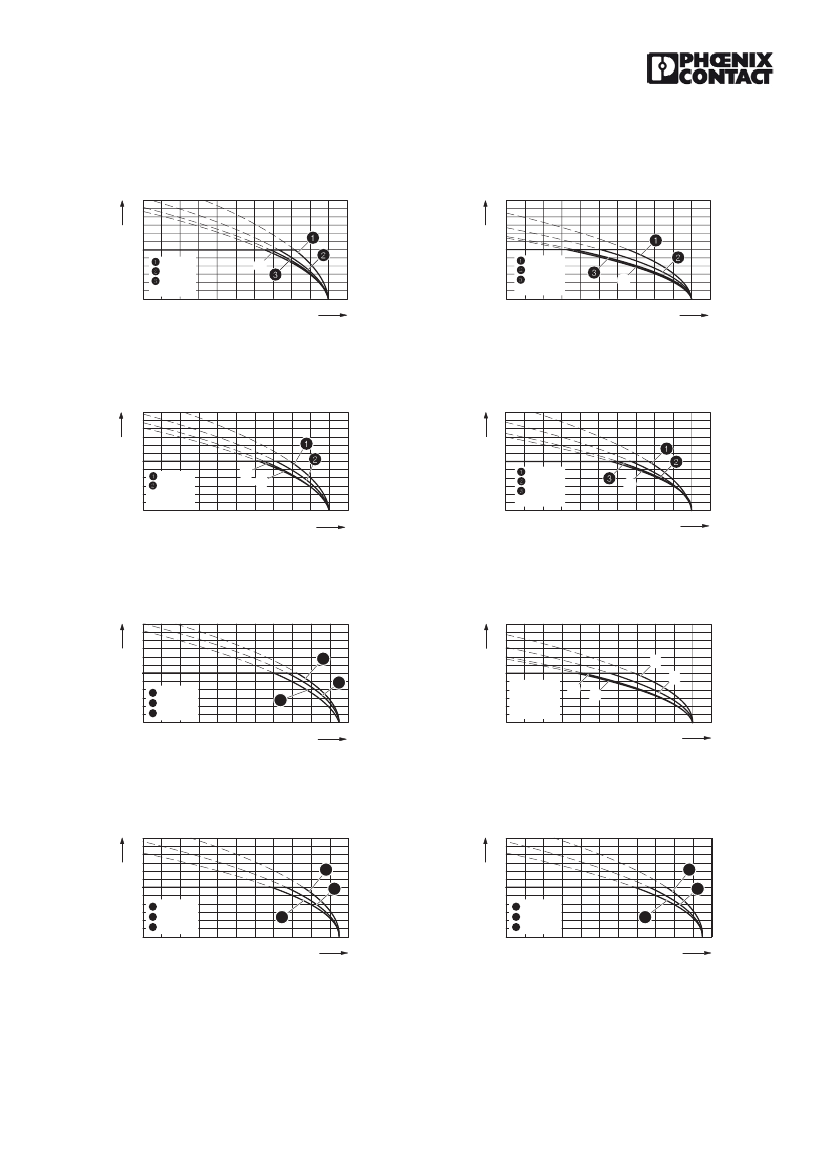

Drawings
Diagram
24
22
20
18
16
14
12
10
8
6
4
2
0
24
22
20
18
16
14
12
10
8
6
4
2
0
I [A]
I [A]
Diagram
1
1
2
3
4
1
1
2
3
4
= 2-pos.
= 5-pos.
= 16-pos.
= 24-pos.
10
20
30
40
50
60
2
3
4
80
90 100 110
[°C]
= 2-pos.
= 5-pos.
= 16-pos.
= 24-pos.
10
20
30
40
50
60
2
3
4
80
90 100 110
[°C]
0
70
0
70
Type: FKCO(R/W) 2,5/...-STF-5,08 with MSTB 2,5/...-GF-5,08
Type: FKCO(R/W) 2,5/...-STF-5,08 with MSTB 2,5/...-GF-5,08
03/25/2021 Page 4 / 7
https://www.phoenixcontact.com/pi/products/1702805
Printed-circuit board connector - MSTB 2,5/16-GF-5,08 GY - 1702805
Diagram
24
22
20
18
16
14
12
10
8
6
4
2
0
0
24
22
20
18
16
14
12
10
8
6
4
2
0
0
Diagram
Current strength [A]
Current strength [A]
= 2-pos.
= 5-pos.
= 12-pos.
= 18-pos.
10
20
30
40
50
60
70
80
90 100 110
= 2-pos.
= 5-pos.
= 12-pos.
= 24-pos.
10
20
30
40
50
60
70
80
90 100 110
Ambient temperature [°C]
Ambient temperature [°C]
Type: FKCT 2,5/...-STF-5,08 with MSTB 2,5/...-GF-5,08
Type: MVSTBR 2,5/...-STF-5,08 with MSTB 2,5/...-GF-5,08
Diagram
24
22
20
18
16
14
12
10
8
6
4
2
0
0
24
22
20
18
16
14
12
10
8
6
4
2
0
0
Diagram
Current strength [A]
Current strength [A]
= 2-pos.
= 5-pos.
= 12-pos.
= 18-pos.
10
20
30
40
50
60
70
80
90 100 110
= 2-pos.
= 5-pos.
= 16-pos.
= 24-pos.
10
20
30
40
50
60
70
80
90 100 110
Ambient temperature [°C]
Ambient temperature [°C]
Type: MSTBT 2,5/...-STF-5,08 with MSTB 2,5/...-GF-5,08
Type: FRONT-MSTB 2,5/...-STF-5,08 with MSTB 2,5/...-GF-5,08
Diagram
24
22
20
18
16
14
12
10
8
6
4
2
0
0
24
22
20
18
16
14
12
10
8
6
4
2
0
0
I [A]
I [A]
Diagram
1
2
1
2
3
= 2-pos.
= 5-pos.
= 16-pos.
= 24-pos.
10
20
= 2-pos.
= 5-pos.
= 16-pos.
10
20
30
40
50
60
3
30
40
50
60
70
80
70
80
90 100 110
[°C]
90 100 110
[°C]
Type: FKCS 2,5/...-STF-5,08 with MSTB 2,5/...-GF-5,08
Type: SMSTB 2,5/...-STF-5,08 with MSTB 2,5/...-GF-5,08
Diagram
24
22
20
18
16
14
12
10
8
6
4
2
0
0
24
22
20
18
16
14
12
10
8
6
4
2
0
0
I [A]
I [A]
Diagram
1
2
1
2
3
1
2
1
2
3
= 2-pos.
= 5-pos.
= 12-pos.
10
20
30
40
50
60
70
3
80
90 100 110
[°C]
= 2-pos.
= 5-pos.
= 12-pos.
10
20
30
40
50
60
70
3
80
90 100 110
[°C]
Type: FKCVR 2,5/...-STF-5,08 with MSTB 2,5/...-GF-5,08
Type: FKCVW 2,5/...-STF-5,08 with MSTB 2,5/...-GF-5,08
03/25/2021 Page 5 / 7
