2000 MODUALR CONSOLE - SERIES

ASSEMBLY INSTRUCTIONS FOR

CONSOLET TO PLINTH UNIT

BUL10080

REV.

PAGE 1 OF 1

See

STEP G

for

instructions

Cover Plate

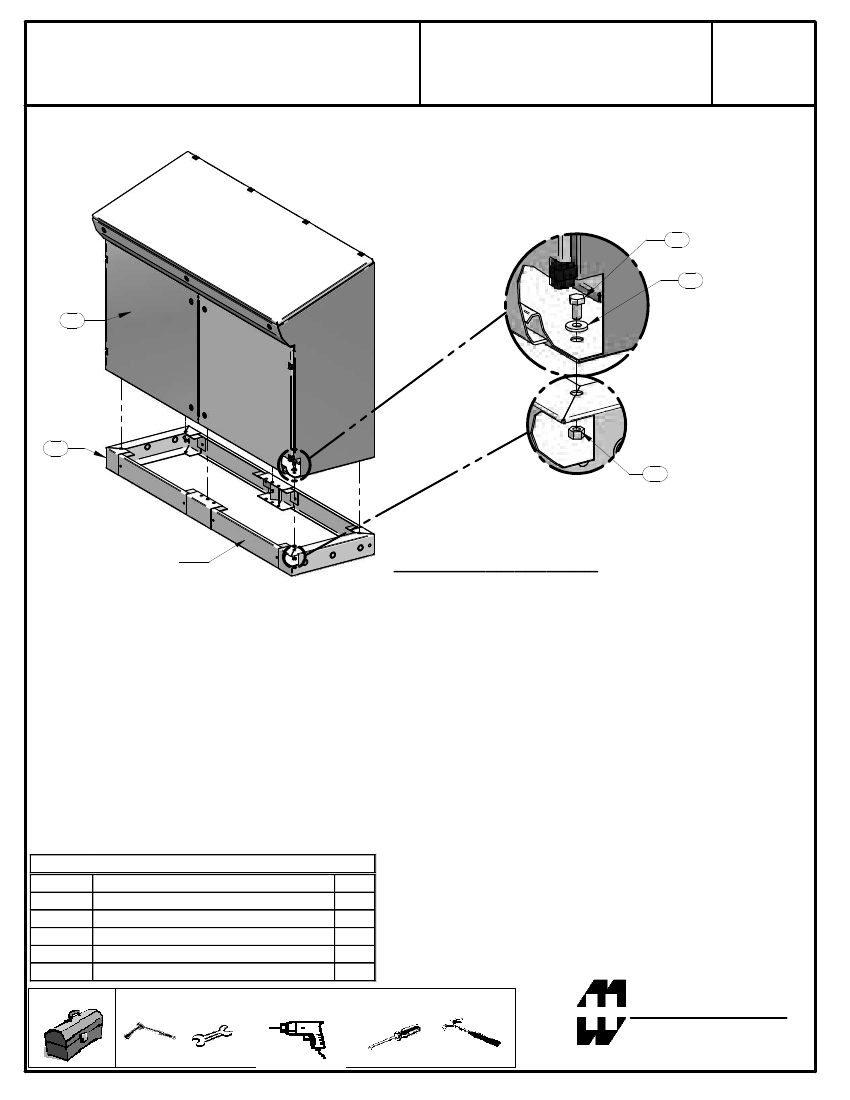

ASSEMBLY INSTRUCTIONS:

A) Layout plinth (item 1) on floor, square plinth, mark and drill

5/16" (8.0mm) dia. hole for 3/8 LAG bolts (4) - not supplied.

B) LAG assembled plinth to floor. Assure that plinth is square and

accurate.

C) Open or remove doors on consolet (item 2) for ease of assembly.

This will allow for visual alignment of mating parts. Remove .5

dia knockouts in bottom of consolet unit.

D) Align consolet (item 2) over top opening in plinth unit. Side

edges of consolet and plinth are to be flush.

E) Front and rear holes in consolet bottom are to be aligned with

mounting holes on plinth top.

ITEM No.

PARTS LIST

DESCRIPTION

PLINTH

CONSOLET

3/8-16 X 3/4 HEX CAP SCREW

3/8 SEALING WASHER

3/8-16 KEP NUT

9/16 Socket

Wrench

9/16 Open

Wrench

QTY

4 or 6

F) Once the consolet is seated properly on the plinth remove cover

plates on plinth.

G) Assemble using 3/8-16 x .75 hex head bolts and 3/8 nuts and

sealing washers (item 3, 4, & 5) provided. Torque bolts and nuts

to 180 in/lbs

TOOL BOX

Eletric Drill 5/16" (8.0 mm)

Dia. bit

#2 Phillips

Screw Driver

Hammer

HAMMOND

MANUFACTURING

ELECTRONICS GROUP

visit our website @

www.hammondmfg.com
