LOW PROFILE SERIES
Date: 11/13/2008
MAIDA STYLE NUMBER
VARISTOR

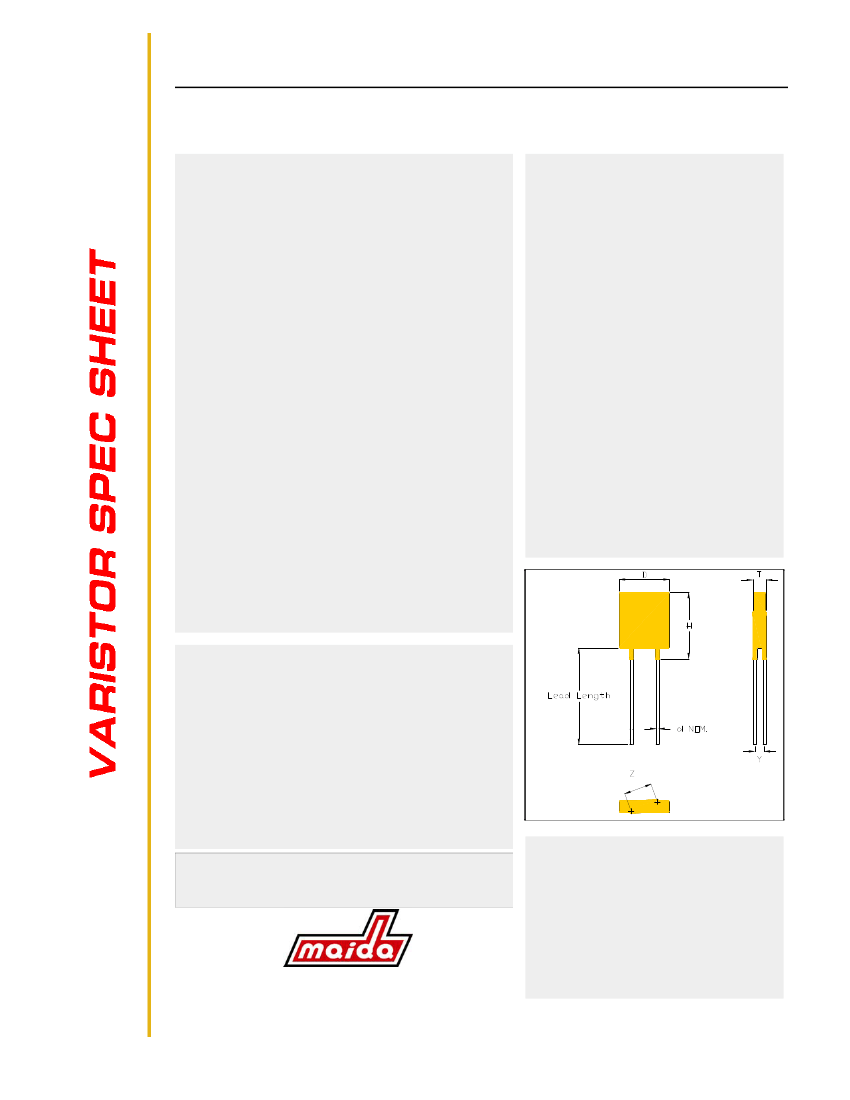

SPECIFICATION SHEET
S6694ZOV151RA250
MAIDA ITEM NUMBER
01-0261
Electrical Specifications
Continuous AC Voltage
Continuous DC Voltage
Maximum DC Leakage @ Rated VDC
Low Varistor Voltage Limit
High Varistor Voltage Limit
Nominal Varistor Voltage
Current for Varistor Voltage
Maximum Clamp Voltage
Maximum Clamp Voltage Test Current
Peak Current Rating (1 Pulse)
Peak Current Rating (2 Pulse)
Energy Rating (8X20us)
Energy Rating (10X1000us)
Typical Capacitance
Impulse Response Time
Minimum Hipot of Coating
Minimum I.R. of Coating
150 VAC
200 VDC
200 uA
212 VDC
259 VDC
236 VDC
1 mA
360 V
200 A
22000 A
18000 A
250 J
250 J
4300 pF
< 50 ns
2500 VDC
1000
ΜΩ
Physical Specifications
Lead Style
X Nominal
X Tolerance
Lead Length Nominal
Lead Length Tolerance
Y Nominal
Y Tolerance
d Nominal
Wire Gauge
Minimum Marking
Nominal Disk Size
D Maximum
T Maximum
H Maximum
059H4
0.5 in.
0.04 in.
1.00 in.
min. in.
0.163 in.
0.03 in.
0.04 in.
18 AWG
S66-151UL
25 mm
1.142 in.
0.257 in.
1.267 in.
Thermal Specifications
Minimum Operating Temperature
Maximum Operating Temperature
Varistor Voltage Temperature Coeff
Minimum Storage Temperature
Maximum Storage Temperature
Current/Energy Derating Above 85°C
-40 °C
85 °C
-0.05 %/°C
-50 °C
125 °C
-2.5 %/°C
* Contact Maida for a more detailed configuration drawing.
Notes
Safety Agency Recognitions
UL 1449 File Number
UL 1414 File Number
CSA File Number
VDE File Number
