SCS0540P
Elektronische Bauelemente
0.5 A, 40 V
Schottky Barrier Rectifiers
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
SOD-123
FEATURES
High Current Capability
Extremely Low Thermal Resistance
For Surface Mount Application
Higher Temp Soldering : 250°C for 10 Seconds at Terminals
Low Forward Voltage
D
1
Cathode Band
H
G
2
F
C
B
A
E
J
MECHANICAL DATA
Case: Molded Plastic
Epoxy: UL 94V-0 Rate Flame Retardant
Lead: Solderable per MIL-STD-202, method 208 guaranteed
Polarity: Color Band Denotes Cathode End
Mounting Position: Any
REF.
A
B
C
D
E
Millimeter
Min.
Max.
0.95
1.35
0.10 REF.
1.05
1.15
0.30
0.78
0.08
0.25
REF.
F
G
H
J
Millimeter
Min.
Max.
1.40
1.80
2.55
2.85
3.55
3.85
-
-
MARKING CODE
BJ
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise specified)
PARAMETER
Maximum Recurrent Peak Reverse Voltage
Working Peak Reverse Voltage
Maximum DC Blocking Voltage
Average Forward Current @T
J
=25°C
Peak Forward Current @ 8.3 ms Half Sine
Maximum Instantaneous Forward Voltage
I
FM
= 0.5 A, T
A
= 25°C
Maximum Instantaneous Forward Voltage
I
FM
= 0.5 A, T
A
= 125°C
Maximum DC Reverse Current
At Rated DC Blocking Voltage @ T
J
= 25°C
Maximum DC Reverse Current
At Rated DC Blocking Voltage @ T
J
= 125°C
Typical Junction Capacitance(Note 1)
Typical Thermal Resistance (Note 2)
Operating Temperature Range
Storage temperature
Notes:
1. Measured at 1MHZ and applied reverse of 0V DC.
2. FR-4 PCB, 2 oz. 0.7mm ×1.2mm copper pad.
SYMBOL
V
RRM
V
RWM
V
R
I
F(AV)
I
FSM
V
F1
V
F2
I
R1
I
R2
C
J
R
θJA
T
J
T
STG
RATING
40
40
40
0.5
10
0.5
0.38
0.1
5
160
310
150
150
UNITS
V
V
V
A
A
V
V
mA
mA
pF
°C/W
°C
°C
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
04-Dec-2009 Rev. E
Page 1 of 2
SCS0540P
Elektronische Bauelemente
0.5 A, 40 V
Schottky Barrier Rectifiers

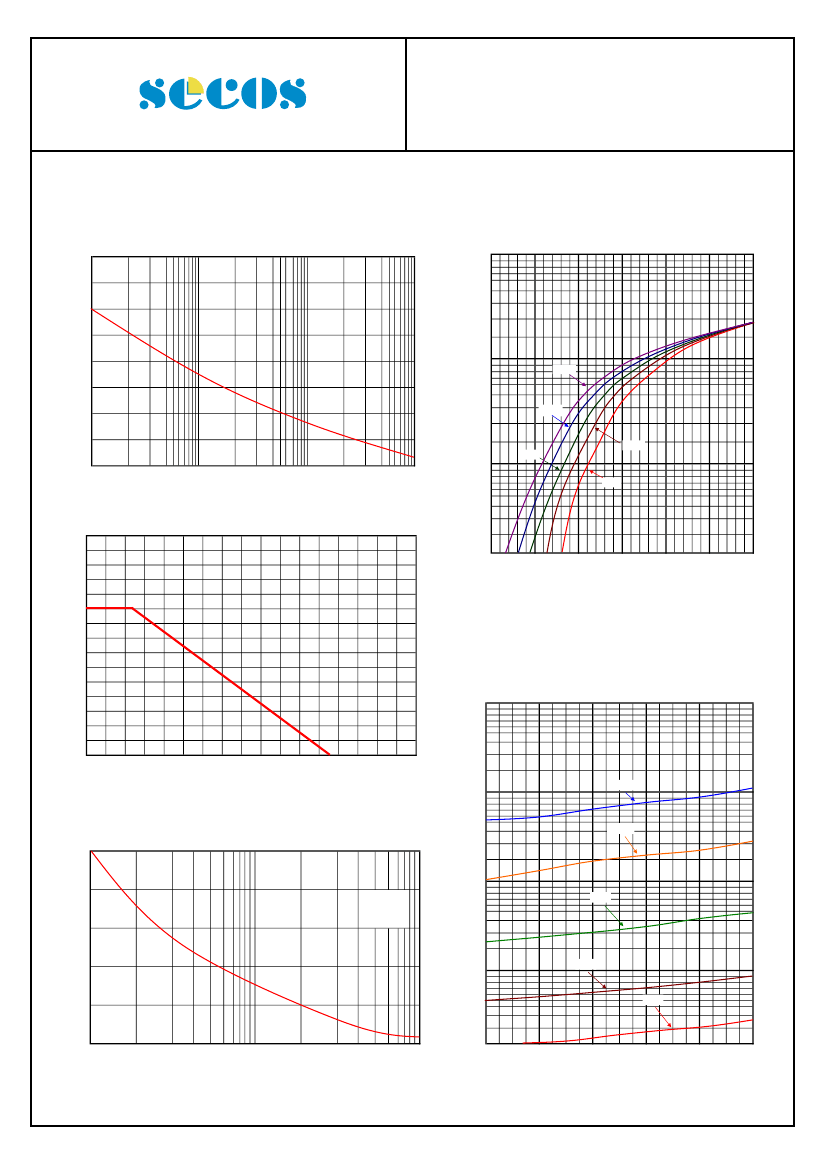

RATINGS AND CHARACTERISTIC CURVES
Typical Junction Capacitance
200
Typical Forward Characteristic
10
Junction Capacitance (pF)
150
Instantaneous Forward Current (A)
100
1
125℃
50
100℃
50℃
75℃
0.1
25℃
0
0
1
10
100
Revise Voltage (%)
Typical Forward Current Derating Curve
0.75
0.01
0.1
0.2
0.3
0.4
0.5
0.6
0.7
Forward Voltage (V)
Average Forward Current (A)
0.5
0.25
Typical Reverse Characteristic
10
0
0
50
100
150
Tj, Junction Temperature (℃)
1
125℃
Reverse Curren
t(mA)
Maximum Non- Repetitive Forward
Surge Current
10
100℃
Peak Forwad surge Current (A)
8
Tj=25℃
8.3mS Single half
Sine Wave
JEDEC Method
0.1
75℃
6
4
0.01
50℃
2
25℃
0
0
10
100
0.001
1
10
20
30
40
50
Number of Cycles at 60Hz
Reverse Voltage(V)
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
04-Dec-2009 Rev. E
Page 2 of 2
