SMDJ(3000W) Series
SMDJ SERIES
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
STAND-OFF VOLTAGE - 5.0 TO 170 Volts
3000 Watt Peak Pulse Power
" * "
标注为常用型号
" * "
Stand for commonly used models
SMDJ
PART NUMBER
UNI- POLAR BI-POLAR
DEVICE REVERSE BREAKDOWN BREAKDOWN
REVERSE
MAXIMUM
PEAK
TEST
MARKING STAND-
VOLTAGE
VOLTAGE
LEAKAGE
CLAMPING PULSE
OFF
CURRENT
CODE
V
BR
(V)
V
BR
(V)
VOLTAGE CURRENT @ V
RWM
VOLTAGE
IT (mA)
I
R
(µA)
@Ipp Vc(V)
MIN.@I
T
MAX.@I
T
Ipp (A)
UNI BI
V
RWM
(V)
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
137.0
146.0
162.0
177.0
193.0
209.0
243.0
259.0
275.0
326.1
291.3
267.9
250.0
232.6
220.6
208.3
194.8
176.5
164.8
150.8
139.5
129.3
123.0
115.4
108.7
102.7
92.6
84.5
77.1
71.3
66.1
62.0
56.3
51.6
46.5
43.2
41.3
38.8
36.4
34.4
32.1
31.0
29.1
26.5
24.8
23.8
21.9
20.5
18.5
16.9
15.5
14.4
12.3
11.6
10.9
800
800
500
200
100
50
20
10
5
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
5.0
6.40
7.00
SMDJ5.0A
*
SMDJ5.0CA RDE DDE
6.0
6.67
7.37
SMDJ6.0A
*
SMDJ6.0CA RDG DDG
6.5
7.22
7.98
SMDJ6.5A SMDJ6.5CA RDK DDK
7.0
7.78
8.60
SMDJ7.0A SMDJ7.0CA PDM DDM
7.5
8.33
9.21
SMDJ7.5A SMDJ7.5CA PDP DDP
8.0
8.89
9.83
SMDJ8.0A SMDJ8.0CA PDR DDR
8.5
9.44
10.40
SMDJ8.5A SMDJ8.5CA PDT DDT
9.0
10.00
11.10
SMDJ9.0A SMDJ9.0CA PDV DDV
10.0
11.10
12.30
SMDJ10A SMDJ10CA PDX DDX
11.0
12.20
13.50
SMDJ11A SMDJ11CA PDZ DDZ
12.0
13.30
14.70
SMDJ12A SMDJ12CA PEE DEE
13.0
14.40
15.90
SMDJ13A SMDJ13CA PEG DEG
14.0
15.60
17.20
SMDJ14A SMDJ14CA PEK DEK
15.0
16.70
18.50
SMDJ15A SMDJ15CA PEM DEM
16.0
17.80
19.70
SMDJ16A SMDJ16CA PEP DEP
17.0
18.90
20.90
SMDJ17A SMDJ17CA PER DER
18.0
20.00
22.10
SMDJ18A SMDJ18CA PET DET
20.0
22.20
24.50
SMDJ20A SMDJ20CA PEV DEV
22.0
24.40
26.90
SMDJ22A SMDJ22CA PEX DEX
24.0
26.70
29.50
SMDJ24A
*
SMDJ24CA PEZ DEZ
26.0
28.90
31.90
SMDJ26A SMDJ26CA PFE DFE
28.0
31.10
34.40
SMDJ28A SMDJ28CA PFG DFG
30.0
33.30
36.80
SMDJ30A SMDJ30CA PFK DFK
33.0
36.70
40.60
SMDJ33A
*
SMDJ33CA PFM DFM
36.0
40.00
44.20
*
SMDJ36A
*
SMDJ36CA PFP DFP
40.0
44.40
49.10
SMDJ40A SMDJ40CA PFR DFR
43.0
47.80
52.80
SMDJ43A SMDJ43CA PFT DFT
45.0
50.00
55.30
SMDJ45A SMDJ45CA PFV DFV
48.0
53.30
58.90
SMDJ48A SMDJ48CA PFX DFX
51.0
56.70
62.70
SMDJ51A SMDJ51CA PFZ DFZ
54.0
60.00
66.30
SMDJ54A SMDJ54CA RGE DGE
58.0
64.40
71.20
SMDJ58A SMDJ58CA PGG DGG
60.0
66.70
73.70
SMDJ60A SMDJ60CA PGK DGK
64.0
71.10
78.60
SMDJ64A SMDJ64CA PGM DGM
70.0
77.80
86.00
SMDJ70A SMDJ70CA PGP DGP
75.0
83.30
92.10
SMDJ75A SMDJ75CA PGR DGR
78.0
86.70
95.80
SMDJ78A SMDJ78CA PGT DGT
85.0
94.40
104.00
SMDJ85A SMDJ85CA PGV DGV
90.0
100.00
111.00
SMDJ90A SMDJ90CA PGX DGX
100.0
111.00
123.00
SMDJ100A SMDJ100CA PGZ DGZ
110.0
122.00
135.00
SMDJ110A SMDJ110CA PHE DHE
120.0
133.00
147.00
SMDJ120A SMDJ120CA PHG DHG
130.0
144.00
159.00
SMDJ130A SMDJ130CA PHK DHK
150.0
167.00
185.00
SMDJ150A SMDJ150CA PHM DHM
160.0
178.00
197.00
SMDJ160A SMDJ160CA PHP DHP
170.0
189.00
209.00
SMDJ170A SMDJ170CA PHR DHR
For bidirectional type having Vrwm of 10 volts and less, the IR limit is double.
For parts with A , the V
BR
is
±
5%
REV.2013.08.01
4 05
01 | www.spsemi.cn
SMDJ(3000W) Series
SMDJ SERIES
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
STAND-OFF VOLTAGE - 5.0 TO 170 Volts
3000 Watt Peak Pulse Power
FEATURES
◎
For surface mounted applications in order to
Cathode Band
optimize board space
◎
Low profile package
0.245 (6.22)
0.126 (3.20)
◎
Built-in strain relief
0.220 (5.59)
0.112 (2.85)
◎
Glass passivated junction
◎
Low inductance
0.280 (7.11)
0.260 (6.60)
◎
Excellent clamping capability
◎
Repetition Rate (duty cycle):0.01%
0.012 (0.305)
0.006 (0.152)
◎
Fast response time: typically less than 1.0ps from
0.103 (2.62)
0.081 (2.06)
0 Volts to V(BR) for unidirectional types
◎
Typical IR less than
2µA
above 10V
0.012 (0.3) MAX.
◎
High temperature soldering: 260°C/10 seconds
0.060 (1.52)
0.325 (8.25)
0.030 (0.76)
0.305 (7.75)
at terminals
Dimensions in inches and(millimeters)
◎
Plastic package has Underwriters Laboratory
Flammability 94V-O
◎
Pb-free plated
MECHANICAL DATA
Case:
JEDEC DO-214AB. Molded plastic over glass passivated junction
Terminal:
Solderable per MIL-STD-750, Method 2026
Polarity:
Color band denoted positive end (cathode) except Bidirectional
Standard Packaging:
16mm tape (EIA STD RS-481)
Weight:
0.007 ounce, 0.21 gram
DO-214AB (SMC J-Bend)
DEVICES FOR BIPOLAR APPLICATION
For Bidirectional use C or CA Suffix for types SMDJ5.0 thru types SMDJ170 (e.g. SMDJ5.0C , SMDJ170CA)
Electrical characteristics apply in both directions
MAXIMUM RATINGS AND CHARACTERISTICS
Ratings at 25℃ ambient temperature unless otherwise specified.
RATING
SYMBOL VALUE
Peak Pulse Power Dissipation on 10/1000μs waveform
Minimum
P
PPM
(Note 1,2 ,FIG.1)
3000
Peak Pulse Current of on 10/1000µs waveform (Note 1,FIG.3)
Peak Forward Surge Current,8.3ms Single Half Sine-Wave
Superimposed on Rated Load,(JEDEC Method) (Note2, 3)
Operating junction and Storage Temperature Range
I
PPM
I
FSM
T
J
, T
STG
SEE
TABLE 1
300
-55 to +
150
UNITS
Watts
Amps
Amps
℃
Notes :
1.Non-repetitive current pulse , per Fig. 3 and derated above T
A
= 25℃ per Fig. 2 .
2.Mounted on 8.0mm x 8.0mm Copper Pads to each terminal
3.8.3ms single half sine-wave , or equivalent square wave, Duty cycle = 4 pulses
per minutes maximum.
REV.2014.05.01
02 | www.spsemi.cn
SMDJ(3000W) Series

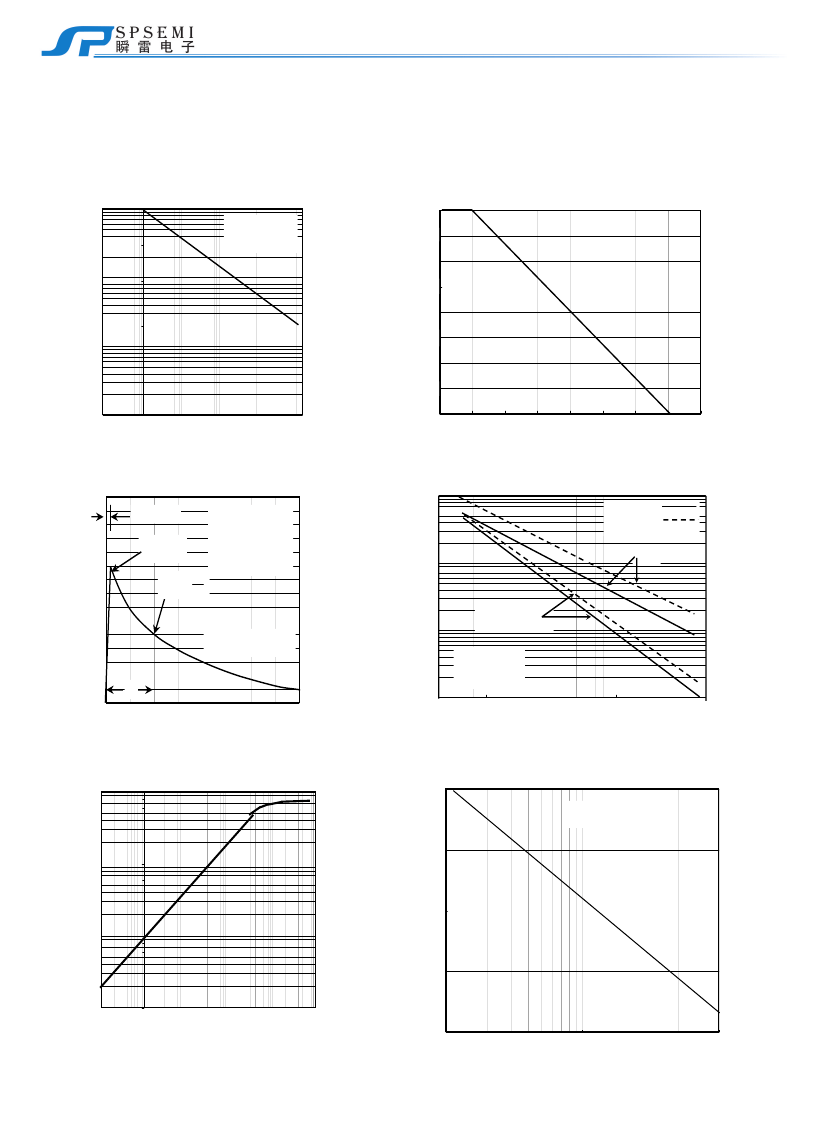

RATINGS AND CHARACTERISTIC CURVES
Ratings and
Characteristic Curves
(T
A
=25℃ unless otherwise noted)
Fig. 1 - Peak Pulse Power Rating
100
Fig.2 - Pulse Derating Curve
100
P
PPM
-Peak Pulse Power (kW)
Peak Pulse Power (P
PP
)
or Current (I
PP
)
Derating in Percentage,%
Non-repetitive pulse
waveform shown in
Fig.3 T
A
= 25°C
87.5
75
62.5
50
37.5
25
12.5
10
1
0.1
0
1.0µ
0.1µ
10µs
100µs
1.0ms
10ms
0
25
50
75
100
125
150
175
200
t
d
- Pulse Width
T
A
- Ambient Temperature (°C)
Fig.3 - Pulse Waveform
150
10000
10000
Fig. 4 - Typical Junction Capacitance
Unidirectional
Bidirectional
I
PPM
- Peak Pulse Current,% I
RSM
t
r
= 10µsec.
Peak Value
I
PPM
100
Half Value-
I
PPM
2
T
J
= 25°C
Pulse Width(td)is
defined
as the point where the
peak current decays to
50% of I
PPM
1000
C
J
- Capacitance (pF)
V
R
= 0
1000
50
10/1000µsec.Waveform
as defined by R.E.A.
100
V
R
= Rated
Stand-off Voltage
100
f = 1MHz
V
sig
= 50mV
p-p
T
J = 25°C
t
d
0
0
10
1.0
2.0
3.
0
t - Time(ms)
3.0
10
4.0
4.0
1
5
10
10
100
500
1000
V
WM
- Reverse Stand-Off Voltage (V)
Fig. 5 - Type Transient Thermal
Impedance
100
300
Fig.6 - Maximum Non-repetitive Forward
Surge current
8.3ms Single Half Sine-Wave
(JEDEC Method)
Ptransient Thermal Impedance(i C/W)
I
FSM
,Peak Forward Surge Currnet (A)
0.01
0.1
250
10
200
1
150
0.1
0.00
1s
1
10
100
1000
100
1
t
d
- Pulse Duration (sec.)
Number of Cycles
10
60 H
Z
at
100
REV.2014.05.01
03 | www.spsemi.cn
