SMF130A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> Transient suppression diode> SMF130A

SMF130A: Description1000 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-219AA; CategoryDiscrete semiconductor Transient suppression diode; File Size410KB，4 Pages; ManufacturerLGE; Websitehttp://www.luguang.cn/web_en/index.html

Download Datasheet Parametric Compare View All

SMF130A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SMF130A	-	-	View	Buy Now

SMF130A Overview

1000 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-219AA

SMF130A Parametric

Parameter Name	Attribute value
Case Style	SOD-123FL
Ppk(W)	200
MIN_(V)	144.00
MAX_(V)	159.00
Vwm_(V)	130.0
Ir_(uA)	1
Ippm_(A)	0.96
Vc_(V)	209.0
class	Diodes

Preview

Download Datasheet

View All

SMF5.0A-SMF220A

Surface Mount ESD Protection Diodes

SOD-123FL

Features

For surface mounted applications

Low profile package

Low incremental surge resistance,excellent

clamping capability

200W peak pulse power capability with a

10/1000µs wave from,repetition rate (duty

cycle):0.01%

High temperature soldering guaranteed:

260℃/10 seconds, at terminals

0.047(1.19)

0.043(1.09)

0.075(1.90)

0.067(1.70)

0.043(1.09)

0.035(0.89)

0.114(2.9)

0.098(2.5)

0.008(0.20)

0.004(0.10)

0.030(0.76)

0.018(0.45)

Mechanical Data

Case: JEDEC SOD-123FL, molded plastic

Polarity: Color band denotes positive end

( cathode ) except for bidirectional

Marking code: see TABLE 1

Mounting position: Any

Dimensions in inches and(millimeters)

0.154(3.9)

0.138(3.5)

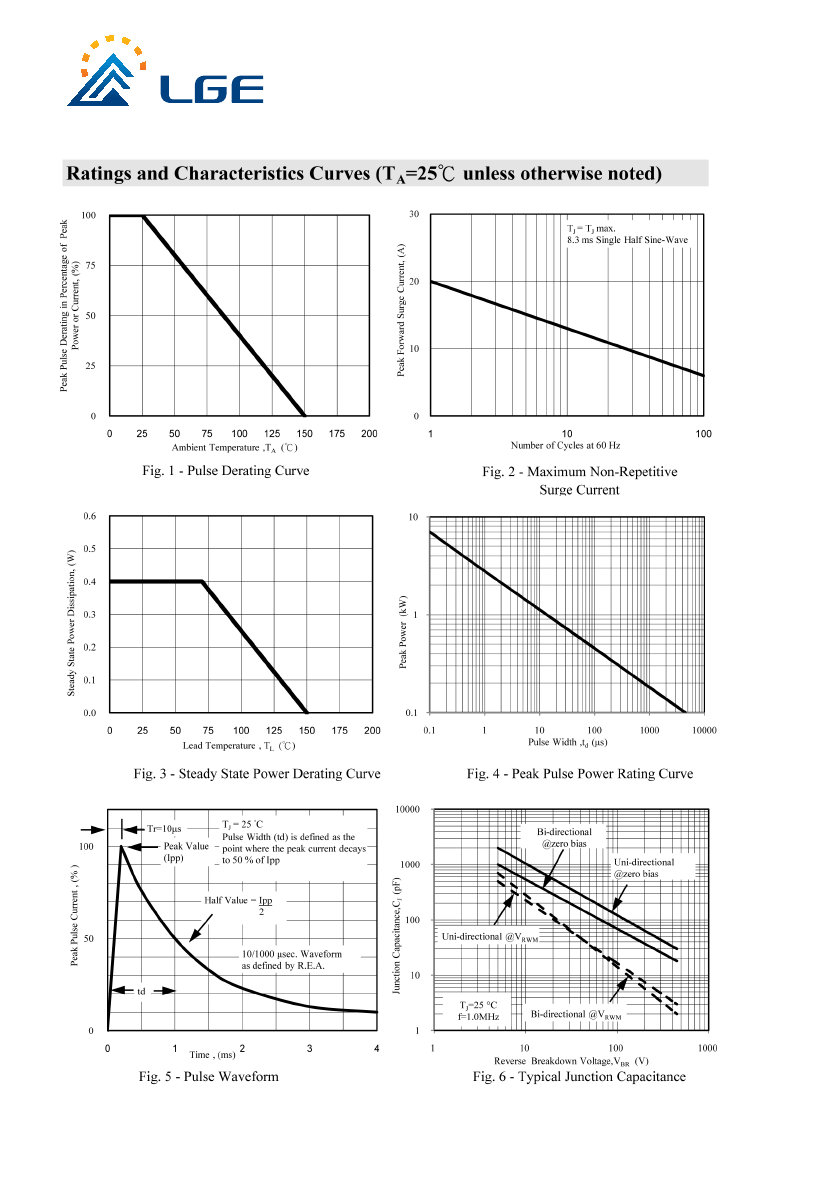

ABSOLUTE MAXIMUM RATINGS AND CHARACTERISTICS

Ratings at 25℃ ambient temperature unless otherwise specified

SYMBOL

VALUE

UNITS

Non-repetitive peak pulse power dissipation

with a 10/1000µs waveform (NOTE 1)

Peak pulse current 10/1000

µs

wavefrom (NOTE 1)

Forw ard voltage @ I

=12A

Thermal resistance junction to ambient

Operating temperature junction range

Storage temperature range

NOTE:(1)Non-repetitive current pulse and derated above T

=25℃

PPM

θJA

STG

200

See

Table1

3.5

180

- 55 to +150

K/W

℃

http://www.luguang.cn

mail:lge@luguang.cn

SMF130A Related Products

	SMF130A	SMF110A	SMF160A	SMF5.0A	SMF9.0A
Description	1000 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-219AA	200 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-219AB	1000 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-219AA	1000 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-219AA	200 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC
Case Style	SOD-123FL	SOD-123FL	SOD-123FL	SOD-123FL	-
Ppk(W)	200	200	200	200	-
MIN_(V)	144.00	122.00	178.00	6.40	-
MAX_(V)	159.00	135.00	197.00	7.00	-
Vwm_(V)	130.0	110.0	160.0	5.0	-
Ir_(uA)	1	1	1	400	-
Ippm_(A)	0.96	1.13	0.77	21.74	-
Vc_(V)	209.0	177.0	259.0	9.2	-
class	Diodes	Diodes	Diodes	Diodes	-
