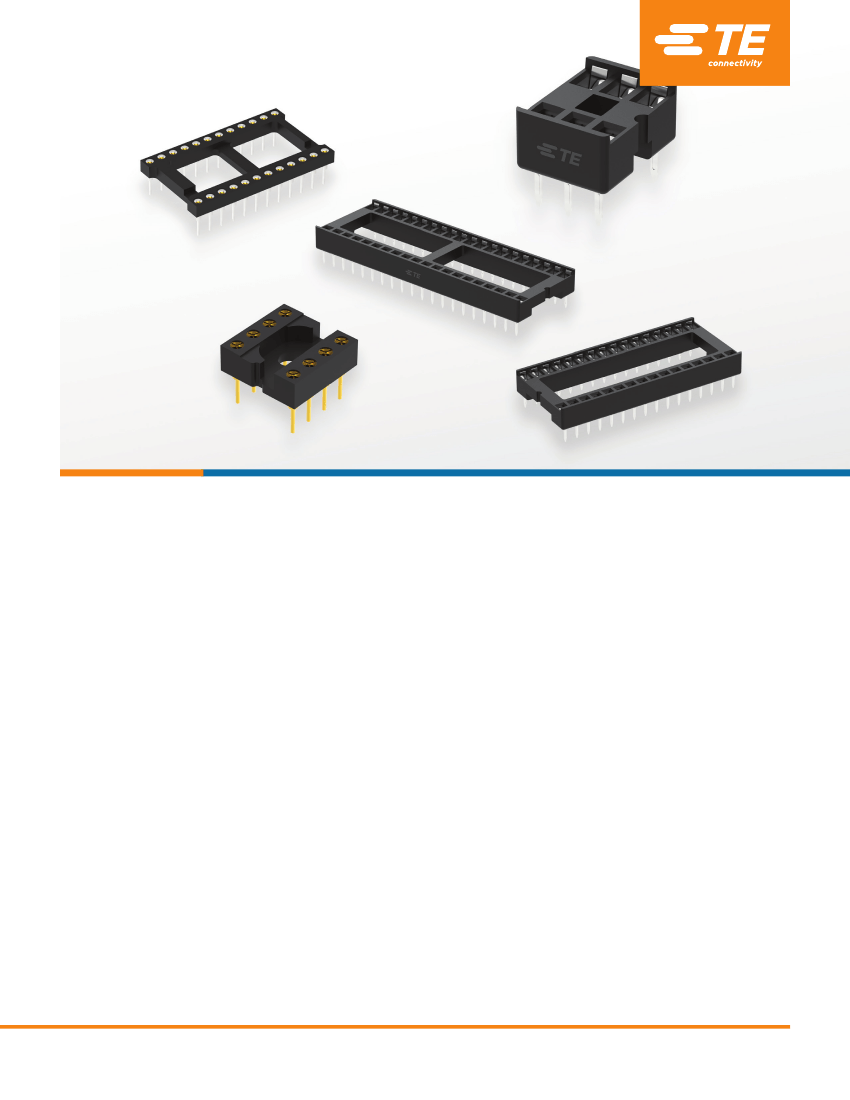

DIP SOCKETS
Quick Reference Guide
Our large selection of DIP sockets ranging from 6 to 48 contacts provides a highly reliable connection between your integrated
circuit (IC) devices and PCBs. Termination options include through hole and surface mounting, four-finger and dual leaf contacts, as
well as a variety of plating options.
Applications
•
•
•
•
•
Industrial controls
Intelligent buildings
Medical devices
Military
Other embedded systems
Features
•
•
•
•
•
6 to 48 positions
Precision four-finger inner contacts or dual
leaf contacts are optional
Open frame and closed frame housings
End-to-end and side-to-side stackable
Available with a variety of plating options
Benefits
•
•
•
•
•
Quick IC mating/unmating
Easy field IC replacement
Avoidance of IC overheating during soldering
Flexibility of system upgrade
Large portfolio offers product closest to your need
DATA AND DEVICES
/// DIP SOCKETS
DIP Sockets

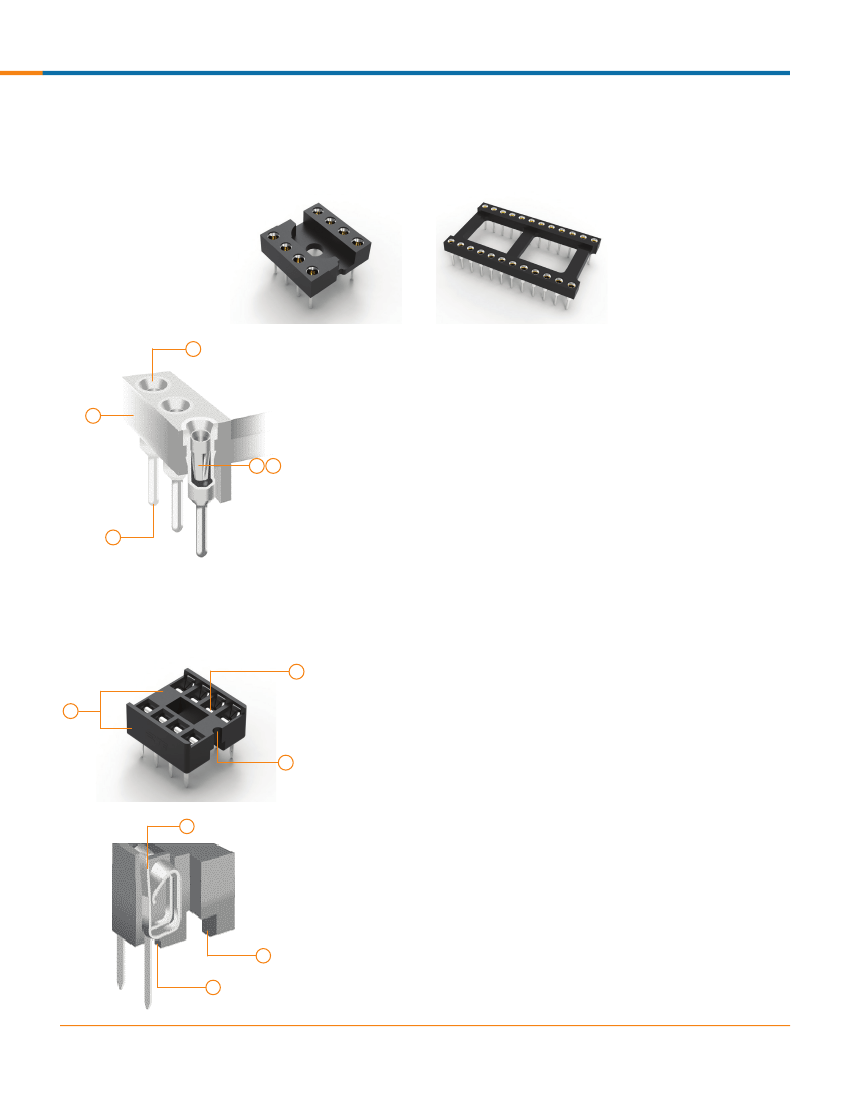

Four-Fingered Contacts
Precision machined or stamped four-finger inner contacts with open or closed frame housings facilitate highly reliable
DIP sockets.
Closed Frame
Open Frame
1
1.
2
Wide tapered entry
Low profile “X” and ”Y” stackable insulator
Non-wicking closed bottom
Precision four-finger inner contact provides concentric
funnel entry for easy flat and round lead insertion
Machined or stamped contacts are available
2.
3.
4
5
4.
5.
3
Dual Leaf Contacts
Dual leaf contacts provide a cost effective solution to the DIP socket design with superior handling characteristics.
2
1.
2.
1
Designed for automatic machine insertion — IC-to-socket
or socket-to-board
Large target area with tapered lead-in ramps for easy DIP
insertion
Polarization notch
3
3.
1
1.
2.
3.
Dual leaf contacts enlarge the contact area and ensure a
low and constant contact resistance
True closed bottom design allows for no solder or flux
wicking
Standoffs provide board clearance for proper cleaning
after soldering
3
2
DATA AND DEVICES
/// DIP SOCKETS
PAGE 2
DIP Sockets

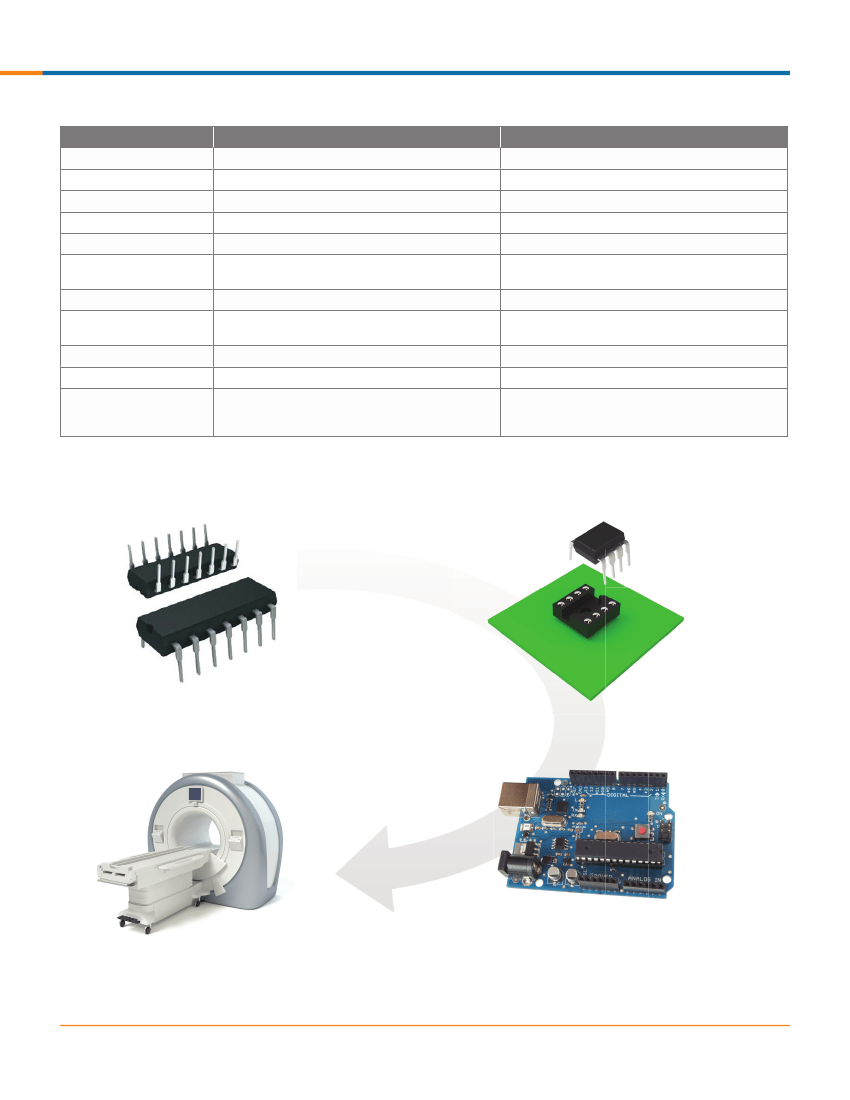

Technical Specifications
Technical Specs
Insulator
Sleeve
Contact
Sleeve Plating
Contact Plating
Insertion Force
Withdrawal Force
Accepted IC PIN
Contact Rating
Contact Resistance
Dielectric Withstanding
Four-Fingered Contacts
Thermoplastic polyester, UL94 V-0
Copper
Beryllium copper
Gold, tin, tin/lead
Gold/low gold/tin
Machined contact- 179 Grams AVG
Stamped contact- 134 Grams AVG
63 Grams AVG
.009” x .015” through .011” x .020”, OR
.016” to .021” diameter, .150/.105 long
3 Amps/pin
10 Milliohms max.
Open frame- 1,000 Volts RMS per
MIL-STD-1344, Method 3001.1
Closed frame- 1,000 Volts RMS per EIA-364-20
Dual Leaf Contacts
30% glass filled PBT, thermoplastic, black
--
Phosphorous bronze
--
Tin
300 Grams max.
20 Grams min.
.008” - .012”
1 Amp/pin
20 Milliohms max.
1000V AC min.
IC components are easily pressed into the socket or removed from the socket without soldering or de-soldering.
IC in DIP Package
•
•
•
•
Microcontrollers
DIP switches
LED arrays
Electromechanical relays
IC-to-Socket-to-Board
End-Use Devices
Embedded Systems
•
•
•
•
Intelligent security locks
Elevators
MRI (Magnetic Resonance
Imaging) machines
CNC (Computer Numerical
Control) mill machines
•
•
•
•
RFID door locks
Elevator/lift control boards
MRI scanner control boards
CNC mill control boards
DATA AND DEVICES
/// DIP SOCKETS
PAGE 3
DIP Sockets
Product Matrix
DIP Socket with Four-Fingered Contact
RoHS Compliant
Position
Plating
Contact
Tin
6
Gold Flash
Gold
Gold
Tin
8
Gold Flash
Gold
Gold
Tin
14
Gold Flash
Gold
Gold
Tin
16
Gold Flash
Gold
Gold
Tin
18
Gold Flash
Gold
Gold
Tin
20
Gold Flash
Gold
Gold
Tin
22
Gold Flash
Gold
Gold
Tin
24
Gold Flash
Gold
Gold
Tin
28
Gold Flash
Gold
Gold
Gold
Tin
Gold
Tin
Gold
Tin
Gold
Tin
Gold
Tin
Gold
Tin
Gold
Tin
Gold
Tin
Gold
Tin
Not RoHS Compliant
Closed Frame
Stamped
Contact
1571551-1
2-1571551-1
4-1571551-1
1437535-6
1571551-2
2-1571551-2
4-1571551-2
1-1437535-2
1571551-3
2-1571551-3
4-1571551-3
9-1437535-1
1571551-4
2-1571551-4
4-1571551-4
1437536-3
1571551-5
2-1571551-5
4-1571551-5
1-1437536-4
1571551-6
2-1571551-6
4-1571551-6
2-1437536-3
1571551-7
2-1571551-7
4-1571551-7
3-1437536-3
1571551-8
2-1571551-8
4-1571551-8
3-1437536-9
1571551-9
2-1571551-9
4-1571551-9
5-1437536-3
Open Frame
Stamped
Contact
N/A
N/A
N/A
N/A
1571552-2
2-1571552-2
4-1571552-3
1437539-2
1571552-3
2-1571552-3
4-1571552-2
1-1437539-4
1571552-4
2-1571552-4
4-1571552-4
2-1437539-6
1571552-5
2-1571552-5
4-1571552-5
4-1437539-1
1571552-6
2-1571552-6
4-1571552-6
5-1437539-0
1571552-7
2-1571552-7
4-1571552-7
6-1437539-0
1571552-8
2-1571552-8
4-1571552-8
6-1437539-7
1571552-9
2-1571552-9
4-1571552-9
8-1437539-9
Plating
Contact
Sleeve
Open Frame
Stamped
Contact
Machined
Contact
Closed Frame
Stamped
Contact
Machined
Contact
Sleeve
Machined
Contact
N/A
N/A
N/A
N/A
1571586-2
N/A
2-1571586-2
1437537-5
1571586-3
N/A
2-1571586-3
2-1437537-1
1571586-4
N/A
2-1571586-4
3-1437537-7
1571586-5
N/A
2-1571586-5
5-1437537-6
1571586-6
N/A
2-1571586-6
6-1437537-4
1571586-7
N/A
2-1571586-7
7-1437537-7
1571586-8
N/A
2-1571586-8
8-1437537-1
1571586-9
N/A
2-1571586-9
1437538-3
Machined
Contact
1571550-1
N/A
2-1571550-1
6-1437529-5
1571550-2
N/A
2-1571550-2
7-1437529-5
1571550-3
N/A
2-1571550-3
1-1437531-7
1571550-4
N/A
2-1571550-4
1437536-2
1571550-5
N/A
2-1571550-5
1-1437536-3
1571550-6
N/A
2-1571550-6
7-1437531-8
1571550-7
N/A
2-1571550-7
9-1437531-9
1571550-8
N/A
2-1571550-8
3-1437536-8
1571550-9
N/A
2-1571550-9
5-1437536-2
Gold Flash
Gold
Tin/
Lead
N/A
N/A
N/A
N/A
1437535-8
1437535-7
N/A
6-1437529-8
Gold Flash
Gold
Tin/
Lead
1437539-6
1437539-5
N/A
1437537-8
1-1437535-5
1-1437535-4
N/A
7-1437529-9
Gold Flash
Gold
Tin/
Lead
1-1437539-7
1-1437539-6
N/A
2-1437537-4
9-1437535-4
9-1437535-3
N/A
2-1437531-0
Gold Flash
Gold
Tin/
Lead
2-1437539-9
2-1437539-8
N/A
4-1437537-0
1437536-7
1437536-6
N/A
1437536-5
Gold Flash
Gold
Tin/
Lead
4-1437539-4
4-1437539-3
N/A
5-1437537-7
1-1437536-6
1-1437536-5
N/A
6-1437531-9
Gold Flash
Gold
Tin/
Lead
5-1437539-3
5-1437539-2
N/A
6-1437537-6
2-1437536-7
2-1437536-6
N/A
2-1437536-5
Gold Flash
Gold
Tin/
Lead
6-1437539-3
6-1437539-2
N/A
7-1437537-8
3-1437536-5
3-1437536-4
N/A
1437532-2
Gold Flash
Gold
Tin/
Lead
7-1437539-0
6-1437539-9
N/A
8-1437537-2
4-1437536-2
4-1437536-1
N/A
4-1437536-0
Gold Flash
Gold
Tin/
Lead
9-1437539-2
9-1437539-1
N/A
1437538-4
5-1437536-7
5-1437536-6
N/A
5-1437536-5
DATA AND DEVICES
/// DIP SOCKETS
PAGE 4
DIP Sockets
DIP Socket with Four-Fingered Contact (continued)
RoHS Compliant
Position
Plating
Contact
Tin
32
Gold Flash
Gold
Gold
Tin
36
Gold Flash
Gold
Gold
Tin
40
Gold Flash
Gold
Gold
Tin
48
Gold Flash
Gold
Gold
Gold
Tin
Gold
Tin
Gold
Tin
Gold
Tin
Not RoHS Compliant
Closed Frame
Stamped
Contact
1-1571551-0
3-1571551-0
5-1571551-0
6-1437536-3
1-1571551-1
3-1571551-1
5-1571551-1
7-1437536-1
1-1571551-2
3-1571551-2
5-1571551-2
7-1437536-3
N/A
N/A
N/A
N/A
Open Frame
Stamped
Contact
1-1571552-0
3-1571552-0
5-1571552-0
1437540-1
1-1571552-1
3-1571552-1
5-1571552-1
N/A
1-1571552-2
3-1571552-2
5-1571552-2
1-1437540-4
1-1571552-4
3-1571552-4
5-1571552-4
2-1437540-5
Plating
Contact
Sleeve
Open Frame
Stamped
Contact
Machined
Contact
Closed Frame
Stamped
Contact
Machined
Contact
Sleeve
Machined
Contact
1-1571586-0
N/A
3-1571586-0
2-1437538-1
1-1571586-1
N/A
3-1571586-1
N/A
1-1571586-2
N/A
3-1571586-2
2-1437538-9
1-1571586-4
N/A
3-1571586-4
3-1437538-9
Machined
Contact
1-1571550-0
N/A
3-1571550-0
5-1437532-8
1-1571550-1
N/A
3-1571550-1
N/A
1-1571550-2
N/A
3-1571550-2
7-1437532-6
N/A
N/A
N/A
N/A
Gold Flash
Gold
Tin/
Lead
1437540-3
1437540-2
N/A
2-1437538-2
6-1437536-5
6-1437536-4
N/A
6-1437532-1
Gold Flash
Gold
Tin/
Lead
1-1437540-1
1-1437540-0
N/A
2-1437538-7
N/A
7-1437536-2
N/A
7-1437532-1
Gold Flash
Gold
Tin/
Lead
1-1437540-7
1-1437540-6
N/A
3-1437538-0
7-1437536-6
7-1437536-5
N/A
7-1437536-4
Gold Flash
Gold
Tin/
Lead
4-1437538-2
2-1437540-6
N/A
4-1437538-1
N/A
N/A
N/A
N/A
DIP Socket with Dual Leaf Contact
Part Number
1-2199298-1
1-2199298-2
1-2199298-3
1-2199298-4
1-2199298-5
1-2199298-6
1-2199298-8
1-2199298-9
1-2199299-2
1-2199300-2
1-2199299-5
Description
6P, DIP SKT, 300 CL, LDR, PB FREE
8P, DIP SKT, 300 CL, LDR, PB FREE
14P, DIP SKT, 300 CL, LDR, PB FREE
16P, DIP SKT, 300 CL, LDR, PB FREE
18P, DIP SKT, 300 CL, LDR, PB FREE
20P, DIP SKT, 300 CL, LDR, PB FREE
24P, DIP SKT, 300 CL, LDR, PB FREE
28P, DIP SKT, 300 CL, LDR, PB FREE
28P, DIP SKT, 600 CL, LDR, PB FREE
32P, DIP SKT, 600 CL, OTC, PB FREE
40P, DIP SKT, 600 CL, LDR, PB FREE
Position
6
8
14
16
18
20
24
28
28
32
40
Centerline
(mm)
7.62
7.62
7.62
7.62
7.62
7.62
7.62
7.62
15.24
15.24
15.24
Solder Type
Through Hole
Through Hole
Through Hole
Through Hole
Through Hole
Through Hole
Through Hole
Through Hole
Through Hole
Through Hole
Through Hole
Contact
Plating**
Tin
Tin
Tin
Tin
Tin
Tin
Tin
Tin
Tin
Tin
Tin
Once you determine the correct base number, please visit to
www.te.com
to access the customer drawing and identify
the specific part number.
DATA AND DEVICES
/// DIP SOCKETS
PAGE 5
