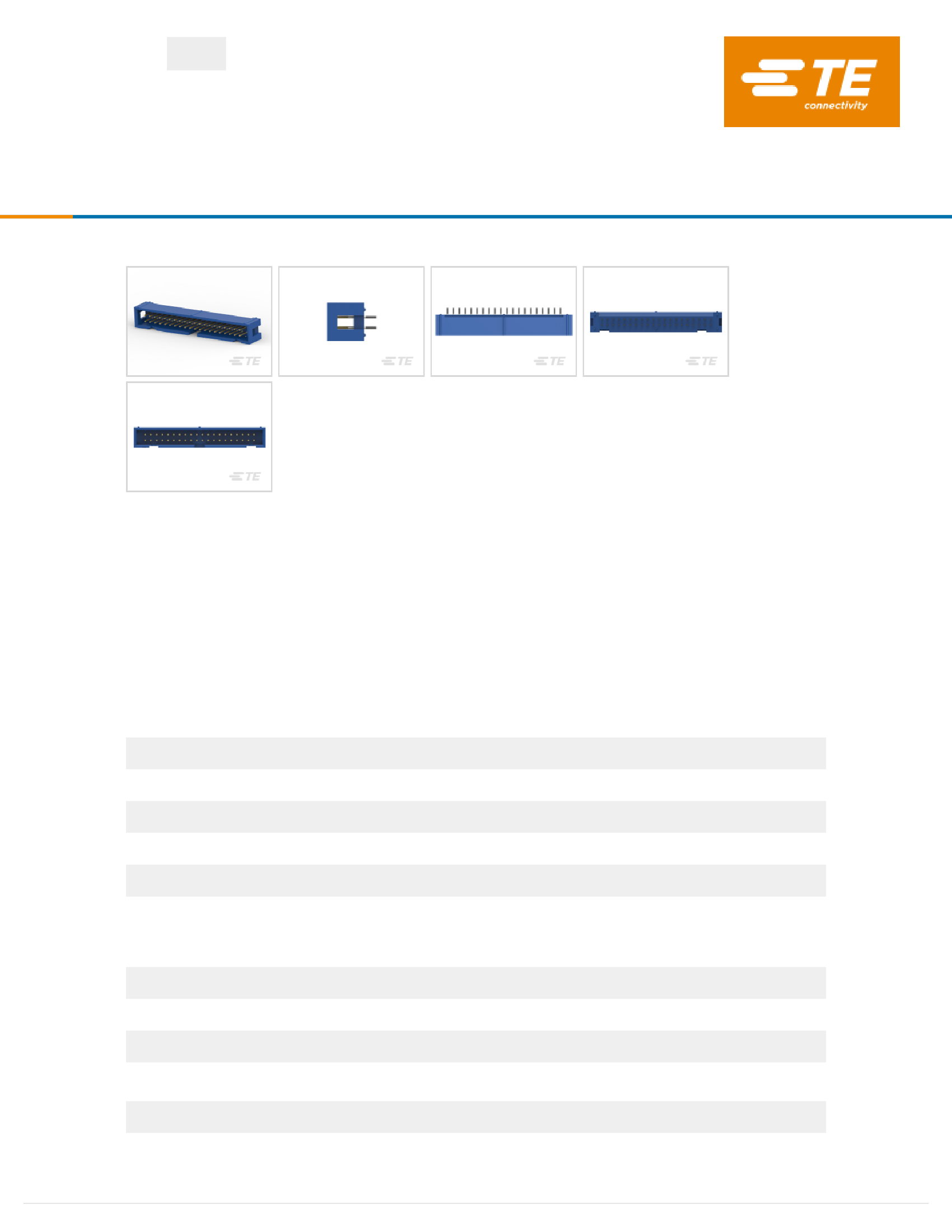

3-1761603-3
Ribbon Cable Connectors, Wire-to-Board, 40 Position, .1 in [2.54 mm] Centerline,
Vertical, Through Hole - Solder, 2 Row, Plug, Low Profile
3-1761603-3
AMP-LATCH
ACTIVE
TE Internal #: 3-1761603-3
Ribbon Cable Connectors, Wire-to-Board, 40 Position, .1 in [2.54
mm] Centerline, Vertical, Through Hole - Solder, 2 Row, Plug, Low
Profile
View on TE.com >
Connectors
>
PCB Connectors
>
Wire-to-Board Connectors
>
FFC, FPC & Ribbon Connectors
>
Ribbon Cable Connectors
Connector System:
Wire-to-Board
Number of Positions:
40
Centerline (Pitch):
2.54 mm [ .1 in ]
PCB Mount Retention:
Without
PCB Mount Orientation:
Vertical
Features
Product Type Features
Connector Type
Ribbon Cable Connector Header Type
Connector Product Type
Connector System
Connector & Housing Type
Connector & Contact Terminates To
Configuration Features
Number of Positions
PCB Mount Orientation
Number of Rows
Electrical Characteristics
Insulation Resistance
Operating Voltage
Body Features
Header
Pin Header
Connector Assembly
Wire-to-Board
Plug
Printed Circuit Board
40
Vertical
2
5000 MΩ
250 VAC
For support call+1 800 522 6752
05/26/2022 03:10PM | Page 1
3-1761603-3
Ribbon Cable Connectors, Wire-to-Board, 40 Position, .1 in [2.54 mm] Centerline,
Vertical, Through Hole - Solder, 2 Row, Plug, Low Profile
Body Features
Daisy Chain
Connector Profile
Contact Features
Mating Square Post Dimension
PCB Contact Termination Area Plating Material Thickness
Mating Pin Diameter
Contact Type
.64 mm[.025 in]
2.54 µm[100 µin]
.64 mm[.025 in]
Pin
30 µin
Contact Mating Area Plating Material
Contact Shape & Form
Contact Underplating Material
PCB Contact Termination Area Plating Material
Contact Base Material
Contact Current Rating (Max)
Termination Features
Square Termination Post & Tail Dimension
Round Termination Post & Tail Diameter
Termination Post & Tail Length
Termination Method to Printed Circuit Board
Mechanical Attachment
Mating Alignment
PCB Mount Alignment
Panel Mount Feature
PCB Mount Retention
Mating Alignment Type
Mating Retention
Connector Mounting Type
Housing Features
Mating Entry Location
Housing Material
Housing Color
Centerline (Pitch)
Dimensions
Top
PBT
Blue
2.54 mm[.1 in]
With
Without
Without
Without
Center
Without
Board Mount
.5 mm[.02 in]
.64 mm[.025 in]
2.6 mm[.102 in]
Through Hole - Solder
Gold
Square
Nickel
Tin
Phosphor Bronze
1A
With
Low
For support call+1 800 522 6752
05/26/2022 03:10PM | Page 2
3-1761603-3
Ribbon Cable Connectors, Wire-to-Board, 40 Position, .1 in [2.54 mm] Centerline,
Vertical, Through Hole - Solder, 2 Row, Plug, Low Profile
Dimensions
Shrouded End Dimension
Connector Length
Connector Height
Row-to-Row Spacing
Usage Conditions
Housing Temperature Rating
Operating Temperature Range
Operation/Application
Circuit Application
Industry Standards
UL Flammability Rating
Packaging Features
Packaging Quantity
Packaging Method
Other
Comment
For Use With AMP-Latch Receptacle
50
Package
UL 94V-0
Signal
High
-65 – 105 °C[-85 – 221 °F]
3.81 mm[.15 in]
58.42 mm[2.3 in]
8.89 mm[.35 in]
2.54 mm[.1 in]
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant
Compliant
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JAN 2022
(223)
Does not contain REACH SVHC
Not Low Halogen - contains Br or Cl > 900
ppm.
Wave solder capable to 265°C
Halogen Content
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
For support call+1 800 522 6752
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
05/26/2022 03:10PM | Page 3
3-1761603-3
Ribbon Cable Connectors, Wire-to-Board, 40 Position, .1 in [2.54 mm] Centerline,
Vertical, Through Hole - Solder, 2 Row, Plug, Low Profile
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

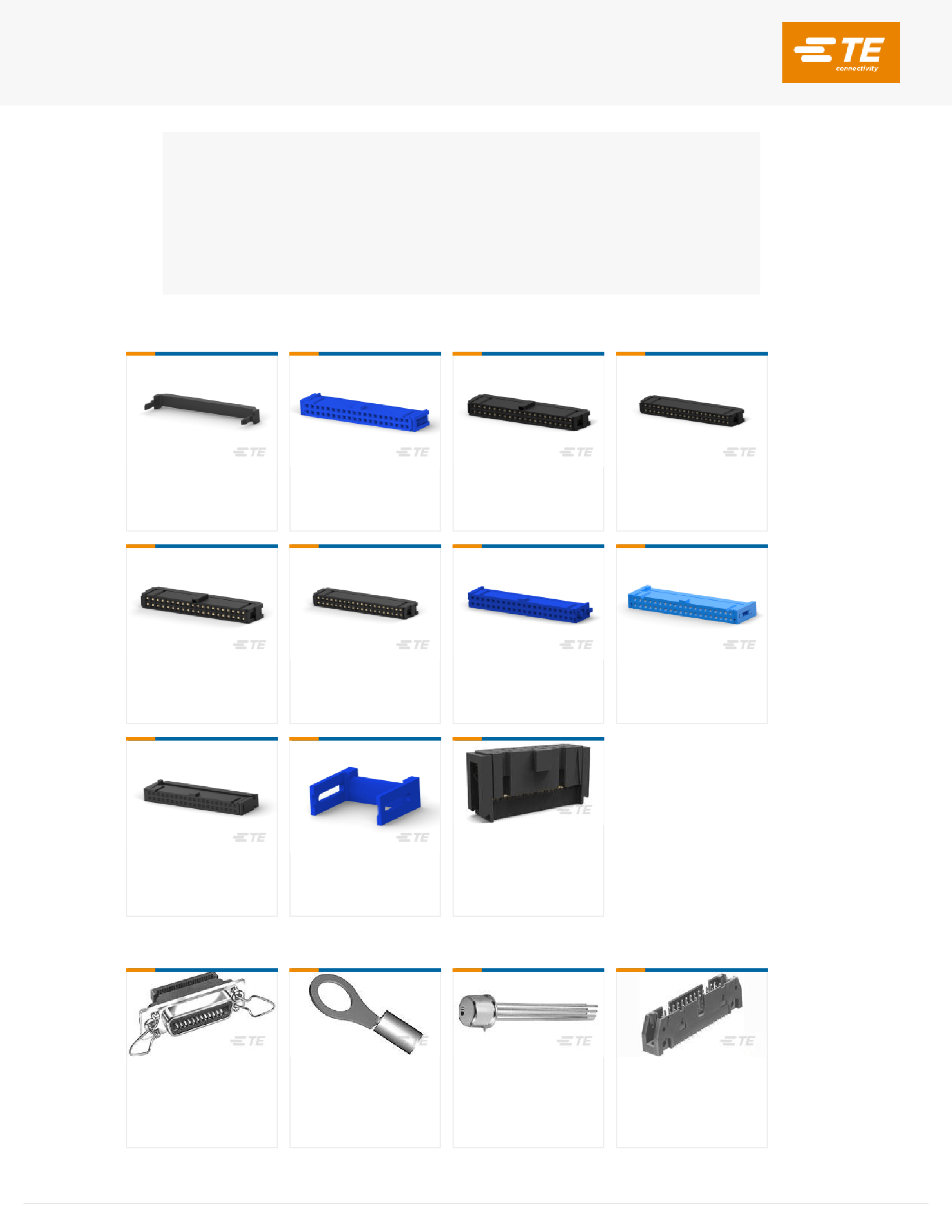

Compatible Parts
TE Part # 499252-1
040 STRAIN RELIEF A-L RCPT
TE Part # 1-1658527-3
622-4041LF FEM SOCKT,LEAD FREE
TE Part # 1658622-9
40 NOVO MIL/CTR 30DP,LEAD FREE
TE Part # 1658620-9
40 NOVO MIL 15DP, LEAD FREE
TE Part # 1658621-9
40 NOVO MIL/CTR 15DP,LEAD FREE
TE Part # 1658623-9
40 NOVO MIL 30DP, LEAD FREE
TE Part # 2-1658526-0
609-4030LF FEM SOCKT,LEAD FREE
TE Part # 2-1658526-1
609-4041LF FEM SOCKT,LEAD FREE
TE Part # 1-1658528-9
636-4041LF=FEM SKT BLD POL S/R
TE Part # CAT-AM71-A85022
Female Socket Connectors: Strain
Relief
TE Part # 1-1658527-2
622-4030LF FEM SOCKT,LEAD FREE

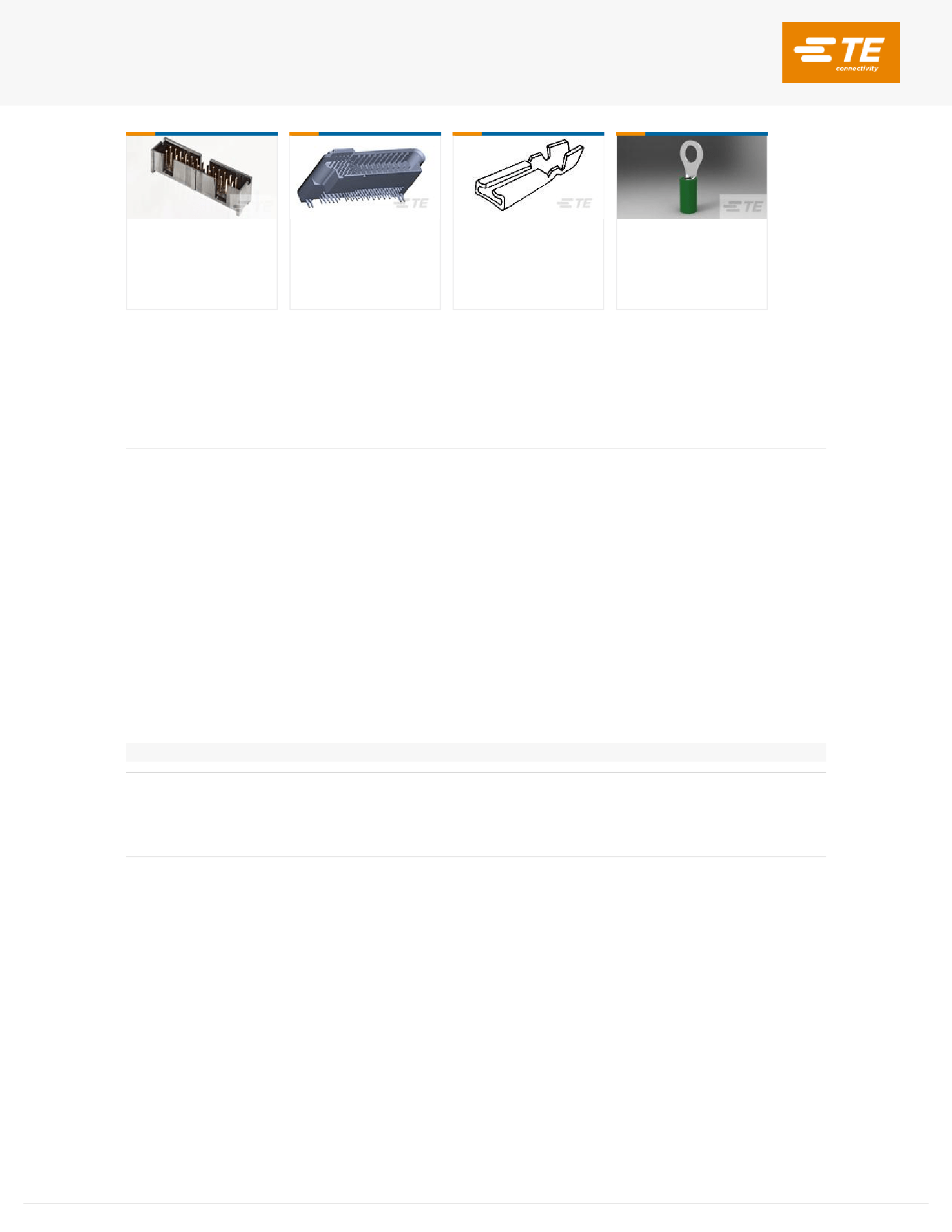

Customers Also Bought
TE Part #554902-1
EMI RCPT ASSY,50 POSN,SHLD
TE Part #330969
TERMINAL,SOLIS R 6HD 1/4
TE Part #2-1617118-0
J1MACD-26XM = M39016/23-030M
TE Part #2-1761679-9
IDC LOW PRO HDR 26P VERT BLUE
For support call+1 800 522 6752
05/26/2022 03:10PM | Page 4
3-1761603-3
Ribbon Cable Connectors, Wire-to-Board, 40 Position, .1 in [2.54 mm] Centerline,
Vertical, Through Hole - Solder, 2 Row, Plug, Low Profile
TE Part #3-1761603-5
IDC LOW PRO HDR 50P VERT BLUE
TE Part #1926734-2
ASSYMINIPAKHDL25S10PRAPLUGBDLCK
TE Part #42765-1
TAPER TAB 078 REVERSE REEL REC
24-22TPBR
TE Part #50832-3
TERMINAL,PIDG PTFE R 22-20 10
