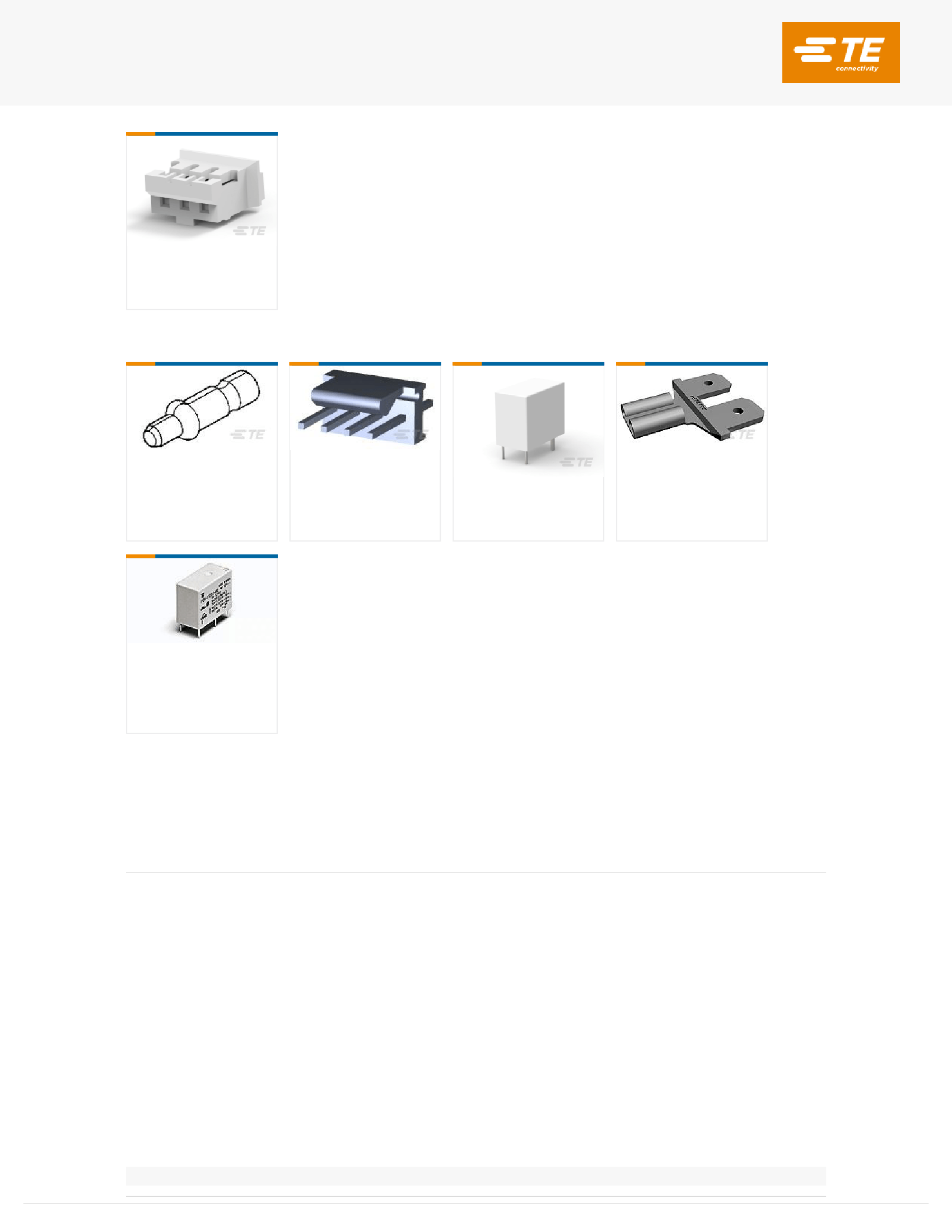

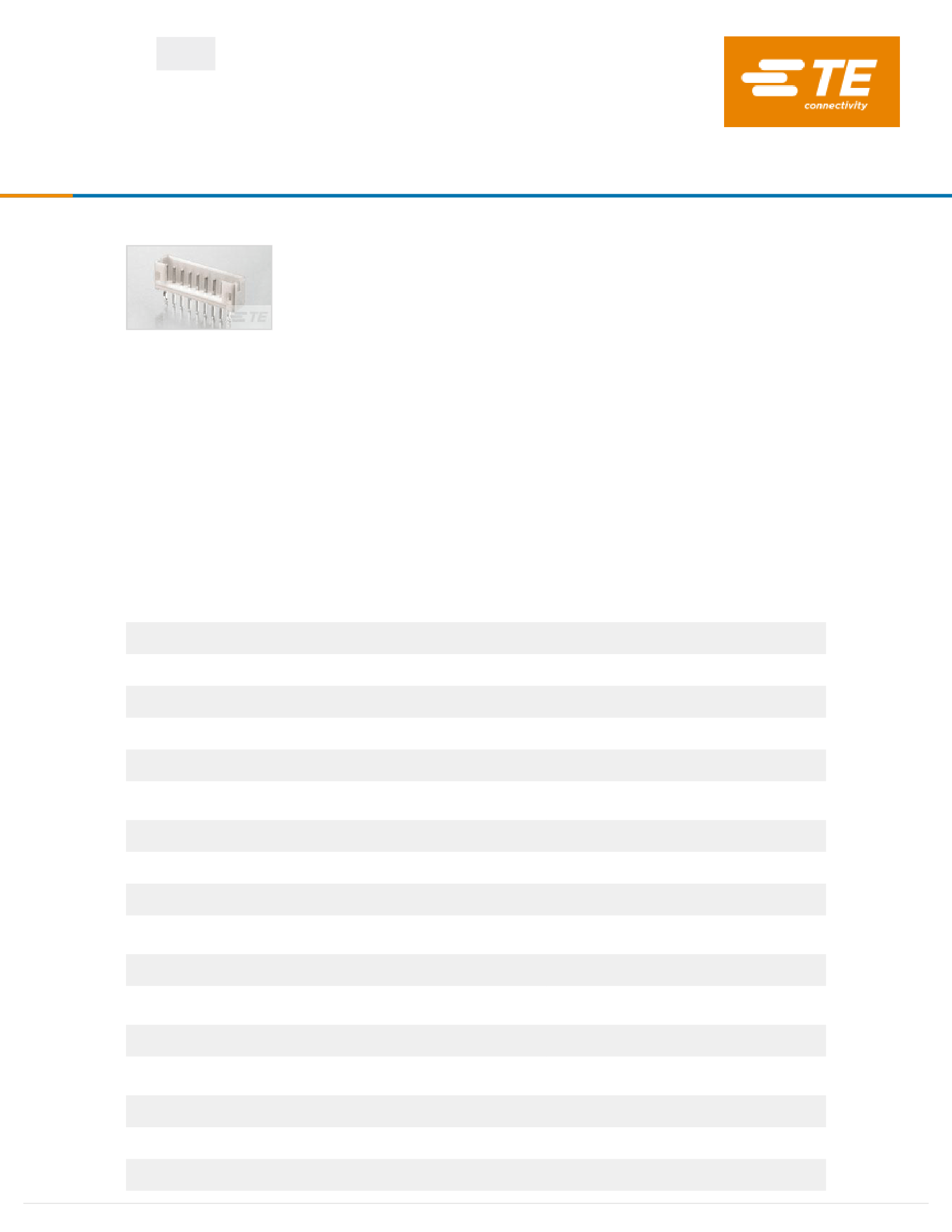

3-440054-3
PCB Mount Header, Vertical, Wire-to-Board, 3 Position, .079 in [2 mm] Centerline,
Partially Shrouded, Tin, Through Hole - Solder, Signal, Natural
3-440054-3
ACTIVE
TE Internal #: 3-440054-3
PCB Mount Header, Vertical, Wire-to-Board, 3 Position, .079 in [2
mm] Centerline, Partially Shrouded, Tin, Through Hole - Solder,
Signal, Natural
View on TE.com >
Connectors
>
PCB Connectors
>
PCB Headers & Receptacles
>
AMP HPI 2.0MM HEADERS
Connector System:
Wire-to-Board
Number of Positions:
3
Number of Rows:
1
Centerline (Pitch):
2 mm [ .079 in ]
PCB Mount Orientation:
Vertical
All AMP HPI 2.0MM HEADERS (211)
Features
Product Type Features
Connector System
Header Type
Sealable
Connector & Contact Terminates To
PCB Connector Assembly Type
Configuration Features
Number of Positions
Number of Rows
PCB Mount Orientation
Electrical Characteristics
Operating Voltage
Body Features
Primary Product Color
Contact Features
Contact Mating Area Length
Mating Square Post Dimension
Contact Mating Area Plating Material Thickness
Wire-to-Board
Partially Shrouded
No
Printed Circuit Board
PCB Mount Header
3
1
Vertical
250 VAC
Natural
3.35 mm[.131 in]
.5 mm[.02 in]
2.032 µm[80 µin]
Bright
05/26/2022 12:14PM | Page 1
For support call+1 800 522 6752
PCB Contact Termination Area Plating Material Finish
3-440054-3
PCB Mount Header, Vertical, Wire-to-Board, 3 Position, .079 in [2 mm] Centerline,
Partially Shrouded, Tin, Through Hole - Solder, Signal, Natural
PCB Contact Termination Area Plating Material Finish
Contact Shape & Form
Contact Mating Area Plating Material Finish
PCB Contact Termination Area Plating Material
Contact Base Material
Contact Mating Area Plating Material
Contact Type
Contact Current Rating (Max)
Termination Features
Square Termination Post & Tail Dimension
Terminations per Post (Max)
Termination Post & Tail Length
Termination Method to Printed Circuit Board
Mechanical Attachment
Mating Alignment Type
Mating Retention
PCB Mount Retention Type
Connector Mounting Type
Mating Alignment
PCB Mount Alignment
PCB Mount Retention
Housing Features
Housing Material
Centerline (Pitch)
Dimensions
Connector Length
Connector Height
Connector Width
PCB Thickness (Recommended)
Usage Conditions
Operating Temperature Range
Operation/Application
Circuit Application
Bright
Square
Bright
Tin
Brass
Tin
Pin
3A
.5 mm[.02 in]
3
3.4 mm[.134 in]
Through Hole - Solder
Polarization
Without
Kinked Tines
Board Mount
With
Without
With
Nylon 66 GF
2 mm[.079 in]
8 mm[.314 in]
6.05 mm[.238 in]
4.7 mm[.185 in]
1 – 1.6 mm[.039 – .063 in]
-25 – 85 °C[-13 – 185 °F]
For support call+1 800 522 6752
Signal
05/26/2022 12:14PM | Page 2
3-440054-3
PCB Mount Header, Vertical, Wire-to-Board, 3 Position, .079 in [2 mm] Centerline,
Partially Shrouded, Tin, Through Hole - Solder, Signal, Natural
Circuit Application
Industry Standards
UL Flammability Rating
Packaging Features
Packaging Quantity
Packaging Type
Signal
UL 94V-0
300
Box, Tube
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant
Compliant
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JUN 2018
(191)
SVHC > Threshold:
Not Yet Reviewed
Low Halogen - Br, Cl, F, I < 900 ppm per
homogenous material. Also BFR/CFR/PVC
Free
Wave solder capable to 240°C
Halogen Content
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach
Compatible Parts
For support call+1 800 522 6752
05/26/2022 12:14PM | Page 3
3-440054-3
