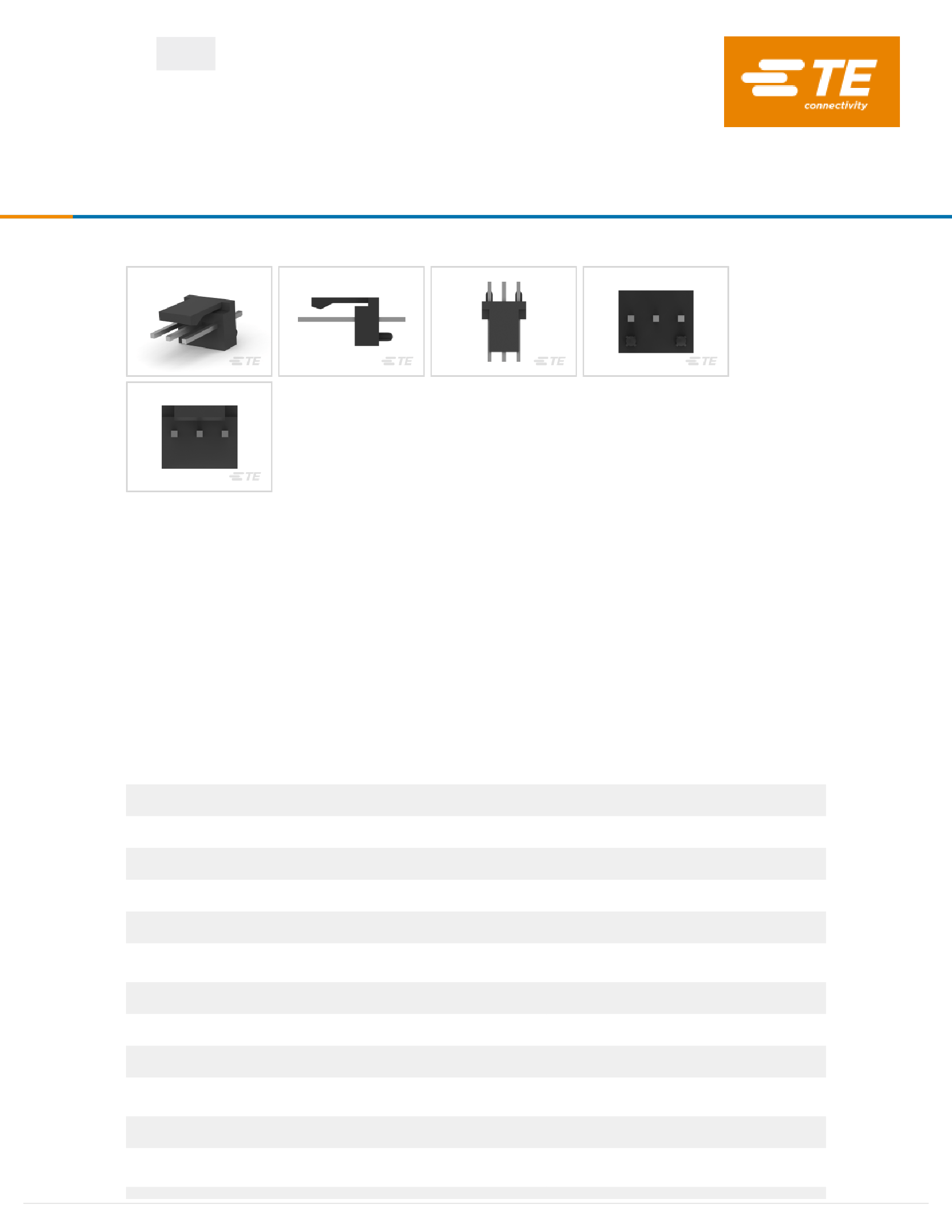

3-647609-3
MTA 100, PCB Mount Header, Vertical, Wire-to-Board, 3 Position, .1 in [2.54 mm]
Centerline, Partially Shrouded, Tin, Through Hole - Solder, Signal
3-647609-3
MTA
|
MTA 100
ACTIVE
TE Internal #: 3-647609-3
MTA 100, PCB Mount Header, Vertical, Wire-to-Board, 3 Position, .
1 in [2.54 mm] Centerline, Partially Shrouded, Tin, Through Hole -
Solder, Signal
View on TE.com >
Connectors
>
PCB Connectors
>
PCB Headers & Receptacles
>
Polyester Vertical PCB Header: 2.54mm, Unshrouded, No Mating Alignment
Connector System:
Wire-to-Board
Number of Positions:
3
Number of Rows:
1
Centerline (Pitch):
2.54 mm [ .1 in ]
PCB Mount Orientation:
Vertical
All Polyester Vertical PCB Header: 2.54mm, Unshrouded, No Mating Alignment (332)
Features
Product Type Features
Connector System
Header Type
Sealable
Connector & Contact Terminates To
PCB Connector Assembly Type
Configuration Features
Number of Positions
Number of Rows
PCB Mount Orientation
Electrical Characteristics
Operating Voltage
Body Features
Primary Product Color
Black
05/26/2022 12:00PM | Page 1
Wire-to-Board
Partially Shrouded
No
Printed Circuit Board
PCB Mount Header
3
1
Vertical
250 VAC
For support call+1 800 522 6752
3-647609-3
MTA 100, PCB Mount Header, Vertical, Wire-to-Board, 3 Position, .1 in [2.54 mm]
Centerline, Partially Shrouded, Tin, Through Hole - Solder, Signal
Primary Product Color
Contact Features
Contact Layout
Contact Mating Area Length
Mating Square Post Dimension
PCB Contact Termination Area Plating Material Thickness
Contact Underplating Material Thickness
Contact Mating Area Plating Material Thickness
PCB Contact Termination Area Plating Material Finish
Contact Shape & Form
Contact Mating Area Plating Material Finish
Contact Underplating Material
PCB Contact Termination Area Plating Material
Contact Base Material
Contact Mating Area Plating Material
Contact Type
Contact Current Rating (Max)
Termination Features
Square Termination Post & Tail Dimension
Termination Post & Tail Length
Termination Method to Printed Circuit Board
Mechanical Attachment
PCB Mount Alignment Type
Mating Alignment Type
Mating Retention
Panel Mount Feature
PCB Mount Retention Type
Mating Retention Type
Connector Mounting Type
Mating Alignment
PCB Mount Alignment
PCB Mount Retention
Housing Features
Black
Inline
7.37 mm[.29 in]
.64 mm[.025 in]
3.81 – 6.3 µm[150 – 250 µin]
1.27 µm[50 µin]
3.81 – 6.3 µm[150 – 250 µin]
Matte
Square
Matte
Nickel
Tin
Copper Alloy
Tin
Pin
5A
.64 mm[.025 in]
3.43 mm[.135 in]
Through Hole - Solder
Peg
Polarization
With
Without
Tab
Friction Lock
Board Mount
With
With
With
For support call+1 800 522 6752
05/26/2022 12:00PM | Page 2
3-647609-3
MTA 100, PCB Mount Header, Vertical, Wire-to-Board, 3 Position, .1 in [2.54 mm]
Centerline, Partially Shrouded, Tin, Through Hole - Solder, Signal
Housing Features
Housing Material
Centerline (Pitch)
Dimensions
Connector Height
PCB Thickness (Recommended)
Usage Conditions
Operating Temperature Range
Operation/Application
Circuit Application
Industry Standards
CSA Rating
Agency/Standard
Approved Standards
UL Flammability Rating
Packaging Features
Packaging Quantity
Packaging Type
500
Package
Certified
CSA, UL
CSA LR7189, UL E28476
UL 94V-0
Signal
-55 – 105 °C[-67 – 221 °F]
8.81 mm[.34 in]
1.57 mm[.062 in]
Polyester - GF
2.54 mm[.1 in]
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant
Compliant
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JAN 2022
(223)
Does not contain REACH SVHC
Not Low Halogen - contains Br or Cl > 900
ppm.
Halogen Content
Solder Process Capability
Wave solder capable to 240°C
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
For support call+1 800 522 6752
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
05/26/2022 12:00PM | Page 3
3-647609-3
MTA 100, PCB Mount Header, Vertical, Wire-to-Board, 3 Position, .1 in [2.54 mm]
Centerline, Partially Shrouded, Tin, Through Hole - Solder, Signal
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

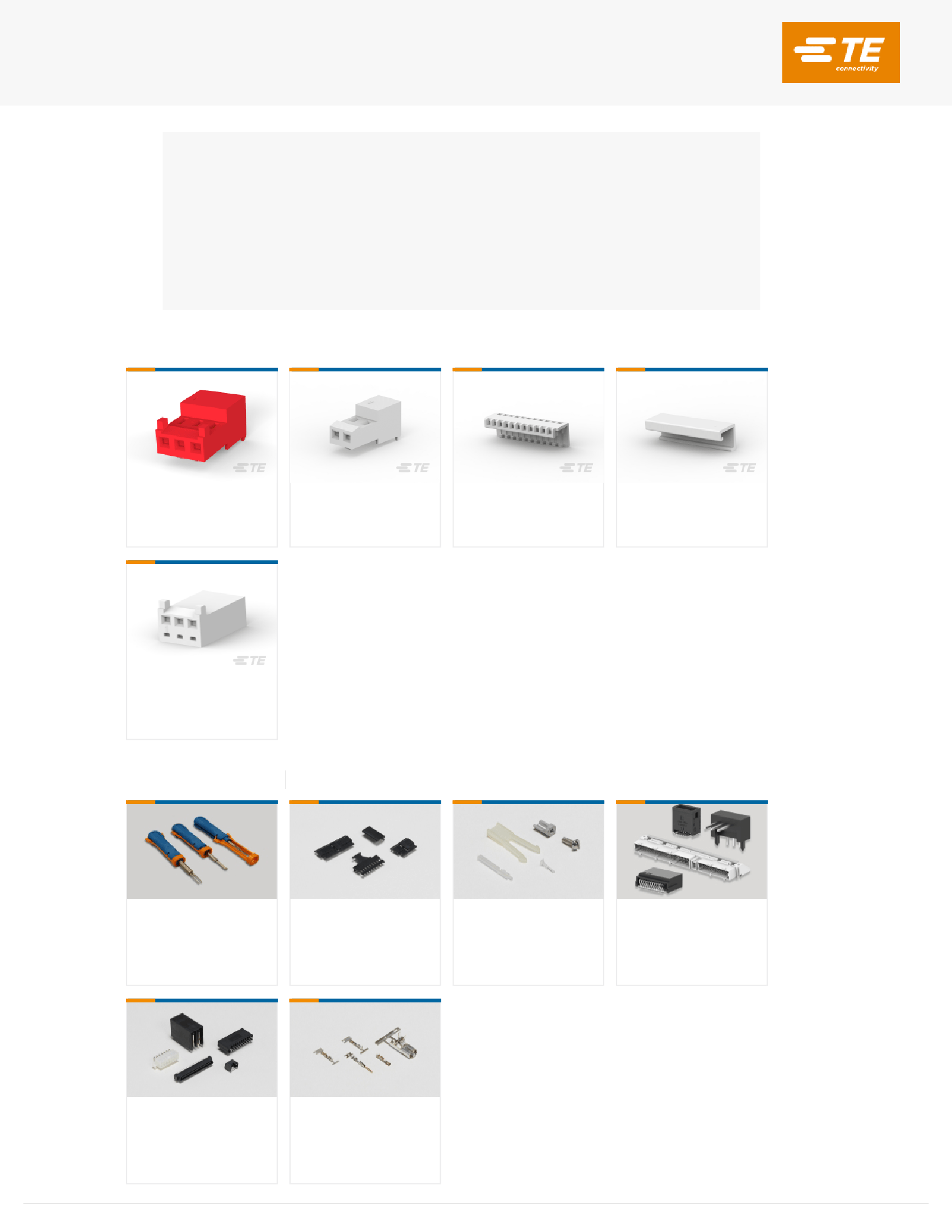

Compatible Parts
TE Part # CAT-104MTA-NTPMR
Nylon Tin Plated Receptacle: 2.54mm,
With Mating Alignment, MTA 100
TE Part # CAT-104MTA-NTPNR
Nylon Tin Plated Receptacle: 2.54mm,
No Mating Alignment, MTA 100
TE Part # CAT-104MTA-NYLCC
Nylon PCB Connector Covers: 2.54
mm, MTA 100
TE Part # CAT-104MTA-PLSCC
Polyester PCB Connector Covers: 2.54
mm, MTA 100
TE Part # 1375820-3
CST-100 II HOUSING 3 POS
Also in the Series
MTA 100
Insertion & Extraction Tools(2)
PCB Connector Covers(107)
PCB Connector Keying(1)
PCB Headers & Receptacles(1182)
Standard Rectangular Connectors
(1718)
Wire-to-Board Connector Contacts(18)
For support call+1 800 522 6752
Customers Also Bought
05/26/2022 12:00PM | Page 4
3-647609-3
MTA 100, PCB Mount Header, Vertical, Wire-to-Board, 3 Position, .1 in [2.54 mm]
Centerline, Partially Shrouded, Tin, Through Hole - Solder, Signal

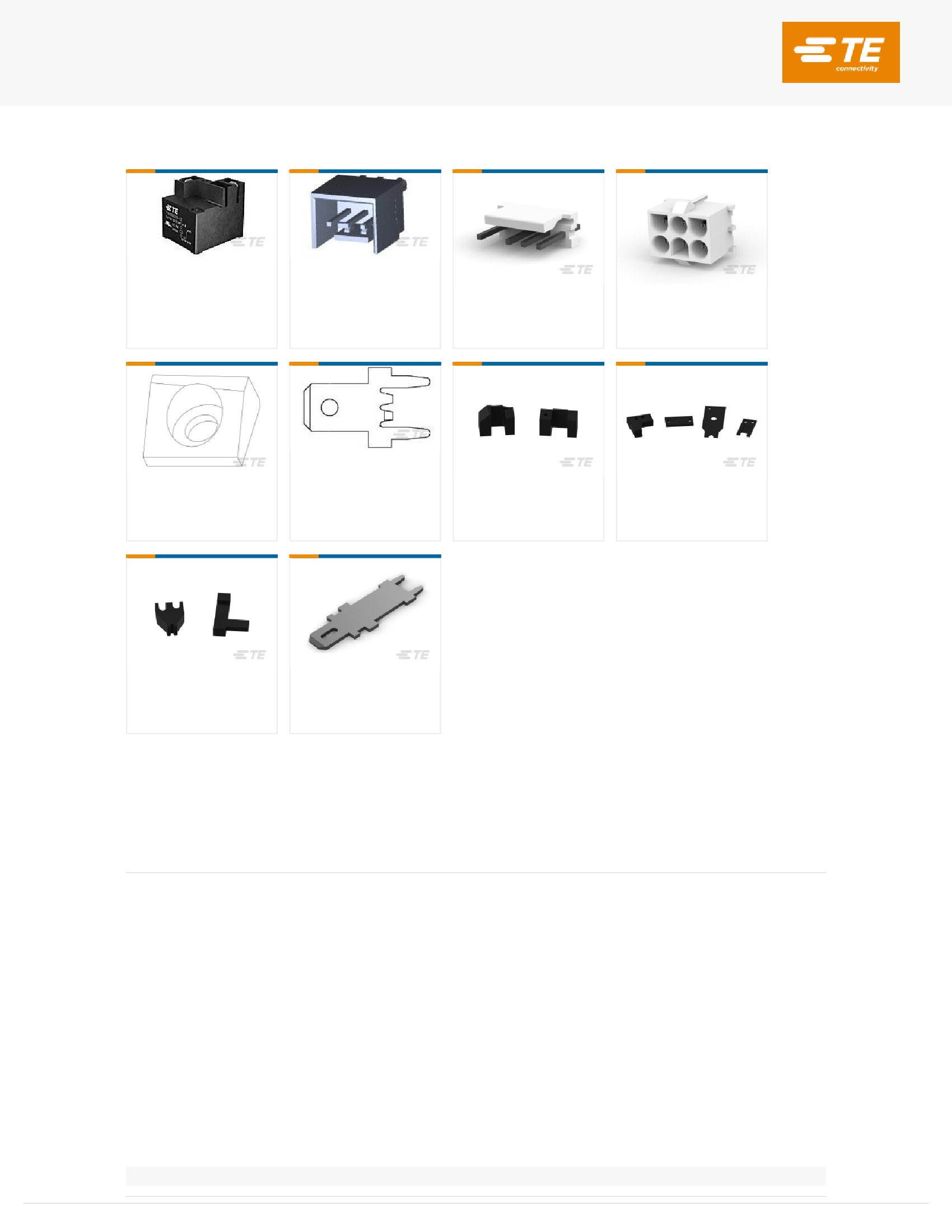

Customers Also Bought
TE Part #3-1419104-2
T9AS5D22-110
TE Part #3-644893-3
03P CST100 SHRD HDR ASSY LF
TE Part #643495-1
05P MTA156 HDR ASSY W/O#4
TE Part #1586090-1
06P UMNL PINHDR NO DRAIN HOLE
TE Part #2280441-1
INSERT SHEAR, REAR CARRIER
TE Part #63823-1
187 FASTON TAB TPBR
TE Part #2119862-2
SHEAR HOLDER, REAR
TE Part #803926-1
PLATE, REAR SHEAR
TE Part #463460-3
HOLD DOWN, TERMINAL
TE Part #1742664-1
187 FASTON,TAB,PCB,TNBR
Documents
Product Drawings
03P MTA100 HDR ASSY F/L LF
English
CAD Files
3D PDF
3D
Customer View Model
ENG_CVM_CVM_3-647609-3_D.2d_dxf.zip
English
Customer View Model
ENG_CVM_CVM_3-647609-3_D.3d_igs.zip
English
Customer View Model
ENG_CVM_CVM_3-647609-3_D.3d_stp.zip
English
By downloading the CAD file I accept and agree to the
Terms and Conditions
of use.
Datasheets & Catalog Pages
