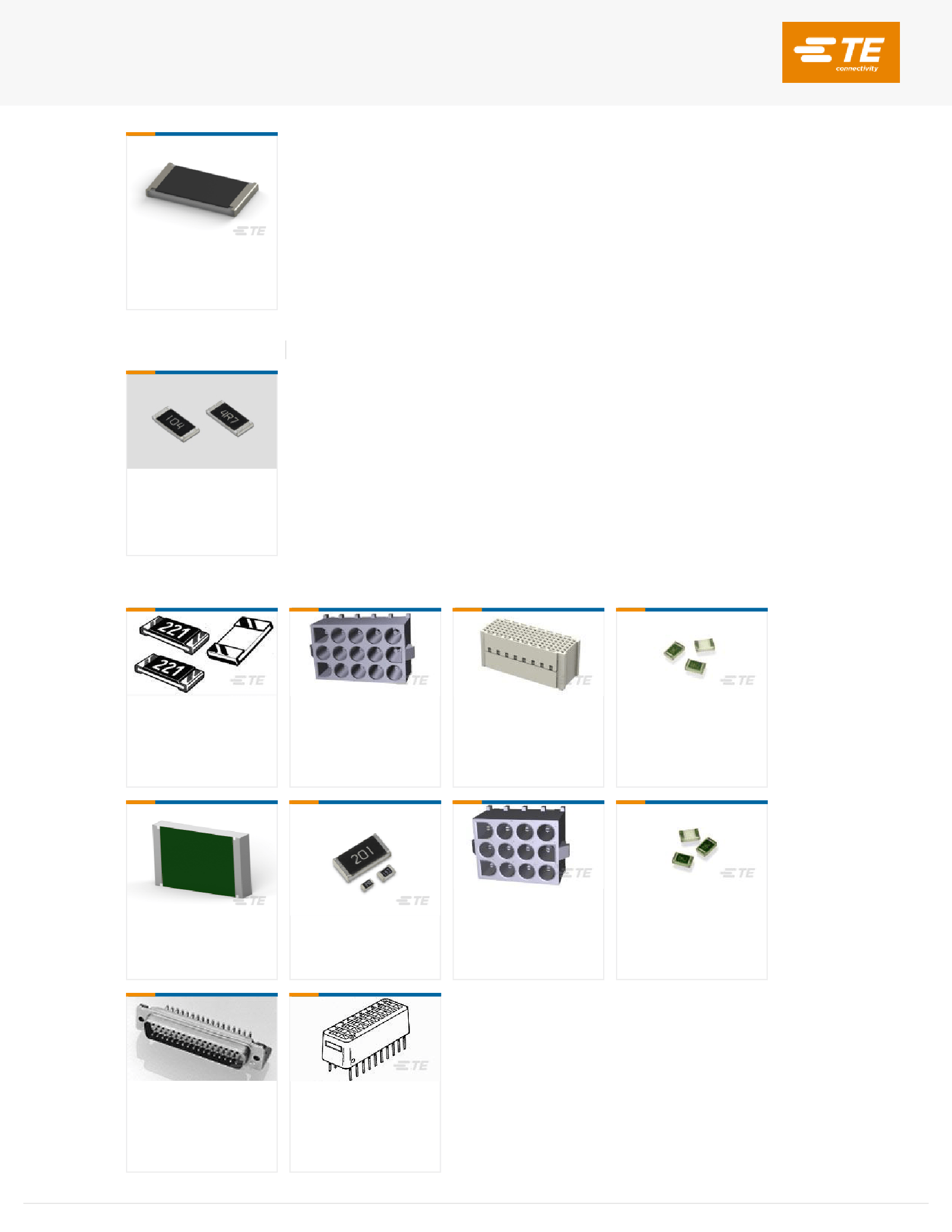

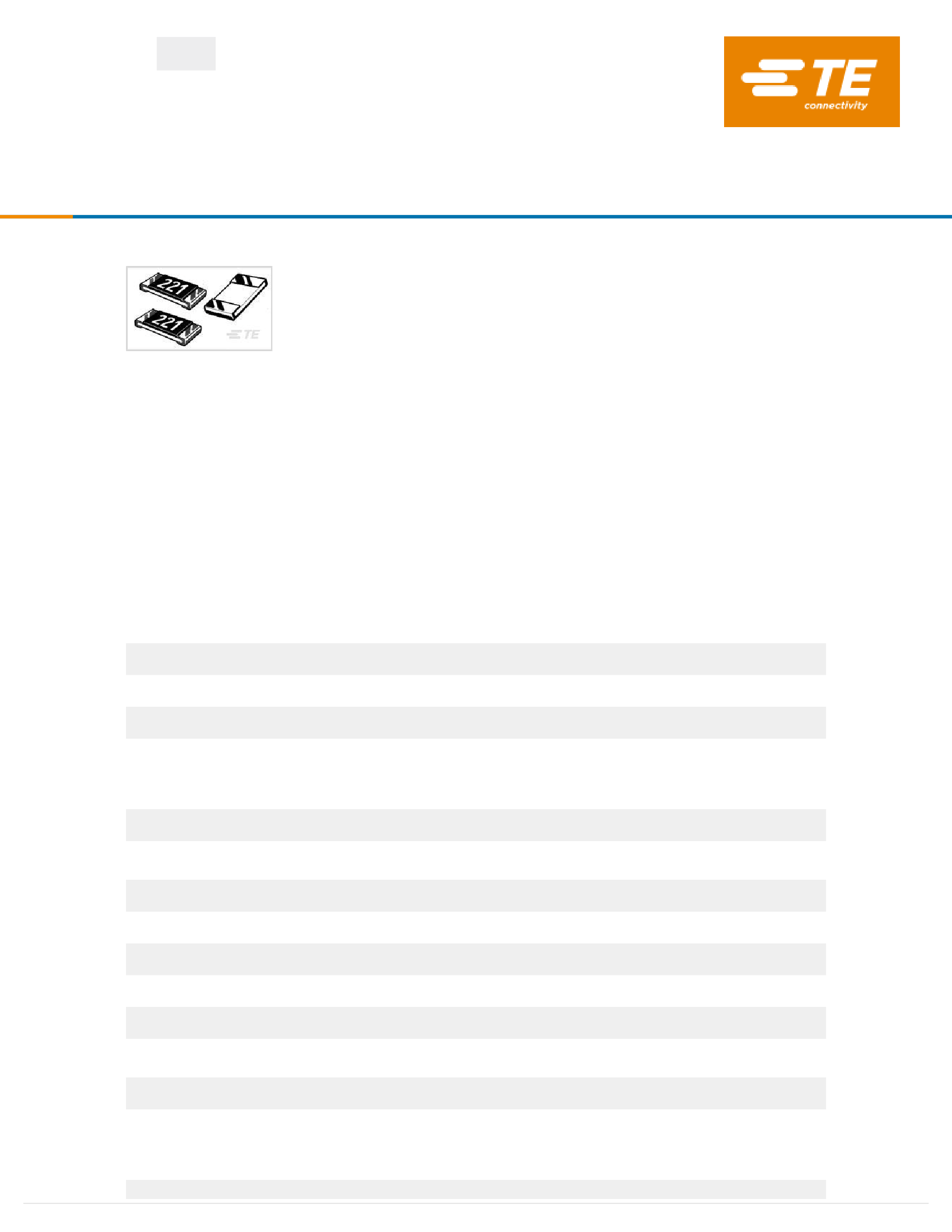

352136RFT
CGS 3521, Surface Mount Resistors, Power Resistor, 2 Termination, 2512, Taped &
Reeled, 1 %, Thick Film, Resistance Class Up to 1kΩ, 36 Ω, 2 W
352136RFT
CGS
|
CGS 3521
ACTIVE
TE Internal #: 1-2176070-4
CGS 3521, Surface Mount Resistors, Power Resistor, 2 Termination,
2512, Taped & Reeled, 1 %, Thick Film, Resistance Class Up to 1kΩ,
36 Ω, 2 W
View on TE.com >
Passive Components
>
Resistors
>
Surface Mount Resistors
>
SMD Power Resistor: 2 Watt, 3521 Series
Resistor Type:
Power Resistor
Number of Terminations:
2
Package Size Code:
2512
Packaging Method:
Taped & Reeled
Passive Component Tolerance:
1 %
All SMD Power Resistor: 2 Watt, 3521 Series (121)
Features
Product Type Features
Product Type
Resistor Type
Package Size Code
Element Type
Configuration Features
Number of Resistors
Electrical Characteristics
Voltage Rating
Passive Component Tolerance
Resistance Class
Resistance Value
Power Rating
Termination Features
Number of Terminations
Surface Mount Resistor Termination Type
Dimensions
Passive Component Dimensions
6.35 x 3.2 x .55 mm
2
Solder
250 V
1%
Up to 1kΩ
36 Ω
2W
1
Fixed Resistor
Power Resistor
2512
Thick Film
For support call+1 800 522 6752
05/26/2022 11:54AM | Page 1
352136RFT
CGS 3521, Surface Mount Resistors, Power Resistor, 2 Termination, 2512, Taped &
Reeled, 1 %, Thick Film, Resistance Class Up to 1kΩ, 36 Ω, 2 W
Passive Component Dimensions
Usage Conditions
Temperature Coefficient
Packaging Features
Packaging Method
6.35 x 3.2 x .55 mm
±100 ppm/°C
Taped & Reeled
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant with Exemptions
Not Compliant
Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JAN 2022
(223)
Does not contain REACH SVHC
Low Halogen - Br, Cl, F, I < 900 ppm per
homogenous material. Also BFR/CFR/PVC
Free
Reflow solder capable to 260°C
Halogen Content
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach
Compatible Parts
For support call+1 800 522 6752
05/26/2022 11:54AM | Page 2
352136RFT
CGS 3521, Surface Mount Resistors, Power Resistor, 2 Termination, 2512, Taped &
Reeled, 1 %, Thick Film, Resistance Class Up to 1kΩ, 36 Ω, 2 W
TE Part # CAT-C339-A76A
SMD Power Resistor: 2 Watt, 3521
Series
Also in the Series
CGS 3521
Surface Mount Resistors(136)
Customers Also Bought
TE Part #6-2176070-4
3521 4K3 1% 2W
TE Part #350738-4
15P UMNL PIN HDR ASSY 94VO LF
TE Part #1-2102061-3
Mezalok, Socket, 114 p, 15 mm, 50 Au,
TL
TE Part #5-2176093-1
RP 2A 0.25W 32K4 0.1% 25PPM 1K RL
TE Part #2-2176401-4
3540 120K 1%
TE Part #3-2176331-5
CRGP 2512 6K8 1%
TE Part #350737-4
12P UMNL PIN HDR ASSY 94VO LF
TE Part #6-1879213-8
CPF 0402 143R 0.1% 25PPM 1K RL
TE Part #1757837-3
AMPLIMITE,PLUG ASY,R/A,109,ZN,3
TE Part #9-435626-2
LOW PRO DIP SW 8POS W/TAPE AU
Documents
For support call+1 800 522 6752
05/26/2022 11:54AM | Page 3
352136RFT
CGS 3521, Surface Mount Resistors, Power Resistor, 2 Termination, 2512, Taped &
Reeled, 1 %, Thick Film, Resistance Class Up to 1kΩ, 36 Ω, 2 W
Documents
CAD Files
3D PDF
3D
Customer View Model
ENG_CVM_CVM_1-2176070-4_BB.2d_dxf.zip
English
Customer View Model
ENG_CVM_CVM_1-2176070-4_BB.3d_igs.zip
English
Customer View Model
ENG_CVM_CVM_1-2176070-4_BB.3d_stp.zip
English
By downloading the CAD file I accept and agree to the
Terms and Conditions
of use.
Datasheets & Catalog Pages
SMD Power Resistor - Type 3521 Series
English
Product Environmental Compliance
Product Compliance
English
Product Compliance
English
For support call+1 800 522 6752
05/26/2022 11:54AM | Page 4
